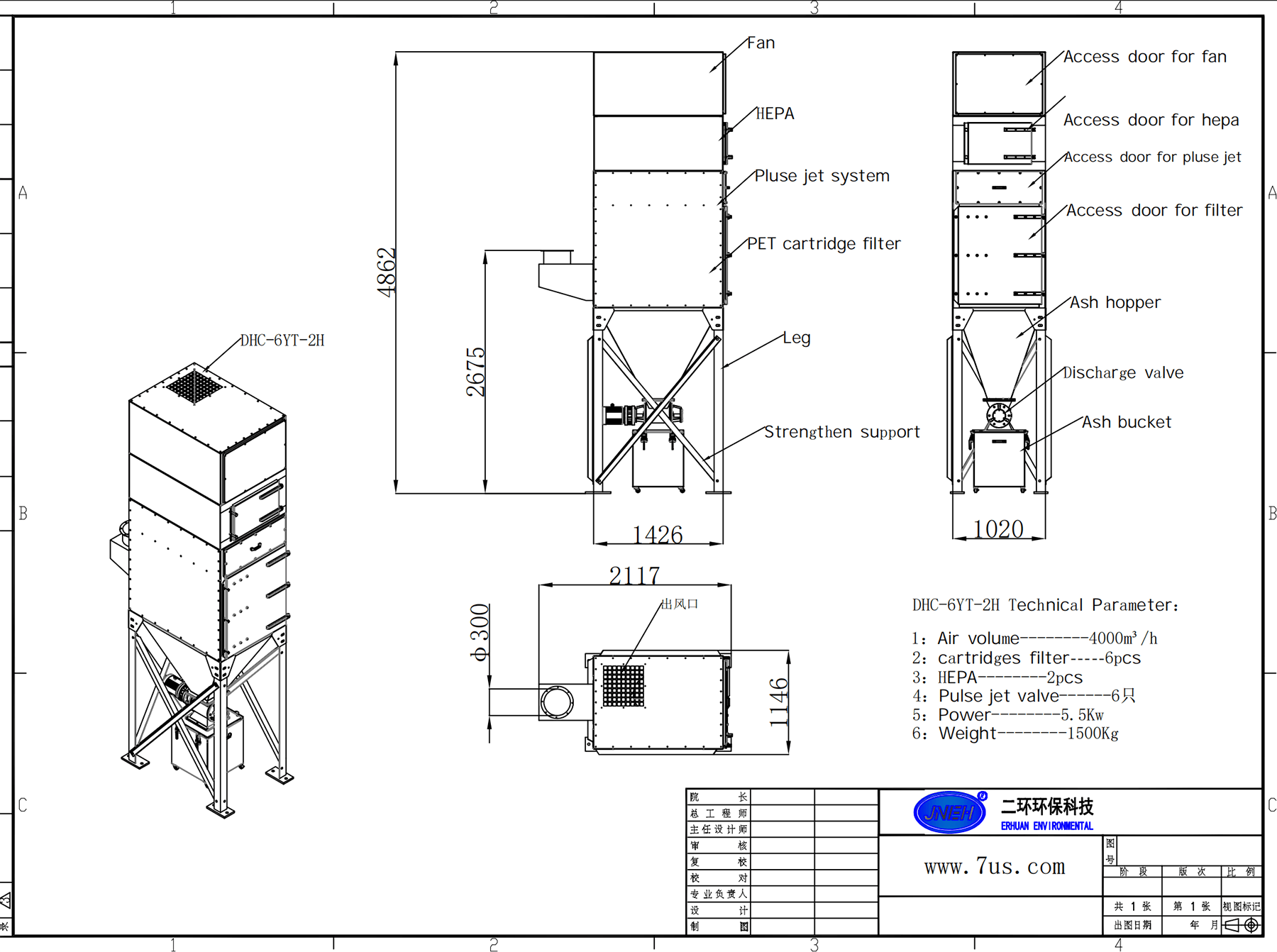

1.1. Product design: The DHC-YTH is an all-in-one vertical cartridge dust collector equipped with an H14 HEPA final filtration stage. The HEPA filter provides high-efficiency final filtration after the primary cartridge filtration stage.

1.2. Cartridge installation: The primary filter cartridges are vertically installed with side access and secured by a clamp and pressure-rod structure, allowing convenient replacement without requiring top-access maintenance.

1.3. Space-saving structure: Side-access cartridge replacement reduces the required overhead maintenance space, making the unit suitable for many indoor industrial installations.

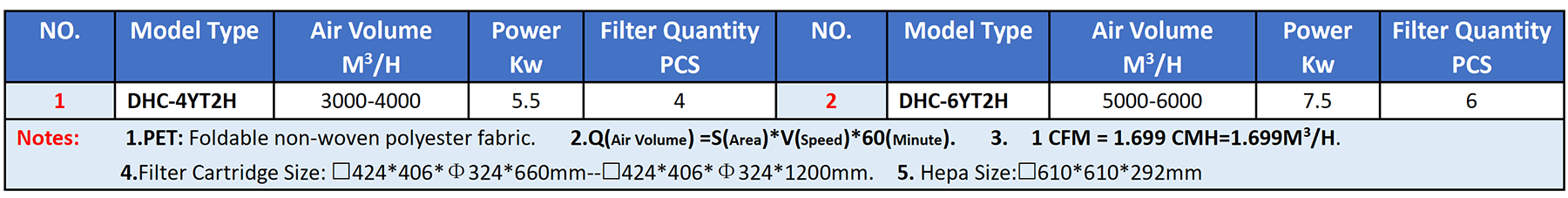

1.4. Filter cartridge sizes: Standard cartridge diameter is approximately Ø324 mm, with common lengths of 660 mm, 1000 mm and 1200 mm. Cartridge size and quantity can be selected according to the required airflow and filtration area.

1.5. Filtration system: The primary cartridges capture industrial dust and are cleaned by compressed-air pulse jets. The downstream H14 HEPA filter provides a final high-efficiency filtration stage.

1.6. All-in-one construction: The DHC-YTH integrates the primary cartridge filtration section, H14 HEPA final filtration and related dust collection components into a compact equipment configuration.

1.7. Vertical cartridge arrangement: Vertical filter cartridges help dust released during pulse cleaning fall toward the hopper and reduce dust accumulation on the upper surfaces of the filter elements.

1.8. Application advantage: Two-stage filtration combines cleanable primary filter cartridges with high-efficiency final filtration, making the DHC-YTH suitable for applications where enhanced control of fine particulate emissions is required.

1.9. Engineering support: Equipment dimensions, cartridge quantity and airflow configuration can be selected according to the confirmed operating requirements and available installation space. Installation guidance can also be provided.

1.10. International transportation: The integrated equipment structure is designed with overseas transportation and installation requirements in mind, helping simplify containerized shipping and on-site installation.
