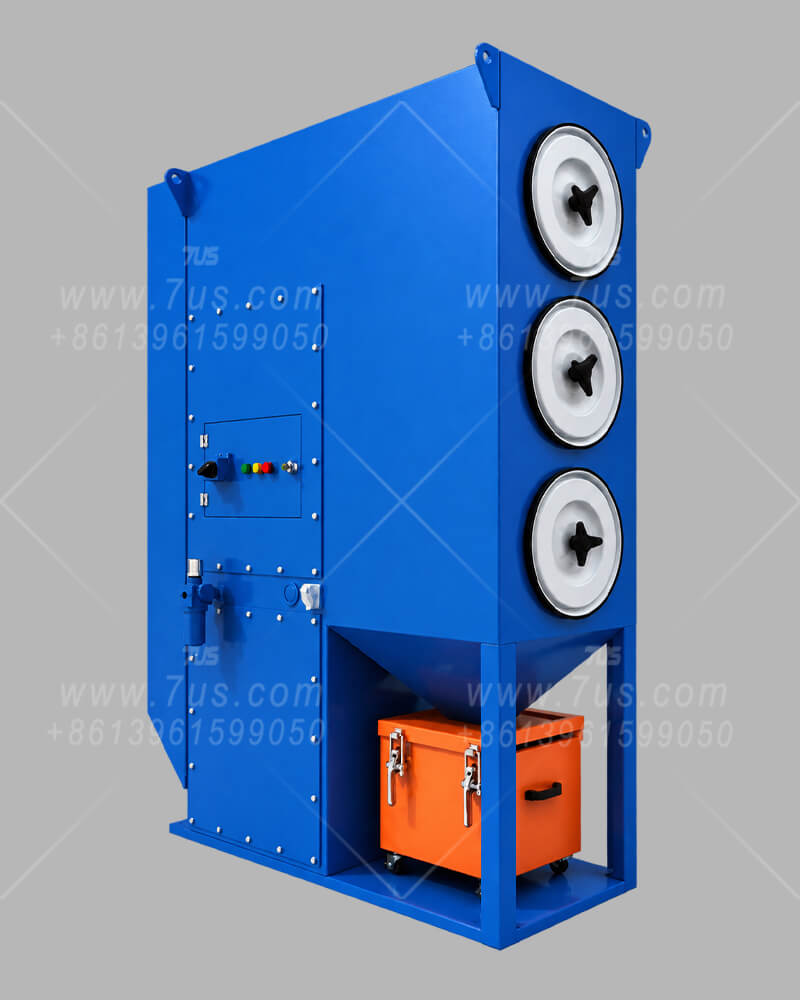

The EHI series is a compact all-in-one cartridge dust collector, combining inclined cartridge filtration with an integrated fan and pulse cleaning. Choose a model below by airflow, motor power and installation space. How downflow cartridge filtration works ↗
Filter: 4 × Ø352×660 mm Spark Arrestor: Integrated standard Dust Collection: Internal dust drawer
EHI-4N
AIRFLOW4000 m³/h
FAN MOTOR5.5 kW
Filter: 4 × Ø352×660 mm Spark Arrestor: External standard Dust Collection: External dust bucket
EHI-6
AIRFLOW5500 m³/h
FAN MOTOR7.5 kW
Filter: 6 × Ø352×660 mm Spark Arrestor: Integrated standard Dust Collection: Internal dust drawer
EHI-6N
AIRFLOW5500 m³/h
FAN MOTOR7.5 kW
Filter: 6 × Ø352×660 mm Spark Arrestor: External standard Dust Collection: External dust bucket
EHI-9N
AIRFLOW10000 m³/h
FAN MOTOR11 kW
Filter: 9 × Ø352×660 mm Spark Arrestor: External standard Dust Collection: External dust bucket
MORE CONFIGURATIONS
More Models & Selection Guidance
More all-in-one configurations can be developed from different cartridge quantities and module combinations. The models shown here are examples.
Typical Applications
All-in-one units are typically suited to low-airflow applications with low dust or fume concentrations, such as laser cutting and welding fume extraction.
When to Choose a Modular System
For high airflow and high dust concentrations, a modular dust collection system is generally recommended. Compact units have smaller hoppers and less maintenance space, so heavy dust loads require frequent emptying. Top-mounted high-power fans also need careful consideration of cooling and service access.
These vertical cartridge dust collectors combine cartridge filtration and an integrated fan in a compact configuration. Compare the product photos and specifications below to find a suitable layout. How vertical cartridge filtration works ↗
DHC-4YT
AIRFLOW4000 m³/h
FAN MOTOR5.5 kW
Pressure: 2800 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 4
DHC-6YT
AIRFLOW5500 m³/h
FAN MOTOR7.5 kW
Pressure: 2800 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 6
DHC-8YT
AIRFLOW6000–8000 m³/h
FAN MOTOR11 kW
Pressure: 3200 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 8
DHC-12YT
AIRFLOW8000–10000 m³/h
FAN MOTOR11 kW
Pressure: 2500 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 12
DHCL-4YT
AIRFLOW4000 m³/h
FAN MOTOR4 kW
Pressure: 2000 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 4
DHCL-6YT
AIRFLOW5500 m³/h
FAN MOTOR5.5 kW
Pressure: 2000 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 6
DHVT-610YT
AIRFLOW5500 m³/h
FAN MOTOR7.5 kW
Pressure: 2800 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 6
DHXL-410YT
AIRFLOW4000 m³/h
FAN MOTOR11 kW
Pressure: 4500 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 4
DHXL-412YT
AIRFLOW5000 m³/h
FAN MOTOR11 kW
Pressure: 4000 Pa Cartridge size: Ø324 × 1200 mm Cartridge quantity: 4
DHC-6YT-2H
AIRFLOW4000 m³/h
FAN MOTOR5.5 kW
Pressure: 2800 Pa Cartridge size: Ø324 × 1000 mm Cartridge quantity: 6
The models shown here are selected examples, not an exhaustive list. Other custom vertical cartridge all-in-one dust collectors can be designed to suit your application and installation requirements.
Flexible Configurations
Cartridge size and quantity, cabinet dimensions, fan selection and filtration stages can be tailored to the required airflow, dust characteristics and available space.
Tell Us What You Need
Share your process, dust type, required airflow and installation constraints so we can recommend a suitable configuration.

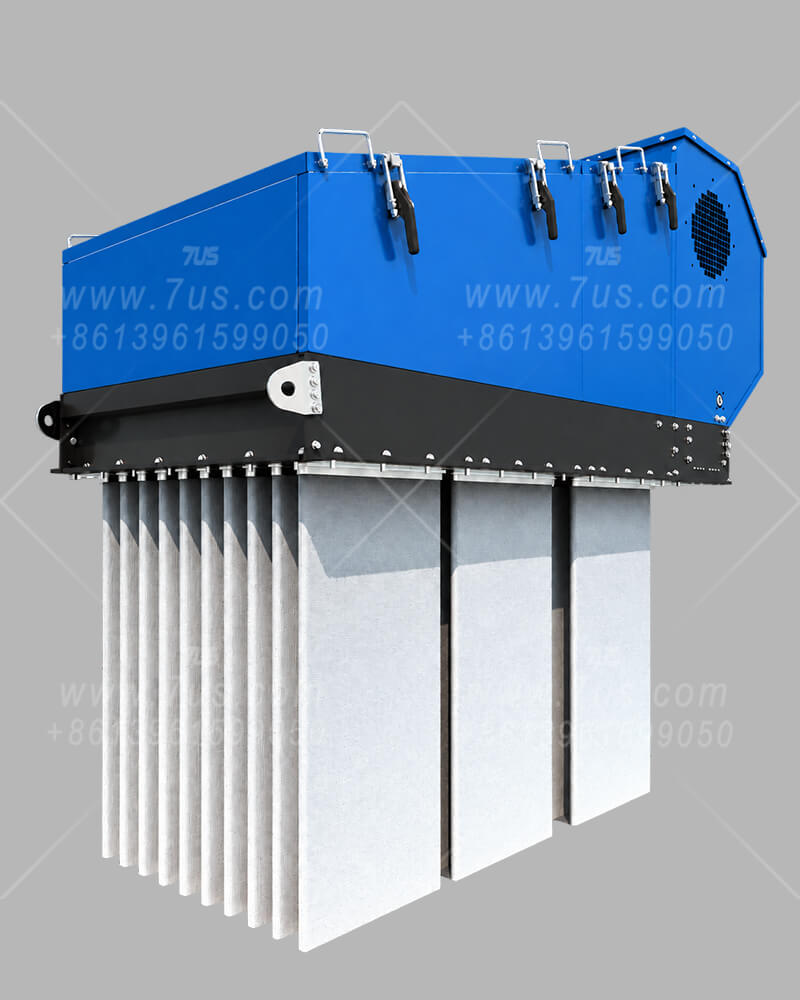

These compact baghouse dust collectors use flat-bag filtration and an integrated fan. Compare airflow, motor power, bag size and bag quantity across the three models.
EHFBC1/3/15-2H
AIRFLOW3000 m³/h
FAN MOTOR4 kW
Bag size: 500 × 1500 mm Number of bags: 30
EHFBI1/2/15
AIRFLOW2000 m³/h
FAN MOTOR3 kW
Bag size: 500 × 1500 mm Number of bags: 20
EHFBV45/15
AIRFLOW3500 m³/h
FAN MOTOR4 kW
Bag size: 500 × 1500 mm Number of bags: 30
EHFBV SERIES · EXTENDED MODEL RANGE
More EHFBV Models, Built Around Your Application
The EHFBV45/15 shown above is one example from a wider range of flat-bag all-in-one dust collectors. Browse the model table below to compare filter area, bag quantity and dimensions, then contact us for a configuration matched to your dust, required airflow and available installation space.
EHFBV Dimension Guide
FRONT & SIDE VIEWS
Dimensions in millimeters · Schematic view, not to scaleSwipe across the drawing.
EHFBV Model Selection
24 models · Filter area 3–60 m² · Scroll for more models and dimensions
Model
Filter area m²
Bag quantity
REFERENCE DIMENSIONS · mm
A
B
C
D
E
F
G
H
J
K
EHFBV3/7
3
4
524
1095
935
480
294
1250
310
295
195
375
EHFBV4/7
4
6
700
1095
935
480
470
1250
310
295
195
375
EHFBV5/12
5
4
524
1095
935
480
294
1800
310
295
195
375
EHFBV6/10
6
6
700
1095
935
480
470
1550
310
295
195
375
EHFBV7/7
7
10
1100
1095
935
480
820
1250
310
295
195
375
EHFBV7.5/12
7.5
6
700
1095
935
480
470
1800
310
295
195
375
EHFBV8/7
8
12
700
1625
935
1005
470
1250
575
310
130
400
EHFBV9/15
9
6
700
1095
935
480
470
2050
310
295
195
375
EHFBV10/10
10
10
1100
1095
935
480
820
1550
310
295
195
375
EHFBV12/10
12
12
700
1625
935
1005
470
1550
575
310
130
400
EHFBV13/12
13
10
1100
1095
935
480
820
1800
310
295
195
375
EHFBV14/7
14
20
1100
1625
935
1005
820
1250
575
310
130
400
EHFBV15/12
15
12
700
1625
935
1005
470
1800
575
310
130
400
EHFBV15/15
15
10
1100
1095
935
480
820
2050
310
295
195
375
EHFBV18/15
18
12
700
1625
935
1005
470
2050
575
310
130
400
EHFBV20/10
20
20
1100
1625
935
1005
820
1550
575
310
130
400
EHFBV21/7
21
30
1100
2225
1090
1605
820
1150
875
310
130
400
EHFBV25/12
25
20
1100
1625
935
1005
820
1800
575
310
130
400
EHFBV30/10
30
30
1100
2225
1090
1605
820
1450
875
310
130
400
EHFBV30/15
30
20
1100
1625
935
1005
820
2050
575
310
130
400
EHFBV38/12
38
30
1100
2330
1090
1605
820
1700
875
310
235
400
EHFBV45/15
45
30
1100
2330
1090
1605
820
1950
875
310
235
400
EHFBV50/12
50
40
1100
2890
1090
2130
820
1960
1137
310
270
400
EHFBV60/15
60
40
1100
2890
1090
2130
820
2210
1137
310
270
400
No matching model. Try a shorter model code.
Dimension letters correspond to the drawing above. Dimension B depends on the motor manufacturer. Final dimensions are confirmed for the selected fan and motor configuration.
Need a Different Configuration?
Tell us your dust type, required airflow, operating conditions and installation limits. We can recommend an EHFBV model or develop a custom flat-bag all-in-one unit to suit your process.

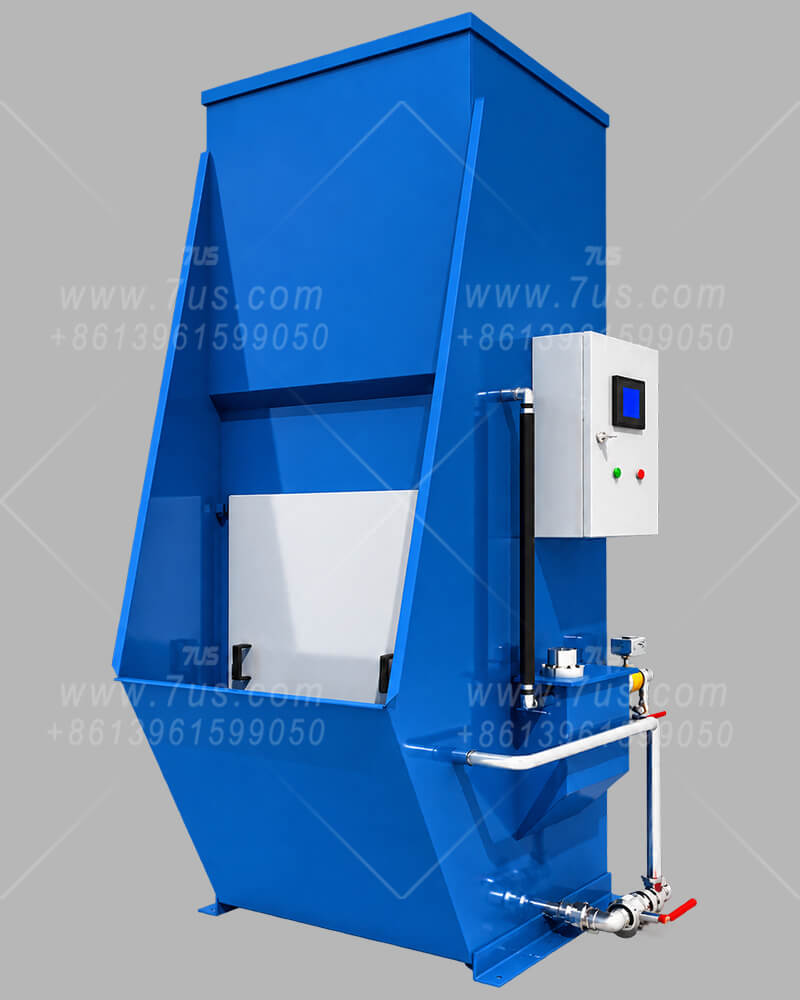

EHWD-S is a compact self-induced wet dust collector for connection to a dust source by ductwork. It can also serve a separate grinding table. EHWD-V brings the grinding table and wet collector together in one workstation. Other airflow capacities and grinding table sizes can be designed to suit specific applications.
EHWD-S · COMPACT COLLECTOR
Self-Induced Wet Collection
The fan draws dust-laden air through the inlet and into the wet collection zone. Airflow raises a turbulent water wash that captures particles; entrained droplets are then separated before the air exits. No separate scrubbing pump or spray nozzles are required.
EHWD-S · Model Selection
Model
Airflow (m³/h)
Fan motor (kW)
EHWD-S2
1,700–2,500
3–4
EHWD-S3
2,500–3,500
4–5.5
EHWD-S4
3,500–5,000
5.5–7.5
EHWD-S5
5,000–6,000
11
EHWD-S · STANDALONE
Connected to the Dust Source
The standalone collector connects to a machine or capture point through ductwork. The compact body integrates the wet collection stage and extraction fan.
EHWD-S · SEPARATE TABLE
Collector with a Remote Grinding Table
The grinding table and wet collector are separate pieces of equipment connected by ductwork. Their positions can be arranged around the available workspace.
EHWD-V · integrated workstation rendering
EHWD-V · INTEGRATED WORKSTATION
Grinding Table and Collector in One Unit
EHWD-V places the grinding surface directly in front of the wet collector. Dust is captured at the work area and carried into the self-induced water wash within the same equipment.
Three standard work surface sizes provide a starting point for selecting a workstation around the workpiece and available floor space.
EHWD-V · Model Selection
Model
Work surface (D × W, mm)
Airflow (m³/h)
Fan motor (kW)
EHWD-V2
600 × 600
2,000–3,000
4–5.5
EHWD-V4
600 × 1,200
3,000–6,000
7.5–11
EHWD-V6
600 × 1,800
6,000–9,000
15–18.5
For wet collection principles and the full EHWD product range, see the dedicated wet dust collector page.
