Keep Conditioned Air.
Reduce Heating & Cooling Losses.
Your dust extraction system can carry valuable heated or cooled air out of the building. For suitable processes, effective dust collection and HEPA final filtration allow that air to stay in the workshop or return through a dedicated supply duct.
Recirculation suitability depends on all airborne contaminants, process conditions and local requirements. Required fresh-air ventilation remains in place.

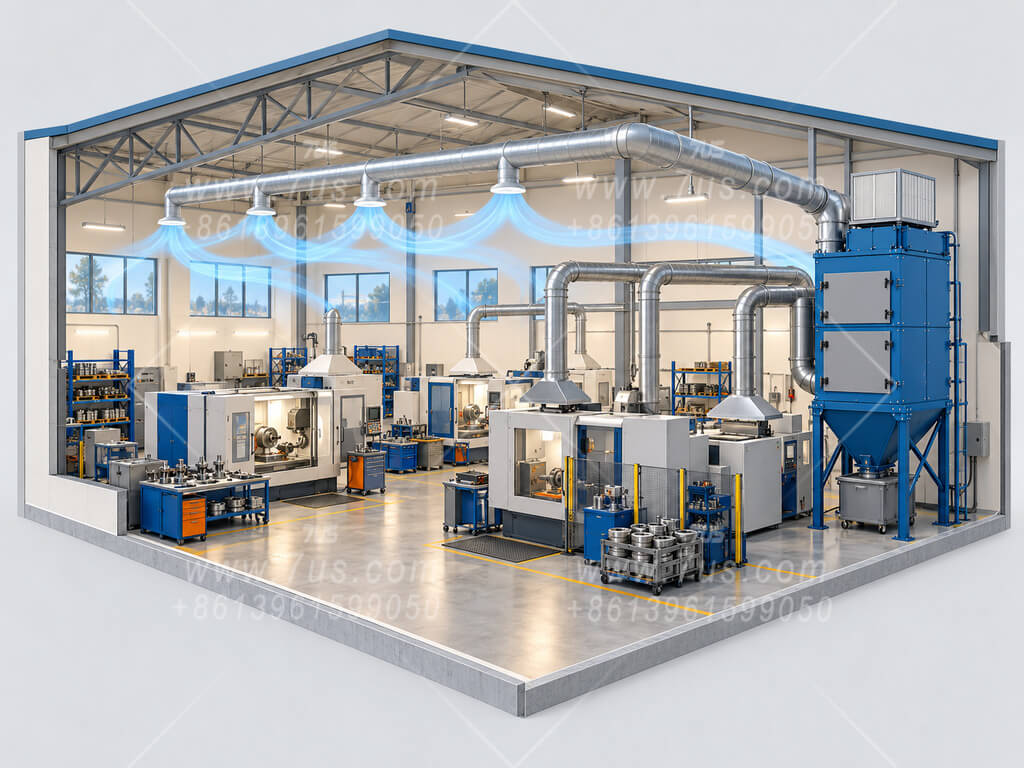

Concept illustration of workshop air recirculation; final equipment and duct arrangements are project-specific.
Reduce the heating and cooling load caused by exhausting conditioned workshop air.
Exhausted workshop air must be replaced. When that make-up air needs heating or cooling, the heating, ventilation and air-conditioning (HVAC) system takes on an additional load. Recirculating suitable filtered air can reduce this load.
Reducing the volume of conditioned air lost through dust extraction can help a temperature-controlled workshop maintain its setpoint. Return outlets and fresh-air supply must still be balanced.
Where indoor discharge is permitted, that dust collection system may not need an outdoor exhaust stack. This can simplify the layout and create a tidier building exterior.
The opportunity is reduced air-conditioning load. Air recirculation does not mean zero energy use or zero emissions. Fan power, filter replacement, required ventilation and process heat still matter.
The same final filtration stage can serve different discharge arrangements.
Filtered air leaves the building through an exhaust duct or stack. Use this arrangement when the process or applicable requirements call for outdoor discharge. HEPA can still reduce particulate emissions.
The dust collector is installed inside the workshop and releases filtered air directly indoors. An integrated fan or a separate fan in an acoustic enclosure can be used.
A dedicated return duct delivers filtered air to selected workshop supply points. Locate outlets to distribute the air without disturbing source capture or causing uncomfortable drafts.
If a project includes both return and outdoor-exhaust routes, dampers, monitoring and the required fault response are defined during system design. A manual changeover valve alone does not establish suitability for recirculation.
A first estimate of sensible heating or cooling load — before a full energy assessment.
Adjust the values to estimate the sensible thermal load associated with the air returned instead of exhausted outdoors.
Use the magnitude of the temperature difference. Annual hours should represent the selected temperature conditions, not automatically all production hours.
For the airflow, return fraction and temperature difference entered.
This is not an electricity saving or a quotation.
Calculation basis: 1.2 kg/m³ air density × 1.005 kJ/(kg·K) specific heat × returned airflow × temperature difference ÷ 3,600. The estimate excludes humidity-related cooling load, added fan power, filter costs and heating/cooling equipment efficiency. Required ventilation, process heat and actual weather determine the achievable net benefit.
Start with the contaminants and working conditions, then select the equipment.
Identify the materials, fine particles, gases, vapors and any oil mist produced by the process.
Check temperature, humidity, dust loading, airflow and production hours before choosing filtration stages.
Evaluate the intended indoor use, required fresh-air supply and applicable exposure and discharge requirements.
An outdoor emission concentration alone does not establish that air is suitable for indoor discharge.
Existing 7US installations show both indoor discharge and retained outdoor exhaust.

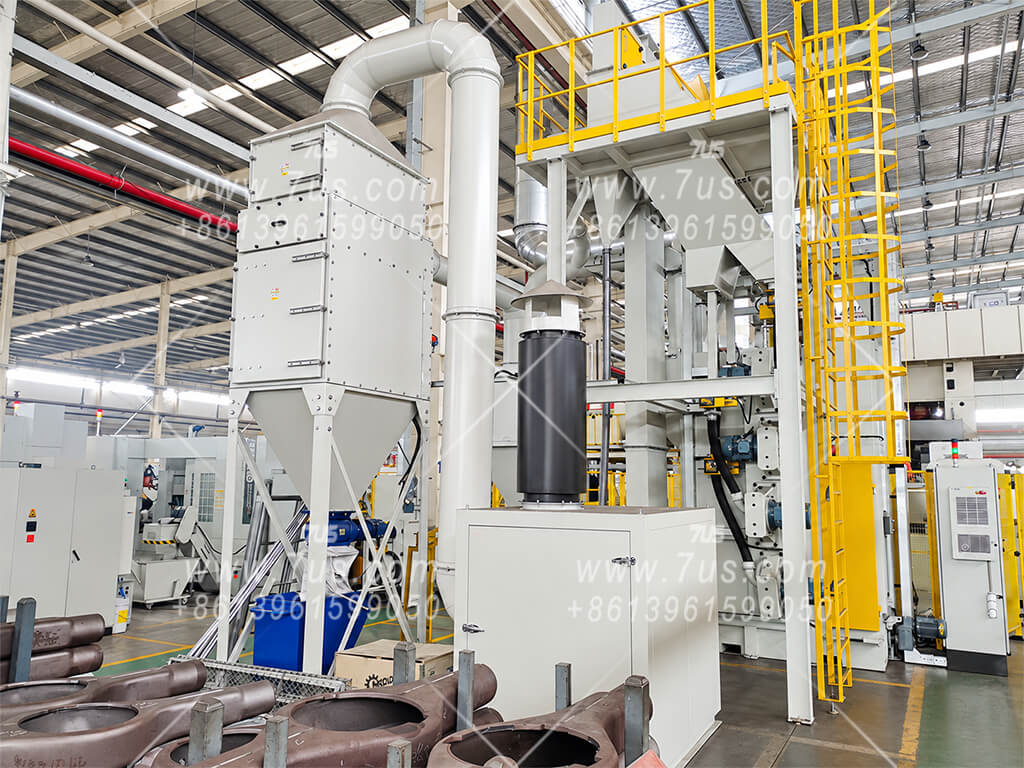

The dust collector and its separately enclosed fan are installed indoors. Cartridge and HEPA filtration precede direct workshop discharge; the acoustic enclosure helps control fan noise.
The fan sits inside the dust collector enclosure with sound-absorbing lining. The compact arrangement combines particulate filtration and direct indoor discharge.

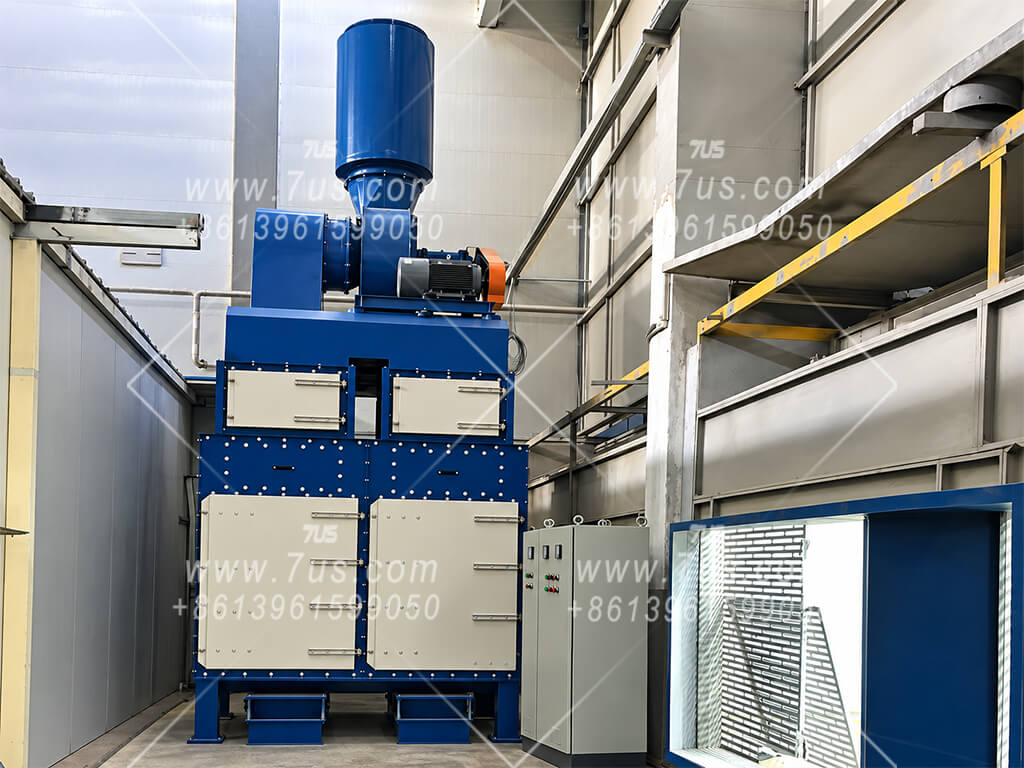

This installation captures powder overspray using cartridge collection followed by HEPA final filtration. Indoor discharge is part of the project-specific system arrangement.

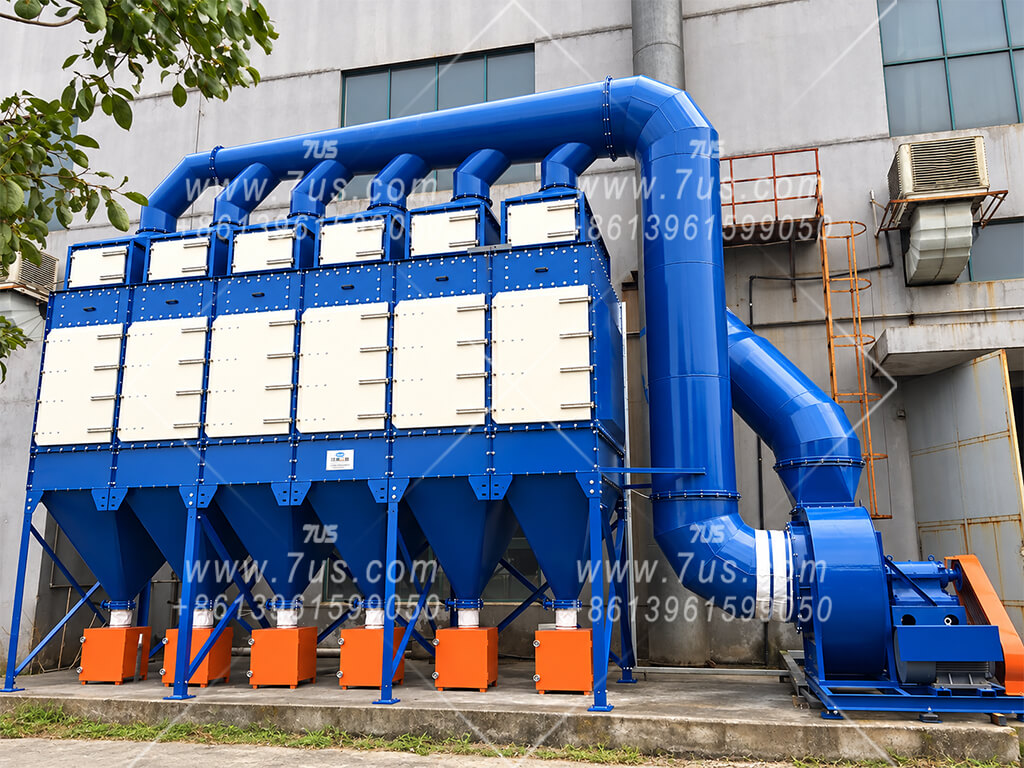

This lead-dust application retains outdoor stack discharge and does not recirculate air into the workshop. HEPA improves particulate control even when indoor return is not appropriate.
Send the process details. We will help define the appropriate configuration.
Send your dust and material details, required airflow, indoor and outdoor temperatures, operating hours and installation photos. Tell us whether you need direct indoor discharge or a ducted return system.
We supply cartridge, flat baghouse and wet dust collectors with project-specific final filtration options. Equipment layout and return-air arrangements are coordinated with your local installer or engineering team.
No. Recirculation depends on the complete contaminant profile, the process and applicable requirements. HEPA filtration addresses particles; gases and vapors need separate consideration.
No. Required outdoor-air ventilation must be maintained. Recirculation can reduce the additional replacement-air load caused by dust extraction.
An upgrade may be possible after reviewing primary collection performance, fan capacity, available pressure, filter housing space, controls and the proposed return-air arrangement.
No. It can reduce the losses associated with the portion of extracted air that is suitable for recirculation. Building ventilation, leakage and other thermal loads remain.
