EHWD-S is a compact collector for connection to a dust source by ductwork and can also serve a separate grinding table. EHWD-V combines the grinding surface and wet collector in one workstation. Both use fan-driven airflow to create the wet scrubbing action without a separate scrubbing pump or spray nozzles.
EHWD-S airflow range: 1,700–6,000 m³/h
EHWD-V integrates a grinding table and collector
No separate scrubbing pump or spray nozzles
Compact layouts for selected wettable grinding dust*
* Combustible-metal applications require dust-specific assessment of water compatibility, water-level protection, hydrogen ventilation and sludge handling.
EHWD-S is a compact self-induced wet dust collector for connection to a dust source by ductwork. It can also serve a separate grinding table. EHWD-V brings the grinding table and wet collector together in one workstation. Other airflow capacities and grinding table sizes can be designed to suit specific applications.

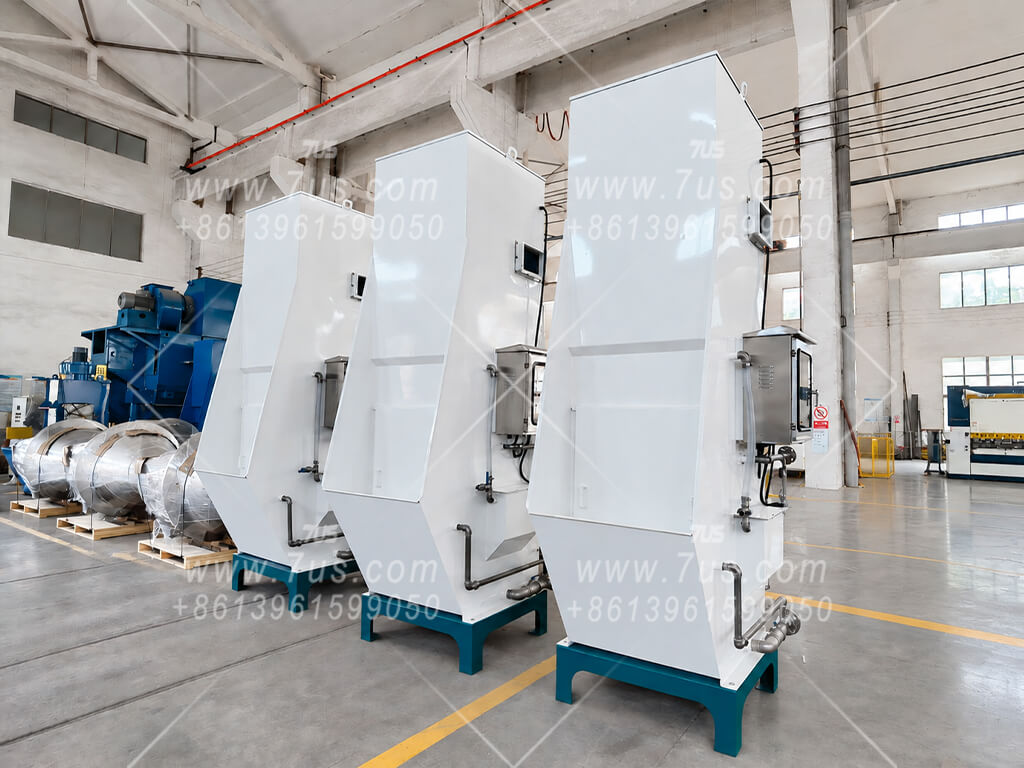

EHWD-S · COMPACT COLLECTOR
Self-induced wet collection
The fan draws dust-laden air through the inlet and into the wet collection zone. Airflow raises a turbulent water wash that captures particles; entrained droplets are then separated before the air exits. No separate scrubbing pump or spray nozzles are required.
EHWD-S · Model Selection
Model
Airflow (m³/h)
Fan motor (kW)
EHWD-S2
1,700–2,500
3–4
EHWD-S3
2,500–3,500
4–5.5
EHWD-S4
3,500–5,000
5.5–7.5
EHWD-S5
5,000–6,000
11
EHWD-S · STANDALONE
Connected to the dust source
The standalone collector connects to a machine or capture point through ductwork. The compact body integrates the wet collection stage and extraction fan.
EHWD-S · SEPARATE TABLE
Collector with a remote grinding table
The grinding table and wet collector are separate pieces of equipment connected by ductwork. Their positions can be arranged around the available workspace.

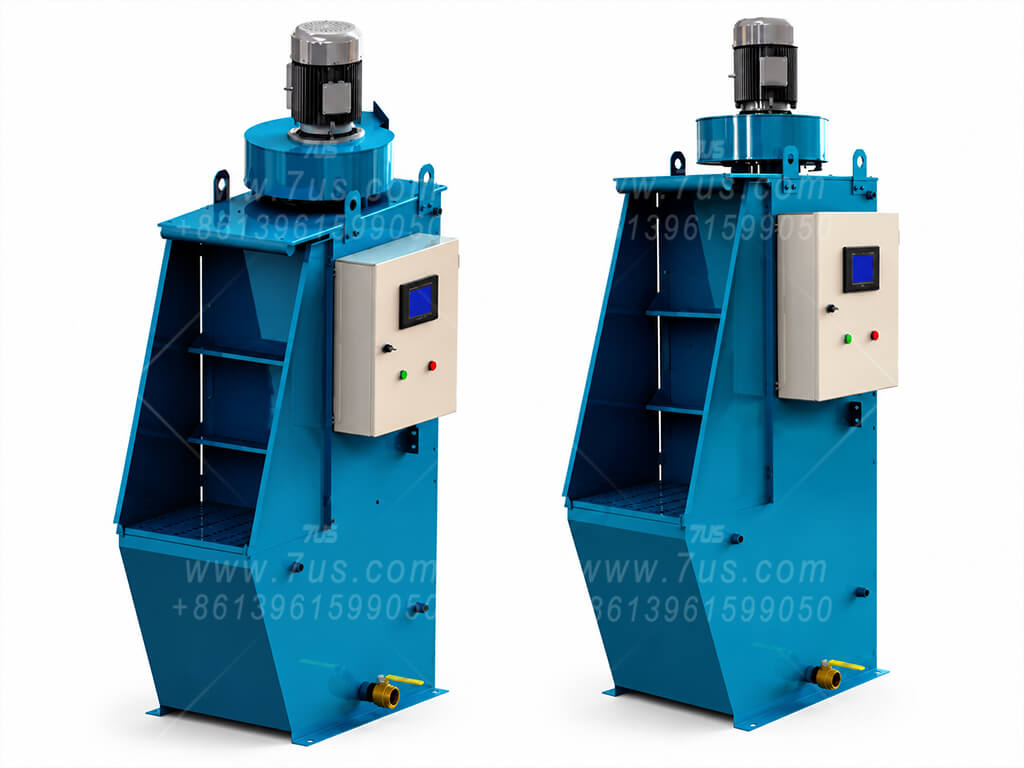

EHWD-V · integrated workstation rendering
EHWD-V · INTEGRATED WORKSTATION
Grinding table and collector in one unit
EHWD-V places the grinding surface directly in front of the wet collector. Dust is captured at the work area and carried into the self-induced water wash within the same equipment.
Three standard work surface sizes provide a starting point for selecting a workstation around the workpiece and available floor space.
EHWD-V · Model Selection
Model
Work surface (D × W, mm)
Airflow (m³/h)
Fan motor (kW)
EHWD-V2
600 × 600
2,000–3,000
4–5.5
EHWD-V4
600 × 1,200
3,000–6,000
7.5–11
EHWD-V6
600 × 1,800
6,000–9,000
15–18.5
Discuss Your Compact Wet Dust Collector
Share the dust type, required airflow, grinding-table needs and available power supply. We can review an EHWD-S or EHWD-V configuration for your application.
