2 filter cartridges
For compact work areas
1,200 / 1,500 mm
Length of the active dust-extraction surface. Corresponding overall tabletop lengths are 1,700 / 2,000 mm. Work surface depth and working height can be customized.
Industrial dust extraction workbenches
Downdraft Tables.
Integrated dust collection.
Grinding, sanding and polishing tables with built-in cartridge or wet dust collection. Choose a self-contained unit or a custom filtered worktable with a separately installed fan. Work surfaces and enclosures are tailored to your parts and operators.
01
Self-contained downdraft tables
EHDT dry downdraft benches use two or four filter cartridges. The EHWD-V wet downdraft table combines a work surface with a wet dust collector.

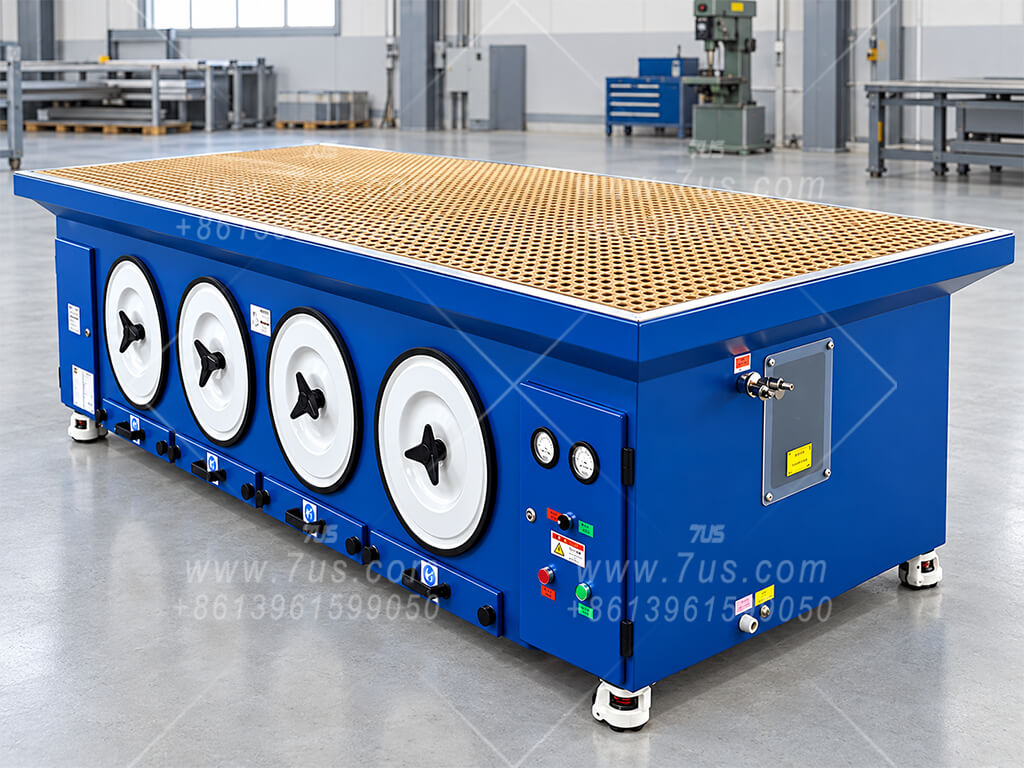

4 filter cartridges
For longer work surfaces
3 m / 4 m
Typical work surface lengths for tables with side and rear panels. The active extraction area, overall dimensions and fan configuration are confirmed on the project drawing. Open-sided versions are also available.

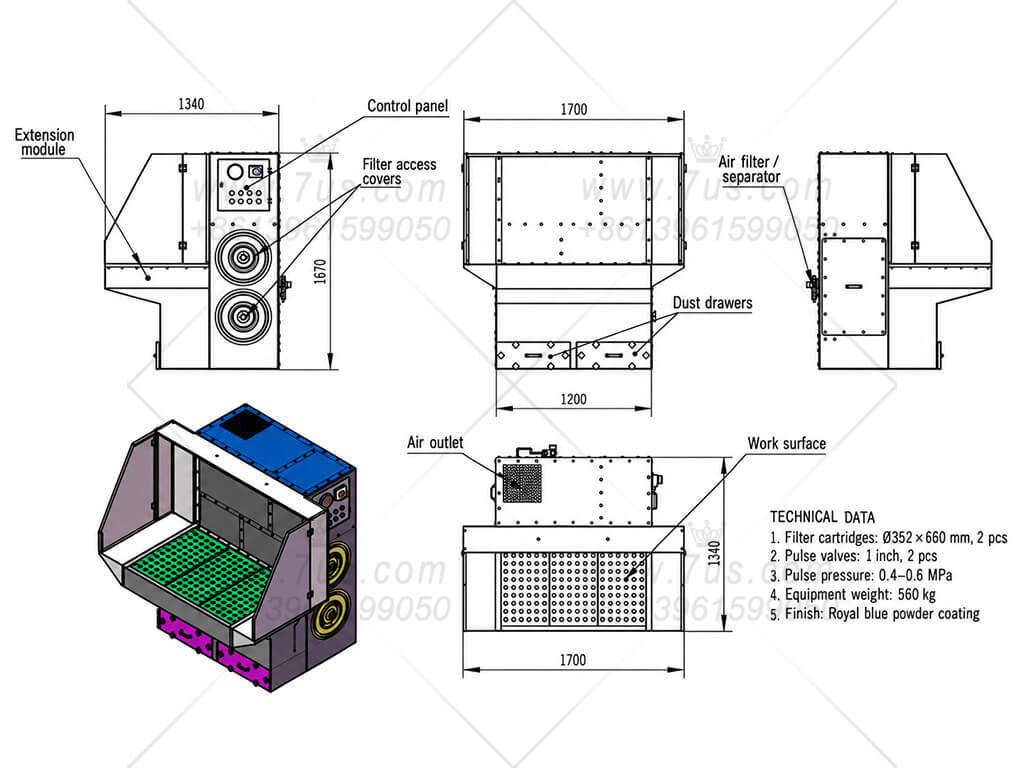

EHDT dry downdraft table selection
| Model / family | Filter cartridges | Dust-extraction surface length (mm) | Overall tabletop length (mm) | Fan motor power options |
|---|---|---|---|---|
| EHDT-2-1200 | 2 | 1,200 | 1,700 | 2.2 or 3 kW |
| EHDT-2-1500 | 2 | 1,500 | 2,000 | 2.2 or 3 kW |
| EHDT-4 | 4 | As specified in the project drawing | As specified in the project drawing | 2 × 2.2 kW or 4 kW |
The EHDT-2 model suffix indicates the length of the active dust-extraction surface. All EHDT filter cartridges measure Ø352 × 660 mm (diameter × length) and are mounted horizontally, with compressed-air pulse-jet cleaning. Fan motor power alone does not determine airflow. The 2 × 2.2 kW option uses two fan motors, each rated at 2.2 kW.
The active dust-extraction surface length is different from the overall tabletop length. Work surface depth, working height, airflow and motor power are confirmed for each project. Tables with four filter cartridges and enclosure panels commonly use 3 m or 4 m layouts; final dimensions depend on the selected design. EHWD-V wet downdraft tables have a separate model range.

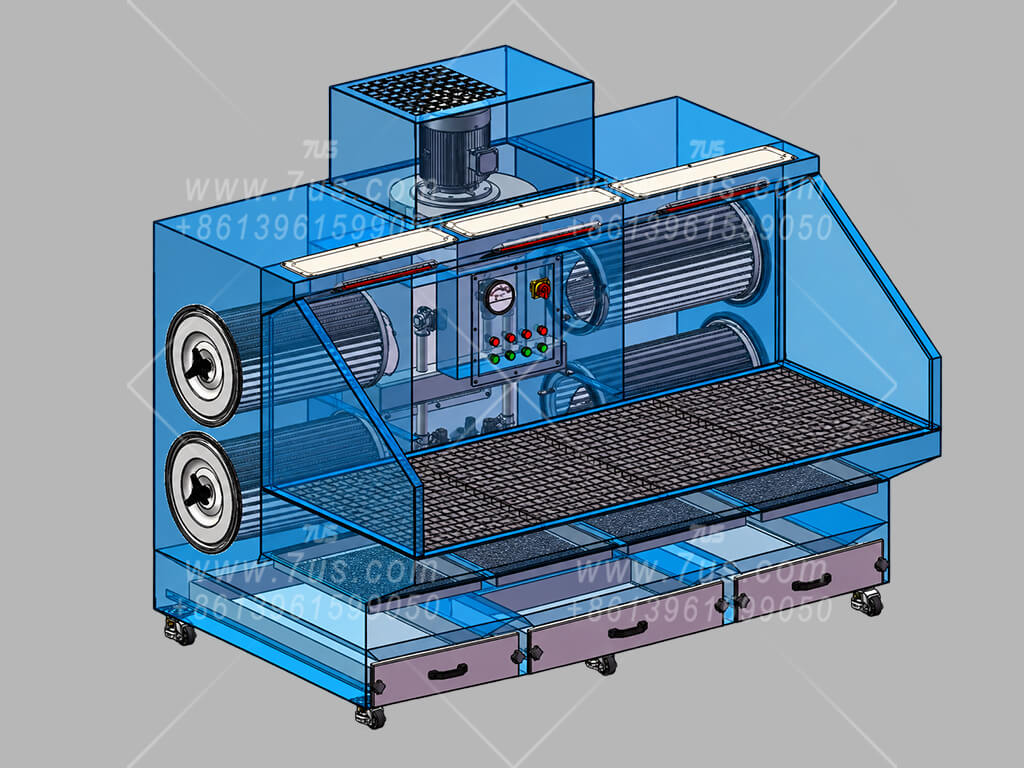

Inside the dry downdraft table
The work surface, horizontally mounted filter cartridges, extraction fan and dust collection drawers form one integrated unit.
Capture at the work surface
Air is drawn down through the perforated or grated work surface. Rear-panel extraction can be combined with downdraft extraction through the tabletop.
Horizontal filter cartridges
The dust collection section uses horizontally mounted filter cartridges in a downflow arrangement. Compressed-air pulse-jet cleaning dislodges accumulated dust from the filter surfaces, allowing it to fall into the collection drawers below.

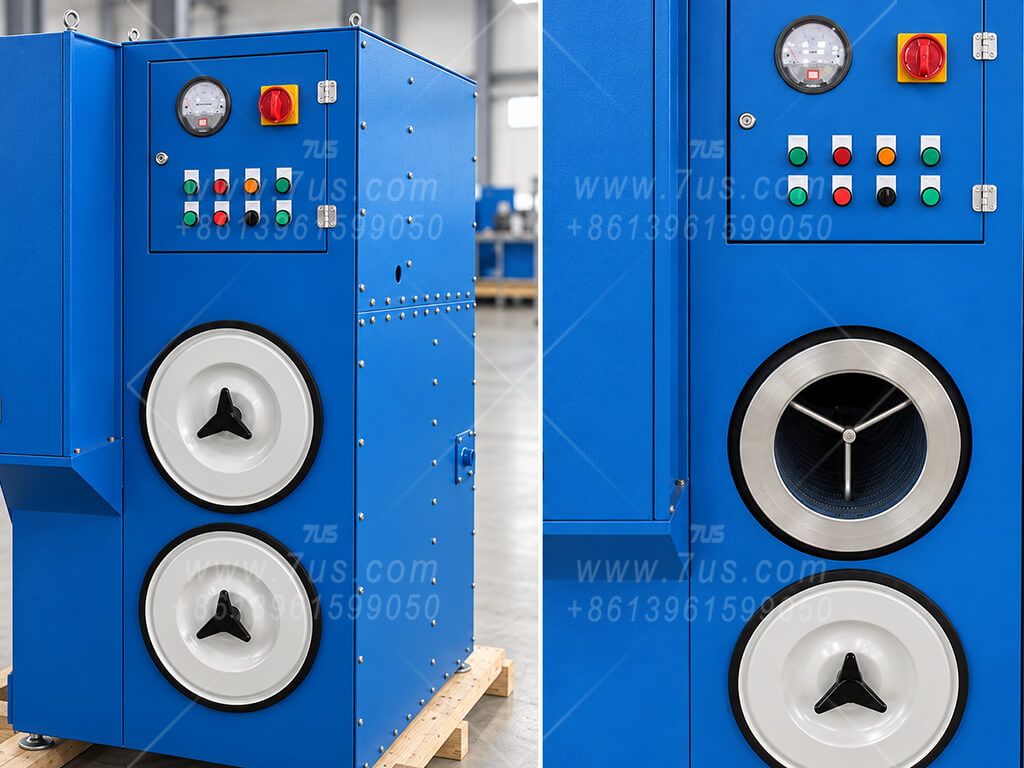

Practical service access
Side access covers provide access to the filter cartridges for inspection and replacement. To empty the dust collection drawers, remove the retaining nuts, slide out the drawers and dispose of the collected dust.
A workbench that fits the job
Specify the usable work surface length and depth, working height and enclosure panels to suit the parts being handled.

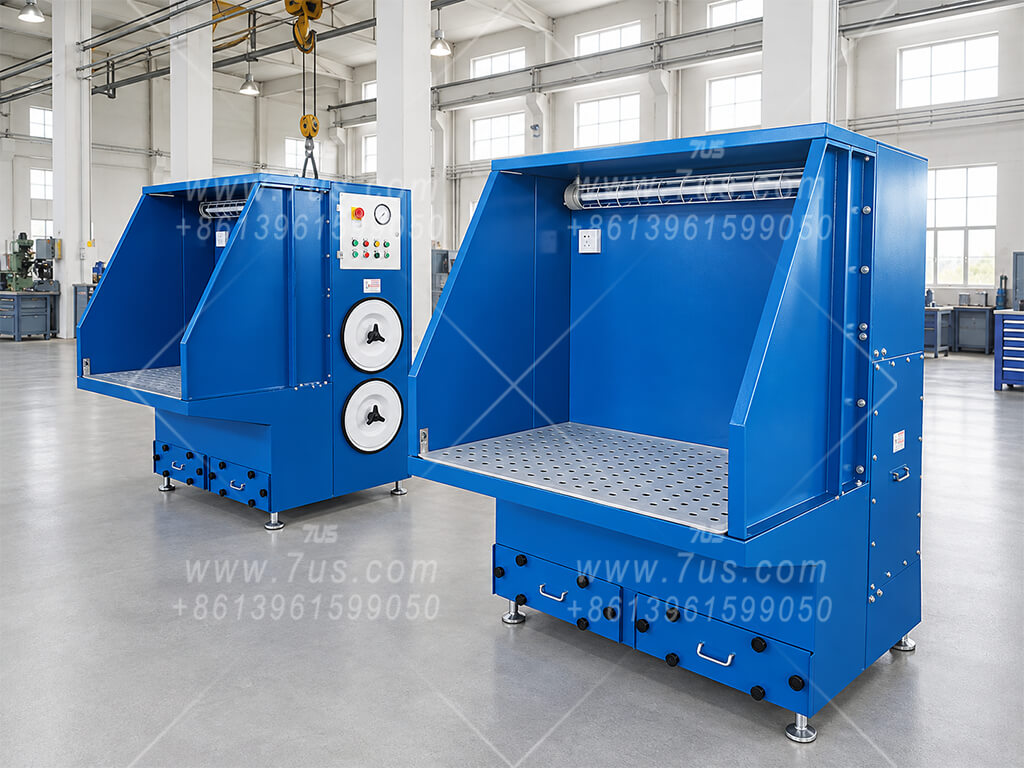

Enclosed work area
Side and rear panels surround the work surface while leaving the front open for operator access.

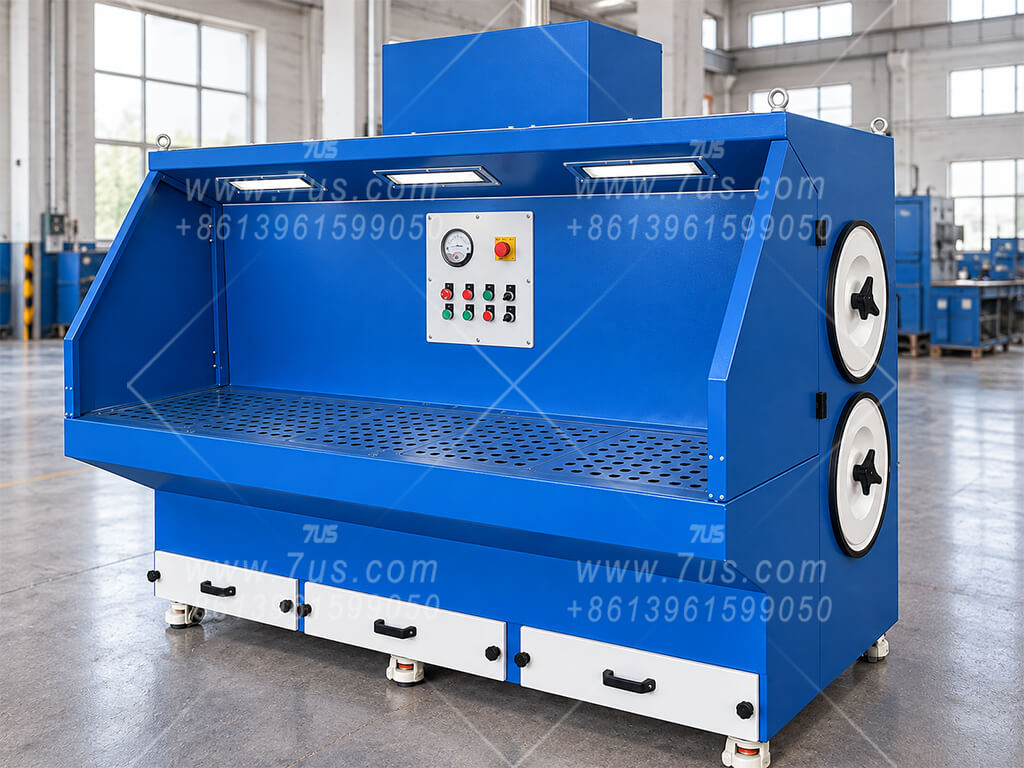

Extended work surface
Longer layouts with task lighting. Illustrative configuration.
Open-table layout
An open work surface for parts that need access from several sides.

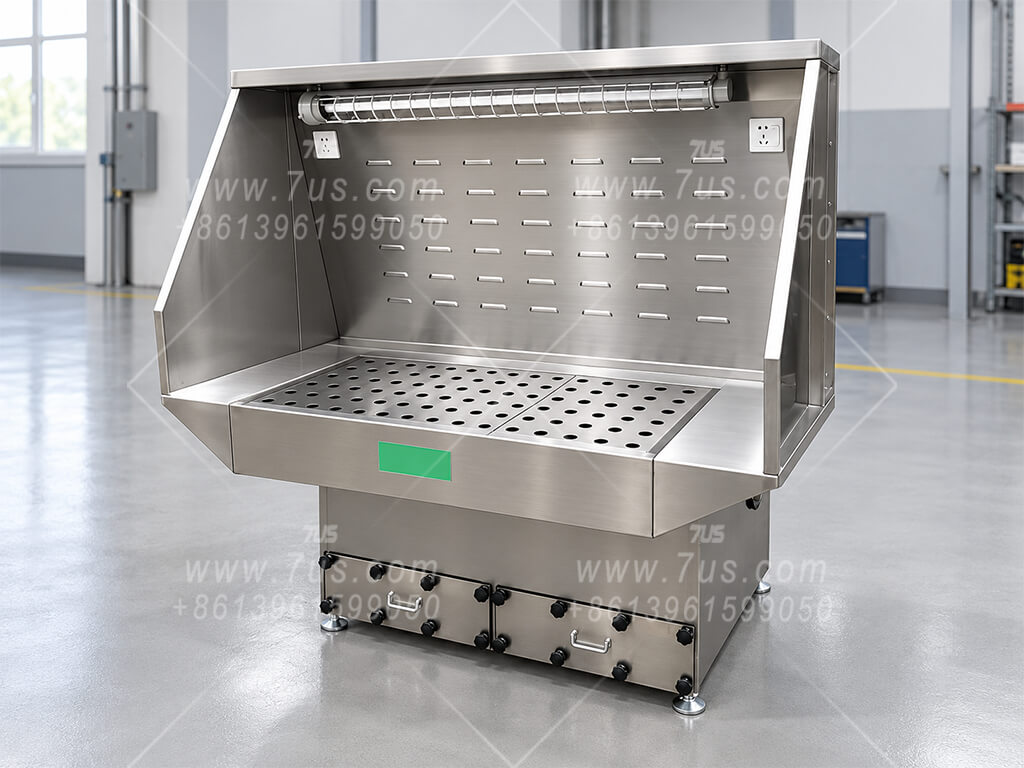

Stainless steel construction
Carbon steel is the standard construction material. Grade 304 or 316 stainless steel is available as an option.Combined extraction
Combine downdraft extraction through the tabletop with rear extraction through the back panel.
EHWD-V wet downdraft table
An integrated work surface and self-induced wet dust collector. Dust is captured using water rather than filter cartridges. View wet downdraft table specifications →Work surface height can be specified to suit the operator and working posture. Optional casters provide mobility; leveling feet allow the table to be leveled and supported on the floor.
Choose the details that matter
Configure the dry downdraft table to suit your process. Options for EHWD-V wet downdraft tables are specified separately.
02
Custom filtered worktables
These configurations include filter cartridges in the worktable. The extraction fan may be installed separately or mounted on an acoustic enclosure, as specified for the project.

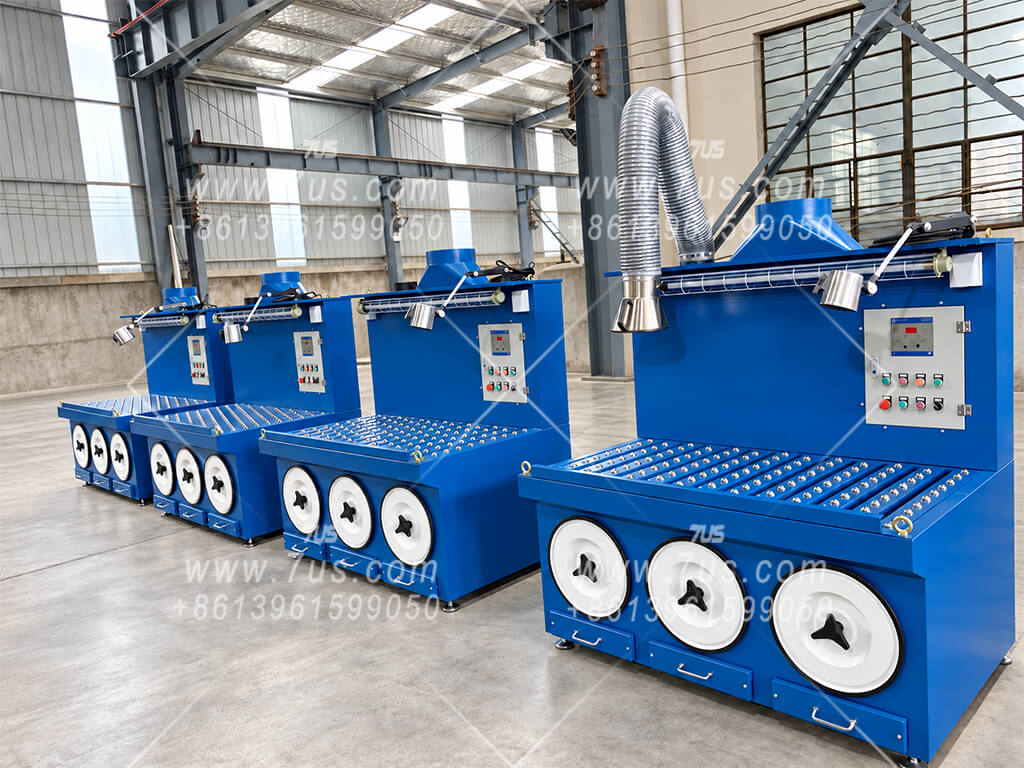

Built-in filters, external fan

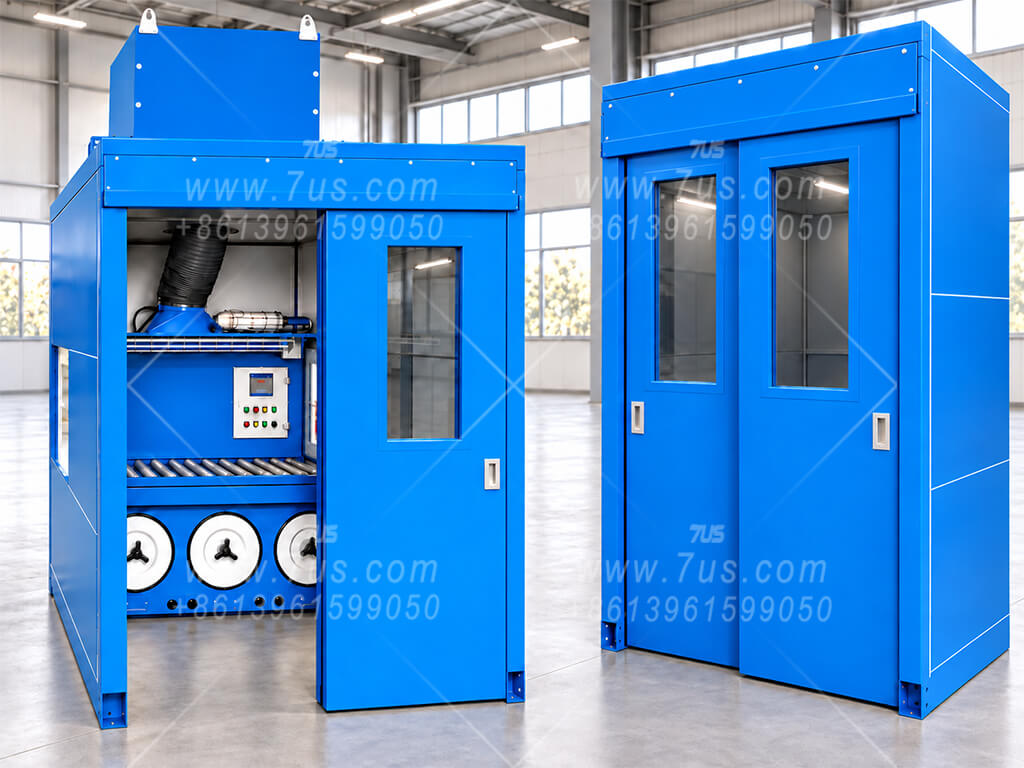

These tables have built-in filter cartridges behind the three circular front access covers and adjustable extraction arms. The extraction fan is installed separately.Worktable with acoustic enclosure
The worktable is integrated with an acoustic enclosure, with the extraction fan mounted on the enclosure roof. Operators grind inside, helping reduce noise transmission into the surrounding workshop.Configure your downdraft table
Show us what you are working on.
These are selected examples of our custom worktables. Overall shape, length, depth, working height, materials and extraction arrangements can be tailored to your requirements. Send a workpiece photo or sketch and a short process description to discuss your project.
Contact Our Team- Workpiece material, size and process
- Preferred work surface length, depth and working height
- Number of operators and required access
- Preferred dry or wet collection, fan arrangement and available space
- Available power supply and compressed air
- HEPA filtration, fume extraction arms, tools or other options
