HOW IT WORKS

Downflow Filtration & Pulse Cleaning

Dust-laden air passes through the cartridge section, where dust is captured on the filter surfaces. Reverse pulse cleaning releases the dust cake; the inclined arrangement helps gravity and downward airflow carry released particles away from the cartridges.

EHCDT INCLINED CONFIGURATION

Inclined Cartridge Arrangement

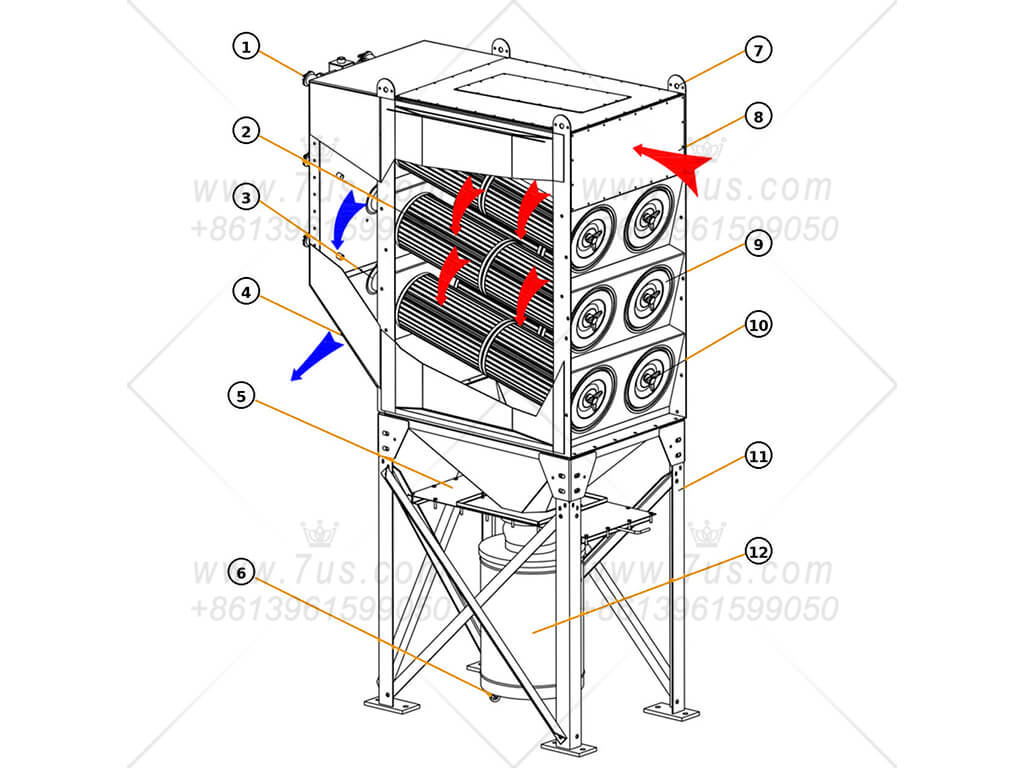

Inclined cartridge dust collector arrangement with numbered component callouts

Inclined: the angled cartridge surface helps released dust move away more naturally, allowing gravity and downflow to carry it toward the dust collection section.

Component Legend — Inclined Configuration

1Pulse Valve

2Filter Cartridge

3Venturi

4Air Outlet

5Slide Gate

6Caster Wheel

7Lifting Lug

8Dust-Laden Air Inlet

9Filter Cover

10Triangle Handle

11Support Leg

12Dust Collection Drum

Normal Filtration

Dust-laden air enters the collector and flows through the cartridge section. Dust is retained on the outer cartridge surface, while cleaned air passes through the filter media and exits through the clean-air side of the collector.

Pulse Cleaning

A short pulse of compressed air is injected from the clean-air side into the cartridges. This reverse pulse releases the dust cake from the outer filter surface so it can fall toward the dust collection drum.

Why the Inclined Angle Matters

Once the dust cake is released, an inclined cartridge gives the particles less horizontal area to rest on. Gravity and downward airflow can therefore help the released dust leave the filter zone more easily.

03Cartridge Sealing

Contents ↑

SEALING DESIGN & MANUFACTURING PRECISION

Cartridge Sealing Reflects Manufacturing Accuracy

Both arrangements use two cartridges installed in series on the same support frame. The visible difference is how sealing pressure is achieved — and that difference is closely related to dimensional control, cartridge alignment, cover-plate fit and consistent gasket compression.

REFERENCE ARRANGEMENT

Additional Internal Center Nut Required

Open-open plus open-closed cartridge pair with center-nut sealing

01Cover Plate + Gasket + Internal Center Nut

Two cartridges are installed in series on the same support frame. The cover plate, gasket, center rod and external three-lobe handle are all present, while an additional internal center nut is also used to provide cartridge clamping. During cartridge replacement, this internal nut must be removed and re-tightened before the cover is secured again.

7US STANDARD DESIGN

Precision Cover-Plate & Gasket Sealing

7US open-open cartridge pair sealed by cover plate and gasket without center nut

02No Internal Center Nut Required

Two open/open cartridges are installed in series on the same support frame. Precise cartridge positioning, support-frame alignment and controlled gasket compression allow the cover plate to provide the required sealing pressure without an internal center nut. The center rod remains in place for the external three-lobe handle that locks the cover plate, while routine cartridge replacement avoids the extra internal nut-removal and re-tightening operation.

Reliable sealing starts with manufacturing accuracy — not with adding more fasteners.
Both designs use two cartridges in series, but the 7US arrangement achieves sealing through precise cartridge positioning, support-frame alignment, cover-plate fit and controlled gasket compression, so no additional internal center nut is required. For experienced dust-collection professionals, the cartridge sealing structure is one visible indicator of manufacturing precision and assembly quality.

04Modular Construction

Contents ↑

MODULAR CONSTRUCTION

What Makes a Collector Truly Modular

A segmented front appearance does not always mean a true modular cartridge dust collector. The real difference is at the connection interface: whether each section is fabricated as an independent structural module and then mechanically joined to the next module.

WHY MODULAR?

Control Welding Distortion Before Controlling the Whole Collector

ONE LARGE FULLY WELDED CABINET

Cumulative distortion becomes harder to control as the collector gets larger.

A very large continuous enclosure requires more welding across a longer structure. As weld length and heat input increase, shrinkage and dimensional drift can accumulate across the cabinet, making final alignment more difficult to control.

More weld length→More heat input→Harder cumulative control

→

7US INDEPENDENT MODULES

Each module is fully welded and dimensionally controlled before final assembly.

7US divides a large collector into repeatable structural modules. Each module is welded in dedicated fixtures, checked as an individual unit, and only then sealed and bolted to adjoining modules. This keeps welding distortion localized and helps reduce cumulative dimensional error across a large collector.

Fixture welding→Module inspection→Controlled final fit-up

Modular construction is therefore a manufacturing-control strategy, not only a transport or installation feature. Smaller repeatable welding units are easier to fixture, inspect and keep dimensionally consistent before they are combined into a large collector.

REFERENCE CONSTRUCTION

Integrated Cabinet with Modular Appearance

Visual division does not necessarily create an independent structural module.

Integrated cabinet with a visible divider or reinforcement strip — Visual divider / reinforcement on a continuous cabinet

Continuous cabinet with repeated cartridge rows and no true module joint — Repeated cartridge layout without a true structural module joint

These layouts can create a modular-looking front face while the main enclosure remains largely continuous. A divider, reinforcement strip or repeated cartridge pattern does not by itself prove that two independently fabricated modules have been structurally joined.

Continuous or largely integrated cabinet body

Visual divider or reinforcement may create a segmented appearance

No clear independent module-to-module bolted interface

7US STANDARD CONSTRUCTION

True Bolted Modular Construction

Independent structural modules with real mating surfaces and mechanical fastening.

7US independent dust collector modules assembled side by side — Real module boundaries and bolted joints on a 7US collector

Close-up of 7US vertical module seam and fastening — Independent side plates form the structural connection zone

Caliper measurement at the assembled 7US module joint — Assembled module joint — directly measured

Each 7US module is fabricated as an independent structural unit with its own side plate. Before adjacent modules are bolted together, industrial structural sealant is applied continuously between the mating surfaces to create an air-tight interface. Bolts and nuts then provide the mechanical clamping force, forming a genuine sealed module-to-module structural joint.

Independent module side plates

Structural sealant applied between mating surfaces

Bolts and nuts provide mechanical clamping

Air-tight structural joint between modules

Sealed first, bolted second. The visible joint is structural — not decorative.

A true modular collector must address both structural strength and air-tightness. 7US modules are manufactured separately. During assembly, structural sealant is applied to the mating surfaces first to seal the interface; bolts and nuts are then tightened to provide the mechanical connection and clamping force. The modular concept therefore continues from factory fabrication through transport and final assembly.

05Manufacturing & Installation

Contents ↑

BUILT FOR ACCURACY

Manufacturing Details You Can See

A complete manufacturing process matters, but the details that affect fit, sealing and repeatability are easier to judge from real production evidence. The photographs below show how 7US controls fabrication, positioning, assembly and module fit-up in actual production.

01Laser Cutting

02CNC Bending

03Fixture Welding

04Trial Assembly

05Surface Preparation

06Powder Coating

07Final Assembly

Proof of Precision

Instead of relying only on specification text, these details show the actual fixtures, measurements, components and assembled modules used in production.

01

Fixture-Controlled Fabrication

Critical geometry is held during welding and checked again during trial assembly.

Welding fixture used for 7US cartridge dust collector cabinet fabrication — Dedicated welding fixture

Positioning and clamping detail during dust collector cabinet fabrication — Positioning & clamping detail

Uncoated modular cabinet trial assembly — Trial assembly before coating

What customers can verify: the cabinet is not assembled only by visual alignment. Fixtures and pre-assembly are used to control repeatability before finishing.

02

Measured Construction Details

Real production measurements, hardware and grounding details are shown directly.

Filter support frame measurement — Filter-support frame members

Cover plate thickness measurement — Cover-plate thickness check

Three-lobe handle and threaded insert detail — Three-lobe handle & threaded insert

Curved plate thickness measurement — Curved structural plate

Module joint measurement — Module-joint build-up

Venturi and pulse cleaning components — Venturi & pulse-cleaning hardware

White positioning jig for filter support installation — Positioning jig for support installation

Copper grounding braid for static charge dissipation on the cartridge cover — Anti-static grounding braid

Eye-level evidence, not marketing claims: material thickness, frame construction, fastening, static-grounding and positioning methods can be inspected directly from production photographs.

03

Installation-Ready Duct Interfaces

Removable inlet / outlet flange templates simplify matching ductwork fabrication.

Removable collector flange template

→Use as
fabrication pattern

Matching duct flange — same opening & bolt pattern

DESIGNED FOR EASIER INSTALLATION

Remove the Template. Build the Matching Flange.

7US inlet and outlet connections can be supplied with removable flange template plates. The template reproduces the actual collector opening size and bolt-hole pattern, so the duct fabricator can use the removed plate directly as the reference for the mating duct flange. This avoids repeated site measurement, redrawing and bolt-hole guesswork.

Exact Opening Size The duct flange follows the actual collector interface dimensions.

Exact Bolt Pattern Bolt-hole positions can be transferred directly from the template.

Faster Field Fit-Up Less measuring and fewer alignment surprises during duct connection.

A small manufacturing detail that can save significant installation time. The same concept can be used at both inlet and outlet interfaces.

Actual 7US dust collector showing removable inlet flange template plate — **Inlet Interface**Full-size removable flange template plate used as the duct fabrication pattern.

Actual 7US dust collector showing removable outlet flange template plate — **Outlet Interface**The same removable-template concept applied to the clean-air outlet connection.

04

Independent Modular Construction

Upper and lower sections are fabricated separately, then assembled into one complete modular collector.

Front view of multiple assembled modules — Multiple modules — front view

Powder-coated parts prepared for assembly — 1 · Powder-coated parts ready for assembly

Upper housing section prepared as a separate assembly — 2 · Upper housing section

Lower housing section prepared as a separate assembly — 3 · Lower housing section

Complete collector after upper and lower sections are assembled together — 4 · Complete unit after upper/lower assembly

The modular structure is visible through the assembly sequence. Powder-coated parts are prepared first; the upper housing and lower housing sections are built as separate assemblies, then aligned and bolted together to form the complete collector.

05

From Factory Trial Assembly to Site Installation

The same modular concept continues through inspection, transport and final erection.

Large modular collector loaded for transport — Modular transport

Upper collector casing arrived at site — Upper casing at site

Lower collector structure at installation site — Lower structure positioned

Crane assembling upper and lower collector modules — Crane-assisted assembly

Completed modular dust collector installation — Completed installation

Manufacturing Quality Should Be Visible

The goal of this section is not to claim quality with adjectives. It is to show the fixtures, measurements, construction details, trial assembly and finished installation so experienced buyers can judge the manufacturing standard for themselves.

Full process capability: laser cutting, CNC bending, welding, surface preparation and powder coating remain part of the complete process — but the details above are where manufacturing discipline becomes visible.

06Model Selection

Contents ↑

How to Select an EHCDT Downflow Collector

EHCDT selection is not simply “airflow equals one fixed model.” Start with the dust and filtration condition, then select the base module that best fits the available height, width and depth before building the complete system.

01Dust TypeFume, grinding dust, particulate and dust loading.

02Filter MediaPaper / cellulose or polyester.

03Filtration VelocitySet the design air-to-cloth ratio.

04Filter AreaCalculate the effective area required.

05Site SpaceCheck height, width, depth and access.

06Base ModuleSelect the suitable standard geometry.

07Complete SystemCombine modules for the final duty.

Core principle: choose the filtration condition first, then choose the module. Cartridge quantity alone does not determine collector capacity.

06.1

Selection Basics

Filter-media characteristics together with pleat quantity, pleat depth and pleat arrangement determine the effective filter area of each cartridge, while the selected design filtration velocity determines the total filter area required for the target airflow.

FINE FUME / LOWER PARTICULATE LOADING

Paper / Cellulose Media

≈20 m²per cartridge

Because paper / cellulose media can be pleated more densely within the same outside cartridge size, a larger effective filter area can be achieved in the same volume. The denser pleat arrangement, however, also increases airflow resistance, so the recommended design filtration velocity is lower than for polyester media. This configuration is well suited to welding fumes and similar fine-fume duties.

Same outside size as the polyester option
Larger effective filter area
Can reduce module quantity for suitable fume duties
Recommended design filtration velocity: generally ≤0.8 m/min

HIGHER PARTICULATE LOADING

Polyester Media

≈10 m²per cartridge

Wider pleat spacing is better suited to grinding dust and higher particulate loading, where dense pleats can make pulse-cleaning and dust shedding more difficult.

Same outside size as the paper / cellulose option
More open pleat spacing for particulate release
Preferred for grinding and higher dust-loading duties
Recommended design filtration velocity: generally ≤1.1 m/min

The filter-area and filtration-velocity values above are preliminary selection guidance for this product family. For high dust loading, stricter emission targets, continuous heavy-duty operation or other special conditions, a lower design filtration velocity may be appropriate.

EHCDT4-32 / Polyester 32 cartridges × ≈10 m²

≈320 m² total filter area

vs.

EHCDT4-32 / Paper-Cellulose 32 cartridges × ≈20 m²

≈640 m² total filter area

View the EHCDT4-32 airflow example and design note

For an EHCDT4-32 fitted with 32 cartridges, airflow should be evaluated from both total effective filter area and the recommended design filtration velocity. With polyester media, using approximately 10 m² per cartridge gives about 320 m² total filter area. At the recommended upper design velocity of 1.1 m/min, the calculated airflow is about 21,120 m³/h; around 20,000 m³/h is a practical preliminary selection example. With paper / cellulose media, using approximately 20 m² per cartridge gives about 640 m² total filter area. At the recommended upper design velocity of 0.8 m/min, the calculated airflow is about 30,720 m³/h; around 30,000 m³/h is a practical preliminary selection example. A larger filter area therefore does not mean that airflow can increase in the same proportion, because the allowable design filtration velocity is different for the two media types.

These comparisons assume that each filter medium is suitable for the actual dust duty. Changing to paper / cellulose media does not automatically justify increasing airflow in every application. Final selection should also consider the actual effective filter area, dust characteristics and concentration, target emissions, cleaning conditions, operating hours and overall system resistance.

06.2

Choose the Base Module

The model code describes the basic geometry, while height, width and depth can be adjusted to fit the real installation space.

EHCDT 4 – 16

Depth Can Also Change

The same family can use one cartridge or two cartridges in series on each support frame.

Single-Cartridge DepthExamples: EHCDT2-4D and EHCDT3-6D

1 support frame = 1 cartridge. Used to reduce collector depth.

Dual-Cartridge DepthExample: EHCDT3-12

1 support frame = 2 cartridges in series. More filter area in the depth direction.

HEIGHT AVAILABLE

EHCDT4-24

One complete 4-level module provides all 24 cartridges in the most compact horizontal arrangement.

Base modules1 × EHCDT4-24Levels4Total cartridges24

LOWER HEIGHT

EHCDT3-24

Two EHCDT3-12 modules provide the same 24 cartridges when 4 levels are too high.

Base modules2 × EHCDT3-12Levels3Total cartridges24

MINIMUM HEIGHT

EHCDT2-24

Three EHCDT2-8 modules spread the same 24 cartridges horizontally where height is even more restricted.

Base modules3 × EHCDT2-8Levels2Total cartridges24

Selection is three-dimensional: height, width and depth can be traded against one another while keeping the required filter area.

06.3

Standard Modules & Scaling

Choose a standard base module, then combine identical or compatible modules to build the complete collector.

Model	Levels	Cartridges	Depth Arrangement	Reference Airflow	Size L × W × H (mm)	Pulse Valves	N.W.
EHCDT2-4D	2	4	Single-cartridge depth	To be confirmed	To be confirmed	To be confirmed	To be confirmed
EHCDT3-6D	3	6	Single-cartridge depth	3,750 m³/h	1016 × 1434 × 3492	6 × DN20	0.579 T
EHCDT2-8	2	8	Dual-cartridge depth	5,000 m³/h	1016 × 2162 × 3248	2 × DN25	0.841 T
EHCDT3-12	3	12	Dual-cartridge depth	7,500 m³/h	1016 × 2162 × 3675	6 × DN25	0.953 T
EHCDT3-18	3	18	Extended-width / dual-depth	11,250 m³/h	1523 × 2162 × 3675	9 × DN25	1.710 T
EHCDT4-16	4	16	Dual-cartridge depth	10,000 m³/h	1016 × 2162 × 4140	8 × DN25	1.164 T
EHCDT4-24	4	24	Extended-width / dual-depth	15,000 m³/h	1523 × 2162 × 4140	12 × DN25	1.481 T

Reference airflow is for preliminary selection only. Filter-media characteristics together with pleat quantity, pleat depth and pleat arrangement determine the effective filter area of each cartridge, while the selected design filtration velocity determines the total filter area required for the final airflow.

4-LEVEL COMPATIBLE FAMILY

EHCDT4-16 + EHCDT4-24

EHCDT4-24 is a complete standard module with the same 4-level family and 1.5× the cartridge quantity of EHCDT4-16. The two sizes can be combined side by side.

3-LEVEL COMPATIBLE FAMILY

EHCDT3-12 + EHCDT3-18

The same principle applies to the 3-level family. Standard-width and extended-width modules can be used individually or combined.

STEP 1Select the Base Module

Match dust duty, filter area and site envelope.

STEP 2Set Module Quantity

Add identical or compatible modules to reach capacity.

STEP 3Confirm Overall Layout

Check width, hoppers, duct interfaces and access.

STEP 4Finalize the Project Model

Confirm fan pressure, discharge, controls and drawings.

EXAMPLE

EHCDT4-16 Modular Series

One commonly used example only. Other base modules can be combined according to the same modular principle.

EHCDT4-161 module · 10,000 m³/h

EHCDT4-322 modules · 20,000 m³/h

EHCDT4-483 modules · 30,000 m³/h

EHCDT4-644 modules · 40,000 m³/h

EHCDT4-805 modules · 50,000 m³/h

View full EHCDT4-16 combination table

Base Modules	Combined Model	Reference Airflow	Overall Size L × W × H (mm)	Cartridges	Pulse Valves	N.W.
1	EHCDT4-16	10,000 m³/h	1016 × 2162 × 4140	16	8 × DN25	1.164 T
2	EHCDT4-32	20,000 m³/h	2032 × 2162 × 4140	32	16 × DN25	2.005 T
3	EHCDT4-48	30,000 m³/h	3048 × 2162 × 4140	48	24 × DN25	2.882 T
4	EHCDT4-64	40,000 m³/h	4064 × 2162 × 4140	64	32 × DN25	3.661 T
5	EHCDT4-80	50,000 m³/h	5080 × 2162 × 4140	80	40 × DN25	4.520 T
6	EHCDT4-96	60,000 m³/h	6096 × 2162 × 4140	96	48 × DN25	5.357 T
7	EHCDT4-112	70,000 m³/h	7112 × 2162 × 4140	112	56 × DN25	6.394 T
8	EHCDT4-128	80,000 m³/h	8128 × 2162 × 4140	128	64 × DN25	7.230 T
9	EHCDT4-144	90,000 m³/h	9144 × 2162 × 4140	144	72 × DN25	7.867 T
10	EHCDT4-160	100,000 m³/h	10160 × 2162 × 4140	160	80 × DN25	8.704 T

Reference basis: the airflow values in this combination table are based on polyester cartridges at approximately 10 m² per cartridge and a design filtration velocity of about 1.04 m/min, for preliminary selection only. When paper / cellulose media or another effective filter-area configuration is used, airflow should be recalculated using the corresponding recommended design filtration velocity. Final airflow, overall dimensions and weight should still be confirmed for the actual dust duty and project-specific arrangement.

07 System Options

Contents ↑

CONFIGURE THE COLLECTOR AROUND THE PROJECT

Available System Options

The downflow cartridge dust collector body can be configured around the actual dust load, discharge method, electrical standard, safety requirements and final filtration target. The options below can be selected individually or combined as part of a project-specific system configuration.

01 · FILTER CARTRIDGES

Filter Media Options

Select the basic media first, then add surface or safety functions according to the dust.

Cellulose / paper filter cartridges
Polyester filter cartridges
PTFE membrane optional
Flame-retardant option
Antistatic option

02 · MATERIAL & CONSTRUCTION

Collector Material & Structural Customization

The collector body can be manufactured in different materials and structural specifications to suit corrosion conditions, process requirements and customer standards.

Q235 carbon steel
SS304 stainless steel
SS316L stainless steel

Customer-specified coating color
Plate thickness can be customized for special service conditions
Reinforcement and structural strengthening can be customized as required

03 · HOPPER CONFIGURATIONS

Independent or Boat-Type Hopper

Independent Hopper

Low-profile hopper for lower dust loading
High-capacity hopper for higher dust loading

Boat-Type Hopper

One common large hopper can serve multiple collector modules

04 · DUST DISCHARGE

Discharge Valve & Screw Conveyor

Manual slide gate
Manual butterfly valve
Motorized rotary airlock valve
Screw conveyor available for multi-module collectors

05 · PULSE CLEANING

Pulse-Jet Cleaning System

Pneumatic pilot-operated valves + centralized solenoid valve box
Integrated solenoid-operated pulse valves
Pulse interval and duration adjustable by pulse controller or PLC
Valve and control component brands can be specified

06 · FAN & ELECTRICAL CONTROL

Fan, Motor & Control Cabinet

Fan / Motor

Fan brand and motor brand can be specified
Voltage and 50 / 60 Hz frequency configured for the destination

Electrical Control

Electrical component brand can be specified
PLC optional
HMI / touchscreen optional
VFD optional

07 · SAFETY & ACCESS

Explosion Protection, Safety & Maintenance

Explosion vent panel
Flameless explosion venting device
Explosion-proof motor
Explosion-proof electrical cabinet
Spark arrestor / spark trap
Maintenance platform available as required

INTEGRATED TWO-STAGE FILTRATION

Integrated Cartridge + HEPA Dust Collector Module

7US can integrate primary cartridge filtration and secondary HEPA filtration into one modular collector body. The cartridge section and HEPA section are arranged vertically within the same structural module, creating a compact two-stage filtration unit rather than two separate machines connected by ductwork.

Cartridge + HEPA in One Cabinet

Vertically Integrated Two-Stage Filtration

No Separate HEPA Unit Required

One integrated module, engineered as one filtration system. The integrated arrangement reduces external duct connections and installation space. HEPA filter area, final pressure drop and fan selection are engineered together with the primary cartridge stage to maintain the required system airflow and final filtration performance.

Explosion-protection items are configurable components for project requirements. Final compliance scope and component certification should be confirmed for the destination market and application.

08 Applications & Delivery

Contents ↑

APPLICATION RANGE & PROJECT DELIVERY

Typical Applications & Product Views

Industrial cartridge dust collectors can be configured for a wide range of dry-dust and fume applications. Application suitability is determined by the actual dust characteristics, loading, filtration media, airflow and safety requirements — not by equipment appearance alone.

TYPICAL APPLICATIONS

Common Industrial Dust & Fume Duties

EHCDT modular collectors can be engineered for different process conditions after the dust source and operating requirements are confirmed.

Shot & Sand Blasting Grinding & Polishing Welding Fume Laser Cutting Metalworking Powder Handling Woodworking Foundry & Dry Process Dust

PROJECT DELIVERY

From Factory Preparation to Site Assembly

Large collectors are prepared as modular equipment for inspection, transport and practical field assembly. Site installation is normally completed by the customer or local contractor with drawings and technical guidance from 7US.

01 Factory Trial Assembly Fit and interfaces checked before shipment.

02 Modular Packing Sections prepared for practical transport.

03 Shipment Module dimensions coordinated with logistics.

04 Assembly Guidance Drawings and remote technical support available.

Additional Product Views

These examples show how the same modular collector platform can be adapted through structural reinforcement, material selection, fan integration, inlet protection and hopper configuration to suit different project requirements.

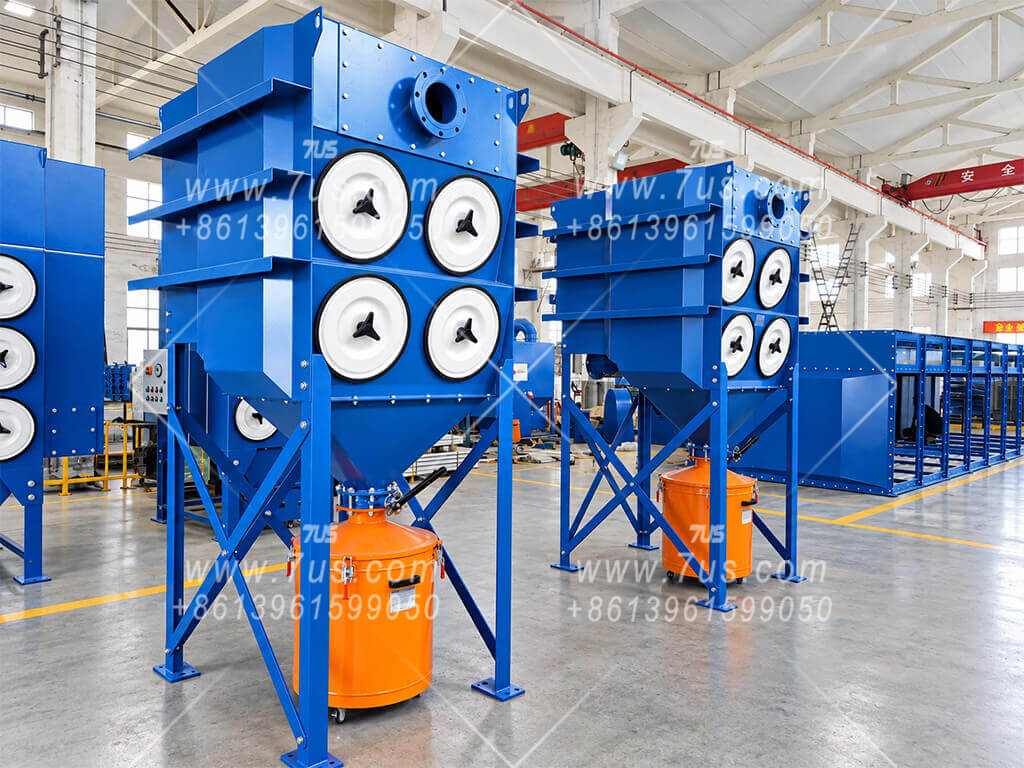

EHCDT2-4 high-negative-pressure cartridge dust collector — **EHCDT2-4 High-Negative-Pressure Unit** Single-unit collector with additional structural stiffeners for high-negative-pressure service.

EHCDT4-64 modular cartridge dust collector — **EHCDT4-64 Modular Unit** Large modular collector with a wear-resistant inlet and two-stage hopper arrangement.

More application references and project photographs are available on request.

09 Project Inquiry

Contents ↑

PROJECT CONFIGURATION

Configure Your EHCDT System

The collector body can be supplied separately, or configured with a fan and controls for the confirmed airflow, system pressure and power supply.

Equipment Supply

Material, coating color, discharge arrangement and HEPA options can be selected for the project. See the system options above for available configurations.

Drawings & Assembly Support

Detailed GA / DWG project drawings can be prepared after the configuration, interfaces and order requirements are confirmed. Site assembly is carried out by the customer or local contractor with drawings and remote technical guidance from 7US.
