Home / Products / Vertical Cartridge All-in-One Dust Collectors

Vertical Cartridge
All-in-One Dust Collectors

Compare compact vertical cartridge dust collectors with integrated fans for grinding, welding fumes, shot blasting and other industrial applications. Explore product photos, specifications and dimensional drawings to find a configuration for your process.

Vertical cartridge filtration
Integrated fan configurations
Application-specific model selection
Custom layouts and filtration stages

DHC-4YT vertical cartridge all-in-one dust collector

VERTICAL CARTRIDGE All-in-one configurations

01 / PRODUCT SERIESContents ↑

Vertical Cartridge
All-in-One Units

These vertical cartridge dust collectors combine cartridge filtration and an integrated fan in a compact configuration. Compare the product photos and specifications below to find a suitable layout. How vertical cartridge filtration works ↗

DHC-4YT

AIRFLOW4000 m³/h

FAN MOTOR5.5 kW

Pressure: 2800 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 4

FOR: Grinding & Polishing

DHC-6YT

AIRFLOW5500 m³/h

FAN MOTOR7.5 kW

Pressure: 2800 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 6

FOR: Grinding & Polishing

DHC-8YT

AIRFLOW6000–8000 m³/h

FAN MOTOR11 kW

Pressure: 3200 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 8

FOR: Grinding & Polishing

DHC-12YT

AIRFLOW8000–10000 m³/h

FAN MOTOR11 kW

Pressure: 2500 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 12

FOR: Grinding & Polishing

DHCL-4YT

AIRFLOW4000 m³/h

FAN MOTOR4 kW

Pressure: 2000 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 4

FOR: Welding fumes

DHCL-6YT

AIRFLOW5500 m³/h

FAN MOTOR5.5 kW

Pressure: 2000 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 6

FOR: Welding fumes

DHVT-610YT

AIRFLOW5500 m³/h

FAN MOTOR7.5 kW

Pressure: 2800 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 6

FOR: Shot blasting

DHXL-410YT

AIRFLOW4000 m³/h

FAN MOTOR11 kW

Pressure: 4500 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 4

FOR: Aluminum billet cutting

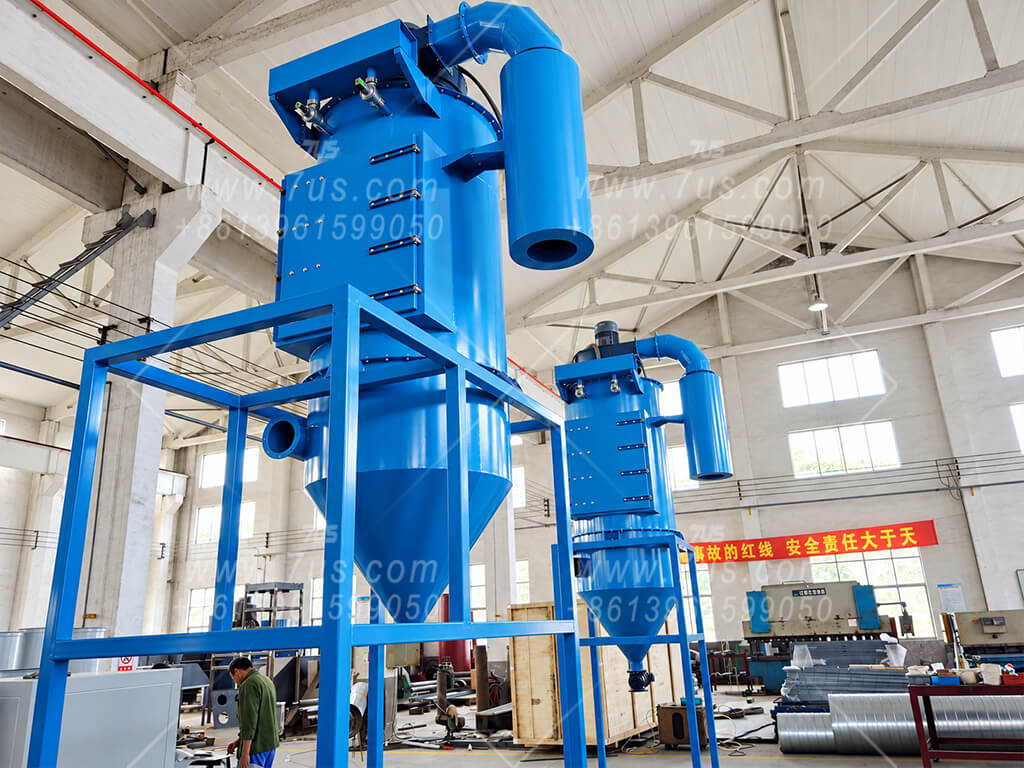

DHXL-412YT

AIRFLOW5000 m³/h

FAN MOTOR11 kW

Pressure: 4000 Pa
Cartridge size: Ø324 × 1200 mm
Cartridge quantity: 4

FOR: Aluminum billet cutting

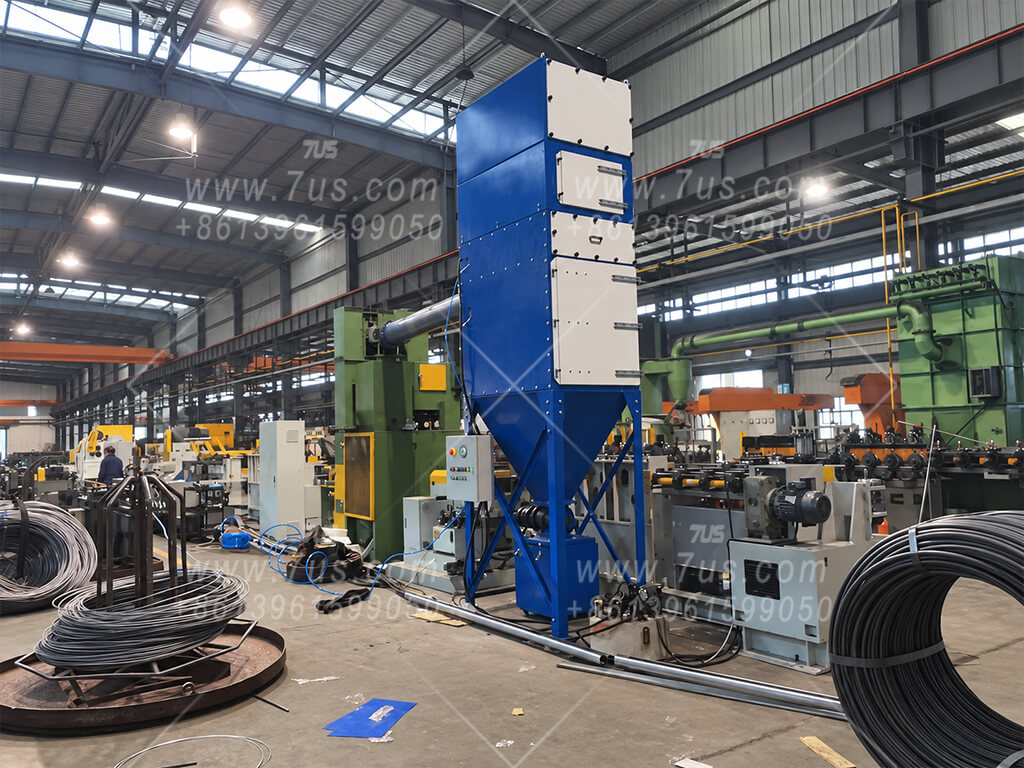

DHC-6YT-2H

AIRFLOW4000 m³/h

FAN MOTOR5.5 kW

Pressure: 2800 Pa
Cartridge size: Ø324 × 1000 mm
Cartridge quantity: 6

FOR: Shot blastingHEPA · Indoor discharge

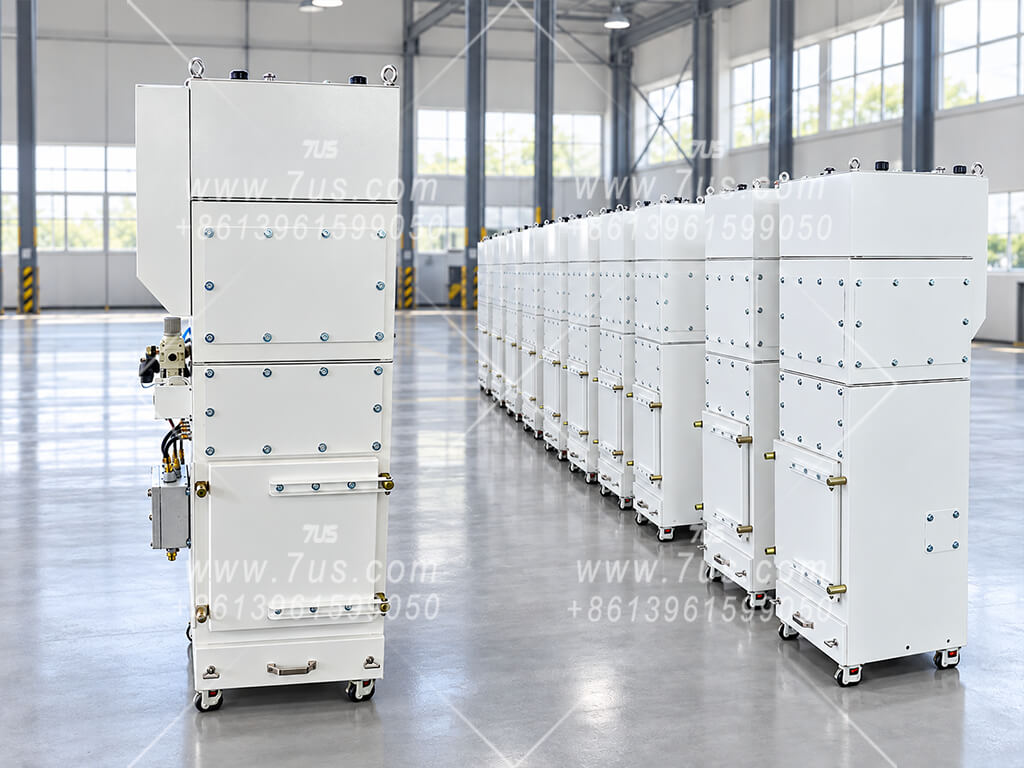

DHLIB-320HV

AIRFLOW320 m³/h

FAN MOTOR2.2 kW

Pressure: −33 kPa
Cartridge size: Ø324 × 400 mm
Cartridge quantity: 1

FOR: Lithium-ion battery manufacturing

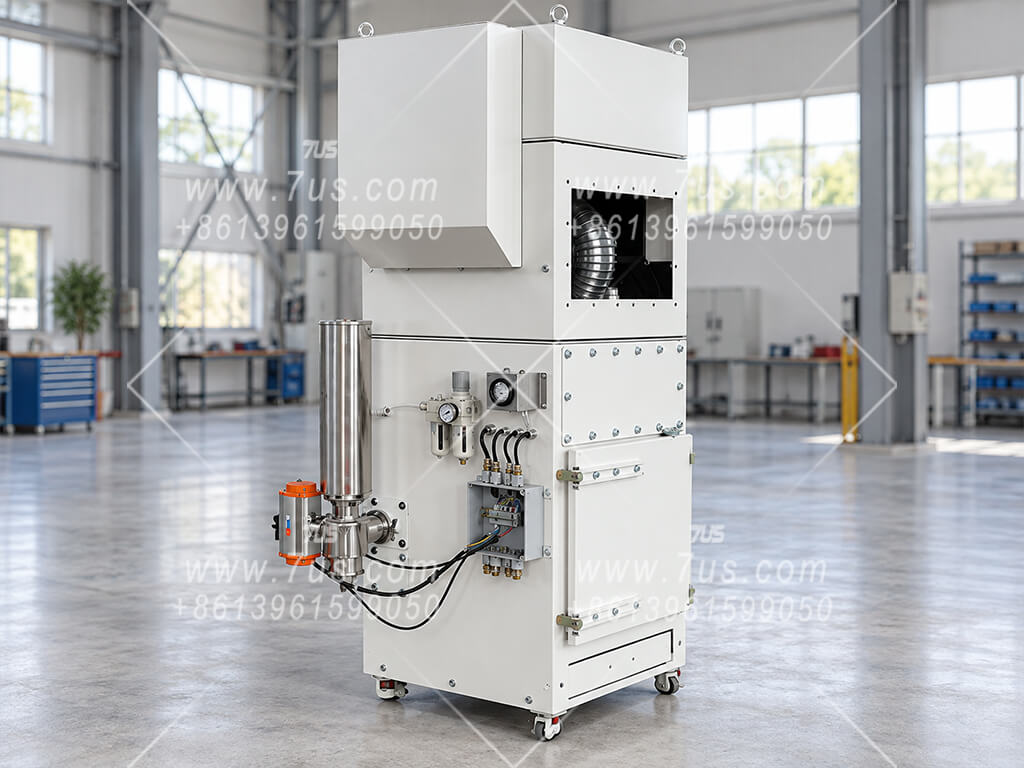

DHLIB-510HV

AIRFLOW510 m³/h

FAN MOTOR5.5 kW

Pressure: −33 kPa
Cartridge size: Ø324 × 400 mm
Cartridge quantity: 1

FOR: Lithium-ion battery manufacturing

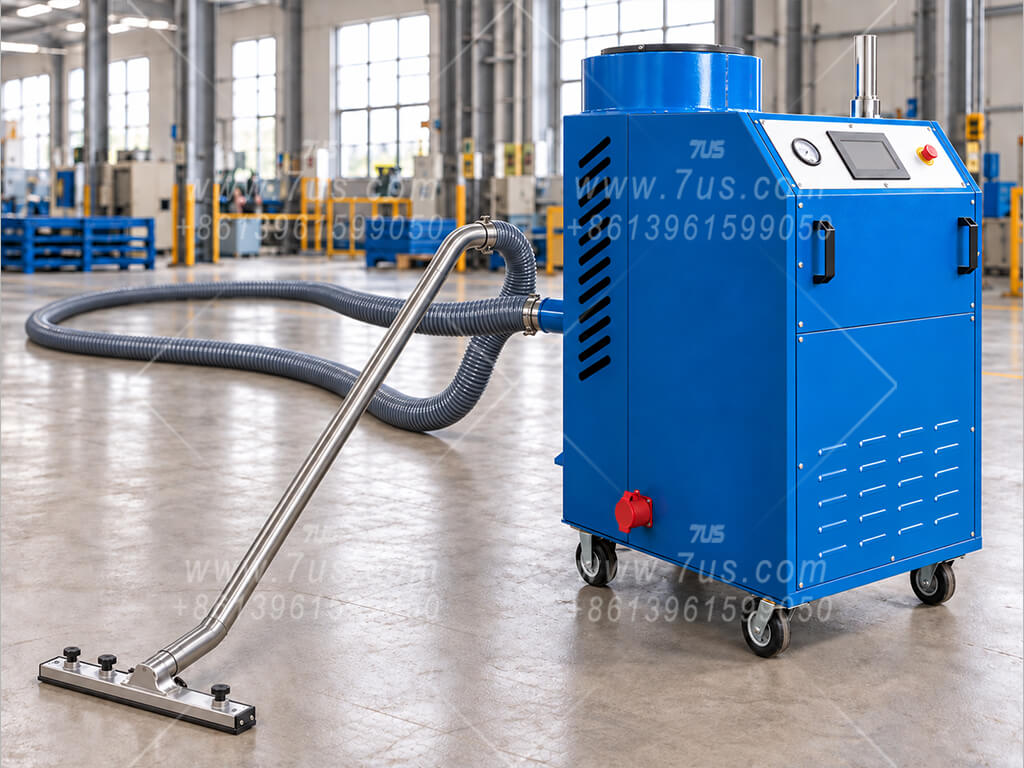

DHM-500HV

AIRFLOW550 m³/h

FAN MOTOR5.5 kW

Pressure: −30 kPa
Cartridge size: Ø352 × 660 mm
Cartridge quantity: 1

FOR: Floor dust vacuuming

CUSTOM CONFIGURATIONS

More Models, Built to Your Requirements

The models shown here are selected examples, not an exhaustive list. Other custom vertical cartridge all-in-one dust collectors can be designed to suit your application and installation requirements.

Flexible Configurations

Cartridge size and quantity, cabinet dimensions, fan selection and filtration stages can be tailored to the required airflow, dust characteristics and available space.

Tell Us What You Need

Share your process, dust type, required airflow and installation constraints so we can recommend a suitable configuration.
