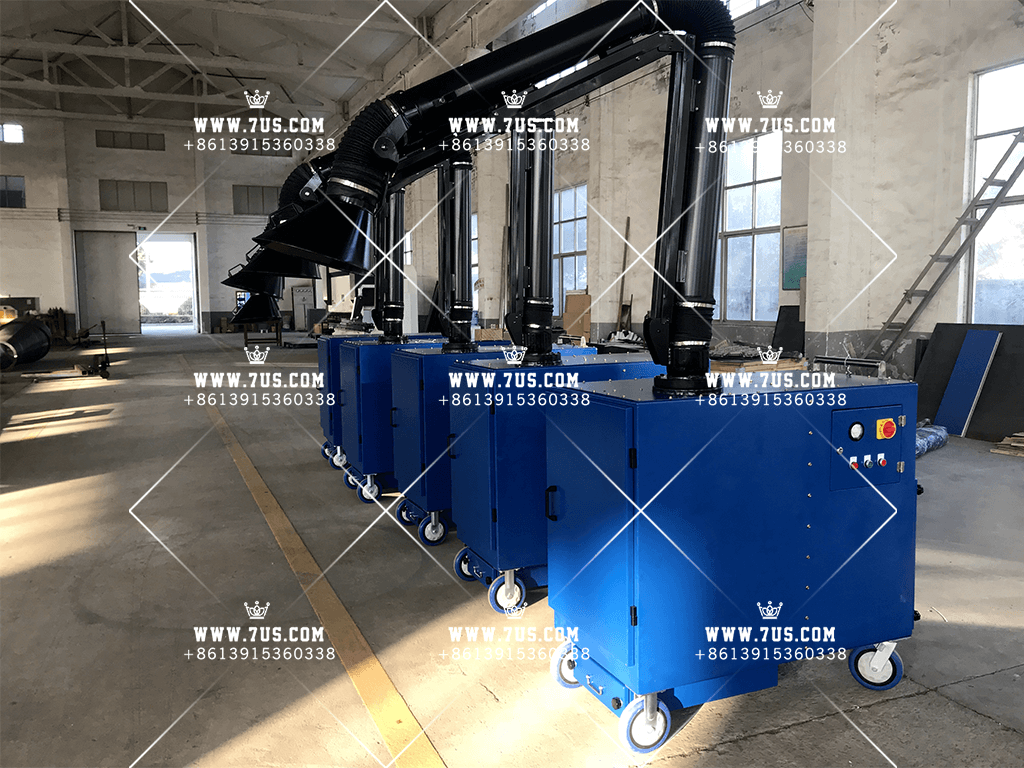

Portable Welding Fume Extractor with Extraction Arm 7US

Mobile welding fume extractor designed for single-workstation welding, grinding and localized smoke or dust collection.

Built-in fan, filter cartridge and pulse-jet cleaning system are integrated into a compact mobile unit.

Flexible extraction arm allows fumes to be captured close to the welding or grinding source.

Front-mounted controls provide convenient operation and routine maintenance access.

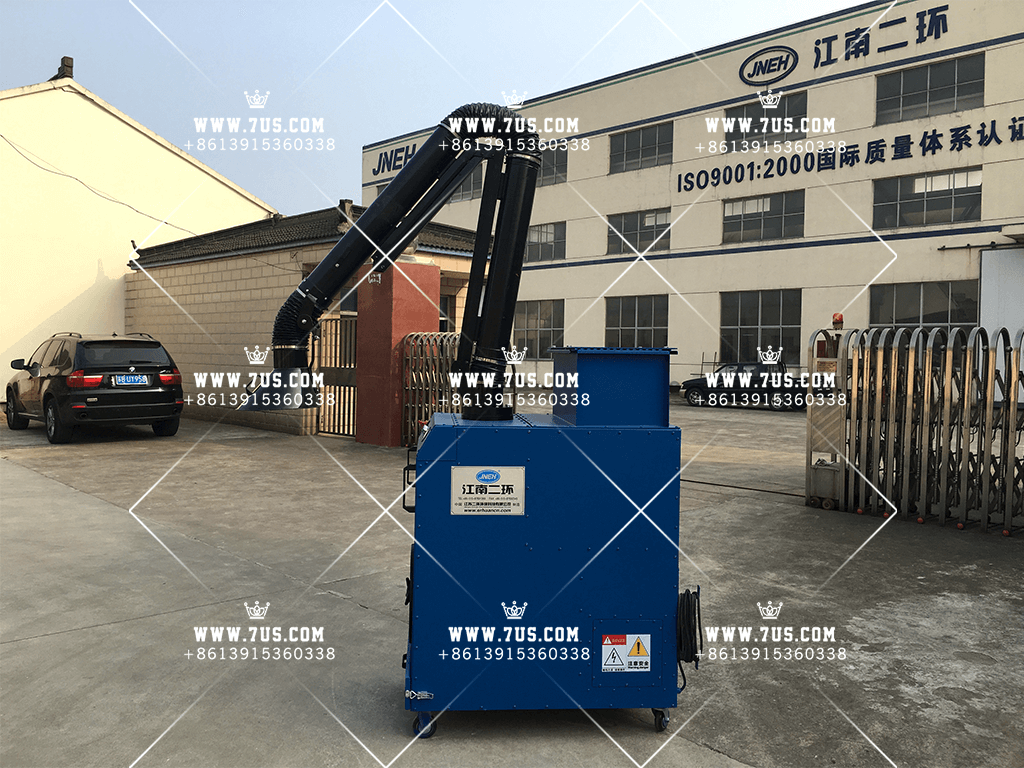

Wheel-mounted design allows the extractor to be moved between different workstations as required.

Differential pressure indication helps operators monitor filter condition during operation.

Optional HEPA final filtration can be added when higher-efficiency air filtration is required.

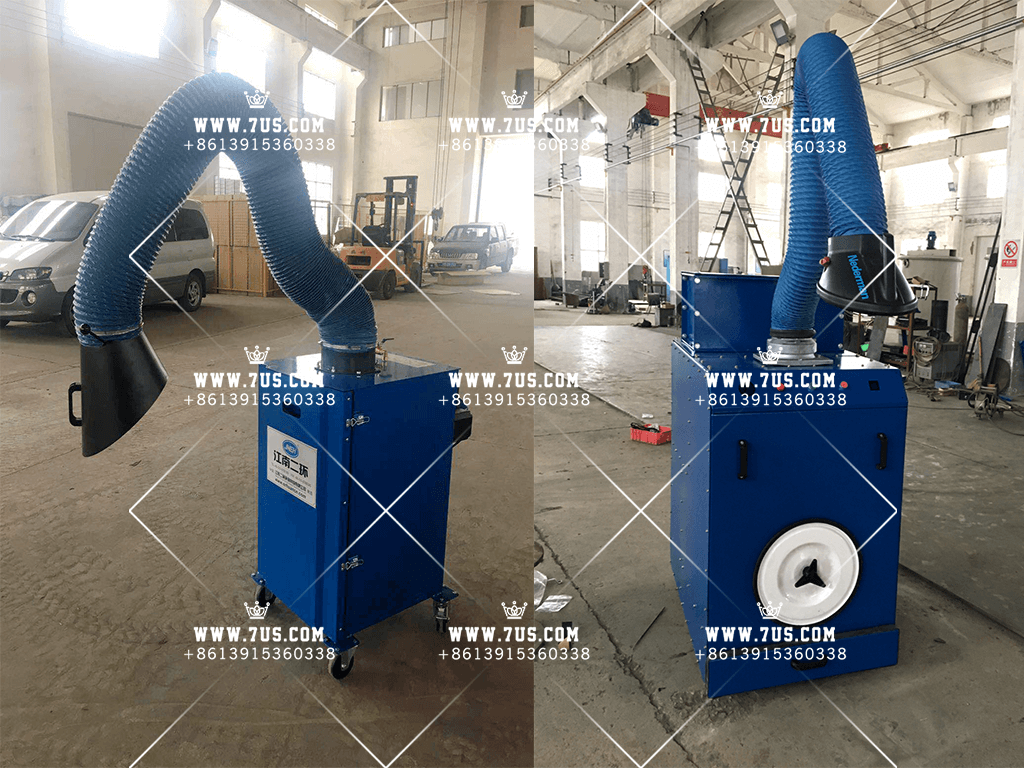

Compact mobile design is suitable for localized fume extraction around individual welding or grinding workstations.

Built-in pulse-jet cleaning helps remove accumulated dust from the filter cartridge during operation.

Differential pressure indication provides a practical reference for monitoring filter loading.

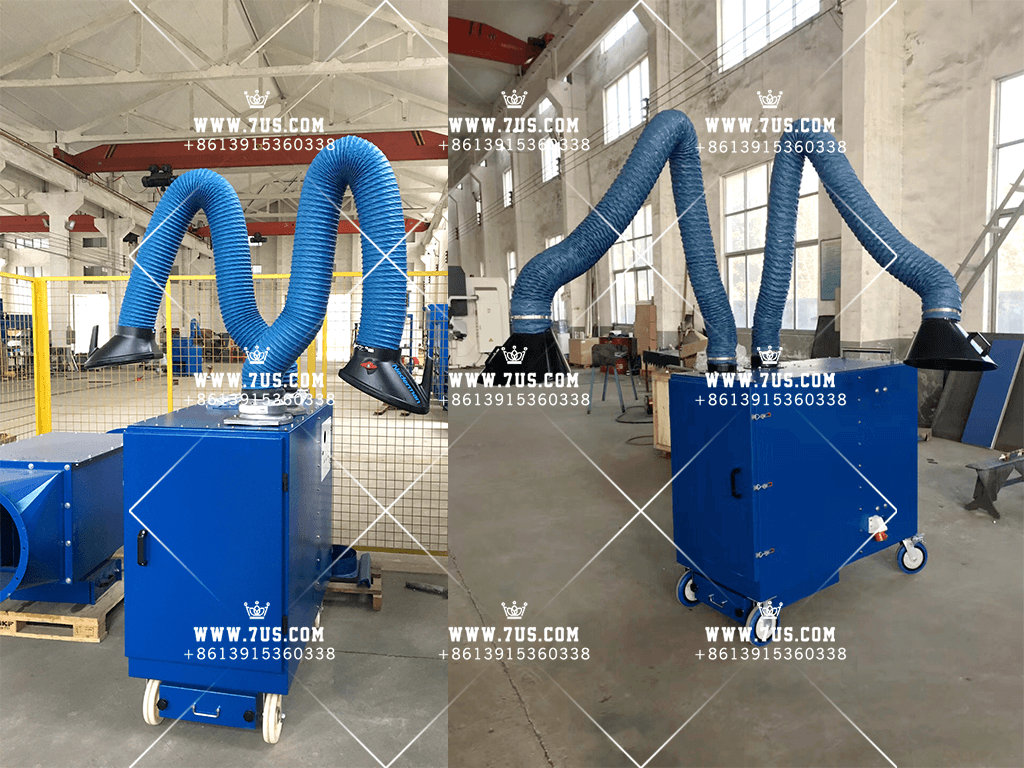

Flexible extraction arm can be repositioned around the work area to capture fumes close to the source.

Wheel-mounted construction allows the unit to be moved easily between different workstations.

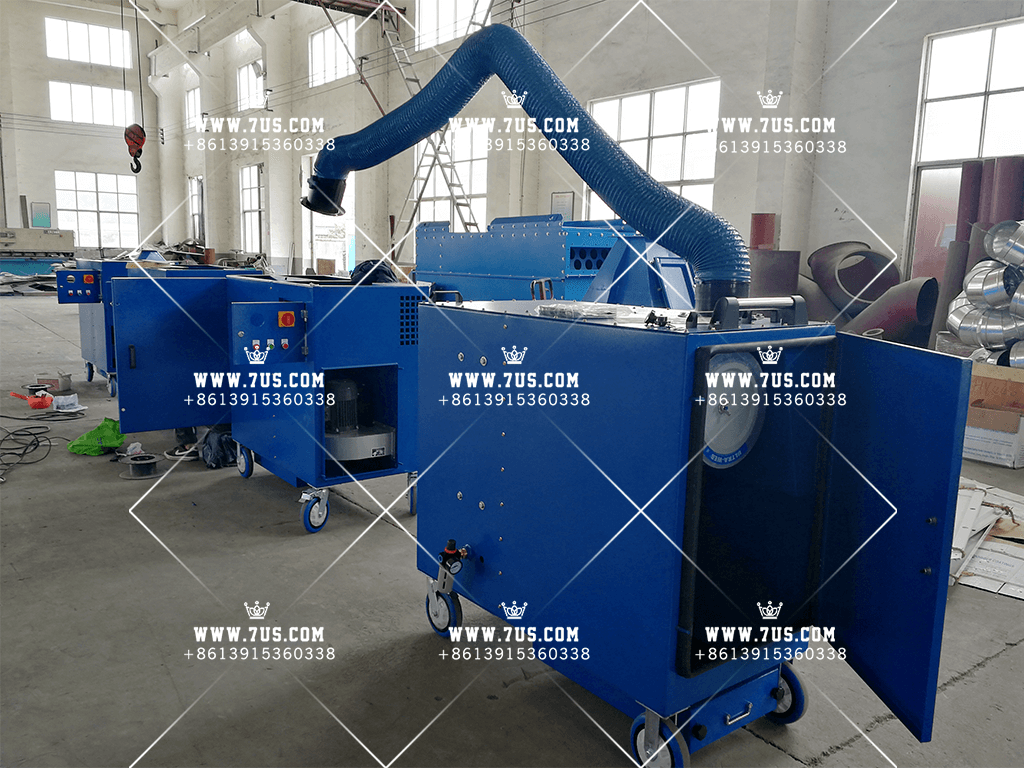

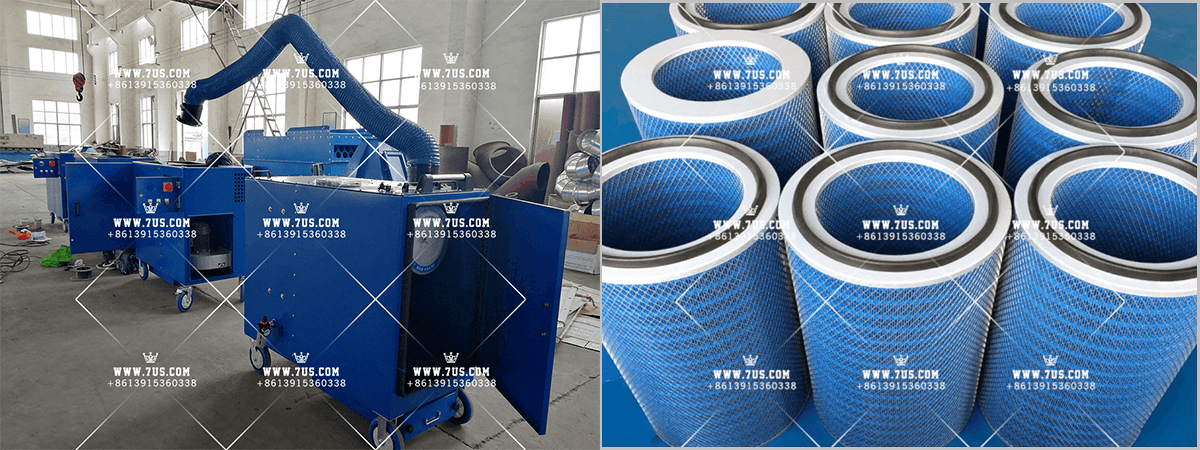

Filter cartridge replacement and routine maintenance can be performed through the service access area.

Optional HEPA final filtration can be evaluated when additional air filtration is required.

Approximate operating noise level is 85 dB according to the existing product data.

OEM manufacturing and customized voltage, frequency, color and private-label requirements are available according to project requirements.

Item No.	Model	Air Volume	Size	Cartridge Filter Qty	Pulse Valve Qty	Power	N.W.
Item No.	Model	m³/h	L × W × H (mm)	pcs	pcs	kW	T
1	PT1001	1000	1303 × 650 × 1310	1	1 × DN25	1.1	0.230

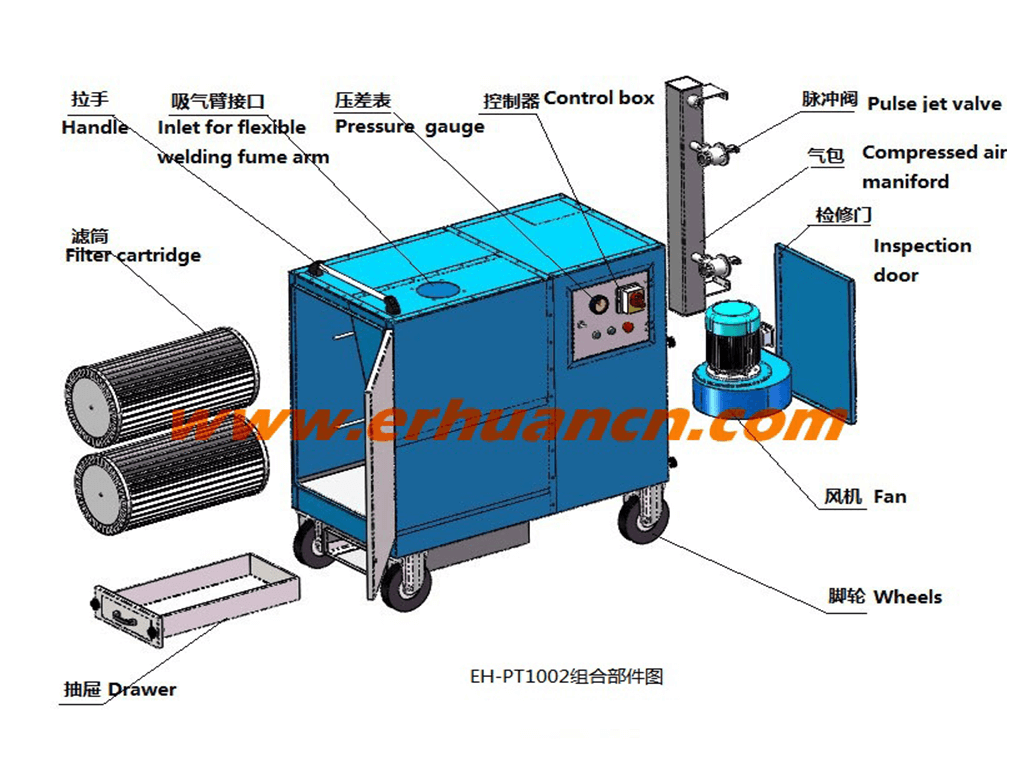

2	PT1002	2000	1303 × 650 × 1310	2	2 × DN25	2.2	0.240

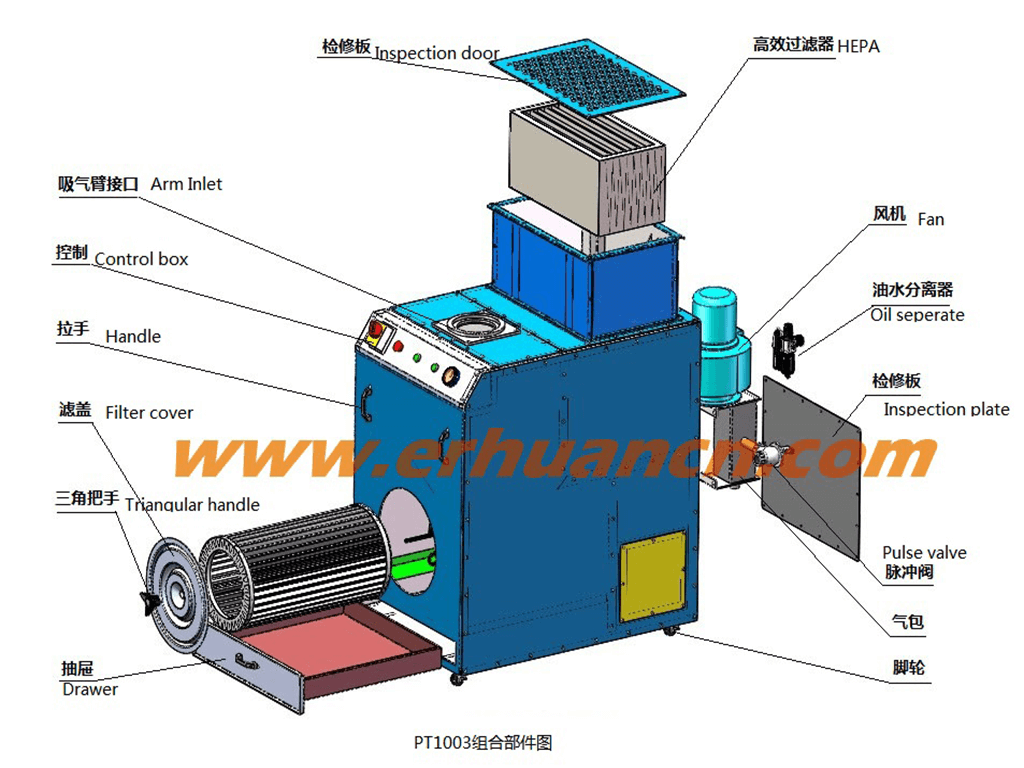

3	PT1003	1000	1210 × 715 × 1500	1	1 × DN25	1.1	0.304

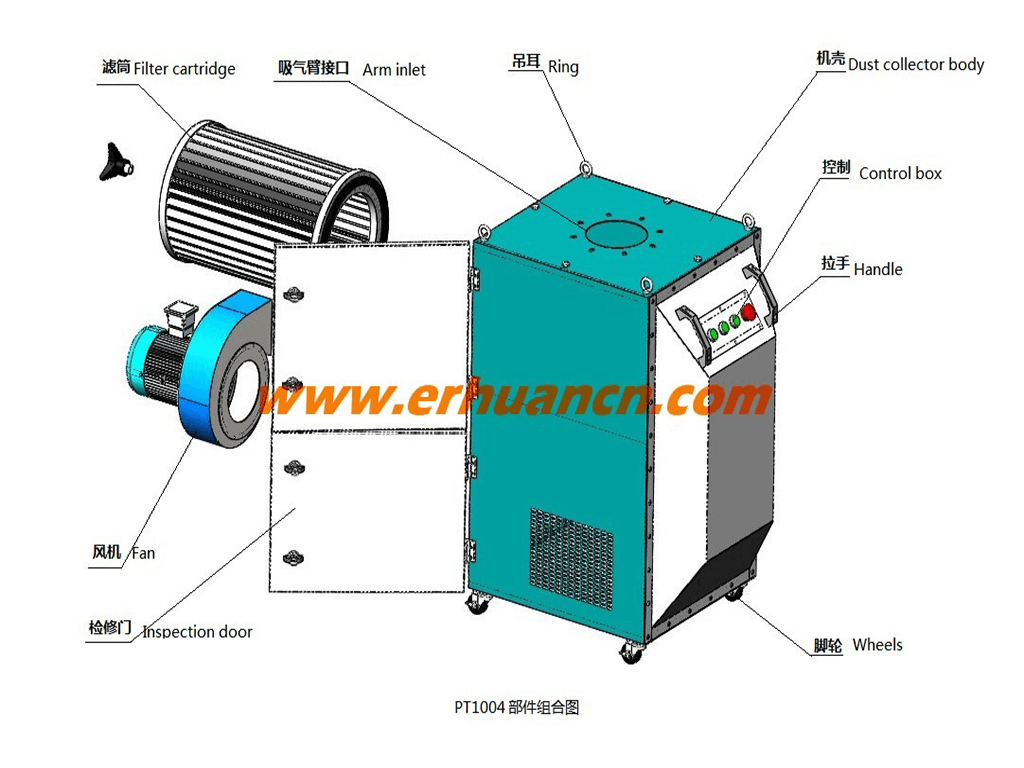

4	PT1004	1000	500 × 700 × 900	1	1 × DN25	1.1	0.100

Laser Cutting
CNC Bending
Assembly and Inspection
Component Finishing
Component Assembly
Equipment Assembly

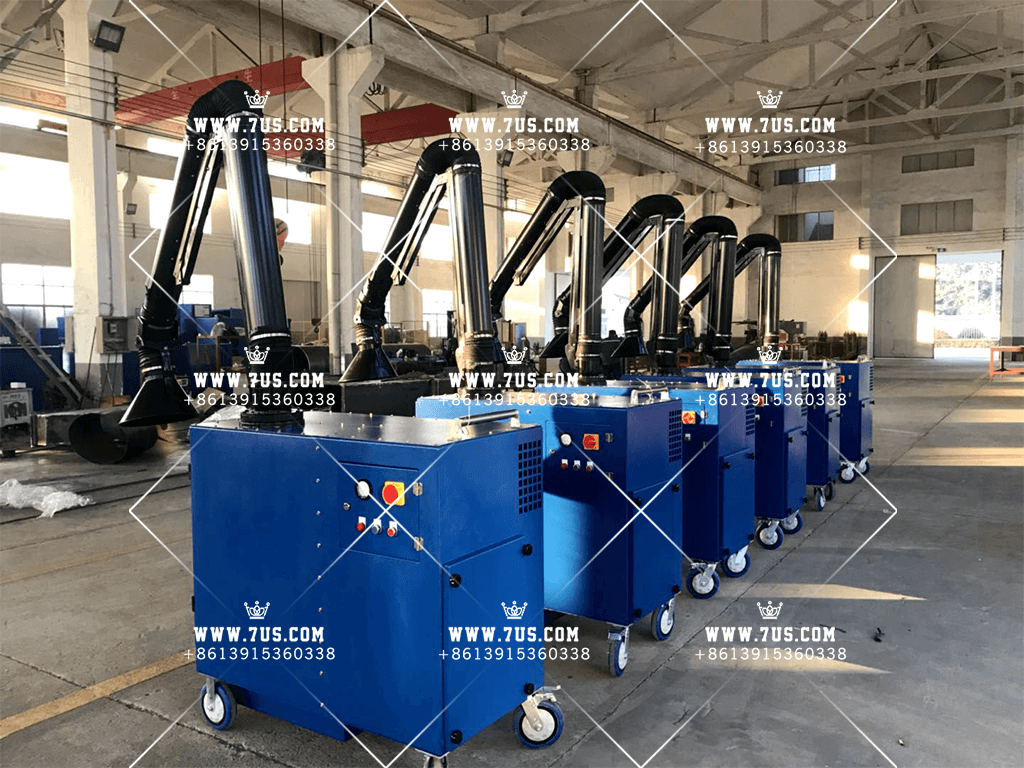

Final Assembly
Product Delivery
Container Shipping
Equipment Setup
Setup Completed
Overseas Technical Support

Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case

Mobile welding fume extractors are packed according to the model, dimensions and order quantity to help protect the equipment and extraction arm during transportation. L.C.L shipments can be packed on pallets or in plywood boxes where appropriate, while F.C.L shipments can be loaded into containers according to the confirmed packing arrangement. Special packing requirements can be discussed before shipment.

: Position the extractor close to the welding or grinding workstation and adjust the flexible extraction arm so that fumes are captured near the source without interfering with the operator's work area.

: Check the differential pressure indication and filter condition during operation. Technical guidance and remote support can be provided when assistance is required for filter replacement, pulse cleaning or routine maintenance.

FAQ

Q: What applications is this mobile welding fume extractor suitable for? A: It is mainly intended for localized welding fumes, grinding dust and similar dry smoke or particulate generated around individual workstations.	Q: How should the extraction arm be positioned? A: The extraction hood should be positioned close to the fume source while maintaining enough clearance for the operator and welding process.
Q: How is the filter cartridge cleaned? A: The extractor uses compressed-air pulse-jet cleaning to remove accumulated particulate from the filter cartridge surface.	Q: How do I know when the filter needs attention? A: The differential pressure indication provides a reference for filter loading and can help determine when cleaning, inspection or replacement is required.
Q: Can HEPA filtration be added? A: Yes. HEPA final filtration can be evaluated when additional downstream air filtration is required. The applicable efficiency depends on the selected HEPA grade and project standard.	Q: Can the unit be moved between workstations? A: Yes. The wheel-mounted design allows the extractor to be relocated between workstations when required.
Q: What information should I provide for model selection? A: Please provide the welding or grinding process, expected fume or dust type, required airflow if known, working distance, extraction arm requirement, operating hours, voltage and frequency.	Q: Can you provide OEM or customized manufacturing? A: Yes. Equipment color, voltage, frequency and private-label requirements can be reviewed according to the project.
