Flat-Bag All-in-One Dust Collectors
Compare compact flat-bag dust collectors with integrated fans for bioprotein powder, laboratory dust collection and conveyor applications. Explore product photos, specifications and dimensional drawings to find a configuration for your process.
These compact baghouse dust collectors use flat-bag filtration and an integrated fan. Compare airflow, motor power, bag size and bag quantity across the three models.

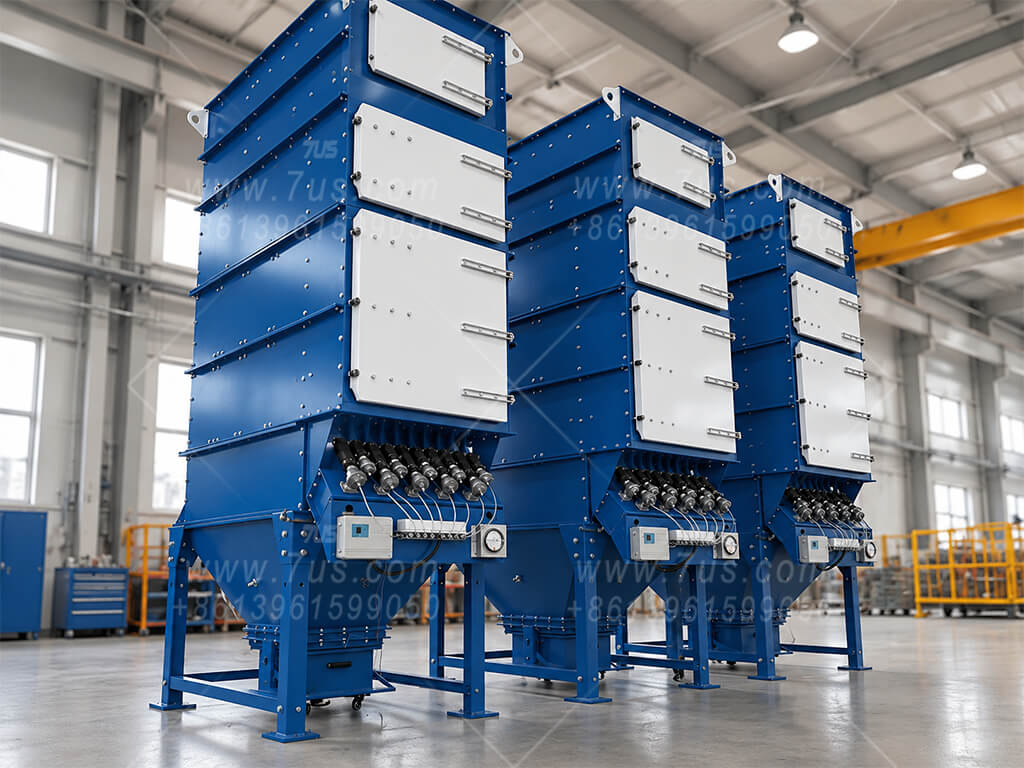

EHFBC1/3/15-2H
AIRFLOW3000 m³/h
FAN MOTOR4 kW
Bag size: 500 × 1500 mm Number of bags: 30

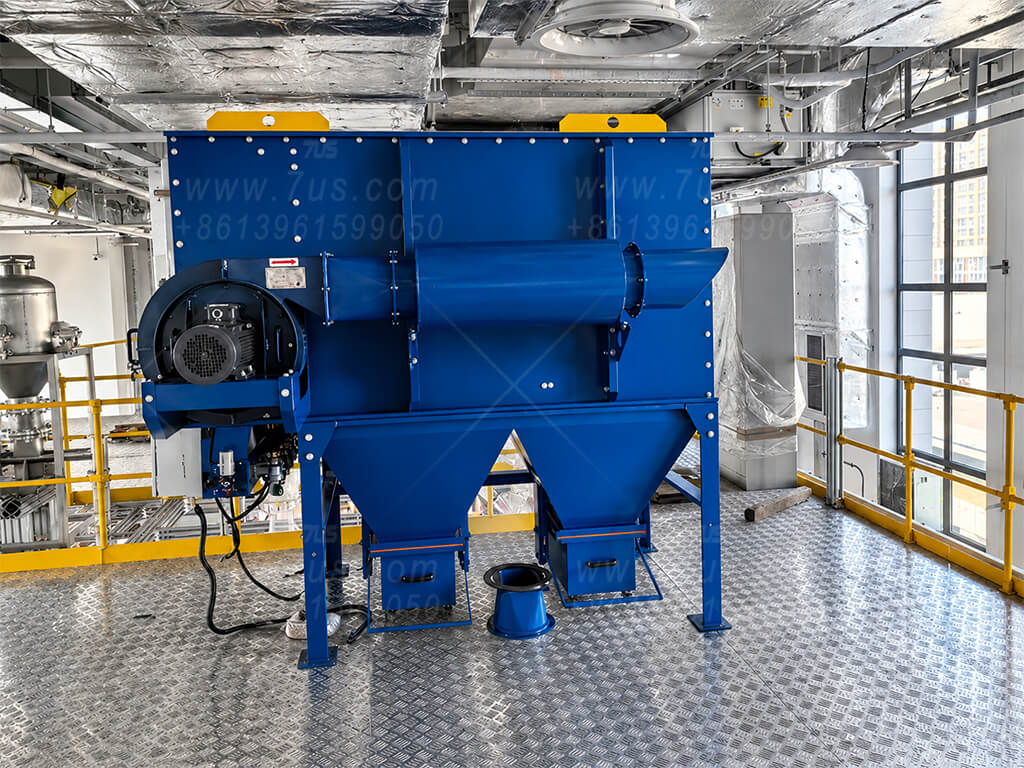

EHFBI1/2/15
AIRFLOW2000 m³/h
FAN MOTOR3 kW
Bag size: 500 × 1500 mm Number of bags: 20

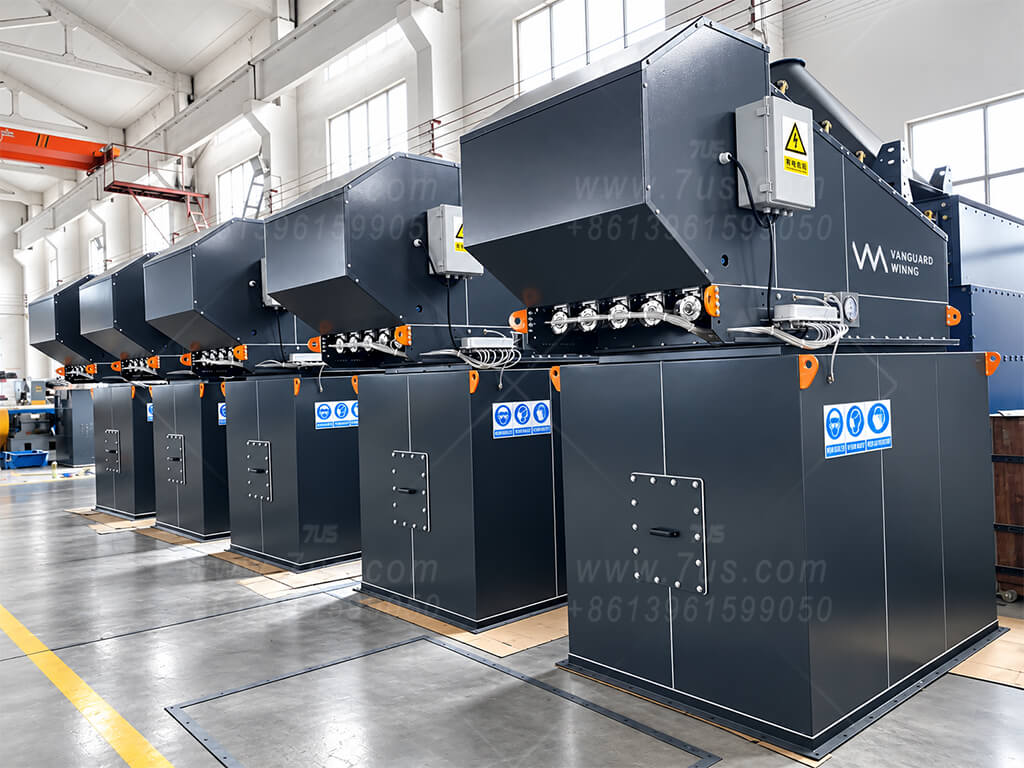

EHFBV45/15
AIRFLOW3500 m³/h
FAN MOTOR4 kW
Bag size: 500 × 1500 mm Number of bags: 30
EHFBV SERIES · EXTENDED MODEL RANGE
More EHFBV Models, Built Around Your Application

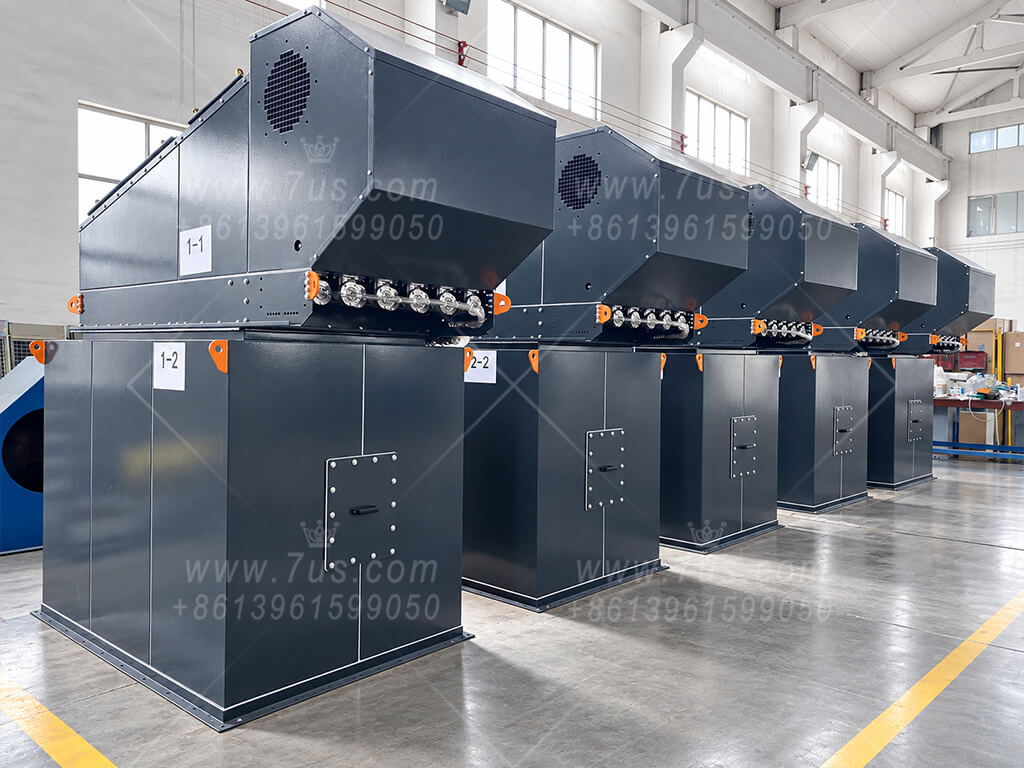

The EHFBV45/15 shown above is one example from a wider range of flat-bag all-in-one dust collectors. Browse the model table below to compare filter area, bag quantity and dimensions, then contact us for a configuration matched to your dust, required airflow and available installation space.

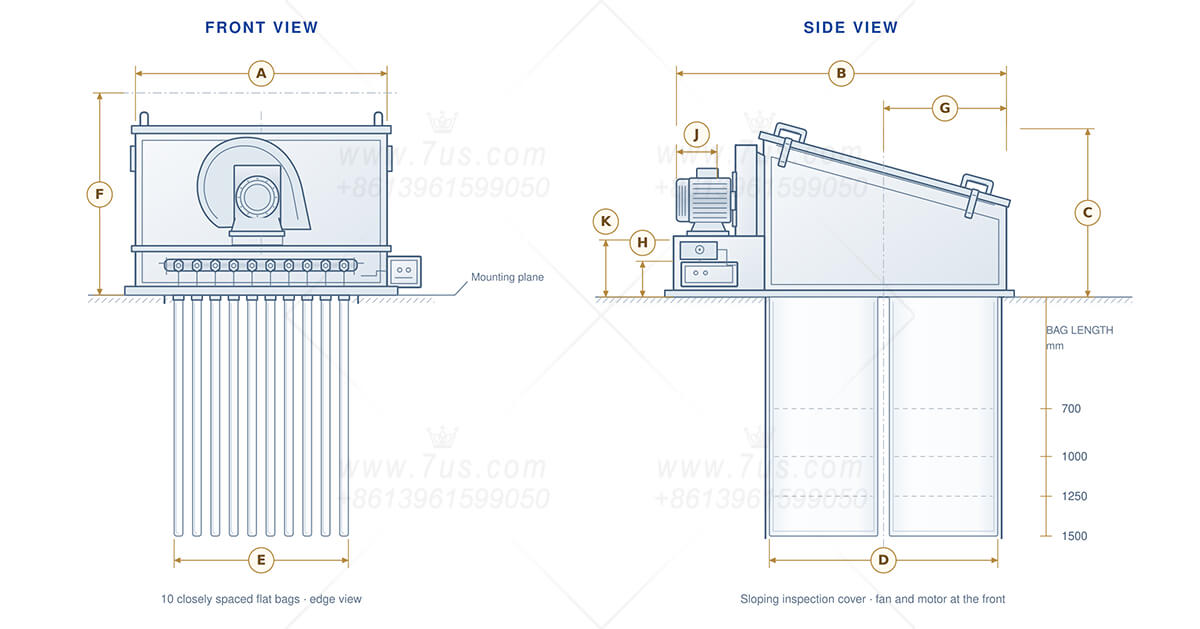

EHFBV Dimension Guide
FRONT & SIDE VIEWS
Dimensions in millimeters · Schematic view, not to scaleSwipe across the drawing.
EHFBV Model Selection
24 models · Filter area 3–60 m² · Scroll for more models and dimensions
Model
Filter area m²
Bag quantity
REFERENCE DIMENSIONS · mm
A
B
C
D
E
F
G
H
J
K
EHFBV3/7
3
4
524
1095
935
480
294
1250
310
295
195
375
EHFBV4/7
4
6
700
1095
935
480
470
1250
310
295
195
375
EHFBV5/12
5
4
524
1095
935
480
294
1800
310
295
195
375
EHFBV6/10
6
6
700
1095
935
480
470
1550
310
295
195
375
EHFBV7/7
7
10
1100
1095
935
480
820
1250
310
295
195
375
EHFBV7.5/12
7.5
6
700
1095
935
480
470
1800
310
295
195
375
EHFBV8/7
8
12
700
1625
935
1005
470
1250
575
310
130
400
EHFBV9/15
9
6
700
1095
935
480
470
2050
310
295
195
375
EHFBV10/10
10
10
1100
1095
935
480
820
1550
310
295
195
375
EHFBV12/10
12
12
700
1625
935
1005
470
1550
575
310
130
400
EHFBV13/12
13
10
1100
1095
935
480
820
1800
310
295
195
375
EHFBV14/7
14
20
1100
1625
935
1005
820
1250
575
310
130
400
EHFBV15/12
15
12
700
1625
935
1005
470
1800
575
310
130
400
EHFBV15/15
15
10
1100
1095
935
480
820
2050
310
295
195
375
EHFBV18/15
18
12
700
1625
935
1005
470
2050
575
310
130
400
EHFBV20/10
20
20
1100
1625
935
1005
820
1550
575
310
130
400
EHFBV21/7
21
30
1100
2225
1090
1605
820
1150
875
310
130
400
EHFBV25/12
25
20
1100
1625
935
1005
820
1800
575
310
130
400
EHFBV30/10
30
30
1100
2225
1090
1605
820
1450
875
310
130
400
EHFBV30/15
30
20
1100
1625
935
1005
820
2050
575
310
130
400
EHFBV38/12
38
30
1100
2330
1090
1605
820
1700
875
310
235
400
EHFBV45/15
45
30
1100
2330
1090
1605
820
1950
875
310
235
400
EHFBV50/12
50
40
1100
2890
1090
2130
820
1960
1137
310
270
400
EHFBV60/15
60
40
1100
2890
1090
2130
820
2210
1137
310
270
400
No matching model. Try a shorter model code.
Dimension letters correspond to the drawing above. Dimension B depends on the motor manufacturer. Final dimensions are confirmed for the selected fan and motor configuration.
Need a Different Configuration?
Tell us your dust type, required airflow, operating conditions and installation limits. We can recommend an EHFBV model or develop a custom flat-bag all-in-one unit to suit your process.
