Vertical All-in-one Cartridge Dust Collector 7US

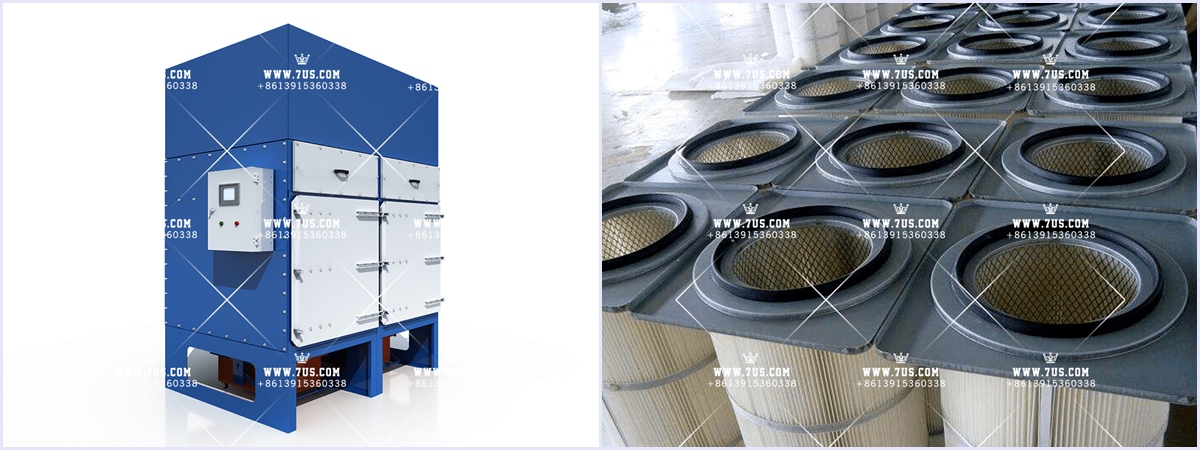

All-in-one cartridge dust collector with vertically installed filter cartridges for compact industrial dust collection applications.

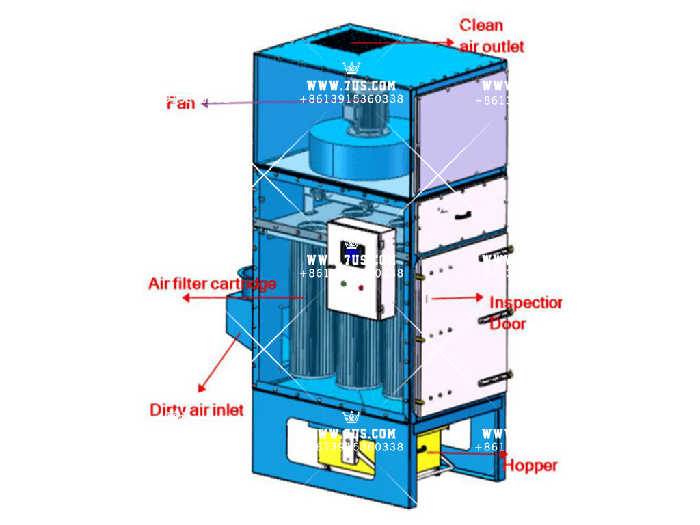

Vertical cartridge arrangement provides convenient filter access and supports efficient use of the available filtration space.

Eccentric cam cartridge fixing allows the filter cartridges to be released and replaced through the side access door.

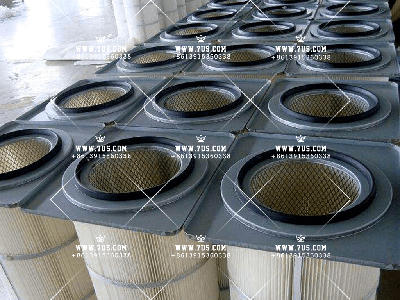

Pleated cartridge filters provide a large filtration area within a compact equipment footprint.

Automatic compressed-air pulse-jet cleaning removes accumulated dust from the cartridge surface during operation.

Suitable for compatible dry dust and fume applications with dust-laden air temperatures below 120°C.

Optional HEPA and activated carbon filtration stages can be added according to the required particulate and odor/VOC treatment needs.

Cartridge Filter

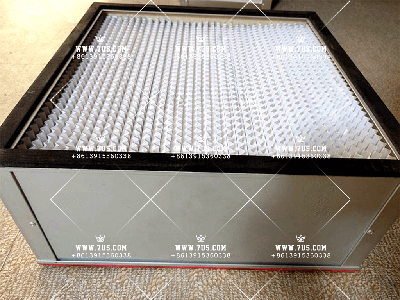

HEPA Filter Option
Activated Carbon Filter Option
Explosion Venting Panel
Flameless Venting Device
Explosion Isolation Valve

DHC-YT Vertical Cartridge Dust Collector Features

Vertical cartridge installation provides convenient filter access and efficient use of the available equipment space.

Side-door access allows filter cartridges to be inspected and replaced without removing major equipment sections.

Eccentric cam fixing provides a practical cartridge locking and release arrangement for routine maintenance.

Automatic pulse-jet cleaning helps remove accumulated dust and maintain filtration performance.

PTFE-treated cartridge filter media can be selected according to dust characteristics and filtration requirements.

Compact all-in-one construction simplifies transportation, installation and operation.

Low and stable pressure drop helps maintain consistent airflow during normal operation.

Optional HEPA and activated carbon stages can be added according to project filtration requirements.

Equipment color, filter media, voltage, frequency and OEM configurations can be customized according to project requirements.

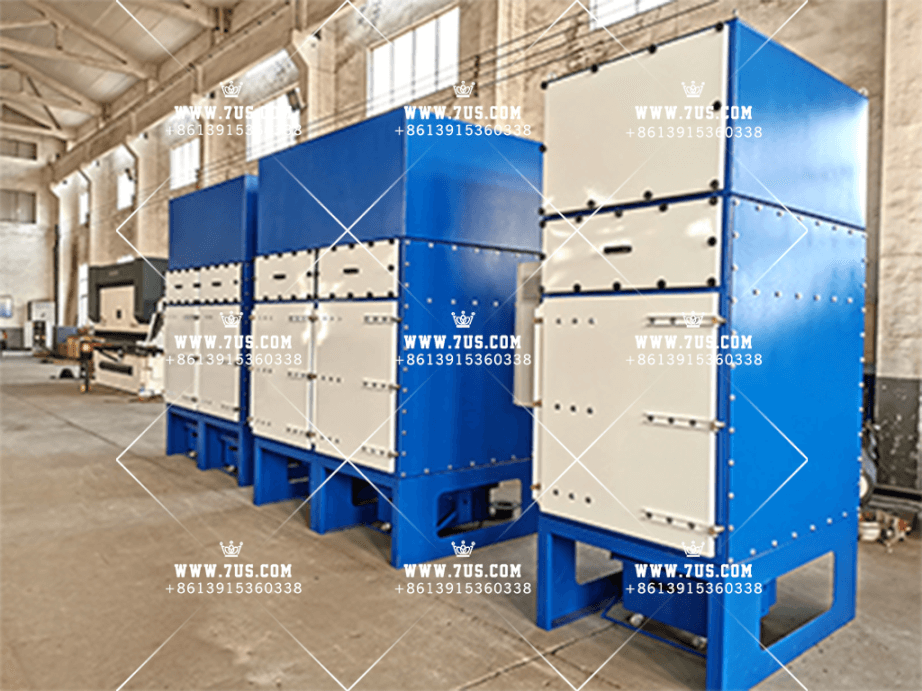

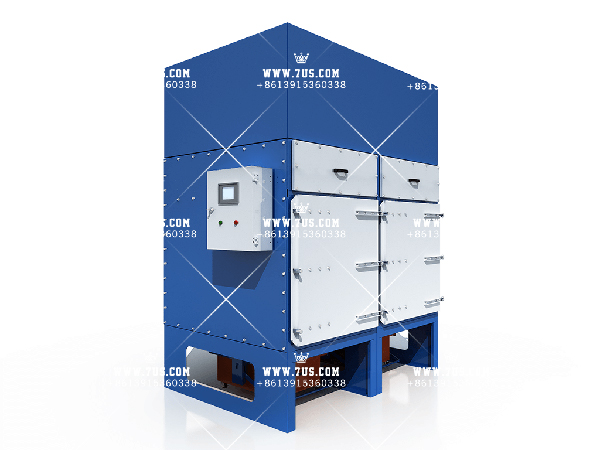

DHC-YT Vertical All-in-one Series

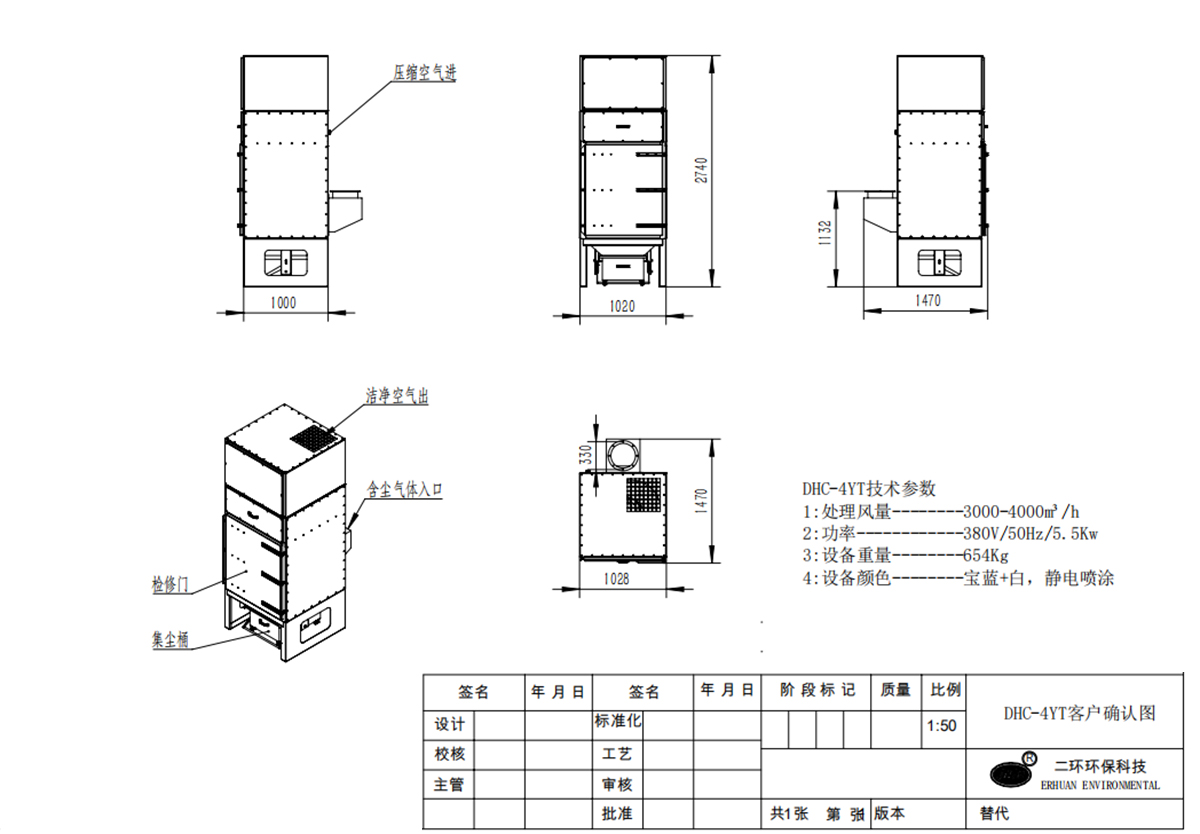

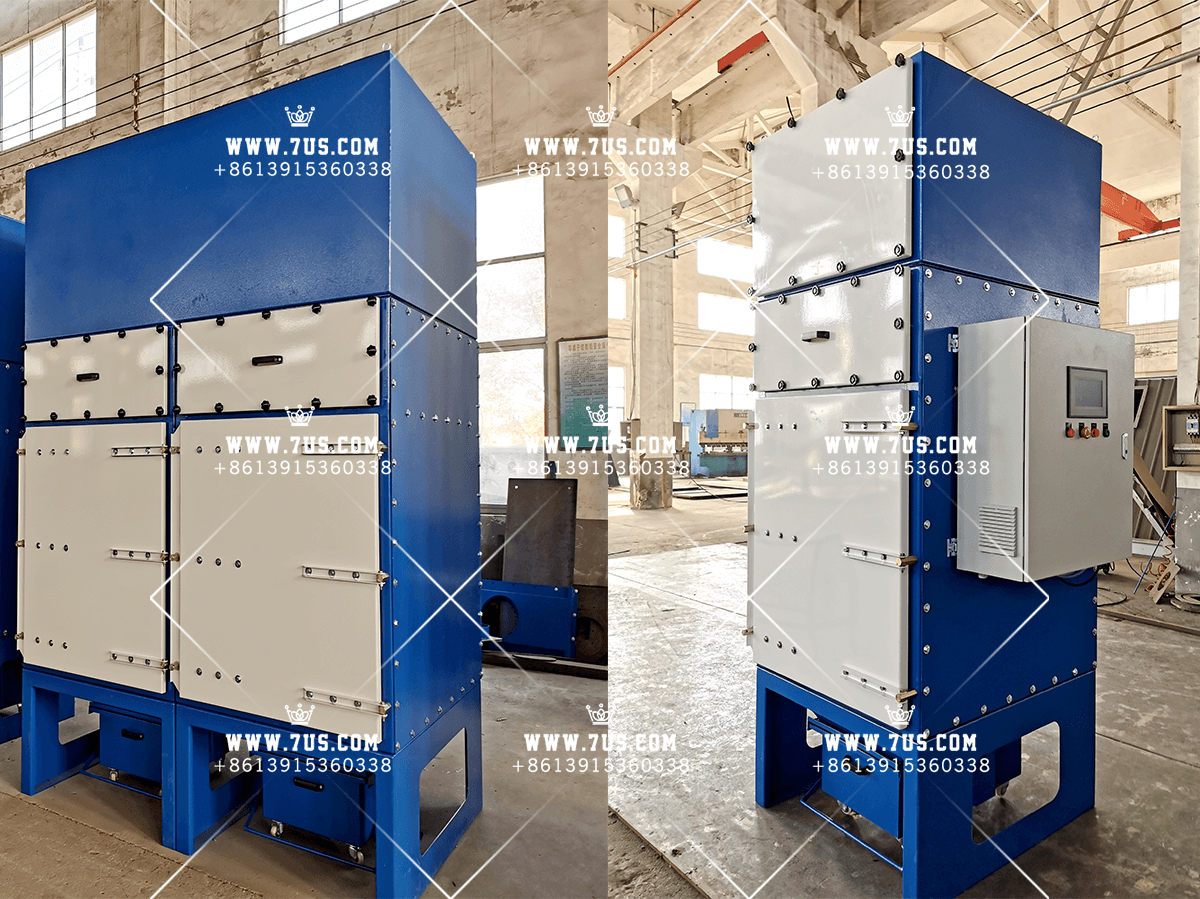

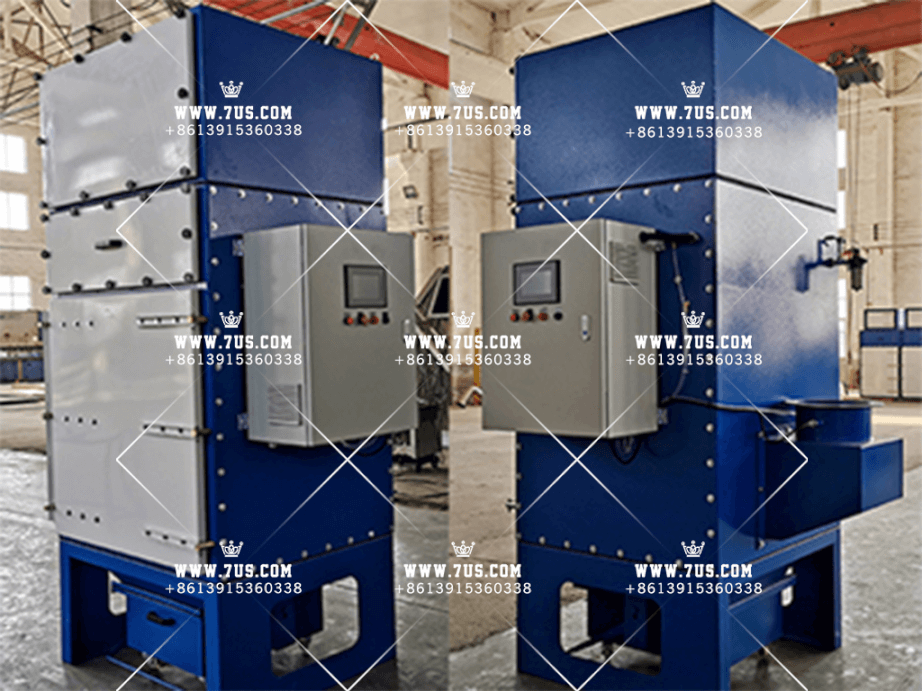

DHC-YT Vertical All-in-one Cartridge Dust Collector

Item No.	Model	Air Volume	Size	Cartridge Filter Qty	Pulse Valve Qty	Power	N.W.
Item No.	Model	m³/h	L × W × H (mm)	pcs	pcs	kW	T
1	DHC-4YT	4000	1020 × 1000 × 2740	4	4 × DN25	5.5	0.654
2	DHC-6YT	6000	1020 × 1426 × 2790	6	6 × DN25	7.5	0.840
3	DHC-8YT	8000	2040 × 1000 × 2890	8	8 × DN25	11	1.025
4	DHC-12YT	12000	2040 × 1426 × 2900	12	12 × DN25	11	1.320

Laser Cutting
CNC Bending
Component Powder Coating
Component Assembly

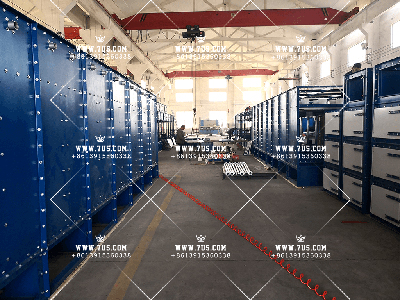

Equipment Assembly

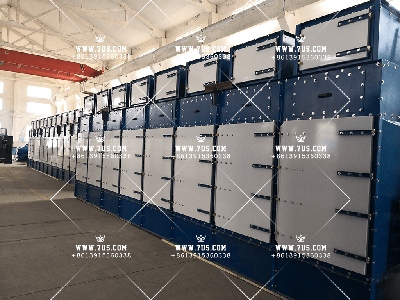

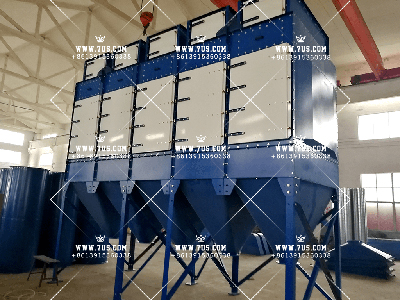

Final Assembly
Section Assembly
Product Delivery
Container Shipping

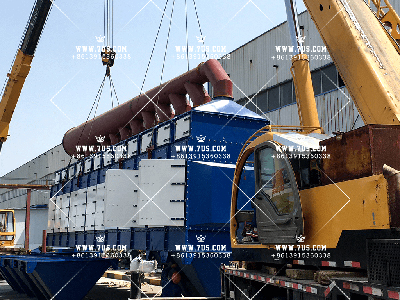

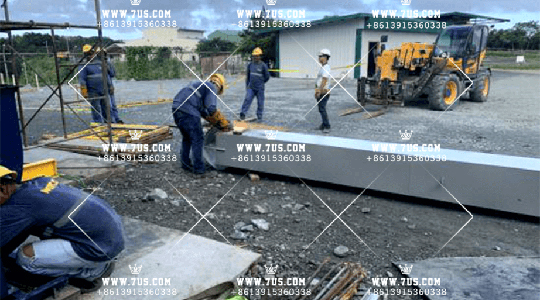

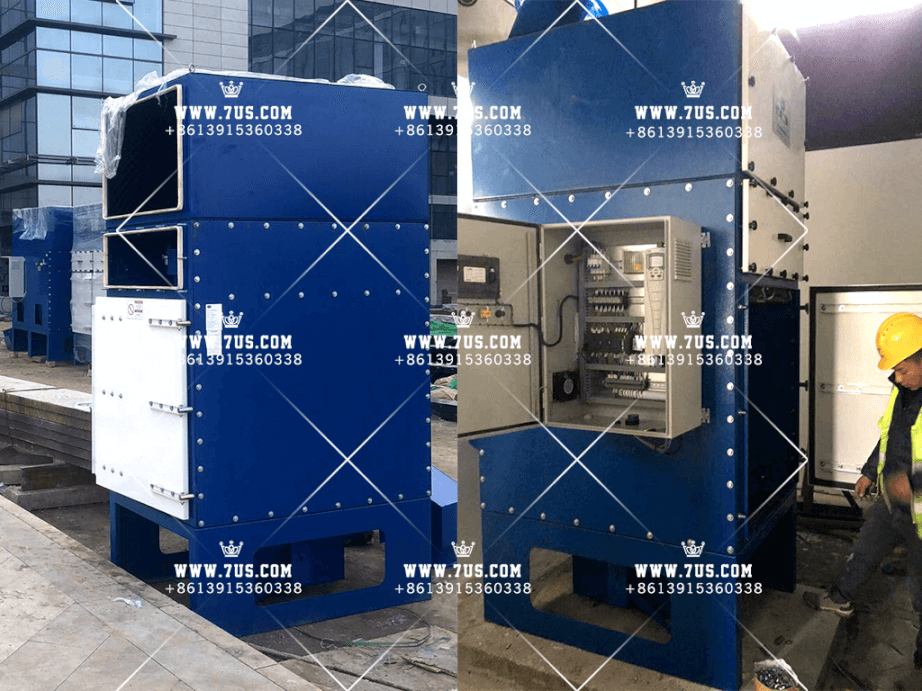

Equipment Installation

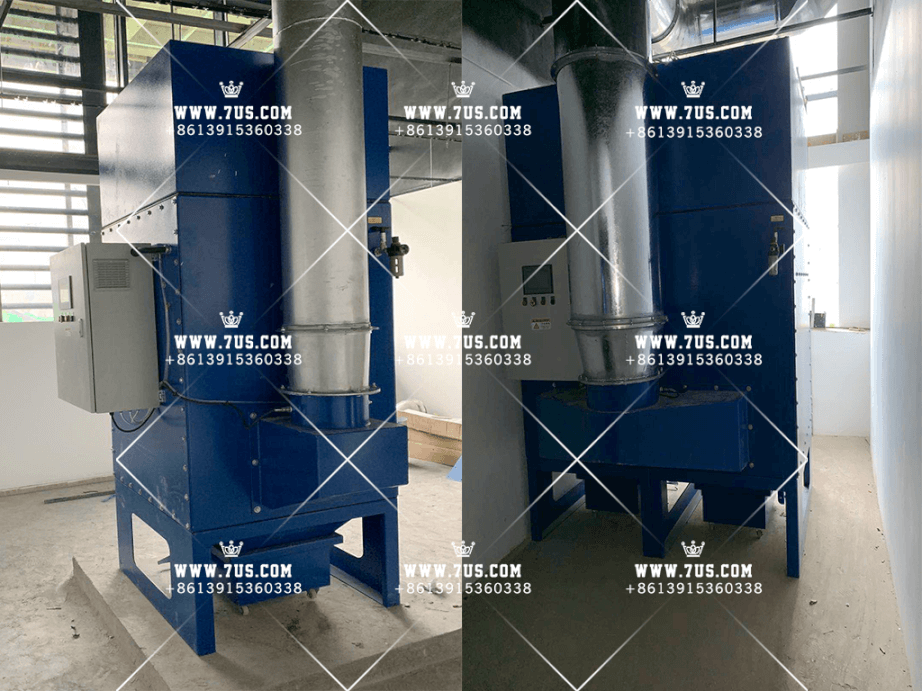

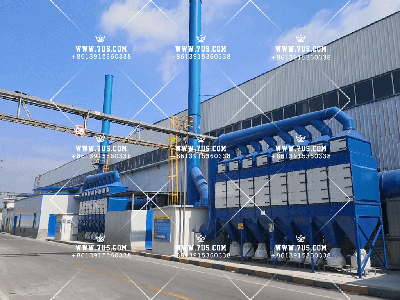

Installation Completed

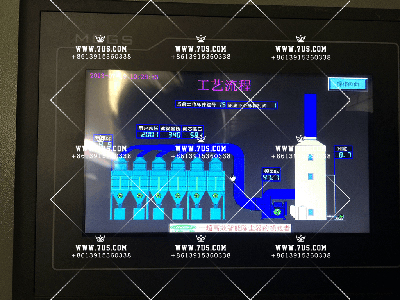

Overseas Technical Support

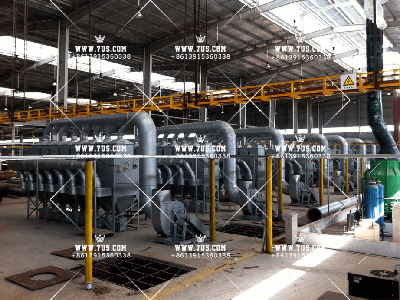

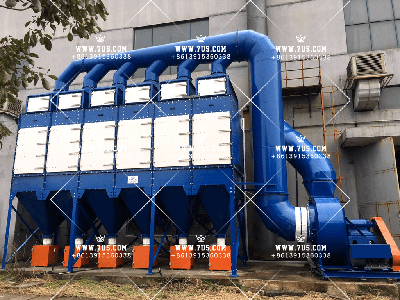

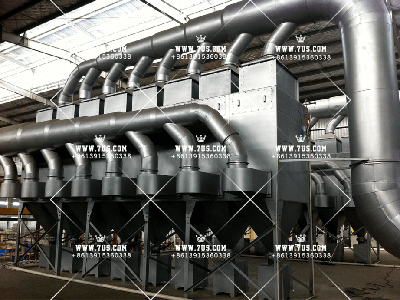

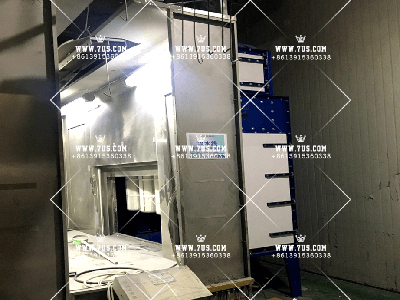

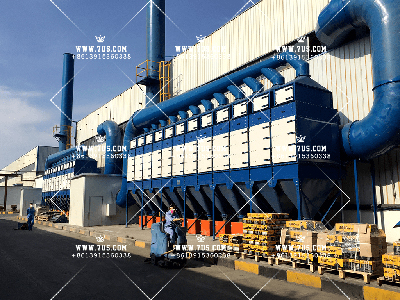

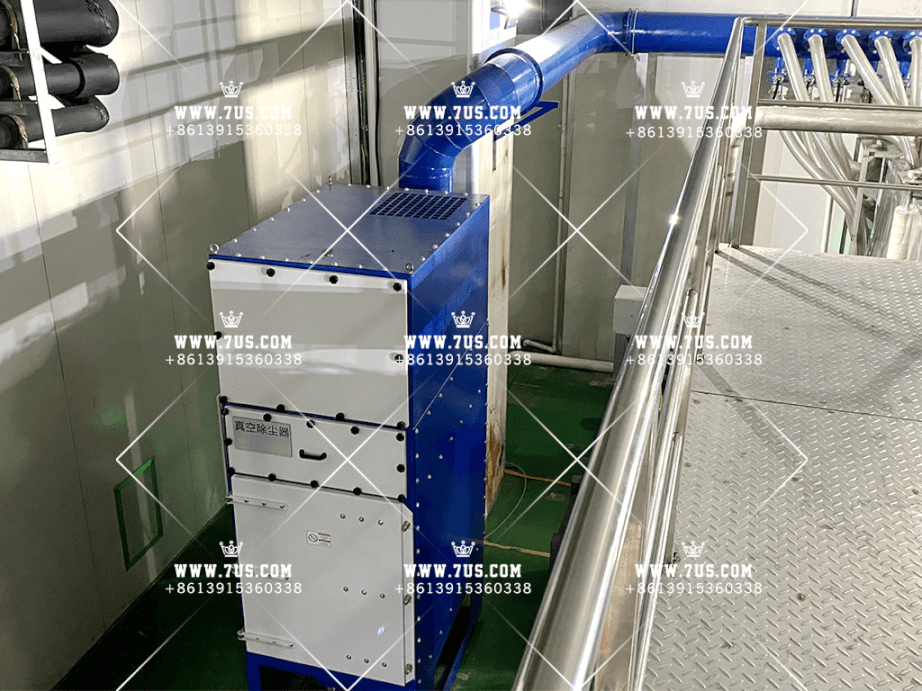

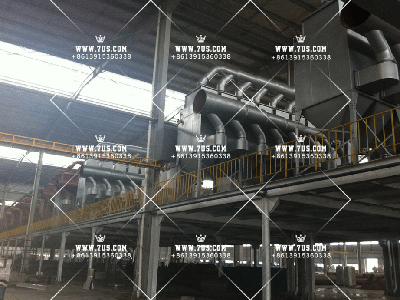

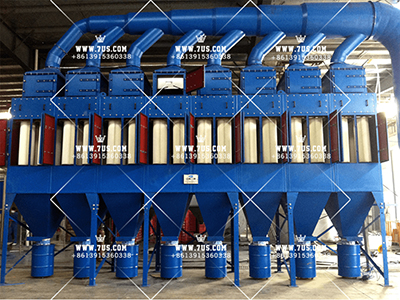

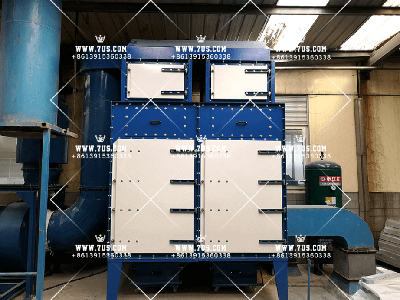

Application Case

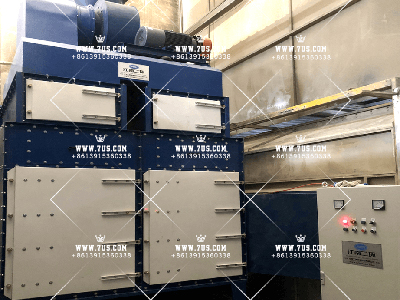

Application Case

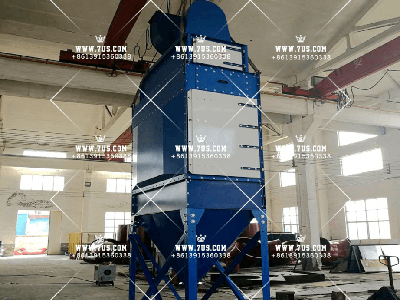

Application Case

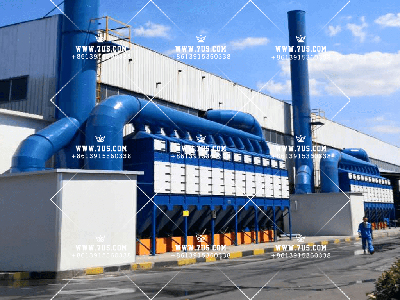

Application Case

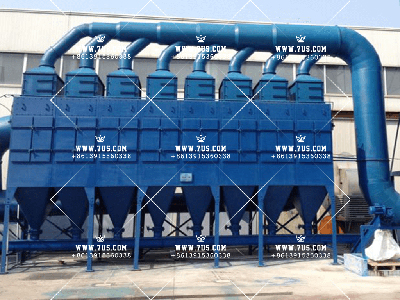

Application Case

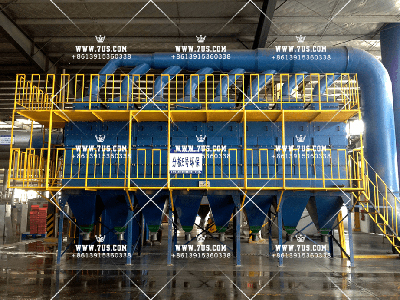

Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case

DHC-YT vertical all-in-one cartridge dust collectors are packed according to the equipment model, dimensions and order quantity. L.C.L shipments can be packed on pallets or in plywood boxes where appropriate, while F.C.L shipments can be loaded into containers according to the confirmed packing arrangement. Special packing or transportation requirements can be discussed before shipment.

: Confirm the equipment position, air inlet and outlet arrangement, electrical supply, compressed-air supply and maintenance clearance before installation. Adequate service space should be reserved for side-door access, cartridge replacement and pulse-system maintenance.

: Filter cartridges, pulse valves, dust discharge and differential pressure should be inspected according to actual operating conditions. Remote technical support can be provided for setup, filter replacement and routine maintenance.

FAQ

Q: What is the main difference between this DHC-YT model and a modular vertical cartridge dust collector? A: The DHC-YT series is an all-in-one vertical cartridge dust collector with the main filtration and operating components integrated into one compact unit. Modular vertical models are intended for larger systems that can be expanded by combining multiple filtration sections.	Q: What airflow models are available? A: The standard DHC-YT models shown on this page cover 4,000, 6,000, 8,000 and 12,000 m³/h.
Q: How are the filter cartridges installed? A: The cartridges are installed vertically and secured by an eccentric cam fixing arrangement, allowing convenient access through the side maintenance door.	Q: How are the filter cartridges cleaned? A: Compressed-air pulse-jet cleaning removes accumulated dust from the filter cartridge surface during operation.
Q: What type of dust is suitable for this series? A: The DHC-YT series is primarily designed for compatible dry dust and fume applications without oil or water, with dust-laden air temperatures below 120°C.	Q: Can HEPA filtration be added? A: Yes. A HEPA filtration stage can be added when additional particulate filtration is required by the project.
Q: Can activated carbon filtration be added for odor or VOC applications? A: Yes. Activated carbon can be evaluated as an additional polishing stage for suitable odor or VOC applications. The required carbon quantity and configuration should be selected according to the specific gas composition and operating conditions.	Q: Can explosion protection options be added? A: Explosion venting, flameless venting and isolation components can be evaluated according to dust characteristics, installation conditions and applicable project requirements.
Q: What information is required for model selection? A: Please provide the required airflow, dust type, operating temperature, moisture or oil content, installation environment, voltage, frequency and applicable safety requirements.	Q: Is OEM manufacturing available? A: Yes. Equipment color, filter media, voltage, frequency and private-label requirements can be reviewed according to the project.
