Vertical Modular Cartridge Dust Collector

1. Vertical modular cartridge dust collector designed for high dust loading, fine dry dust and large-airflow industrial filtration applications.

2. Standardized DHC filtration modules can be combined to increase total airflow, allowing flexible system expansion according to project requirements.

3. Vertical cartridge arrangement with side-door access and eccentric cam fixing allows convenient filter inspection and replacement.

4. Single-stage cartridge filtration, two-stage cartridge + HEPA filtration, and three-stage cartridge + HEPA + activated carbon filtration configurations are available.

5. HEPA final filtration can be added for applications requiring very low particulate emissions, while activated carbon can be used as an additional polishing stage for suitable odor or VOC applications.

6. Standard single-module airflow ranges from 4,000 to 10,000 m³/h, and multiple DHC8 modules can be combined for systems up to 80,000 m³/h as shown on this page.

7. Equipment dimensions, filter media, color and OEM configuration can be customized according to project requirements.

inquiry

prev next

Vertical Modular Cartridge Dust Collector

Modular vertical cartridge dust collector for high dust loading, fine dry dust and large-airflow industrial filtration applications.

Standardized DHC modules can be combined from 4,000–10,000 m³/h single-module configurations to multi-module systems up to 80,000 m³/h.

Vertical cartridges, side-door access and eccentric cam fixing provide a compact footprint and convenient filter inspection and replacement.

Automatic compressed-air pulse-jet cleaning removes accumulated dust from the cartridge surface and helps maintain stable filtration performance.

Single-stage cartridge filtration, optional HEPA final filtration and activated-carbon polishing are available. OEM/private-label configurations can be customized to project requirements.

Vertical Modular Dust Collector Structure

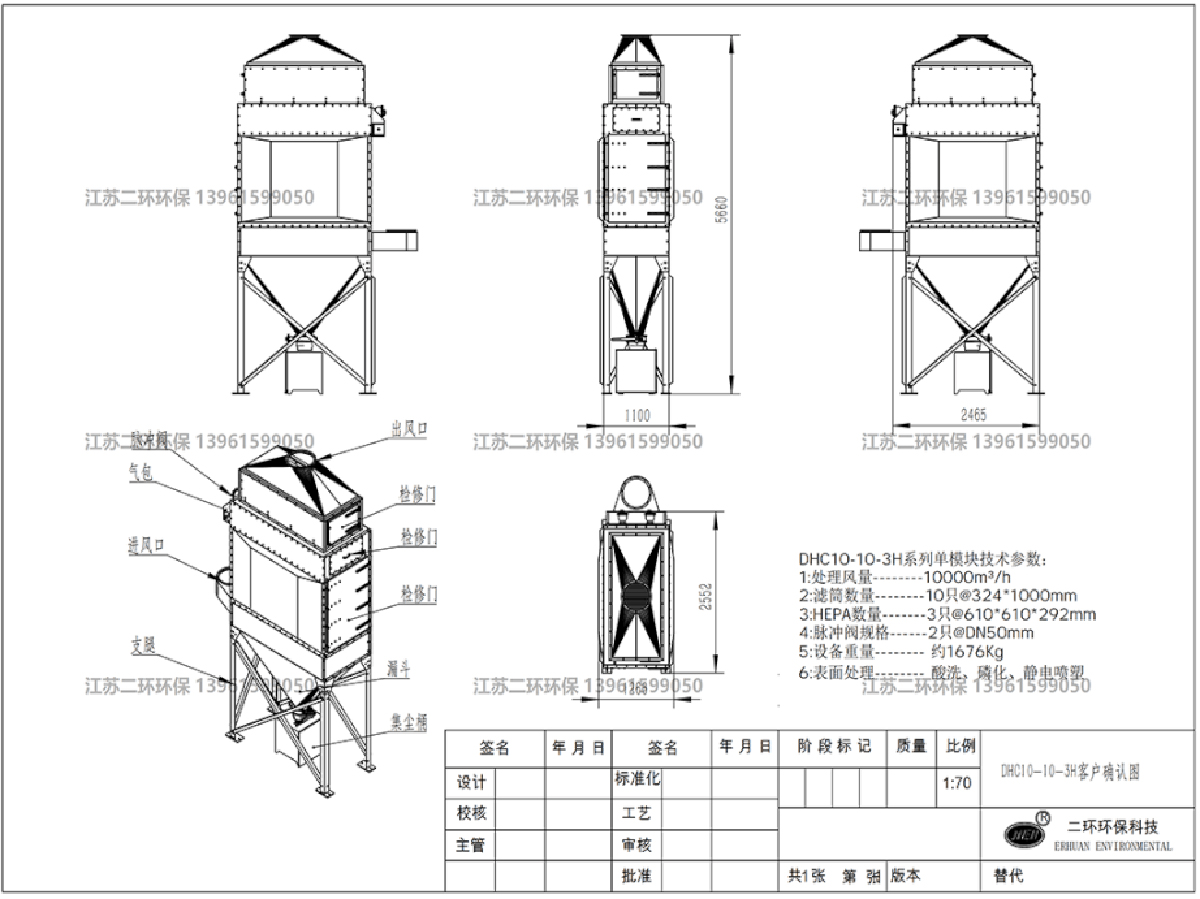

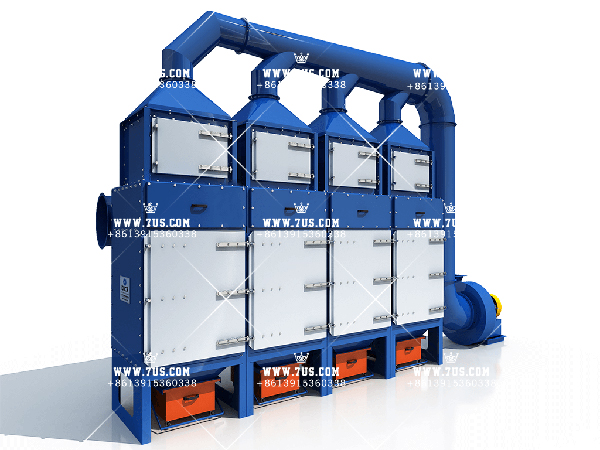

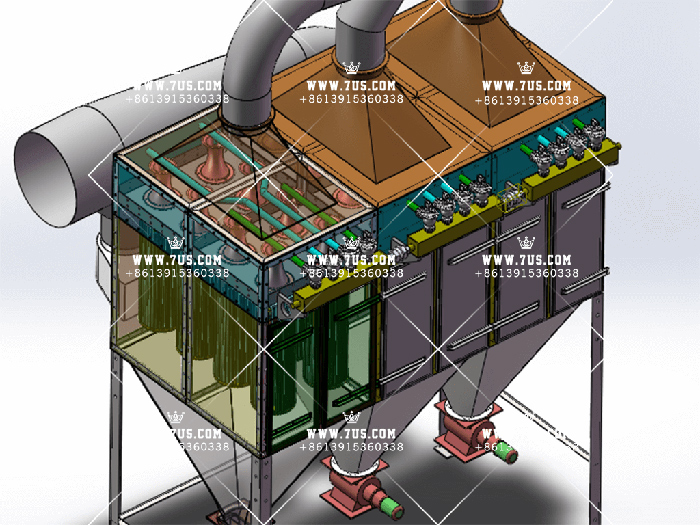

DHC Vertical Modular Cartridge Dust Collector Structure Vertical Cartridge Dust Collector Internal Structure

Product Options

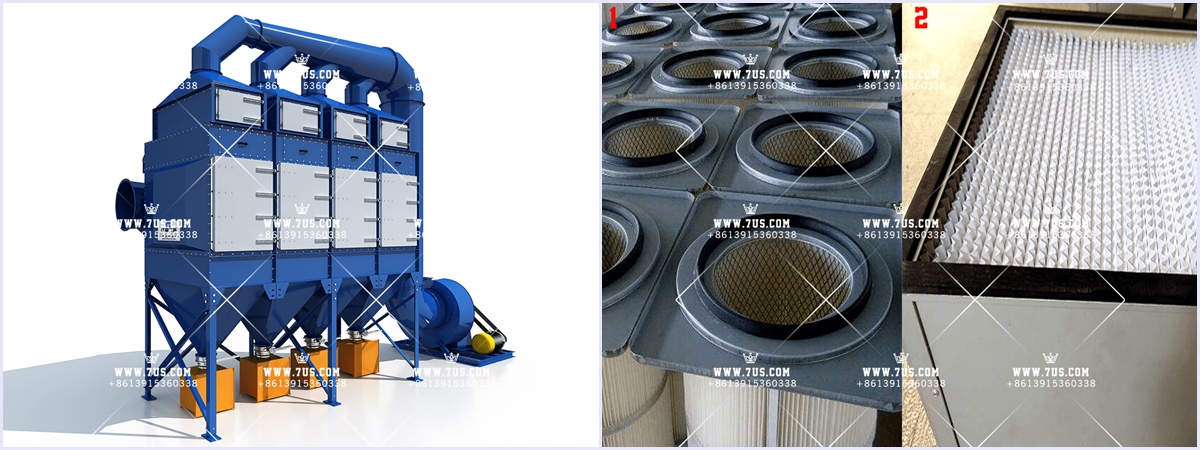

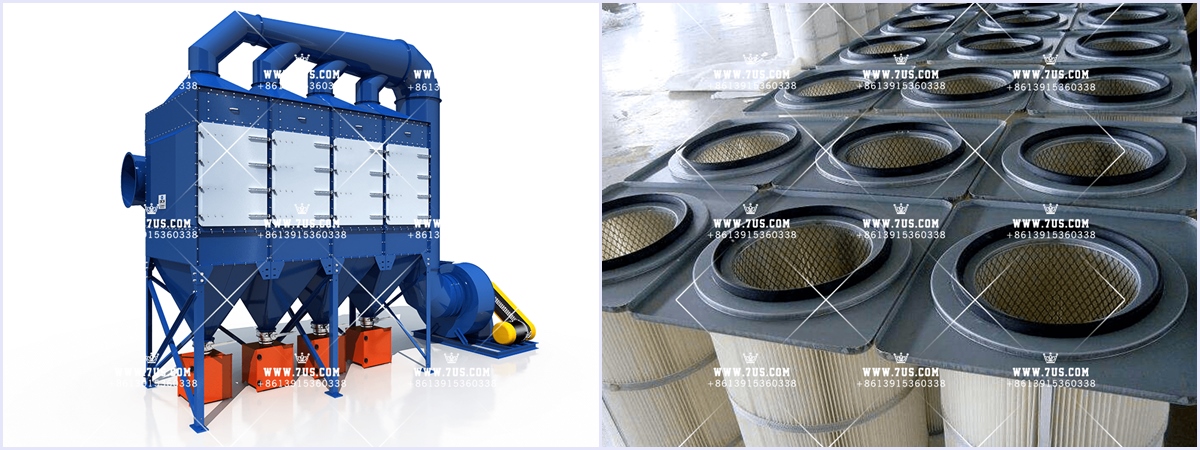

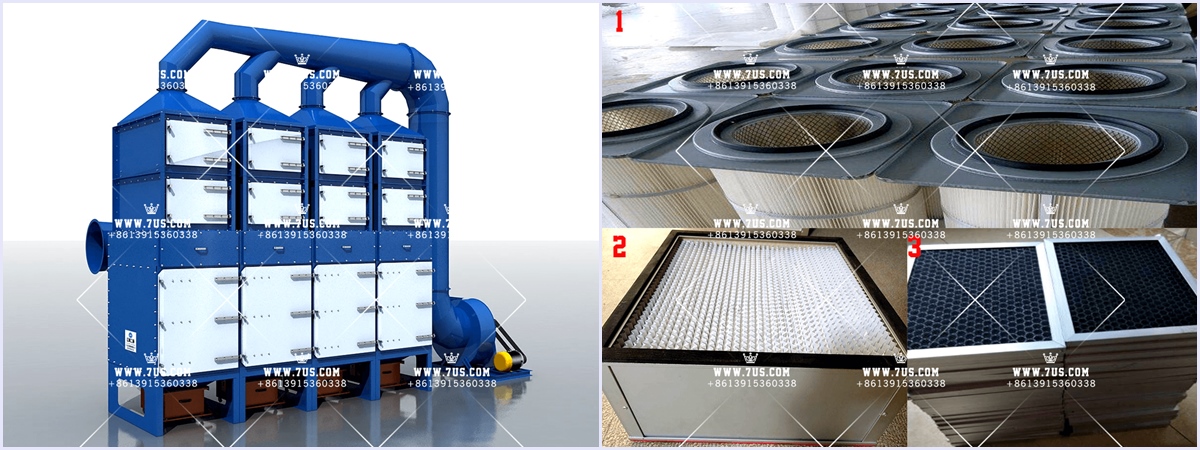

Cartridge Filter
HEPA Filter Option
Activated Carbon Filter Option
Explosion Venting Panel
Flameless Venting Device
Explosion Isolation Valve

Project note: Explosion venting, flameless venting and isolation components shown above are project-specific options. Final selection and compliance should be confirmed according to dust characteristics, installation conditions and applicable local requirements.

Vertical Modular Dust Collector Features

DHC Vertical Modular Cartridge Dust Collector Features

Expandable modular construction allows filtration capacity to be increased by combining standardized DHC modules according to project airflow requirements.

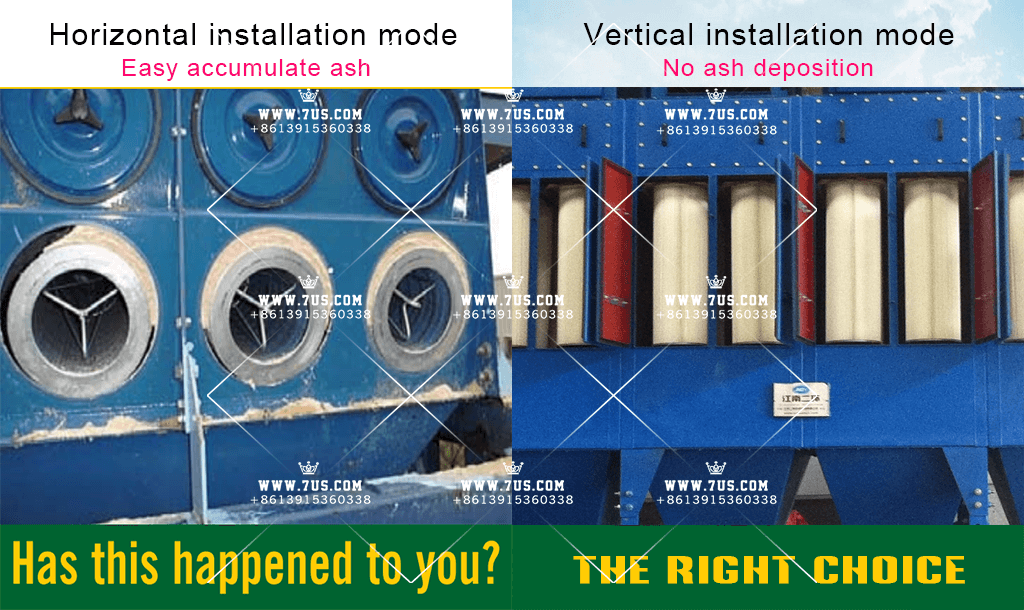

Vertical cartridge installation combines a compact footprint with convenient side-door access for cartridge inspection and replacement.

Eccentric cam fixing provides a practical locking and release mechanism for faster routine cartridge maintenance.

Automatic pulse-jet cleaning uses compressed air to remove accumulated dust from the cartridge surface during operation.

Filter media can be selected according to dust characteristics and filtration requirements, including PTFE membrane or other suitable cartridge media where required.

Modular sections can be separated for container transportation and assembled on site, helping simplify shipment and installation of larger systems.

Proper cartridge sizing and pulse cleaning help maintain a stable operating pressure drop and consistent airflow.

Optional HEPA final filtration and activated carbon polishing stages are available for selected applications and configurations.

Equipment dimensions, filter media, color, nameplate and OEM/private-label configurations can be customized according to project requirements.

Technical Data and Models

Single-Stage Filtration: Cartridge Filter

DHC Single Stage Cartridge Filtration

Item No.	Model	Air Volume	Size	Cartridge Filter Qty	Pulse Valve Qty	Power	N.W.
Item No.	Model	m³/h	L × W × H (mm)	pcs	pcs	kW	T
1	DHC4-4	4000	1020 × 1000 × 3813	4	4 × DN25		0.624
2	DHC6-6	6000	1020 × 1426 × 3814	6	2 × DN40		0.786
3	DHC8-8	8000	1100 × 1825 × 4359	8	2 × DN40		1.070
4	DHC10-10	10000	1100 × 2465 × 5060	10	2 × DN50		1.419

Two-Stage Filtration: Cartridge Filter + HEPA

DHC Cartridge Filter and HEPA Two Stage Filtration

Item No.	Model	Air Volume	Size	Cartridge Filter Qty	Pulse Valve Qty	Power	N.W.
Item No.	Model	m³/h	L × W × H (mm)	pcs	pcs	kW	T
1	DHC6-6-2H	6000	1020 × 1426 × 4414	6	2 × DN40		0.968
2	DHC8-8-3H	8000	1100 × 1825 × 5000	8	2 × DN40		1.215
3	DHC10-10-3H	10000	1100 × 2465 × 5660	10	2 × DN50		1.676

Three-Stage Filtration: Cartridge Filter + HEPA + Activated Carbon

DHC Cartridge HEPA and Activated Carbon Three Stage Filtration

Item No.	Model	Air Volume	Size	Cartridge Filter Qty	Pulse Valve Qty	Power	N.W.
Item No.	Model	m³/h	L × W × H (mm)	pcs	pcs	kW	T
1	DHC6-6-2HC	6000	1020 × 1426 × 5014	6	2 × DN40		1.150
2	DHC8-8-3HC	8000	1100 × 1825 × 5640	8	2 × DN40		1.360
3	DHC10-10-3HC	10000	1100 × 2465 × 6260	10	2 × DN50		1.933

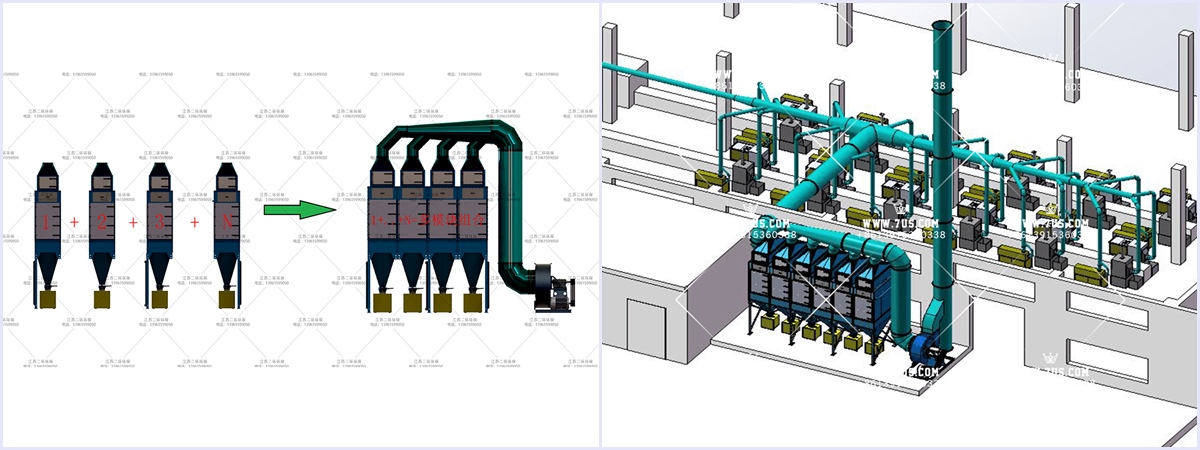

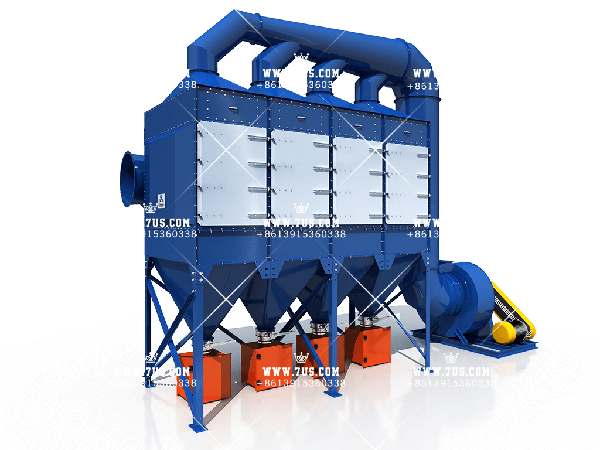

Multiple-Module Combination

DHC Multiple Module Combination

Standard DHC modules can be combined according to the required total airflow. For example, a 40,000 m³/h system can be configured using four DHC10-10 modules or five DHC8 modules, subject to the confirmed project layout and operating requirements.

Item No.	Model	Air Volume	Size	Cartridge Filter Qty	Pulse Valve Qty	N.W.
Item No.	Model	m³/h	L × W × H (mm)	pcs	pcs	T
1	DHC8-8	8000	1100 × 1825 × 4359	8	2 × DN40	1.070
2	DHC8-16	16000	2200 × 1825 × 4359	16	4 × DN40	1.744
3	DHC8-24	24000	3300 × 1825 × 4359	24	6 × DN40	2.538
4	DHC8-32	32000	4400 × 1825 × 4359	32	8 × DN40	3.212
5	DHC8-40	40000	5500 × 1825 × 4359	40	10 × DN40	4.006
6	DHC8-48	48000	6600 × 1825 × 4359	48	12 × DN40	4.680
7	DHC8-56	56000	7700 × 1825 × 4359	56	14 × DN40	5.474
8	DHC8-64	64000	8800 × 1825 × 4359	64	16 × DN40	6.148
9	DHC8-72	72000	9900 × 1825 × 4359	72	18 × DN40	6.942
10	DHC8-80	80000	11000 × 1825 × 4359	80	20 × DN40	7.616

Manufacturing Capabilities

Laser Cutting
CNC Bending
Component Powder Coating
Module Assembly
Equipment Assembly
Final Assembly
Modular Combination
Product Delivery
Container Shipping
Equipment Installation
Installation Completed
Overseas Technical Support

Application Cases

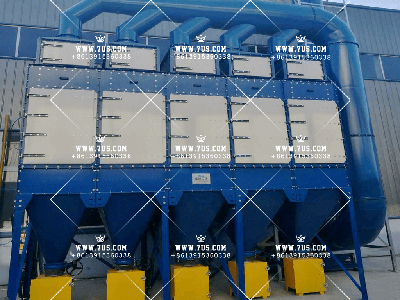

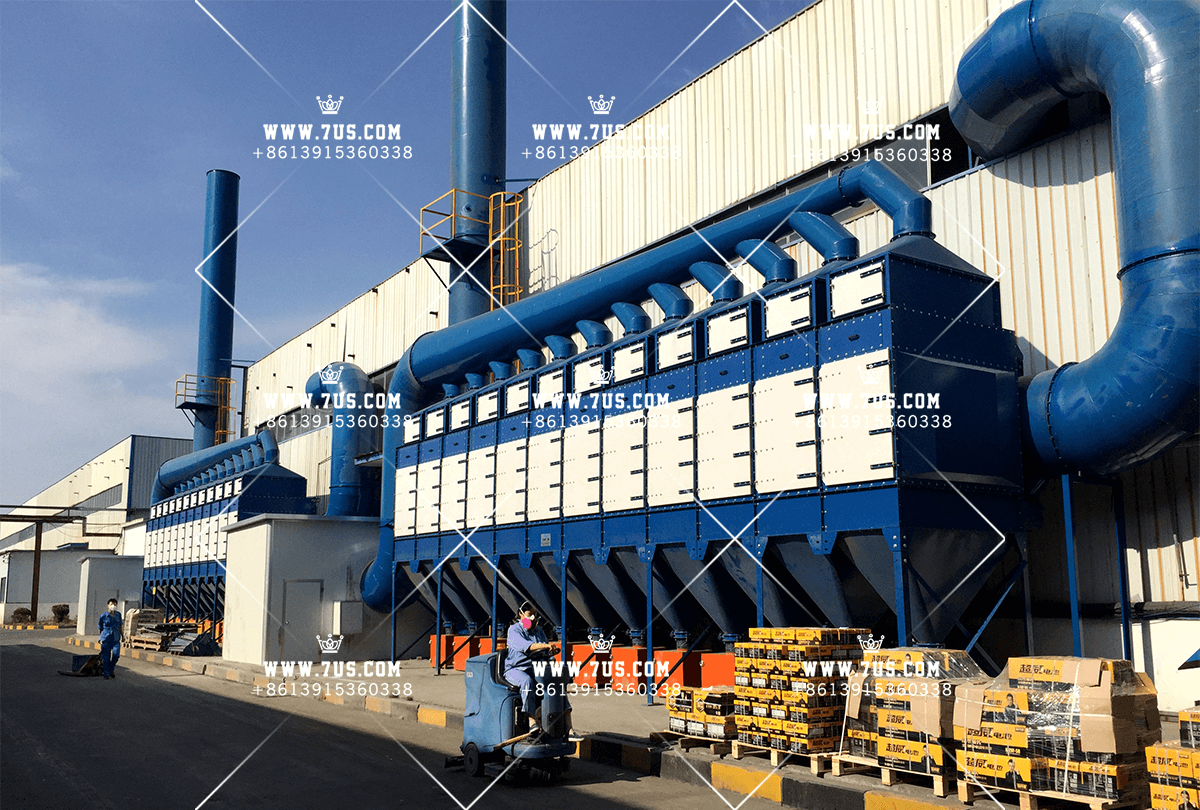

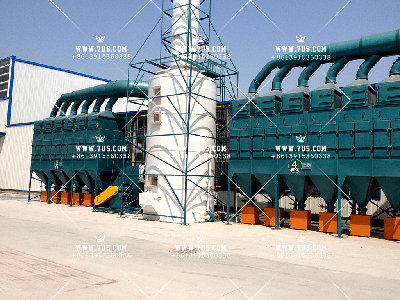

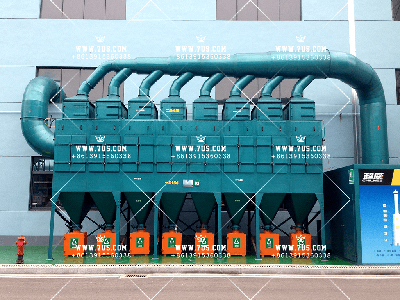

Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case
Application Case

Shipping

The modular DHC design allows large collectors to be divided into transportable sections for container shipping and on-site assembly. L.C.L shipments can be packed on pallets or in plywood cases where appropriate, while F.C.L shipments can be loaded according to the confirmed packing plan. Special packing, labeling or OEM shipping requirements can be arranged before shipment.

Installation and Maintenance Guidance

: Before installation, confirm the equipment foundation, module arrangement, air inlet and outlet connections, electrical supply, compressed-air supply and maintenance clearance. Large systems should be assembled according to the confirmed module layout and installation drawings.

: Routine maintenance should include inspection of filter cartridges, pulse valves, dust discharge devices and differential pressure according to actual operating conditions. Remote technical support is available for module assembly, filter replacement and maintenance guidance.
