1. Downflow oblique modular cartridge dust collector designed for flexible capacity expansion through standardized modular units.
2. Compact modular construction helps reduce installation footprint and allows the equipment to be divided into transport-friendly sections for easier shipping and assembly.
3. Pleated cartridge filters provide a large filtration area within a compact equipment volume, with automatic pulse-jet cleaning for routine filter cleaning.
4. Standard EHDFT modules can be combined to increase total airflow according to project requirements, with configurations available up to 100,000 m³/h.
5. Optional two-stage filtration with cartridge filters and HEPA final filtration is available for applications requiring additional filtration performance.
6. Stainless steel construction, abrasion-resistant inlet arrangements, exhaust dampers and explosion protection components can be evaluated according to the application.
7. Suitable for compatible dry dust and fume applications without oil or water, subject to the confirmed dust characteristics and project safety requirements.
8. Equipment configuration, filter media, color and OEM requirements can be customized according to the project.

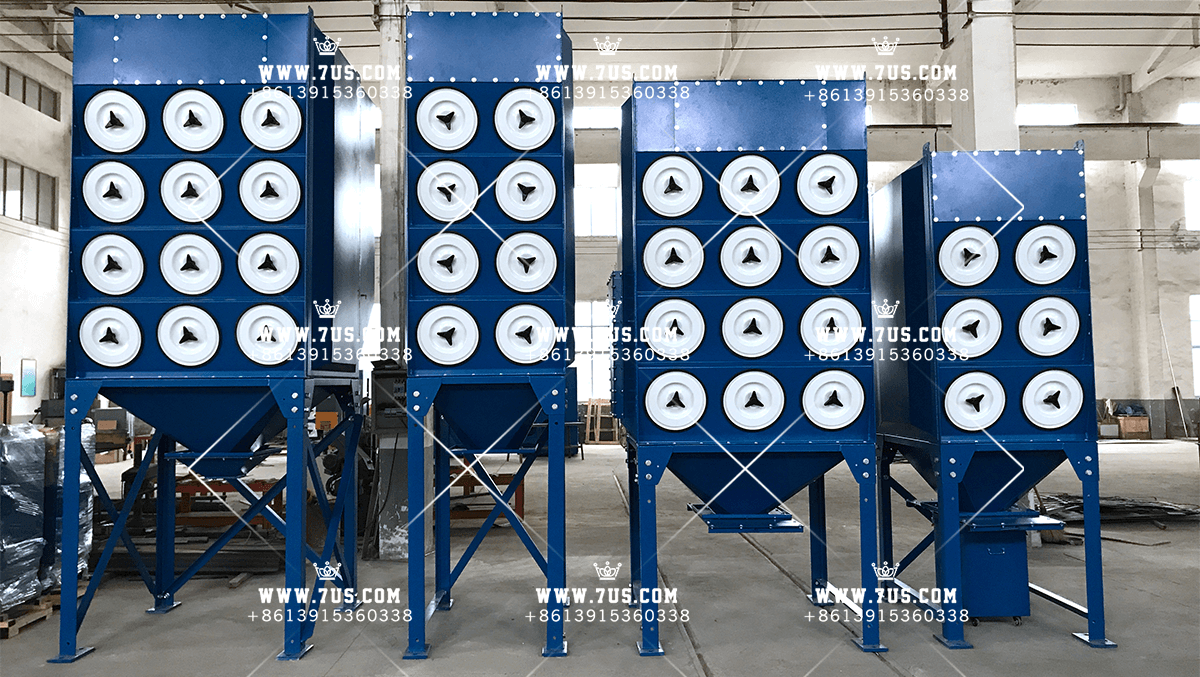

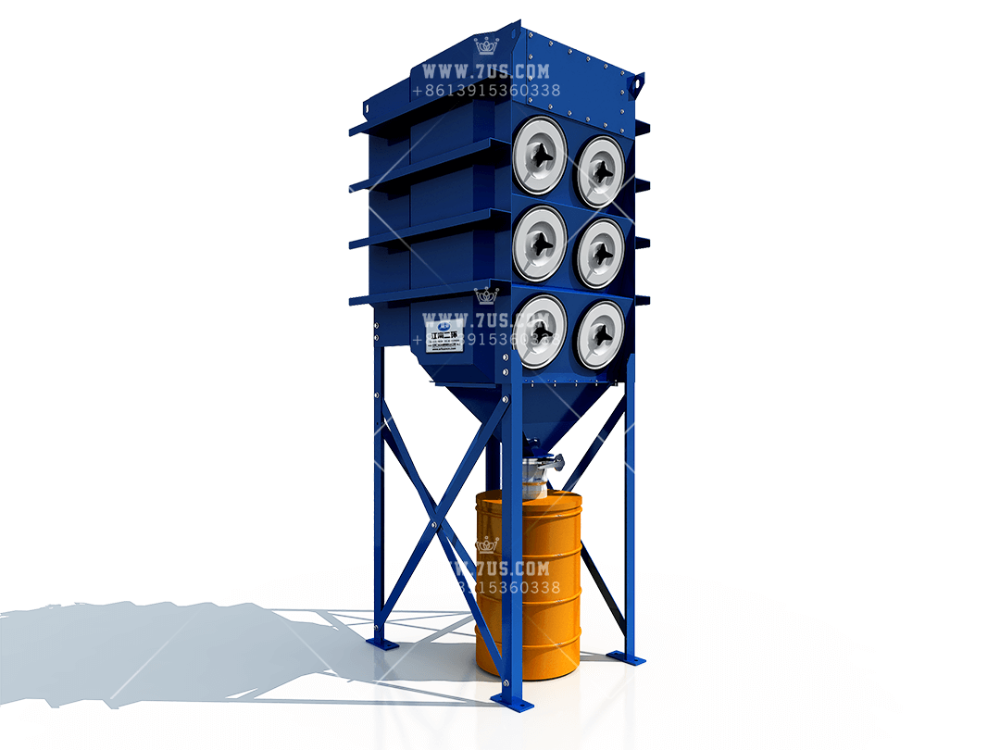

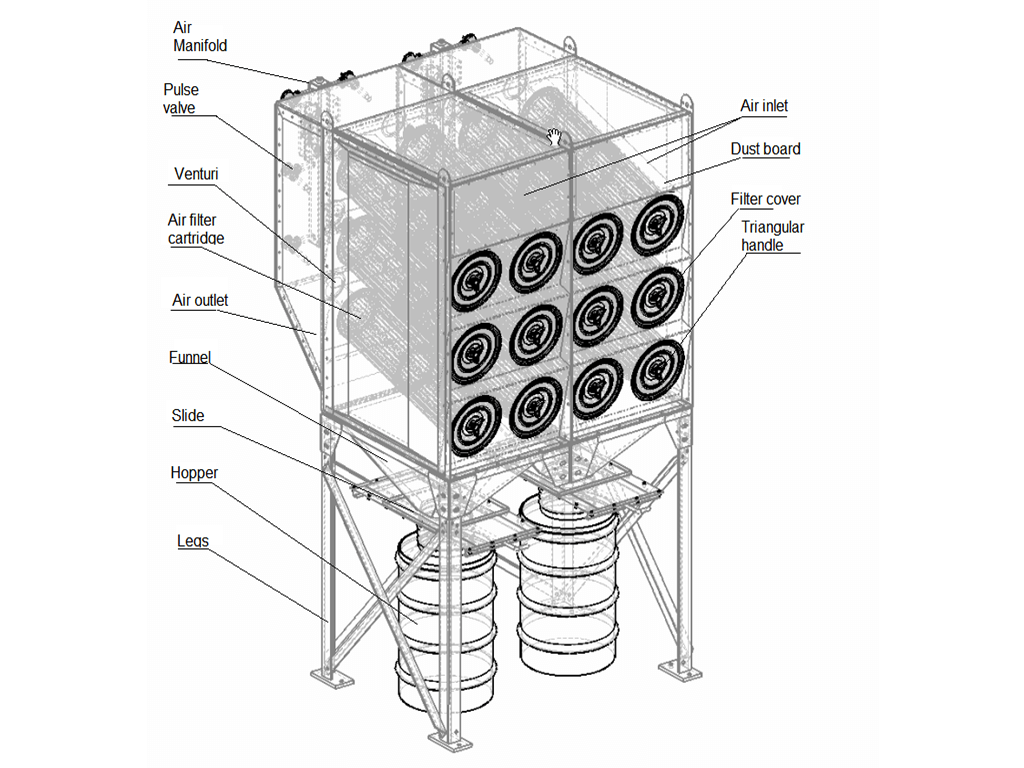

Modular cartridge dust collector designed for flexible airflow expansion through standardized EHDFT filtration modules.
Oblique cartridge arrangement combined with downflow airflow helps collected dust move toward the hopper and supports effective pulse-jet cleaning.

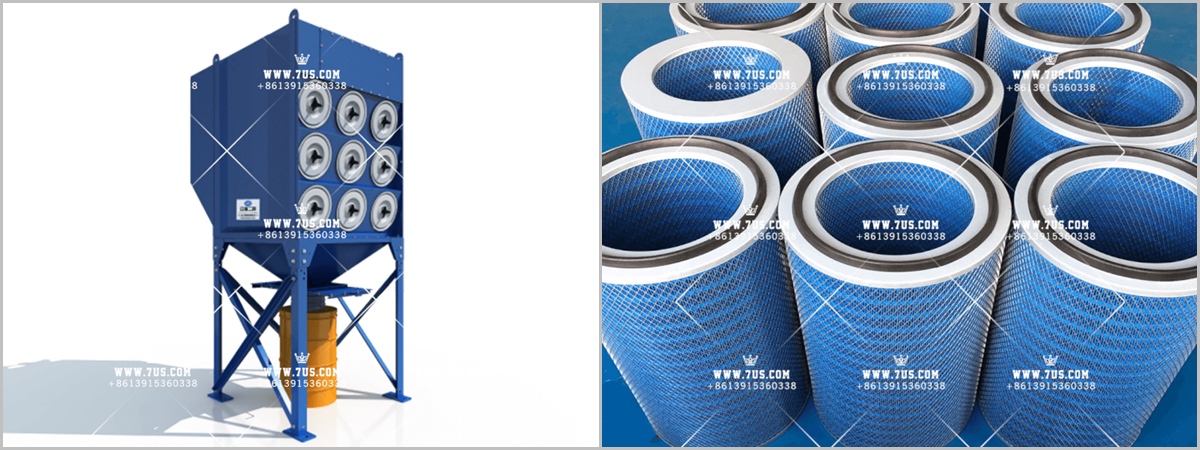

Pleated cartridge filters provide a large filtration area within a compact equipment footprint.

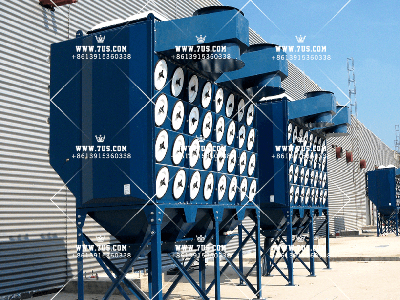

Modular construction allows individual sections to be transported, assembled and expanded according to project airflow requirements.
Standard modules can be combined for larger systems, with configurations shown on this page ranging up to 100,000 m³/h.
Optional two-stage filtration with cartridge filters and HEPA final filtration is available for selected configurations.
Designed primarily for compatible dry dust and fume applications without oil or water, subject to confirmed process conditions.
Carbon Steel Construction
Explosion Venting Option
Cartridge Filter Options
Explosion Venting Panel
Flameless Venting Device
Explosion Isolation Valve
Modular construction allows airflow capacity to be increased by adding standardized filtration modules according to project requirements.
Oblique cartridge arrangement and downflow airflow help collected dust move away from the filter surface toward the hopper.
Automatic pulse-jet cleaning removes accumulated dust from the cartridge filter surface during operation.

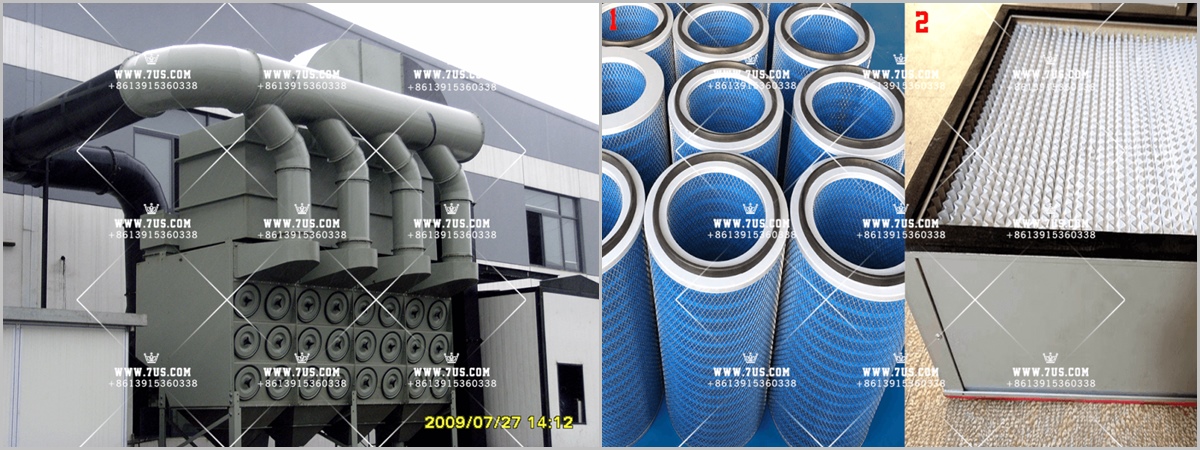

PTFE-treated cartridge filter media can be selected according to dust characteristics and filtration requirements.

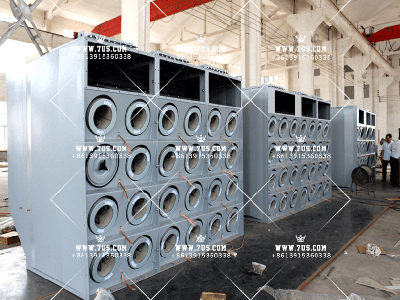

Compact modular sections simplify transportation, site handling and assembly for larger dust collection systems.
Low and stable pressure drop helps maintain consistent filtration airflow during normal operation.
Optional HEPA final filtration is available for selected two-stage configurations requiring additional filtration performance.
Stainless steel construction, abrasion-resistant inlet arrangements, exhaust dampers and selected explosion protection components can be evaluated according to the application.
Equipment configuration, filter media, color and OEM requirements can be customized according to project requirements.
| Item No. | Model | Air Volume | Size | Cartridge Filter Qty | Pulse Valve Qty | Power | N.W. |
| m³/h | L × W × H (mm) | pcs | pcs | kW | T | ||
| 1 | EHDFT2-8 | 5000 | 1016 × 2162 × 3248 | 8 | 2 × DN25 | - | 0.841 |
| 2 | EHDFT3-6D | 3750 | 1016 × 1434 × 3492 | 6 | 6 × DN20 | - | 0.579 |
| 3 | EHDFT3-12 | 7500 | 1016 × 2162 × 3675 | 12 | 6 × DN25 | - | 0.953 |
| 4 | EHDFT3-18 | 11250 | 1523 × 2162 × 3675 | 18 | 9 × DN25 | - | 1.710 |
| 5 | EHDFT4-16 | 10000 | 1016 × 2162 × 4140 | 16 | 8 × DN25 | - | 1.164 |
| 6 | EHDFT4-24 | 15000 | 1523 × 2162 × 4140 | 24 | 12 × DN25 | - | 1.481 |
| Item No. | Model | Air Volume | Size | Cartridge Filter Qty | Pulse Valve Qty | Power | N.W. |
| m³/h | L × W × H (mm) | pcs | pcs | kW | T | ||
| 1 | EHDFT2-8-2H | 5000 | 1016 × 2162 × 4148 | 8 | 4 × DN25 | - | 1.019 |
| 2 | EHDFT3-12-3H | 7500 | 1016 × 2162 × 4575 | 12 | 6 × DN25 | - | 1.210 |
| 3 | EHDFT4-16-3H | 10000 | 1016 × 2162 × 5040 | 16 | 8 × DN25 | - | 1.421 |

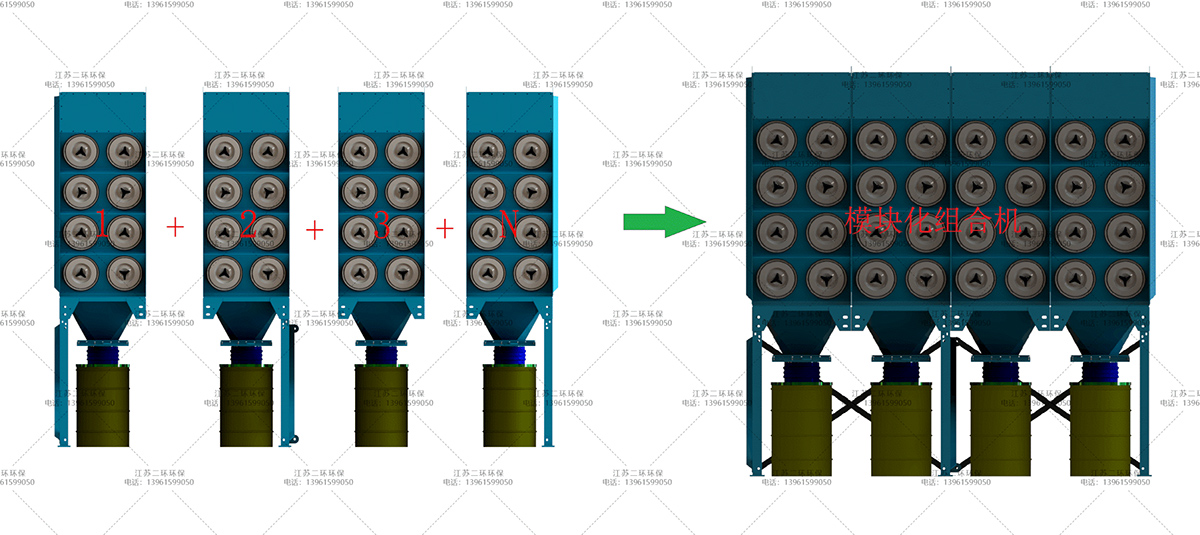

Standard EHDFT modules can be combined according to the required total airflow. For example, a 20,000 m³/h system can be configured using two EHDFT4-16 modules. Larger airflow systems can be expanded by adding additional modules of the same series.
| Item No. | Model | Air Volume | Size | Cartridge Filter Qty | Pulse Valve Qty | N.W. |
| m³/h | L × W × H (mm) | pcs | pcs | T | ||
| 1 | EHDFT4-16 | 10000 | 1016 × 2162 × 4140 | 16 | 8 × DN25 | 1.164 |
| 2 | EHDFT4-32 | 20000 | 2032 × 2162 × 4140 | 32 | 16 × DN25 | 2.005 |
| 3 | EHDFT4-48 | 30000 | 3048 × 2162 × 4140 | 48 | 24 × DN25 | 2.882 |
| 4 | EHDFT4-64 | 40000 | 4064 × 2162 × 4140 | 64 | 32 × DN25 | 3.661 |
| 5 | EHDFT4-80 | 50000 | 5080 × 2162 × 4140 | 80 | 40 × DN25 | 4.520 |
| 6 | EHDFT4-96 | 60000 | 6096 × 2162 × 4140 | 96 | 48 × DN25 | 5.357 |
| 7 | EHDFT4-112 | 70000 | 7112 × 2162 × 4140 | 112 | 56 × DN25 | 6.394 |
| 8 | EHDFT4-128 | 80000 | 8128 × 2162 × 4140 | 128 | 64 × DN25 | 7.230 |
| 9 | EHDFT4-144 | 90000 | 9144 × 2162 × 4140 | 144 | 72 × DN25 | 7.867 |
| 10 | EHDFT4-160 | 100000 | 10160 × 2162 × 4140 | 160 | 80 × DN25 | 8.704 |
Laser Cutting
CNC Bending
Assembly and Inspection
Component Finishing
Module Assembly
Equipment Assembly
Final Assembly
Product Delivery
Container Shipping
Equipment Installation
Installation Completed
Overseas Technical Support
Confirm the equipment foundation, module arrangement, air inlet and outlet connections, compressed-air supply, electrical supply and maintenance clearance before installation. Large systems should be assembled according to the confirmed module layout and installation drawing.
Filter cartridges, pulse valves, hopper discharge and differential pressure should be inspected according to actual operating conditions. Remote technical support can be provided for module assembly, filter replacement and routine maintenance.
|
Q: What is the main advantage of the EHDFT modular design?
A: Standard filtration modules can be combined to increase total airflow according to project requirements. This also makes larger systems easier to transport, handle and assemble on site. |
Q: What airflow range is available?
A: Standard single modules shown on this page cover approximately 3,750 to 15,000 m³/h, while multiple EHDFT modules can be combined for larger systems up to 100,000 m³/h in the listed configurations. |
|
Q: How are the cartridge filters cleaned?
A: Compressed-air pulse-jet cleaning removes accumulated dust from the cartridge filter surface during operation. |
Q: Is HEPA final filtration available?
A: Yes. Selected EHDFT models are available with a second-stage HEPA filtration section for applications requiring additional final filtration. |
|
Q: Can the dust collector handle wet or oily dust?
A: This series is primarily intended for compatible dry dust and fume applications without oil or water. Wet, sticky or oil-containing dust should be evaluated separately. |
Q: Can stainless steel construction be supplied?
A: Yes. Stainless steel construction can be evaluated according to corrosion resistance, process conditions and project requirements. |
|
Q: Can abrasion-resistant inlets or exhaust dampers be added?
A: Yes. Abrasion-resistant inlet arrangements and exhaust dampers can be evaluated for suitable applications according to dust loading and system design requirements. |
Q: Can explosion protection options be added?
A: Explosion venting, flameless venting and isolation components can be evaluated according to dust characteristics, installation conditions and applicable project requirements. |
|
Q: What information is required for model selection?
A: Please provide the required airflow, dust type, dust concentration if known, operating temperature, moisture or oil content, installation environment, voltage, frequency and applicable safety requirements. |
Q: Is OEM manufacturing available?
A: Yes. Equipment configuration, filter media, color, voltage, frequency and private-label requirements can be reviewed according to the project. |
Technical support is available for module assembly, equipment operation, filter replacement and routine maintenance.
Standard warranty is one year from shipment unless otherwise agreed in the contract.
Remote technical support can be provided by video call when required.
Replacement filter cartridges, pulse valves and related components remain available for future maintenance requirements.
