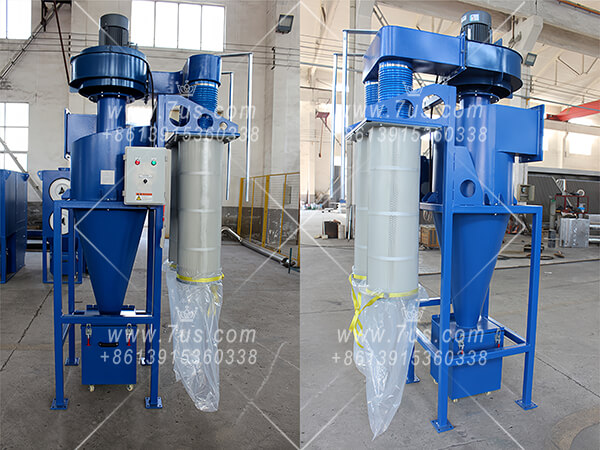

1.1 Product Name: Woodworking dust collector with cyclone and cartridge filter, air volume range 1000 to 6000 CMH.

1.2 Mainly used in woodworking applications to capture dust generated during cutting, sanding, and processing operations, helping maintain cleaner working conditions.

1.3 The cyclone separator rotates the dusty airflow and uses centrifugal force to separate larger particles before the air enters the cartridge filtration section.

1.4 The cyclone pre separator reduces the dust load on the cartridge filter and helps improve the overall operating efficiency of the dust collection system.

1.5 The performance of a cyclone separator depends on the cylinder diameter, inlet size, outlet diameter, airflow rate, and other design parameters.

1.6 The diameter of the cyclone body, inlet size, outlet diameter, airflow rate, and other design parameters influence separation efficiency and pressure loss.

1.7 Tangential airflow and centrifugal force provide effective separation of larger particles and higher density dust before final filtration.

1.8 Carbon steel or stainless steel materials such as 304 and 316L can be selected according to application requirements. Wear resistant or corrosion resistant lining options can also be considered for special conditions.

1.9 Technical support can be provided including product selection assistance, drawing support, installation guidance, and operator training according to project requirements.

1.10 The modular design allows convenient manufacturing and international transportation according to container loading requirements.
