wet dust collector EHRCN-B type

1. The EHRCN-B self-excited dust collector is a wet dust collector that uses water as the washing solution. It uses the pressure head of the induced draft fan to guide the airflow to excite vortices, wash with waves, and purify smoke and dust.

2. According to the principles of aerodynamics, when dusty gas enters the dust collector from the inlet, the airflow turns downward and impacts the larger dust particles on the water surface, which fall into the water. When the dusty gas passes through the"S" type special airflow mechanism at a speed of 18-35 meters/second, it accelerates and triggers a large number of continuous and violent waves, which impact or excite the washing dust, allowing the water vapor to fully contact the dust and be envelopedby water mist, causing volume expansion and sinking into the water, allowing the dusty gas to be fully purified.

3. EHRCN type wet dust collector is often used for various types of smoke and dust that are difficult to solve, such as high temperature, oil and water content, flammable and explosive, adhesive, and cannot be solved by traditional filter material dustcollectors.


EHRCN-B Type  Wet  Dust Collector

wet dust collector

1.1. Product name: RCN-B type self-excited wet dust collector (air volume: 2500-40000 cubic meters/hour).

1.2. Mud residue treatment method: Flat bottom, manually remove collected mud residue.

1.3. Appearance features: In order to reduce the overall height of the equipment, the height of the mud hopper has been reduced.

1.4. Equipment material: Carbon steel anti-corrosion, SUS304 stainless steel, 316L stainless steel can be selected.

1.5. Core components: The wave generator and liquid level control water tank should be made of at least SUS304 stainless steel material.

wet dust collector

1.6. Product principle: Utilizing the pressure head of the fan, it triggers a violent rolling water mist, creates waves, washes and purifies dust.

1.7. Unilateral impeller: For those with only a single impeller blade, one side plate of the water tank bucket is inclined for easy slag removal.

1.8. Double sided impeller blades: Usually, it is necessary to drain the water in the water tank bucket before manual slag removal.

1.9. Applicability: The B-type machine is only suitable for situations with low smoke and dust concentration due to manual slag removal.

1.10. Advantages: No need for water pumps, no need for sprinkler heads, no fear of blockage, small footprint, high dust removal efficiency.

Examples of types and ranges that can handle dust

Application examples

Application examples

Selection Method

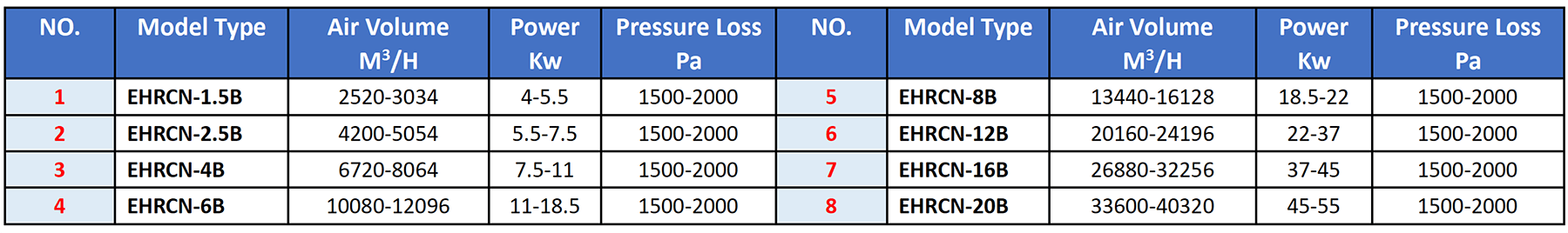

Model Selection Table

Drawing Examples
