wet dust collector EHRCN-DF type

1. The EHRCN-DF dust collector is based on the RCN-D model, which adds a bag filter, wet type+cloth bag, two-stage filtration, and higher purification efficiency.

2. According to the principles of aerodynamics, when dusty gas enters the dust collector from the inlet, the airflow turns downward and impacts the larger dust particles on the water surface, which fall into the water. When the dusty gas passes through the"S" type special airflow mechanism at a speed of 18-35 meters/second, it accelerates and triggers a large number of continuous and violent waves, which impact or excite the washing dust, allowing the water vapor to fully contact the dust and be envelopedby water mist, causing volume expansion and sinking into the water, allowing the dusty gas to be fully purified.

3. EHRCN-DF type wet dust collector is often used for various types of smoke and dust that are difficult to solve, such as high temperature, oil and water content, flammable and explosive, adhesive, and cannot be solved by traditional filter material dustcollectors.

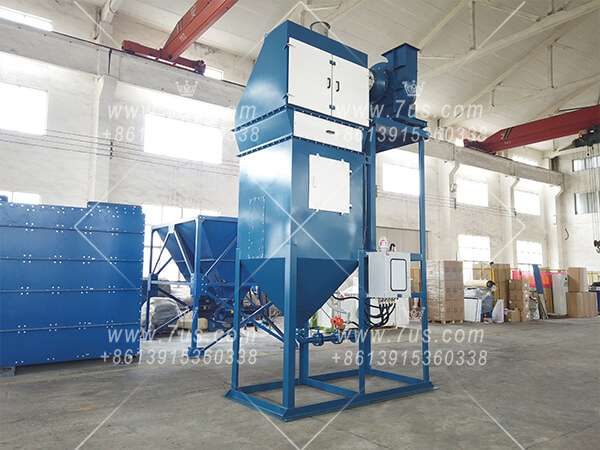

EHRCN-DF  Type  Wet  Dust Collector

wet dust collector

1.1 Product name: EHRCN-DF self-excited wet dust collector (air volume: 2500-50000 cubic meters/hour).

1.2 Purification advantage 1: On the basis of the D-type machine, bag filter, wet+cloth bag, and two-stage filtration have been added.

1.3 Purification advantage 2: Stable and effective control of the final emission concentration of particulate matter, ensuring ≤ 20 milligrams per cubic meter.

1.4 Equipment Material: Carbon steel anti-corrosion, SUS304 stainless steel, 316L stainless steel can be selected.

1.5 Core components: Wave maker, liquid level control water tank, at least SUS304 stainless steel material should be selected.

wet dust collector

1.6 Product principle: Utilizing the pressure head of the fan, it triggers a violent rolling water mist, creates waves, washes and purifies dust.

1.7 Unilateral impeller: EHRCN-6DF models (including 6DF) and below are single turbine wave generators.

1.8 Double sided impeller blades: RCN-8DF models (including 8DF) and above are twin turbine wave generators.

1.9 Applicability: Sintering, slag blocking, and rod grinding in steel vanadium plants; Material transportation, crushing, and screening in chemical or quarrying industries.

1.10 Advantages: No need for water pumps, no need for sprinkler heads, no fear of blockage, small footprint, high dust removal efficiency.

Examples of types and ranges that can handle dust

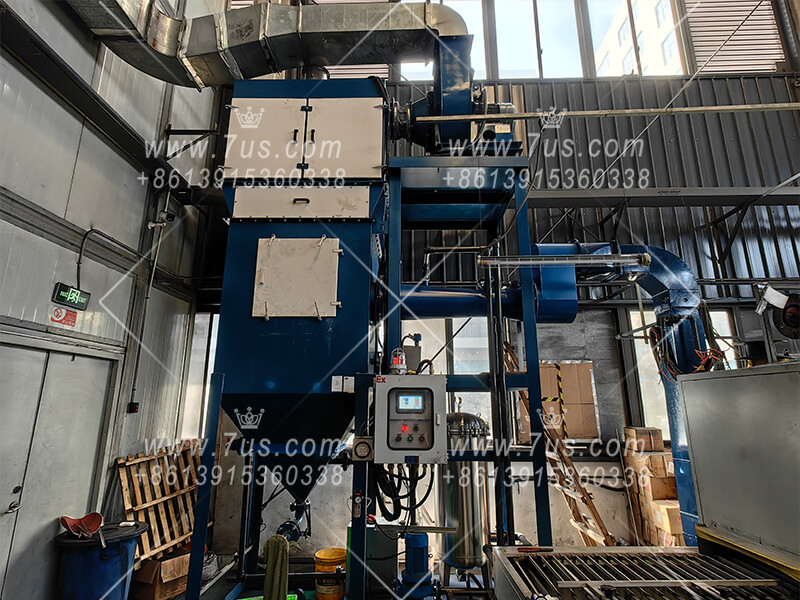

Application examples

Application examples

Selection Method

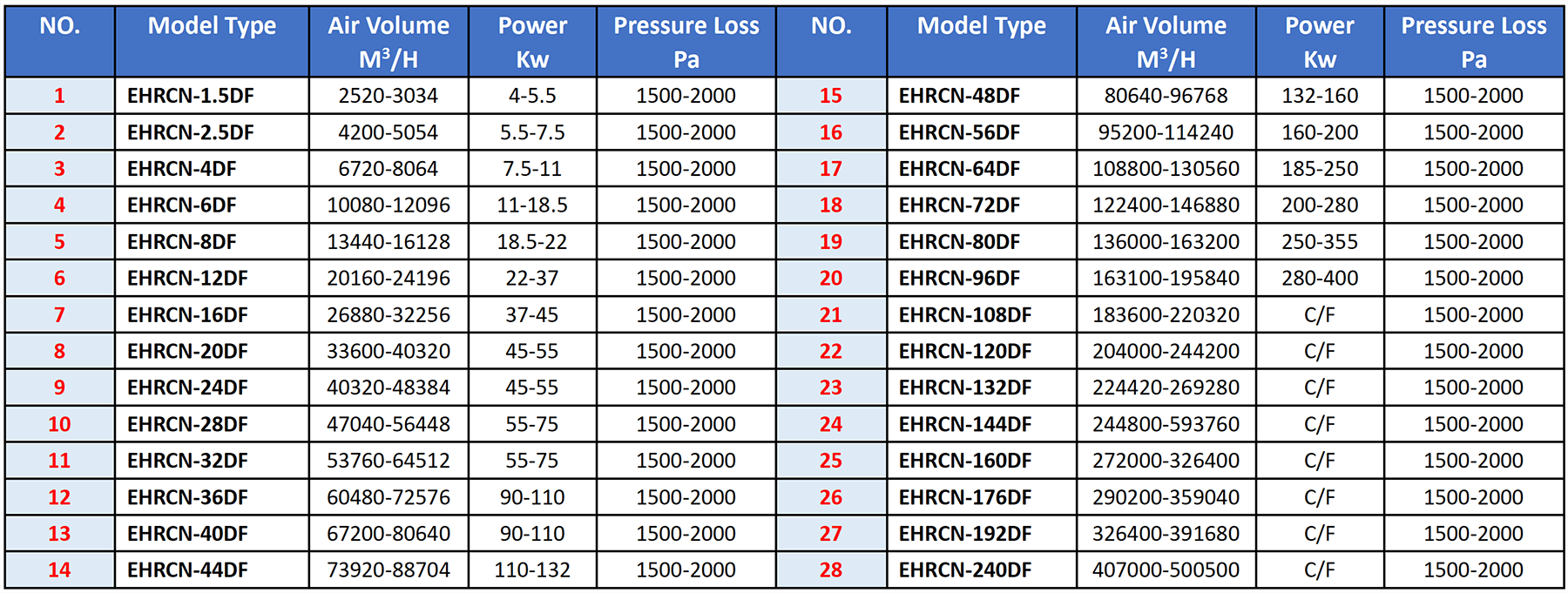

Model Selection Table
