Round bag modular combination

1、Big processing air capability, stable performance, easy operation, long service life of filter bags with low maintenance

2、Tool-free installation of bag filters and cages.

3、Square models help minimize ducting and accessory costs.

4、Compact, modular design save much more space.

5、Integral fan option reduces space requirements

6、 the materials can choose Q235 steel or SUS stainless steel.


Product Brief introuction

bag house dust collector

Efficient, continuous-duty, pulse-jet operation.

Modular design, block installation, all the dust collector can be separated into small parts, you can ship it into any small space, especially suitable for sea shipping and air shipping.

Cost Saving, Fewer filter bag replace, Lower disposal costs,Faster filter replace

Easy operation & maintenance

Low, stable pressure drop

OEM is acceptable.

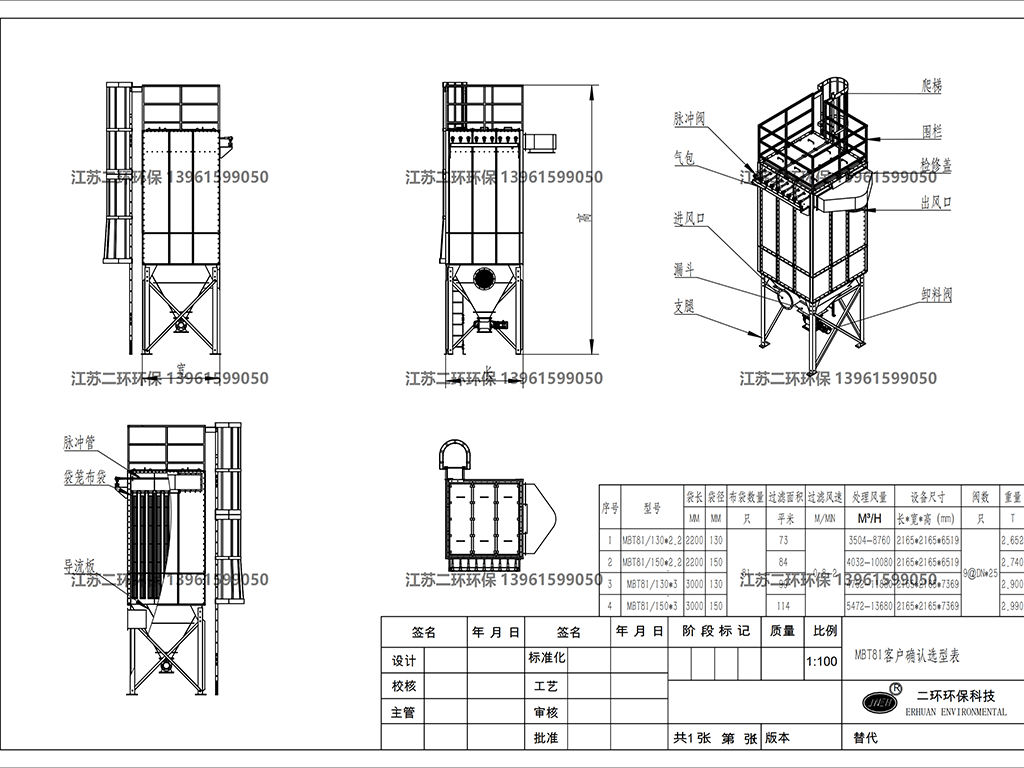

structure drawing

bag dust collector

Product Options
  • bag house dust collector

    Flat bag

  • HEPA-filter

    HEPA filter

  • carbon-filter

    carbon filter

  • Venting-membrane

    Venting membrane

  • Flameless-venting-device

    Flameless venting device

  • One-way-flameproof-valve

    One way flameproof valve


bag house dust collector

Standard modular design, block type Assembly, instead of normal non-standard model.

The size is suitable for all kinds of container transportation

Simple installation and quick assembly

Bag material can be polyester, PTFE, P84, high temperature etc

Almost meet all kinds of plants, normal temperature, no water, no oil dry dust smoke

Application: tobacco laser cutting, welding, grinding, polishing, grinding, sand blasting, shot blasting, coating powder spraying, grain, pharmaceutical, chemical, battery industry, food production and other dust collection

OEM is acceptable

Technica data and Models

Item No. Model Air volume size Flat bag filter Qty Pulse valve Qty N.W
M3/H L*W*H(mm) pcs pcs T
1 MBT54/130*2.2 2304-5760 1503*2165*6519 54@48m2 6@DN25 1.160
2 MBT81/130*2.2 3504-8760 2165*2165*6519 81@73m2 9@DN25 1.382
3 MBT108/130*2.2 4656-11640 2787*2165*6819 108@97m2 12@DN25 1.666
4 MBT162/130*2.2 6960-17400 4150*2165*6519 162@145m2 18@DN40 1.935
5 MBT243/130*2.2 10464-26160 6135*2165*6519 243@218m2 27@DN40 2.134
6 MBT324/130*2.2 13968-34920 8120*2165*6519 324@291m2 36@DN40 2.346
7 MBT405/130*2.2 17472-43680 10105*2165*6519 405@364m2 45@DN40 2.558

For example:1、If you need 16000m3/h round baghouse dust collector, you can choose two MBT54 or you can choose one EH-MBT1622、If you choose a single module of EHMT-81 with rated air volume, multiple modules of this model can be assembled to form corresponding large air volume dust collector.

Item No. Model Air volume size Flat bag filter Qty Pulse valve Qty N.W
M3/H L*W*H(mm) pcs pcs T
1 MBT81/130*2.2 3504-8760 2165*2165*6519 81@73M2 9@DN25 2.652
2 MBT81/150*2.2 4032-10080 2165*2165*6519 81@84M2 9@DN25 2.740
3 MBT81/130*3 4752-11880 2165*2165*7369 81@99M2 9@DN25 2.900
4 MBT81/150*3 5472-13680 2165*2165*7369 81@114M2 9@DN25 2.900

We are a manufacturing factory

  • laser-cutting

    laser cutting

  • CNC-bending

    CNC bending

  • bag dust collector

    Precision manufacturing

  • bag dust collector

    Modular assembly

  • bag dust collector

    Case spray1

  • bag house dust collector

    Case spray2

  • bag dust collector

    Silicone spraying of filter frame

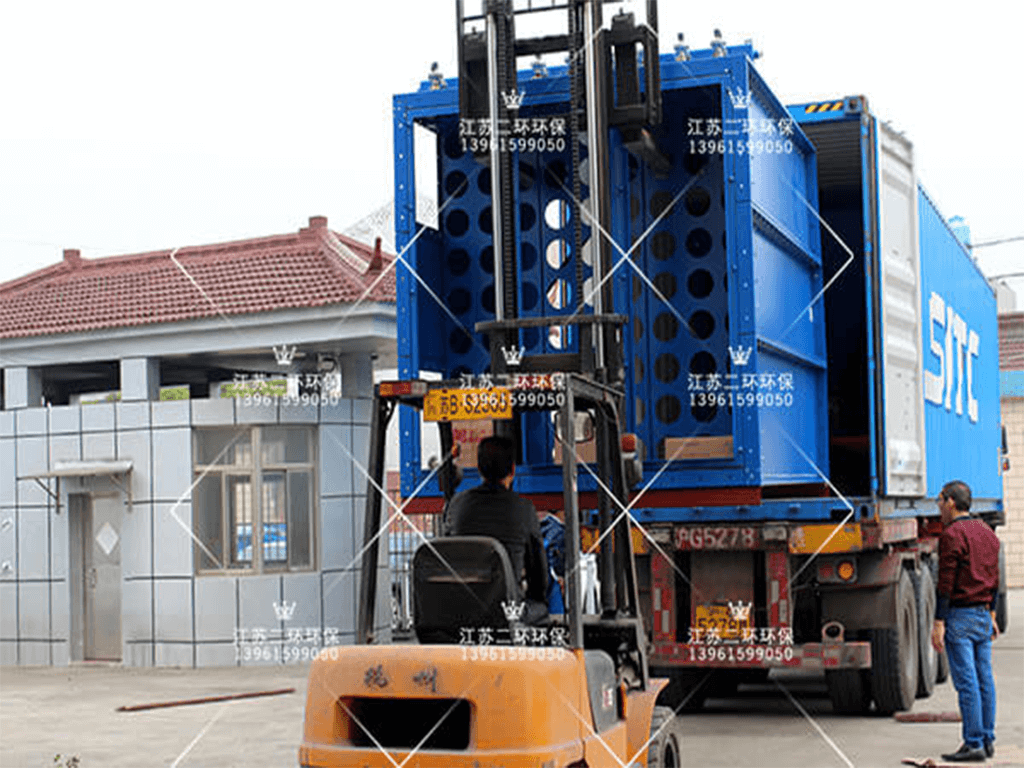

  • resource/images/854bce36dc2441b1bc8bb2cf866af45c_39.png

    Meet container transportation

  • Container-shipping

    Container shipping

  • bag dust collector

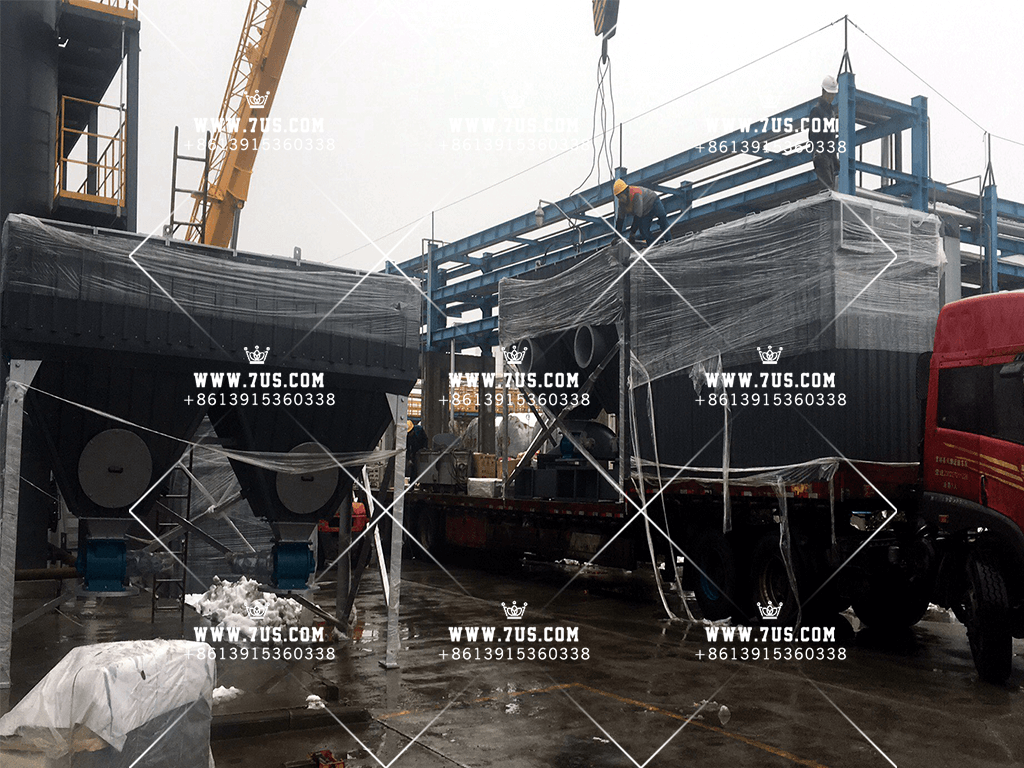

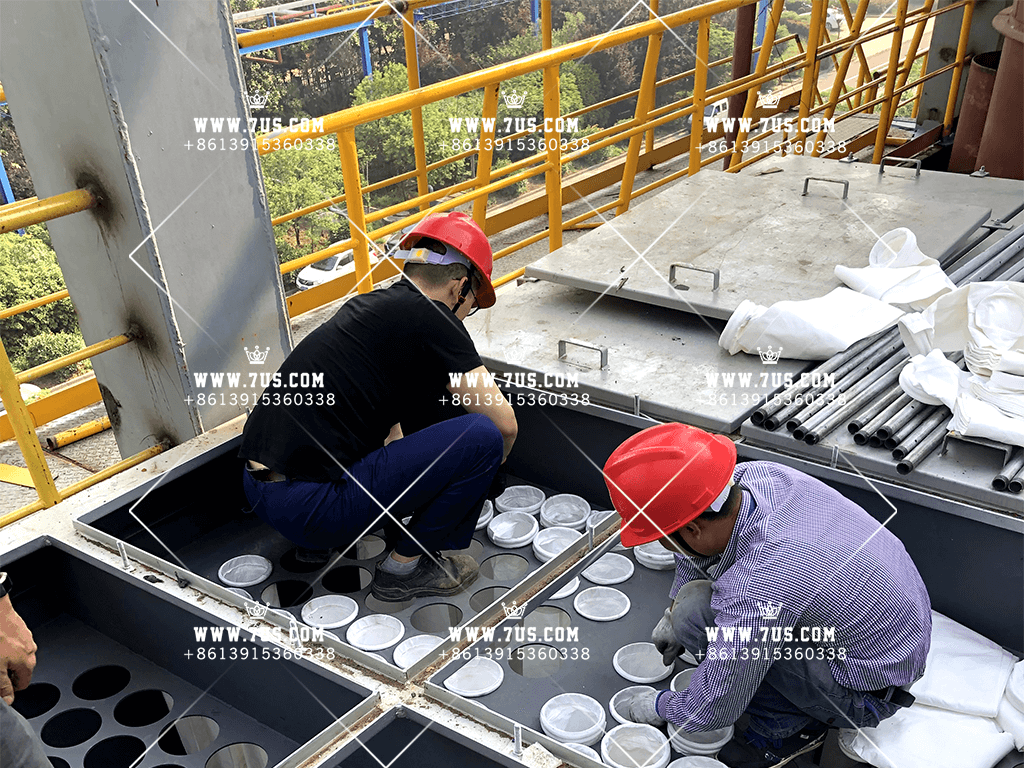

    Convenient installation

  • bag dust collector

    Installation completed

  • Foreign-technical-guidance

    Foreign technical guidance

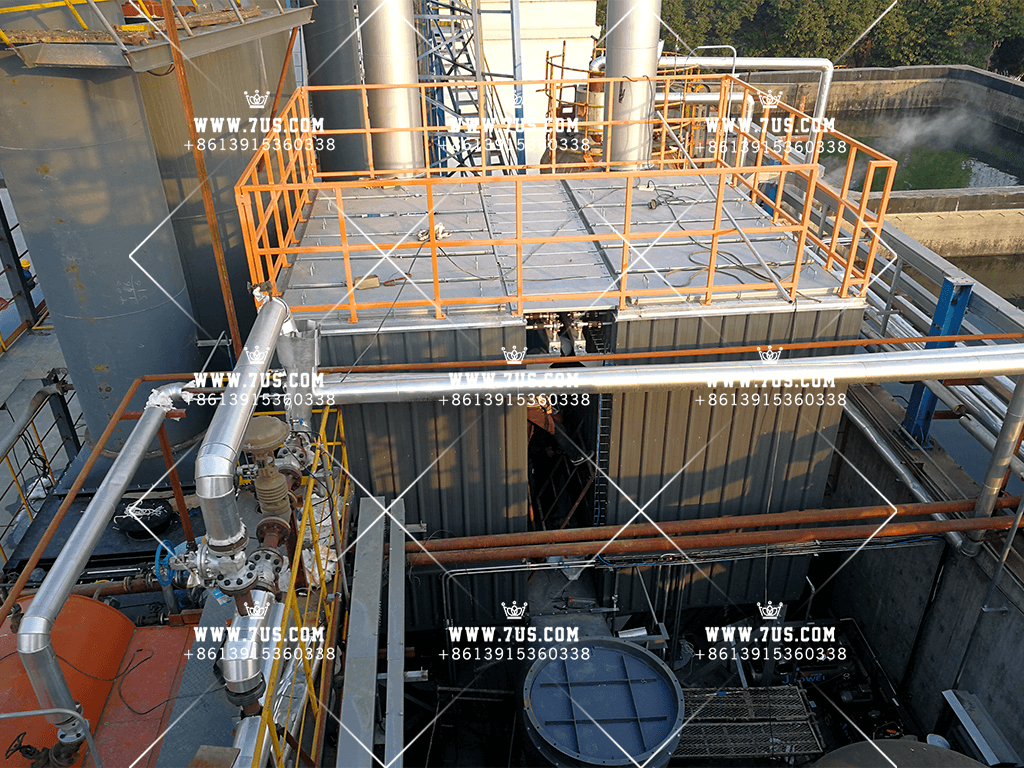

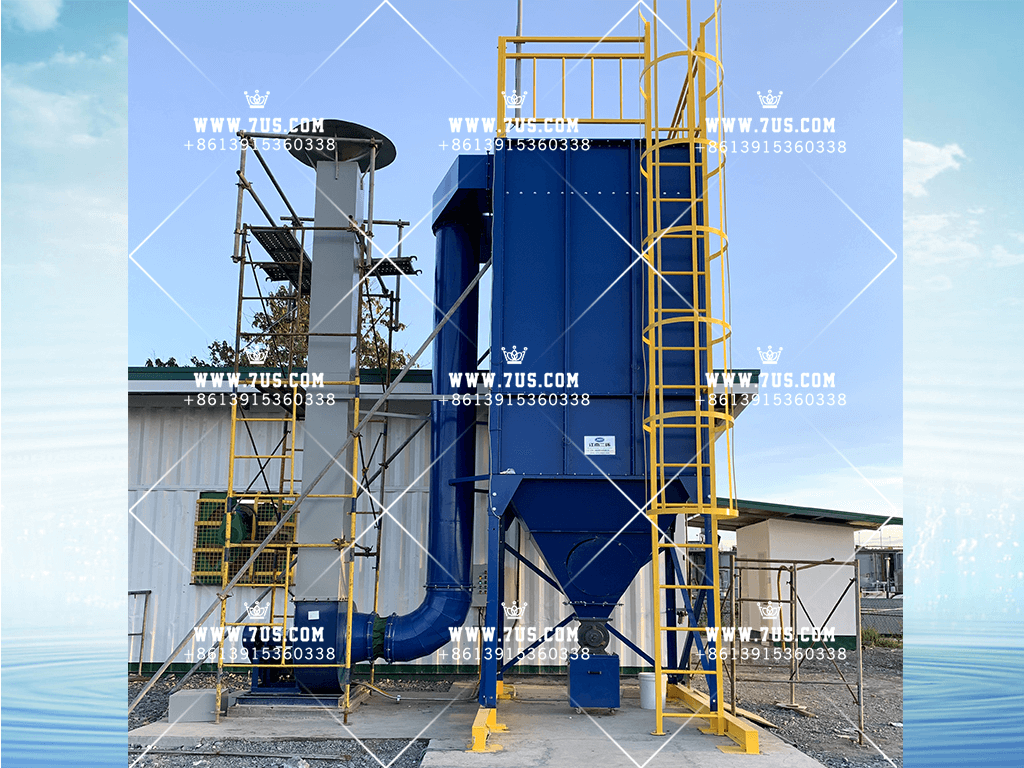

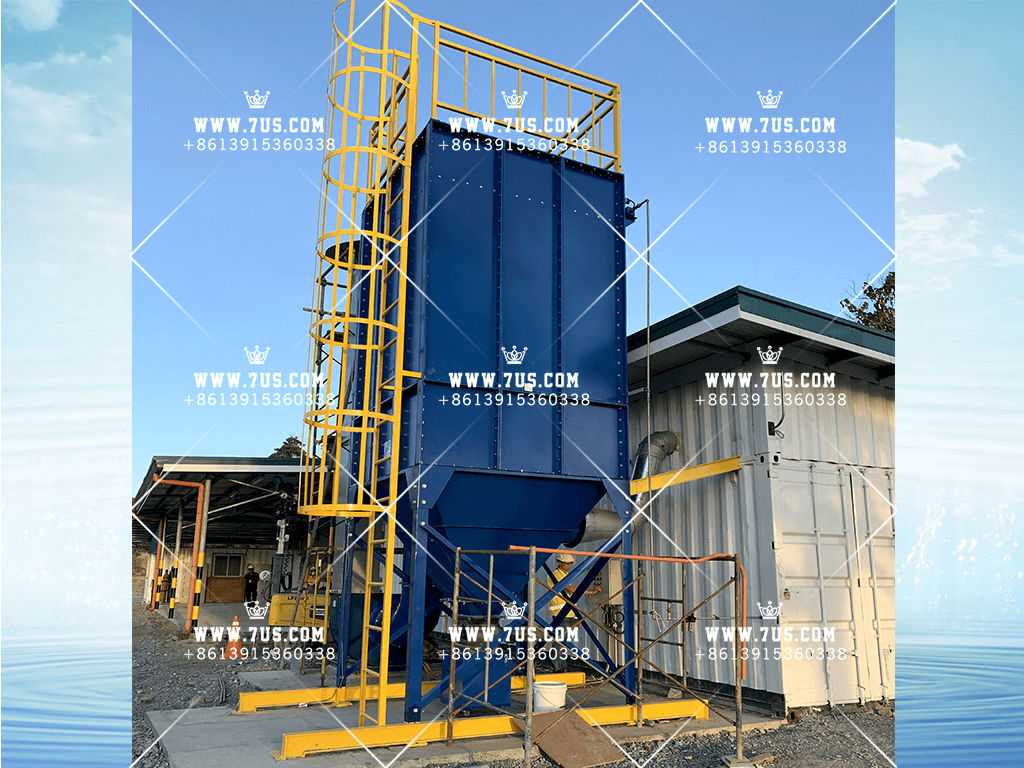

Application cases

  • Application casesApplication cases
  • bag dust collectorApplication cases
  • bag dust collectorApplication cases
  • bag dust collectorApplication cases
  • bag dust collectorApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • bag dust collectorApplication cases
  • bag dust collectorApplication cases
  • bag dust collectorApplication cases
  • resource/images/854bce36dc2441b1bc8bb2cf866af45c_59.pngApplication cases
  • Application casesApplication cases
left right


All L.C .L overseas shipping are packed in pallet/plywood box to avoid any breakage during shipping;All F.C.L overseas shipping are packed in pallet, then loaded to the container.If you have other packing or shipping request, please contact JNEH before order, we will try our best to help for you.
  • Shipping
  • Shipping2
  • Shipping3
  • Shipping4



Most of our cartridge dust collector are modular design, block assembly, so we will arrange our installation team to help you overseas, the flight air ticket, accommodation and labor cost should be on customer side.


If you have cartridge dust collector installation experience, there is no need to spend such cost, just as per our operation & installation manual, if you have any questions, you can ask our team by wechat, facebook or whatsapp, we can do video service.

FAQ & after sales service

Q:What is the price?

A:The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos

Q:What payment methods your company accept?

A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.

Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

Q:I haven't done business with your factory before,how can i trust your company?

A: We are the golden supplier on Alibaba for 2 years, and we can get a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate etc. We can also accept Trade Assurance payment, i hope this will be persuasive enough.

Q:What's the delivery time of your company?

A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time is within 6-8 weeks after deosit.

Q:Do you give any discount ?

A:We will surely try my best to help you get those by the best price and good service at the same time.

Q:I would like to ask you if it's possible to have my logo on the dust collector machine

A:We hope you know that our company Erhuan supports customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.

after sales service

Any questions during the using, please call us at+86-510-87692608

Warranty 1 year from the shipping date, and we can do all life after service for the cartridge dust collector.

Within warranty, our service team will reply you within 2 hours and help you solve the problem within 24 hours

We can do wechat/facebook/whatsapp video remote guidance if any urgent problems

Out of the warranty, we still provide after service, if you need to buy replacement, we only Quote you the raw material cost.

we firmly believe that the best for customer is also the best of our friends! Let’s do our best to protect clean air of the earth.

No matter we can do business this time, we are pleased to be your friend from now, if you need help in China, maybe we can do some help!


Download Drawing:

DLMC1/2/15、DLMC1/3/15DLMC1/4/15DLMC1/5/15 DLMC1/6/15DLMC1/7/15 DLMC1/8/15
