1.1 This mobile industrial air filtration unit is designed for removing smoke, dust and gaseous contaminants from enclosed work areas to improve workplace air quality.

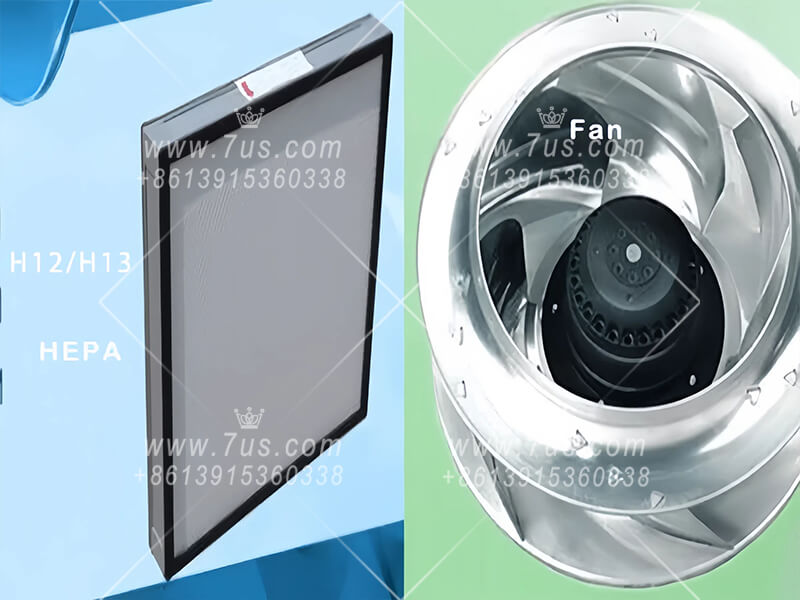

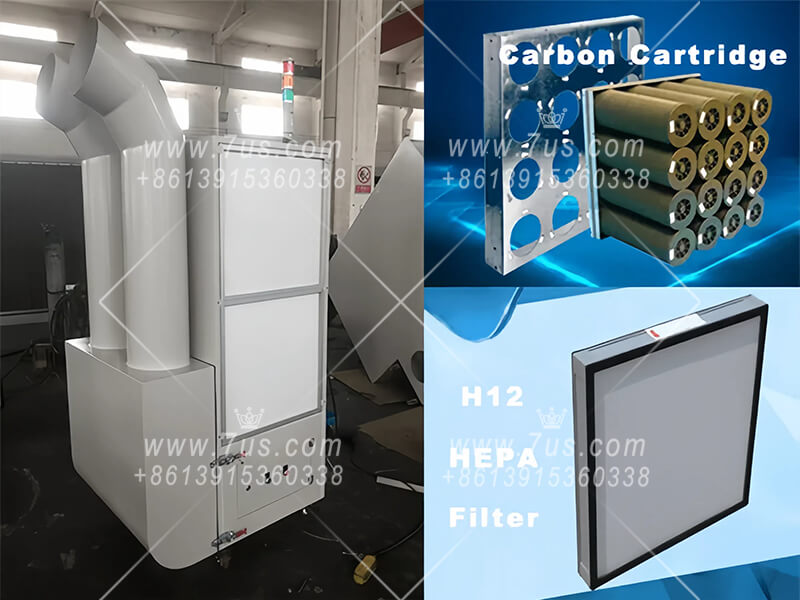

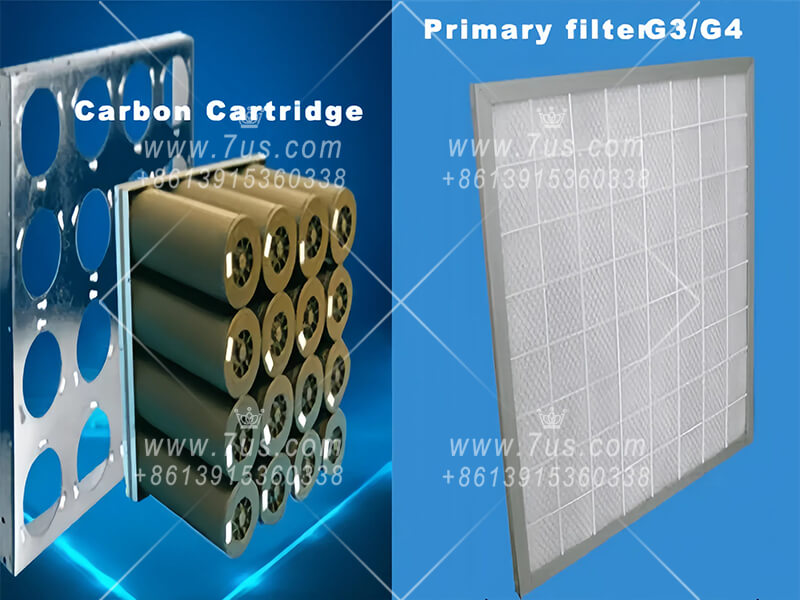

1.2 The multi-stage filtration system combines G3/G4 pre-filter, activated carbon filter, F-class bag filter and HEPA filter for particulate filtration, VOC adsorption and odor control.

1.3 Different filter combinations can be selected according to pollutant characteristics and application requirements.

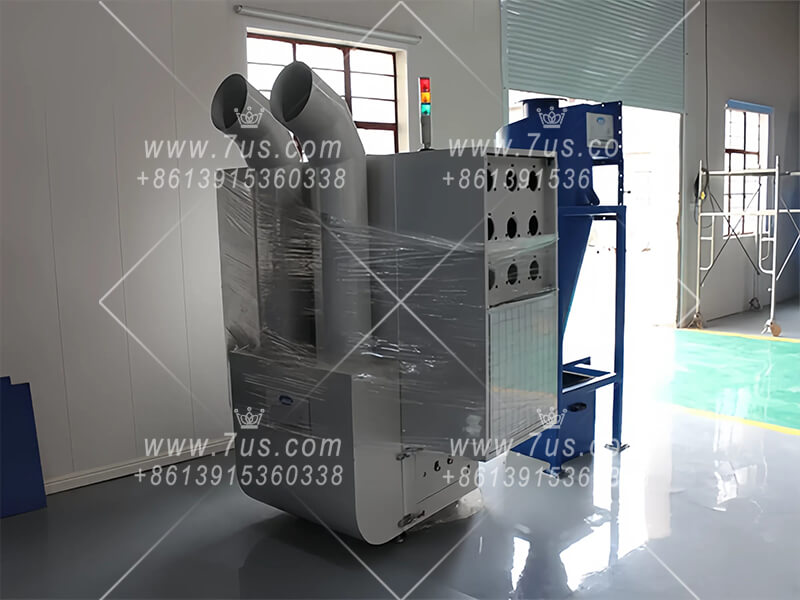

1.4 The integrated unit combines filtration modules, fan and electrical control system, with bottom casters for convenient movement between different work areas.

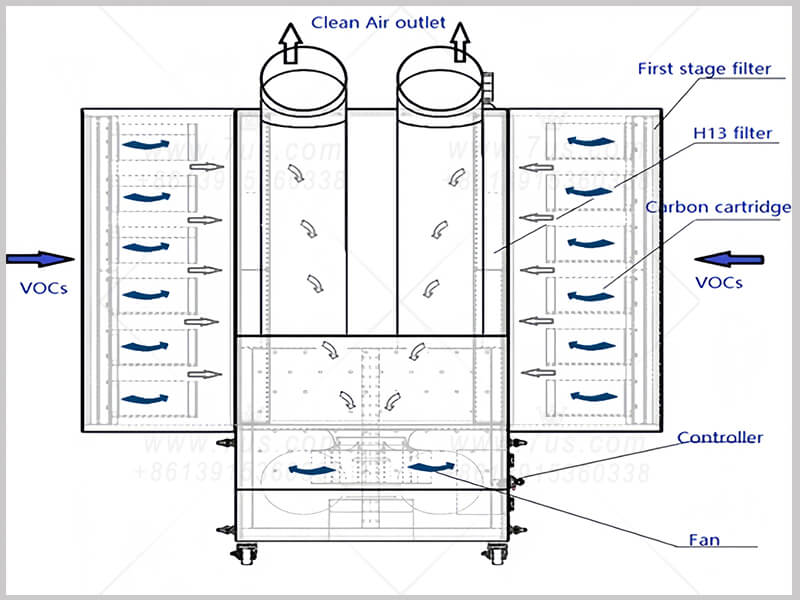

1.5 The filtration principle is based on multiple filtration stages, including particle capture, gas adsorption and high efficiency air filtration.

1.6 The housing can be manufactured with carbon steel powder coating or optional stainless steel according to application requirements.

1.7 A differential pressure monitoring device can be installed on the electrical control cabinet to indicate filter loading status and remind operators when filter replacement is required.

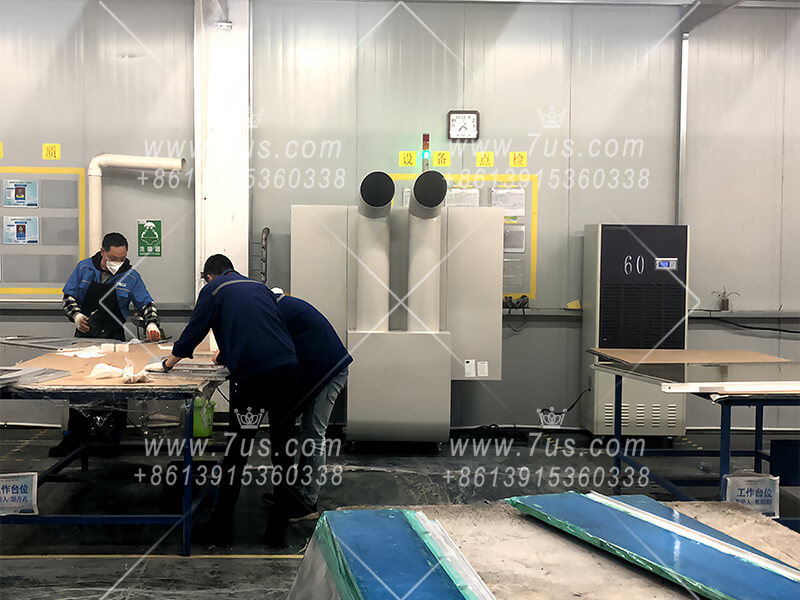

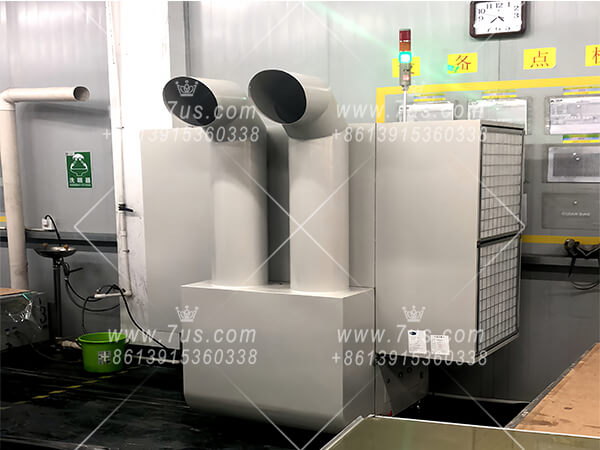

1.8 Typical applications include welding areas, laboratories, electronic component workshops, odor treatment areas and other enclosed industrial environments.

1.9 OEM customization support is available according to airflow requirements, installation conditions and application needs.

1.10 The compact design is suitable for international transportation and flexible deployment at different project sites.
