Flat bag modular comination

1、Envelope-shaped bags provide maximum filter area per given space and ensure efficient cleaning.

2、Modular design,air volumes range from 1500 to 85,000 CFM

3、Modular design gives dimensional and capacity flexibilit.

4、Side doors provide easy, clean side access to filters.

5、Each dust unit can operate independently, and when one of them needs to be repaired, it will not affect the operations of the other unit.

6、The dust air- inlet is placed over the machine, forming a unique design of the Down-flow, in order to strengthen the effectiveness of dust.


Product Brief introuction

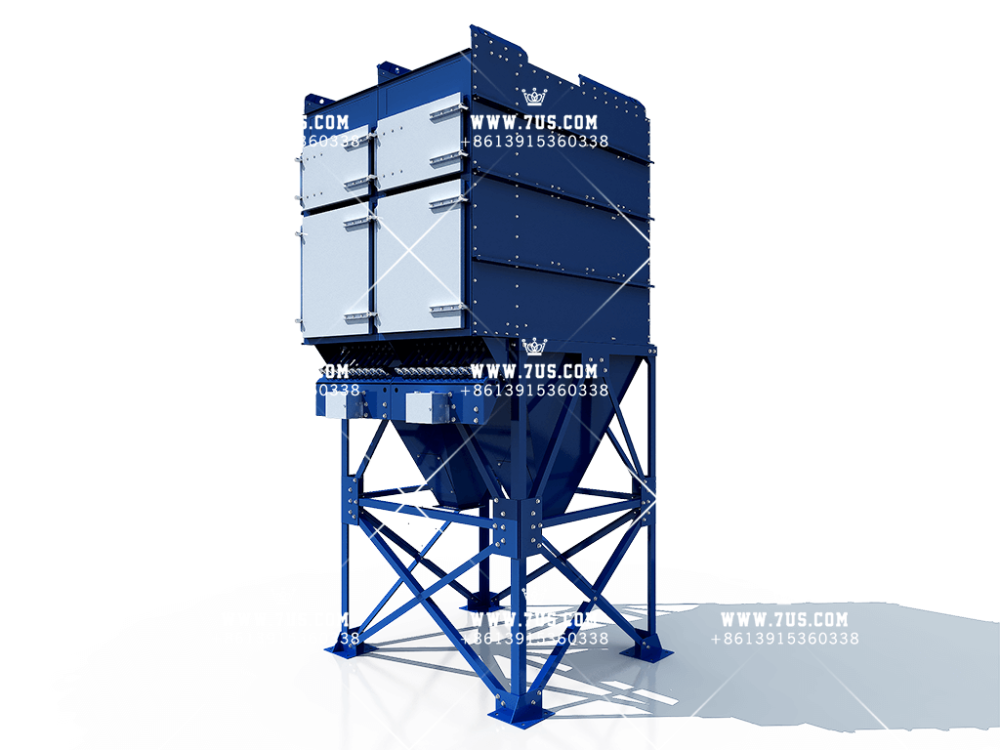

Flat bag dust collector

The door can be opened in front, and the filter bags are insert installed, which can save space for the top ,no need to leave space for top inspection or replacement of bags.

Modular design, block installation, all the dust collector can be separated into small parts, you can ship it into any small space, especially suitable for sea shipping and air shipping.

Cost Saving, Fewer filter bag replace, Lower disposal costs,Faster filter replace.

Easy operation & maintenance.

Low, stable pressure drop.

OEM is acceptable.

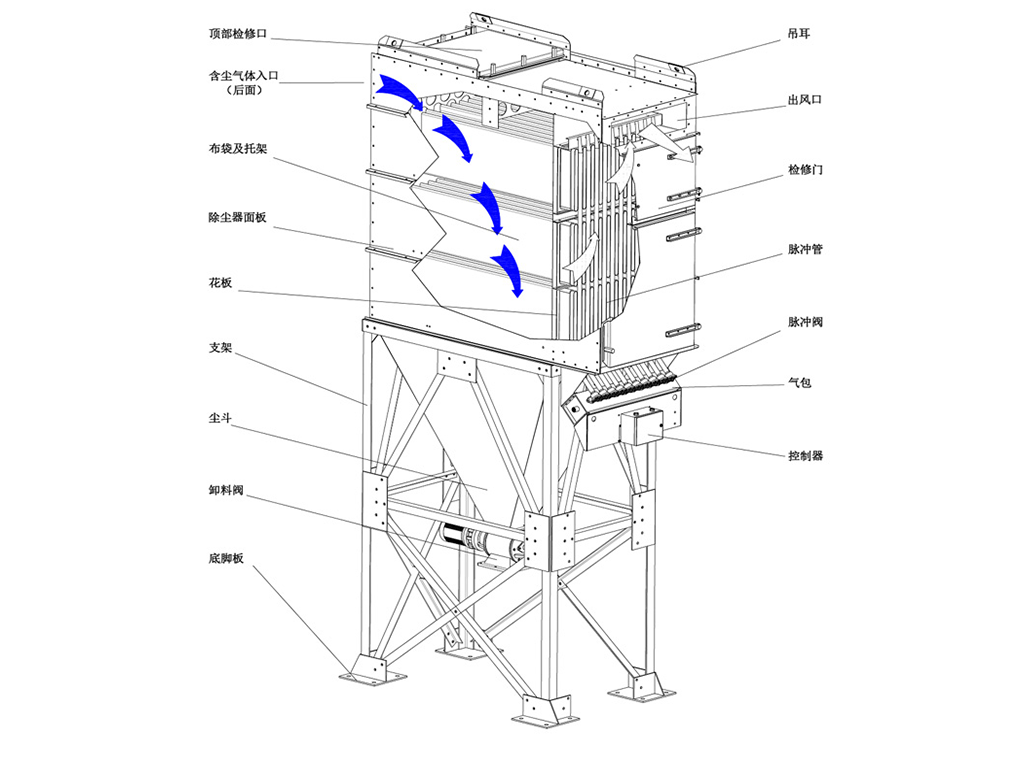

structure drawing

Flat bag dust collector

Flat bag dust collector

Product Options
  • Flat bag dust collector

    Flat bag

  • HEPA-filter

    HEPA filter

  • carbon-filter

    carbon filter

  • Venting-membrane

    Venting membrane

  • Flameless-venting-device

    Flameless venting device

  • One-way-flameproof-valve

    One way flameproof valve


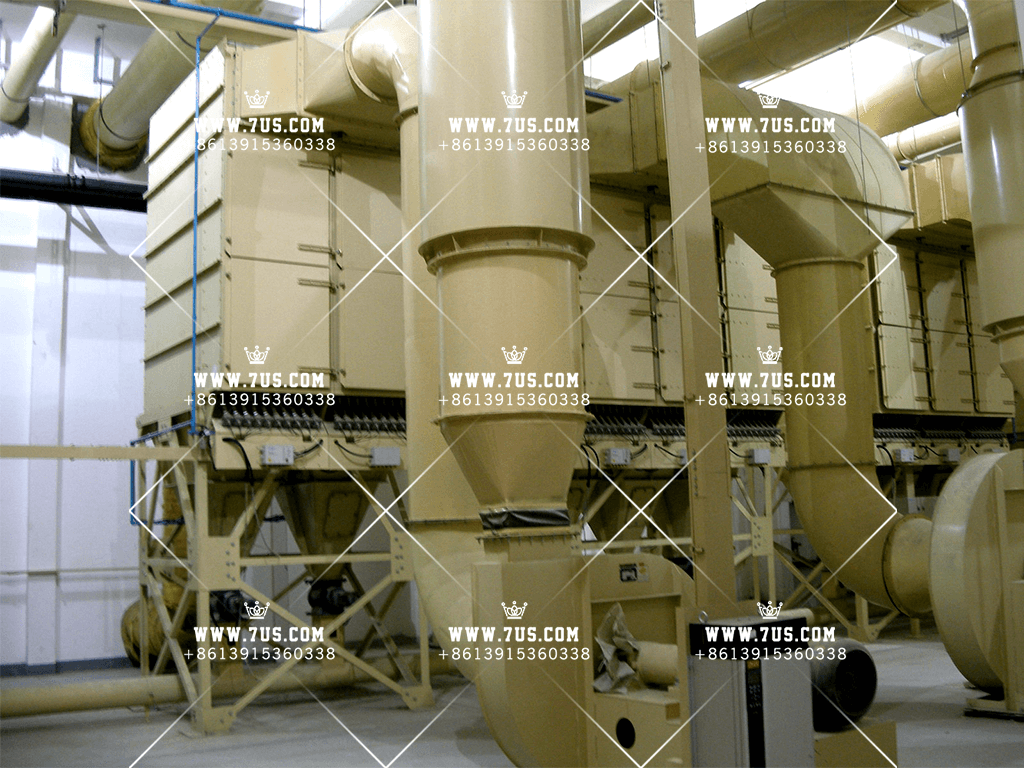

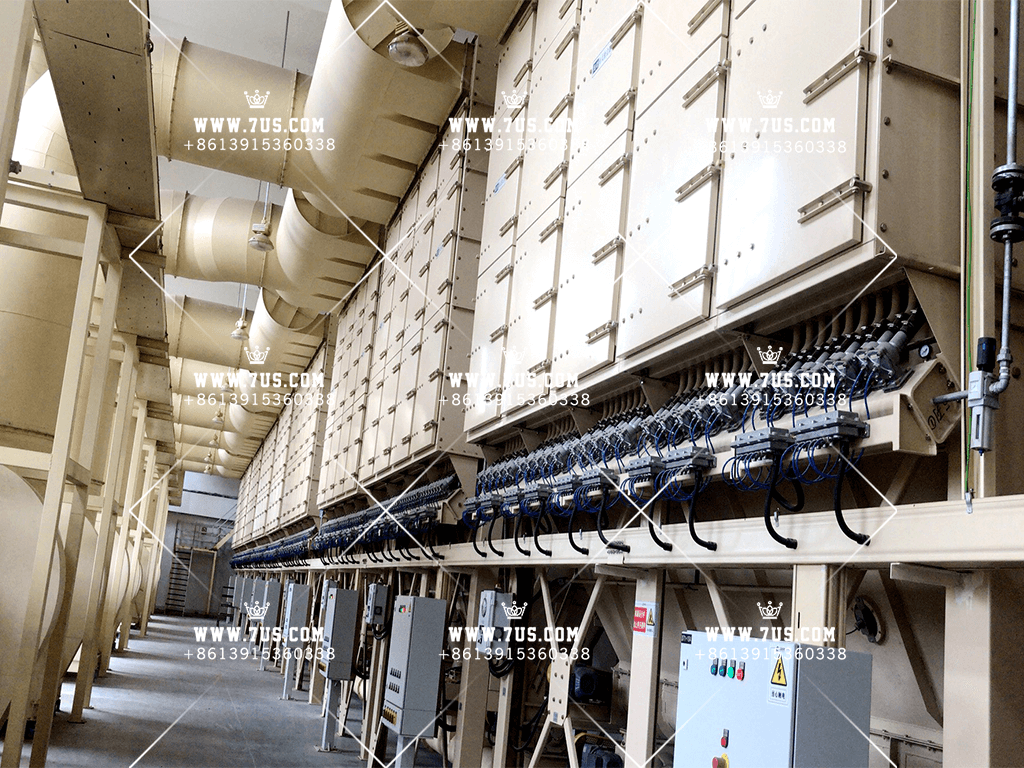

Flat bag dust collector

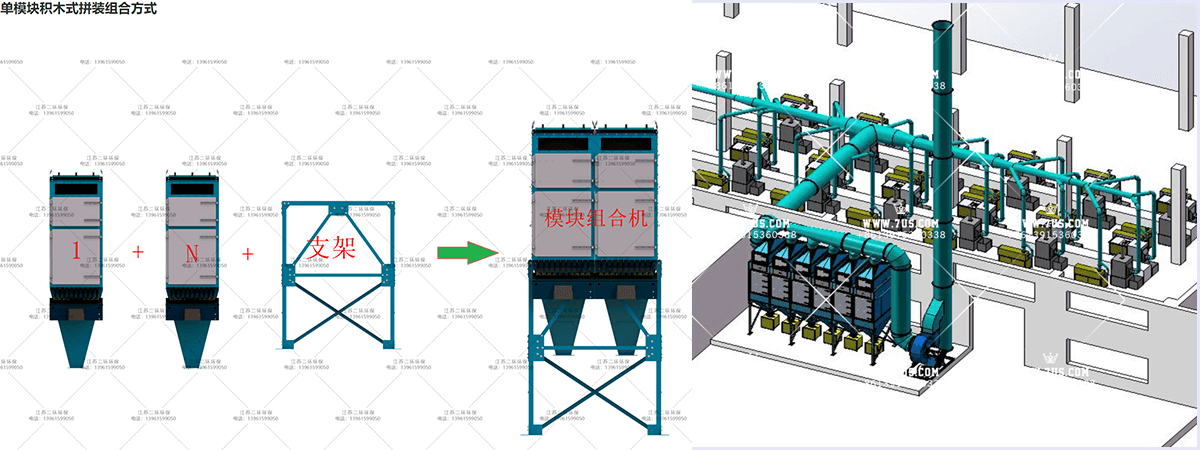

Standard modular design, block type Assembly.

The size is suitable for all kinds of container transportation.

Simple installation and quick assembly.

Flat bag is selected for filtration, which has small volume but large filtering area.

Almost meet all kinds of plants, normal temperature, no water, no oil dry dust smoke.

Easy operation & maintenance

Application: tobacco laser cutting, welding, grinding, polishing, grinding, sand blasting, shot blasting, coating powder spraying, grain, pharmaceutical, chemical, battery industry, food production and other dust collection.

OEM is acceptable

Technica data and Models

Item No. Model Air volume size Flat bag filter Qty Pulse valve Qty N.W
M3/H L*W*H(mm) pcs pcs T
1 DLMC1/2/15 3000 1114*2382*4433 20@30M2 10@DN25 1.160
2 DLMC1/3/15 4500 1114*2382*5026 30@45M2 10@DN25 1.382
3 DLMC1/4/15 6000 1114*2382*5932 40@60M2 10@DN25 1.666
4 DLMC1/5/15 7500 1114*2382*6582 50@75M2 10@DN40 1.935
5 DLMC1/6/15 9000 1114*2382*7107 60@90M2 10@DN40 2.134
6 DLMC1/7/15 10500 1114*2382*7630 70@105M2 10@DN40 2.346
7 DLMC1/8/15 12000 1114*2382*8157 80@120M2 10@DN40 2.558

Flat bag dust collector

For example: 1、

The filtering wind speed of bag filter in the above table is calibrated by conventional 1.67m/min, and the filtering wind speed can be adjusted according to the dust concentration in practical application.
We have specifications of 0.7m, 1.0m, 1.2m, 1.5m and 2.0m for the length of filter bag and filter frame. Usually 1.5m specifications are selected. If other special specifications are needed, they can be customized. The materials are stainless steel and carbon steel.
If you need 12000m3/h dust collector, you can choose 2 models DLMC1/4/15, or you can choose 1 models DLMC1/8/15.
If you choose a single module of DLMC1/4/15 with rated air volume, multiple modules of this model can be assembled to form corresponding large air volume dust collector.

Item No. Model Air volume size Flat bag filter Qty Pulse valve Qty N.W
M3/H L*W*H(mm) pcs pcs T
1 DLMC1/5/15 7500 1114*2382*6582 50@75M2 10@DN40 1.070
2 DLMC2/5/15 15000 2228*2382*6582 100@150M2 20@DN40 1.744
3 DLMC3/5/15 22500 3342*2382*6582 150@225M2 30@DN40 2.538
4 DLMC4/5/15 30000 4456*2382*6582 200@300M2 40@DN40 3.212
5 DLMC5/5/15 37500 5570*2382*6582 250@375M2 50@DN40 4.006
6 DLMC6/5/15 45000 6684*2382*6582 300@450M2 60@DN40 4.680
7 DLMC7/5/15 52500 7798*2382*6582 350@525M2 70@DN40 5.474
8 DLMC8/5/15 60000 8912*2382*6582 400@600M2 80@DN40 6.148
9 DLMC9/5/15 67500 10026*2382*6582 450@675M2 90@DN40 6.942
10 DLMC10/5/15 75000 11140*2382*6582 500@750M2 100@DN40 7.616
