cartridge dust collector all-in-one DHC-XL type

All-in-one Cartridge + Cyclone  Dust Collector ,DHC-XL Type

1. Product category series:Vertical Cartridge Filter Dust Collector.

2. Filter consumables used: Filter cartridge

3. Cleaning method: Pulse valve jet compressed air.

4.Structural feature: Meet the packing size of sea freight containers.

5.Industry: Used for collecting and filtering dry dust without oil or water

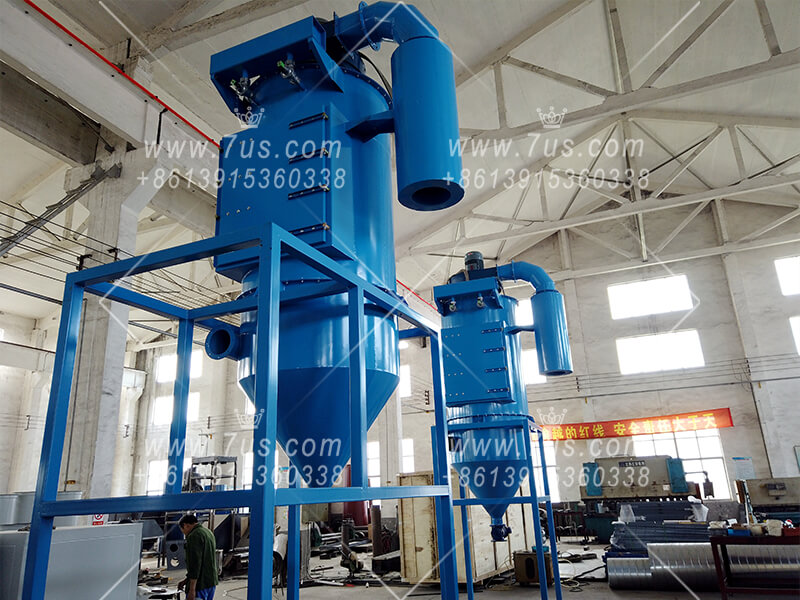

DHC-XL Type Cartridge Dust Collector

vertical cartridge filter dust collector

1.1.Product name: All-in-one DHC-YTH type vertical filter cartridge  dust collector,Double layered conical ash hopper, equivalent to a cyclone dust collector.

1.2.Structural feature 1: The filter cartridge adopts a side insertion vertical installation, a chuck pressure rod type, non screw lifting, and does not need to be screwed into the box.

1.3.Institutional feature 2: Non top mounted insertion of filter cartridges, not occupying top space, suitable for indoor installation.There are multiple forms to choose from for ash hoppers.

1.4.Common specifications of filter cartridges: three sizes of chuck square covers: 324 * 660mm, 1000mm, and 1200mm.

1.5.Filter cartridge process: The upper and lower covers are welded to the inner frame, resistant to spray pressure of 4-8 kilograms, and fully welded without falling off the bottom.

vertical cartridge filter dust collector

1.6. Product process: Modular design and modular installation. The whole machine is spray molded and durable.

1.7. Product features: The vertical filter cartridge has a better pulse cleaning effect than the oblique insertion filter cartridge, and does not accumulate dust.

1.8. Application advantages: No need for cyclone pretreatment, resistant to high concentration dust, and can directly replace bag filters.

1.9. Design Services: Free of charge to design product drawings according to the appropriate size of your on-site space,and provide installation guidance and training services

1.10.International transportation: Our product dimensions meet the requirements for shipping containers, making it easy to transport to various parts of the world.

Multiple Forms Of Accessory Combinations

  • cartridge dust collector part

    1.1、Circular gray bucket
    Support capacity customization

  • cartridge dust collector part

    1.2、Star shaped ash discharge valve
    Optional explosion-proof type

  • cartridge dust collector part

    1.3、Gate valve

  • cartridge dust collector part

    1.4、Pulse Valve
    Spray compressed air

  • cartridge dust collector part

    1.5、Air receiver
    Storing compressed air

  • cartridge dust collector part

    1.6、Water separator
    Obtain dry compressed air

  • cartridge dust collector part

    1.7、Filter cartridge
    Height can be customized

  • cartridge dust collector part

    Used for air extraction

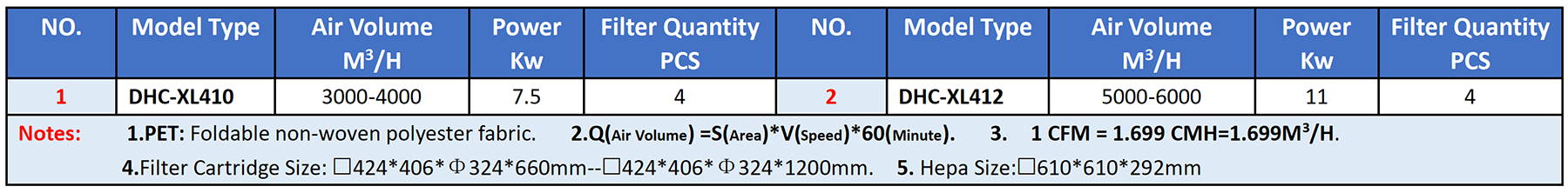

Model Selection Table
Selection table for All-in-one cartridge dust collector

Model Selection Table
