cartridge dust collector-DHC-Hepa type

Vertical Modular Installation  Cartridge  Dust Collector

1. Product category series:Vertical Cartridge Hepa Dust Collector

2. Filter consumables used: Filter cartridge

3. Cleaning method: Pulse valve jet compressed air.

4.Structural feature: Meet the packing size of sea freight containers.

5.Industry: Used for collecting and filtering dry dust without oil or water

inquiry

Vertical Cartridge+HEPA Filter Dust Collector

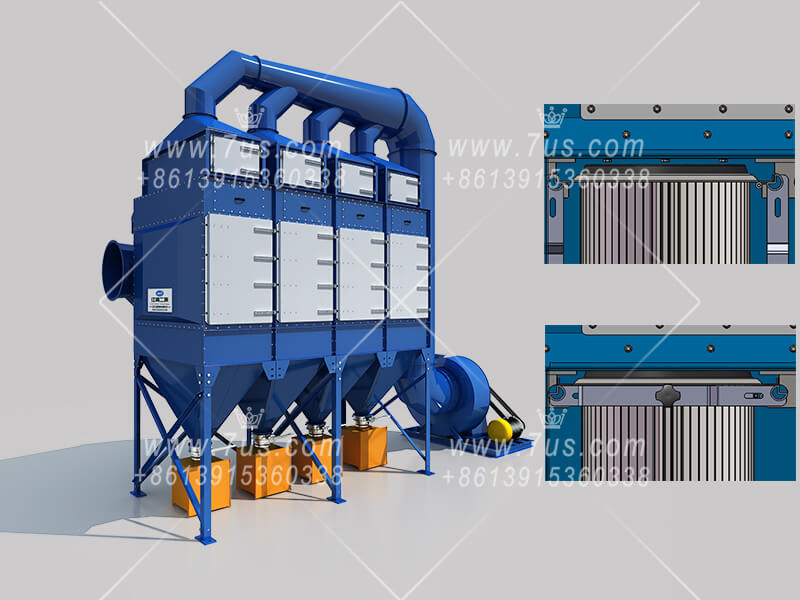

Vertical Modular Installation Cartridge Dust Collector

1.1.Product name: Vertical filter cartridge +HEPA dust collector (H14-HEPA'S Collection Efficiency:99.995%).

1.2.Structural feature 1: The filter cartridge adopts a side insertion vertical installation, a chuck pressure rod type, non screw lifting, and does not need to be screwed into the box.

1.3.Institutional feature 2: Non top mounted insertion of filter cartridges, not occupying top space, suitable for indoor installation.There are multiple forms to choose from for ash hoppers.

1.4.Common specifications of filter cartridges: three sizes of chuck square covers: 324 * 1000mm, 1200mm, and 1500mm.

1.5.Filter cartridge process: The upper and lower covers are welded to the inner frame, resistant to spray pressure of 4-8 kilograms, and fully welded without falling off the bottom.

Vertical filter cartridge dust collector

1.6. Product process: Modular design and modular installation. The whole machine is spray molded and durable.

1.7. Product features: The vertical filter cartridge has a better pulse cleaning effect than the oblique insertion filter cartridge, and does not accumulate dust.

1.8. Application advantages: No need for cyclone pretreatment, resistant to high concentration dust, and can directly replace bag filters.

1.9. Design Services: Free of charge to design product drawings according to the appropriate size of your on-site space,and provide installation guidance and training services

1.10.International transportation: Our product dimensions meet the requirements for shipping containers, making it easy to transport to various parts of the world.

Application Cases

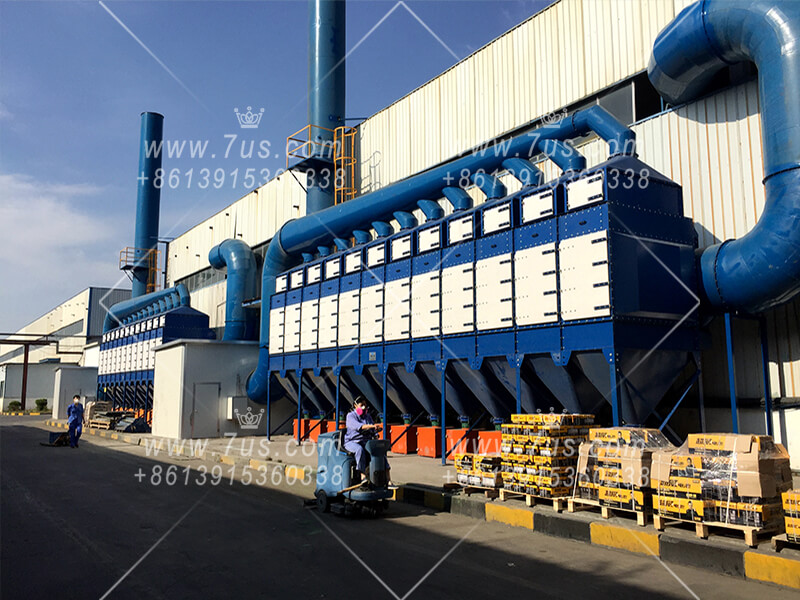

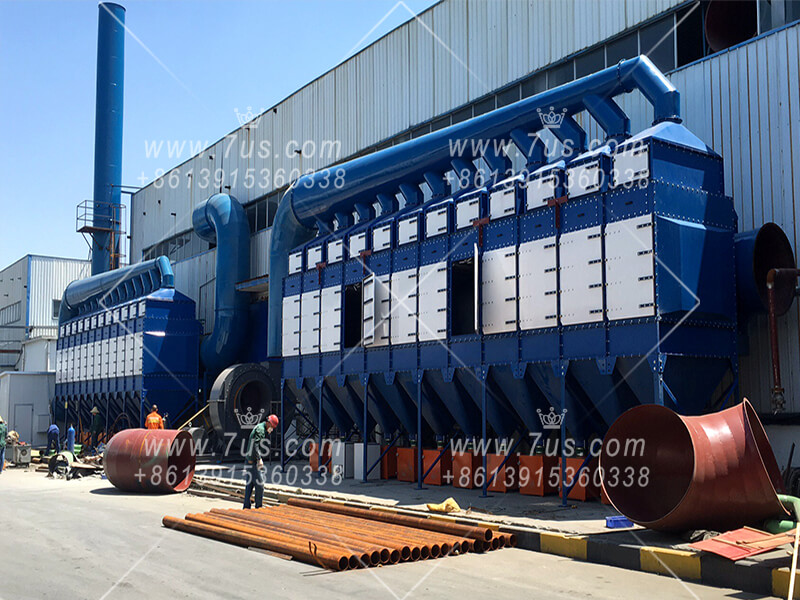

  • vitical cartridge dust collector

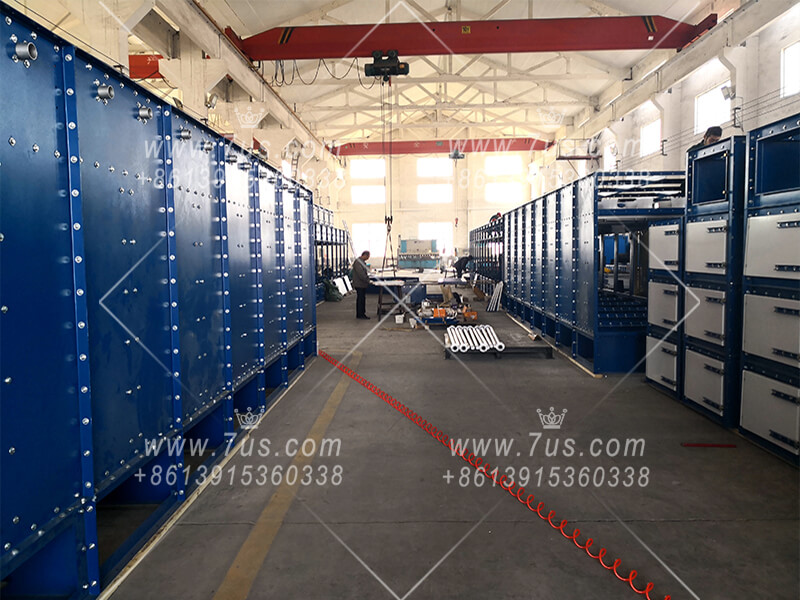

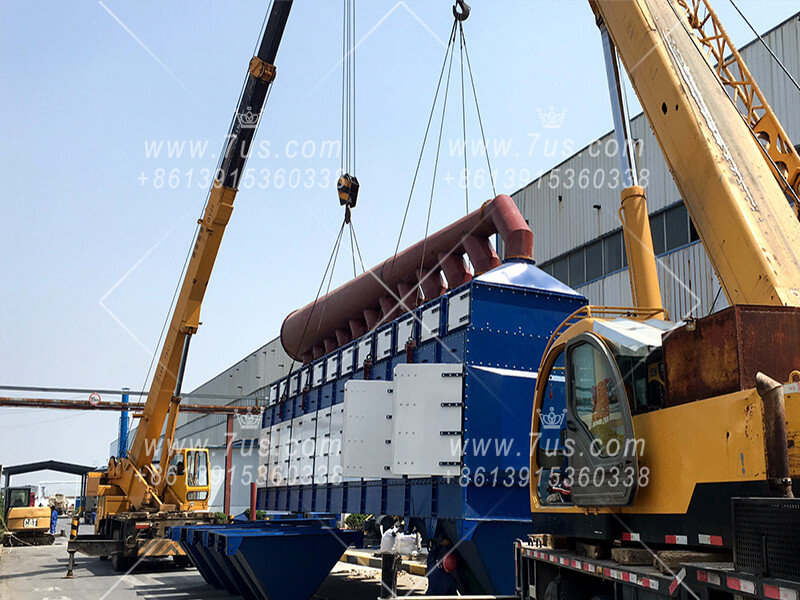

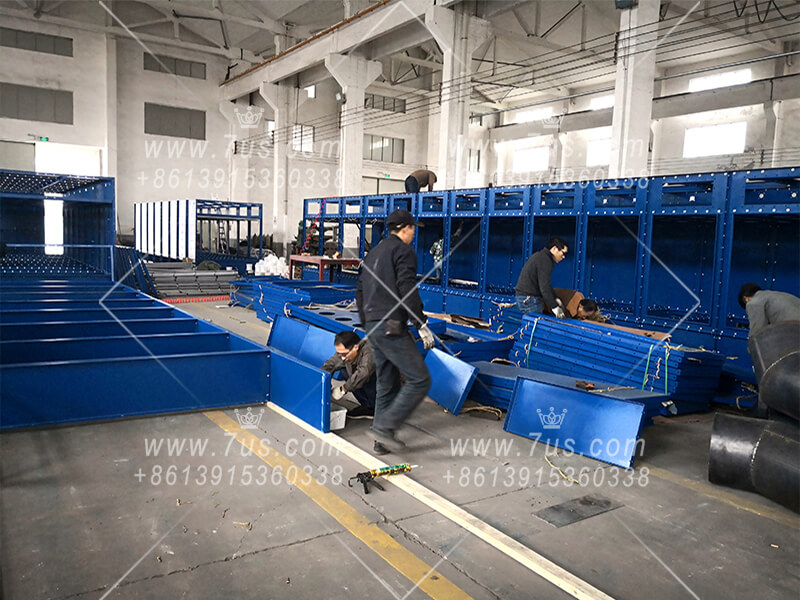

    Production process display

  • vitical cartridge dust collector

    Production process display

  • vitical cartridge dust collector

    Production process display

  • vitical cartridge dust collector

    Production process display

  • vitical cartridge dust collector

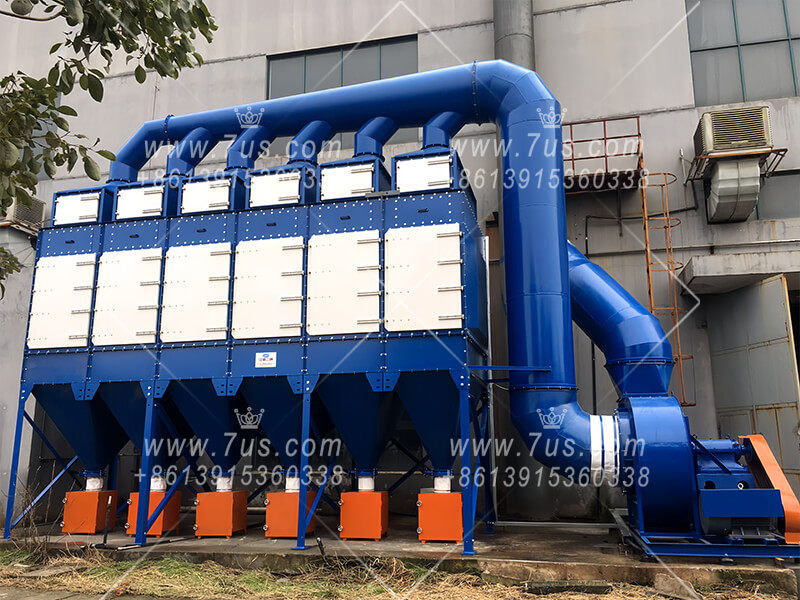

    Finished product display

  • vitical cartridge dust collector

    Finished product display

Multiple Forms Of Accessory Combinations

  • cartridge dust collector part

    1.1、Short legged grey bucket
    Drawer type gray box

  • cartridge dust collector part

    1.2、Standard ash hopper
    High legged ash hopper

  • cartridge dust collector part

    1.3、Ash hopper combination
    Multi module type

  • cartridge dust collector part

    1.4、Shipyard type ash hopper
    One bucket for multi-mode use

  • cartridge dust collector part

    1.5、Circular gray bucket
    Support capacity customization

  • cartridge dust collector part

    1.6、Star shaped ash discharge valve
    Optional explosion-proof type

  • cartridge dust collector part

    1.7、Twisted dragon conveyor
    Optional explosion-proof type

  • cartridge dust collector part

    1.8、Gate valve
    Manual

  • cartridge dust collector part

    1.9、Suction hood
    Top installation

  • cartridge dust collector part

    1.10、Ventilation duct
    On demand customization

  • cartridge dust collector part

    1.11、Pulse Valve
    Spray compressed air

  • cartridge dust collector part

    1.12、Air receiver
    Storing compressed air

  • cartridge dust collector part

    1.13、Filter cartridge
    Height can be customized

  • cartridge dust collector part

    1.14、Fan
    Used for air extraction

  • cartridge dust collector part

    1.15、Climbing ladder
    On demand customization

  • cartridge dust collector part

    1.16、Maintenance platform
    On demand customization

  • cartridge dust collector part

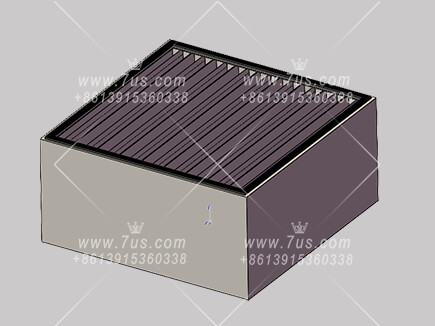

    1.17、HEPA Filter
    H13-H14

  • cartridge dust collector part

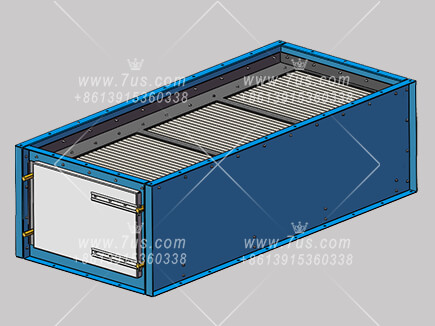

    1.18、HEPA Filter Union
    Filtering efficiency:99.995%

Selection Method
Selection table for DHC vertical filter cartridge dust collector

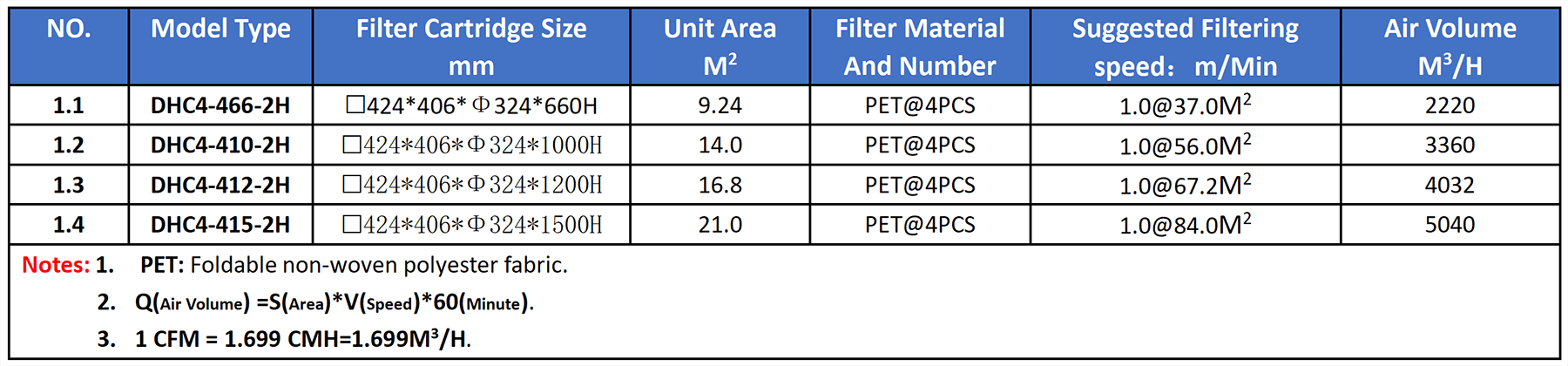

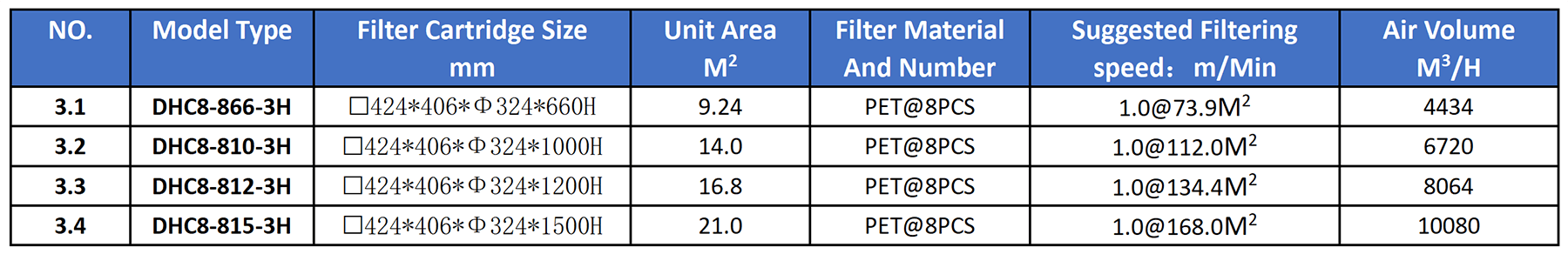

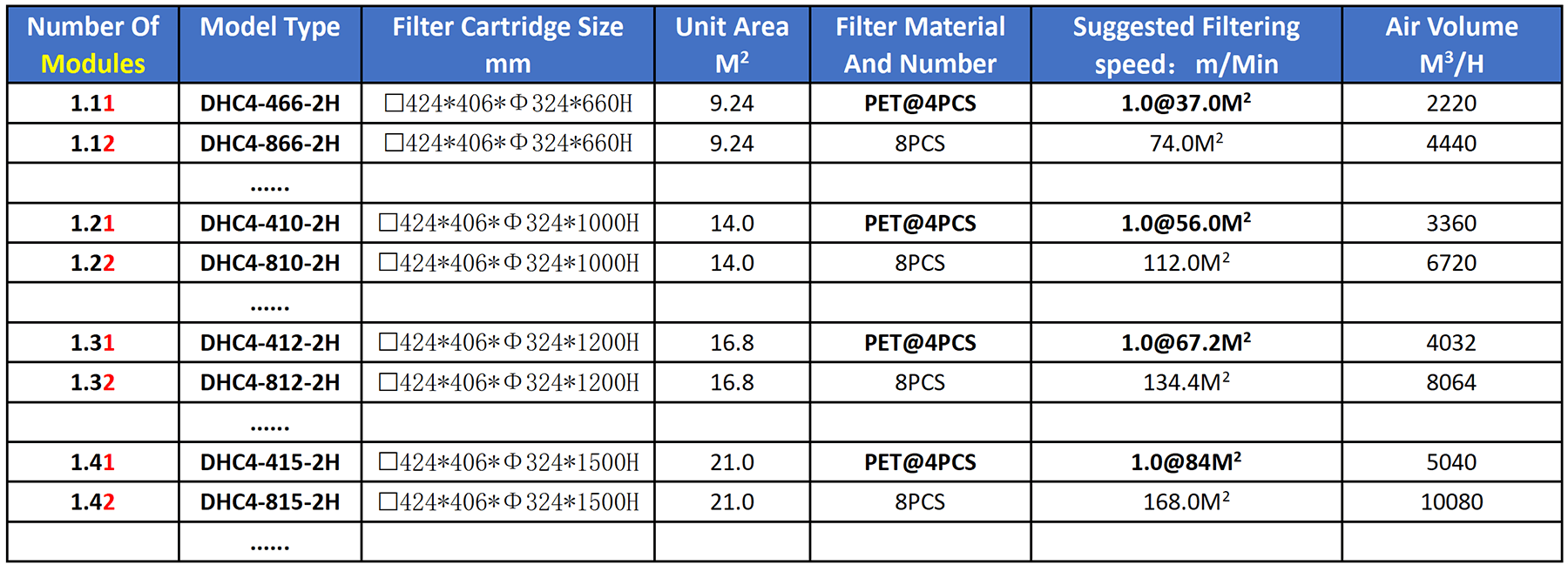

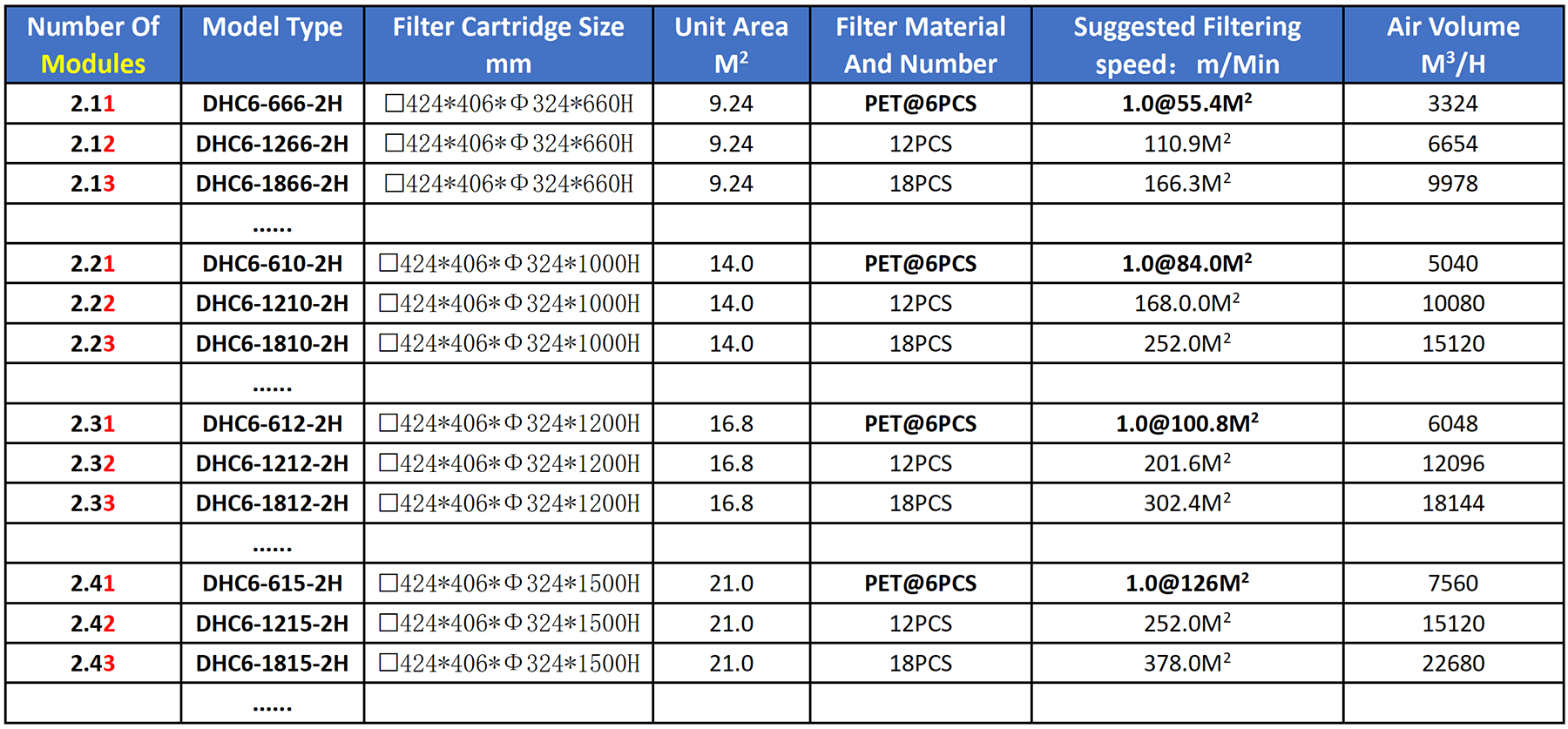

Step1、Select the model type of a separate module:

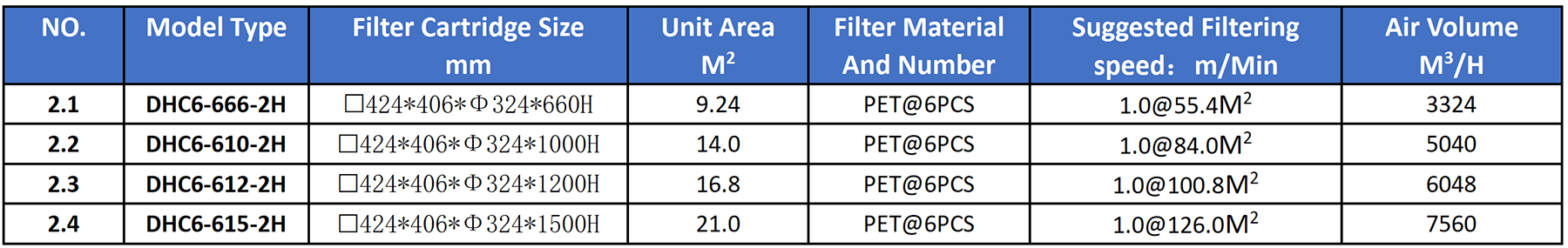

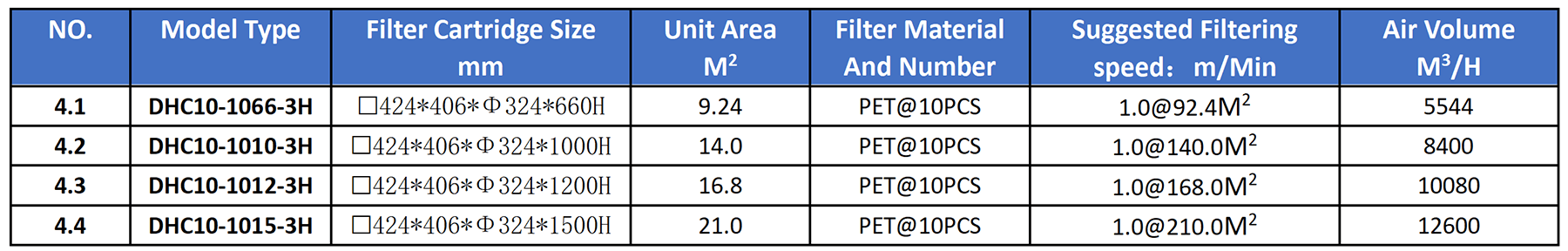

Model Selection Table

Model Selection Table

Model Selection Table

Model Selection Table

Step2、Many Individual Modules Are Combined Into One Unit:

滤筒除尘器模块平装方式

Step3、Selection of air volume for many modular combinations

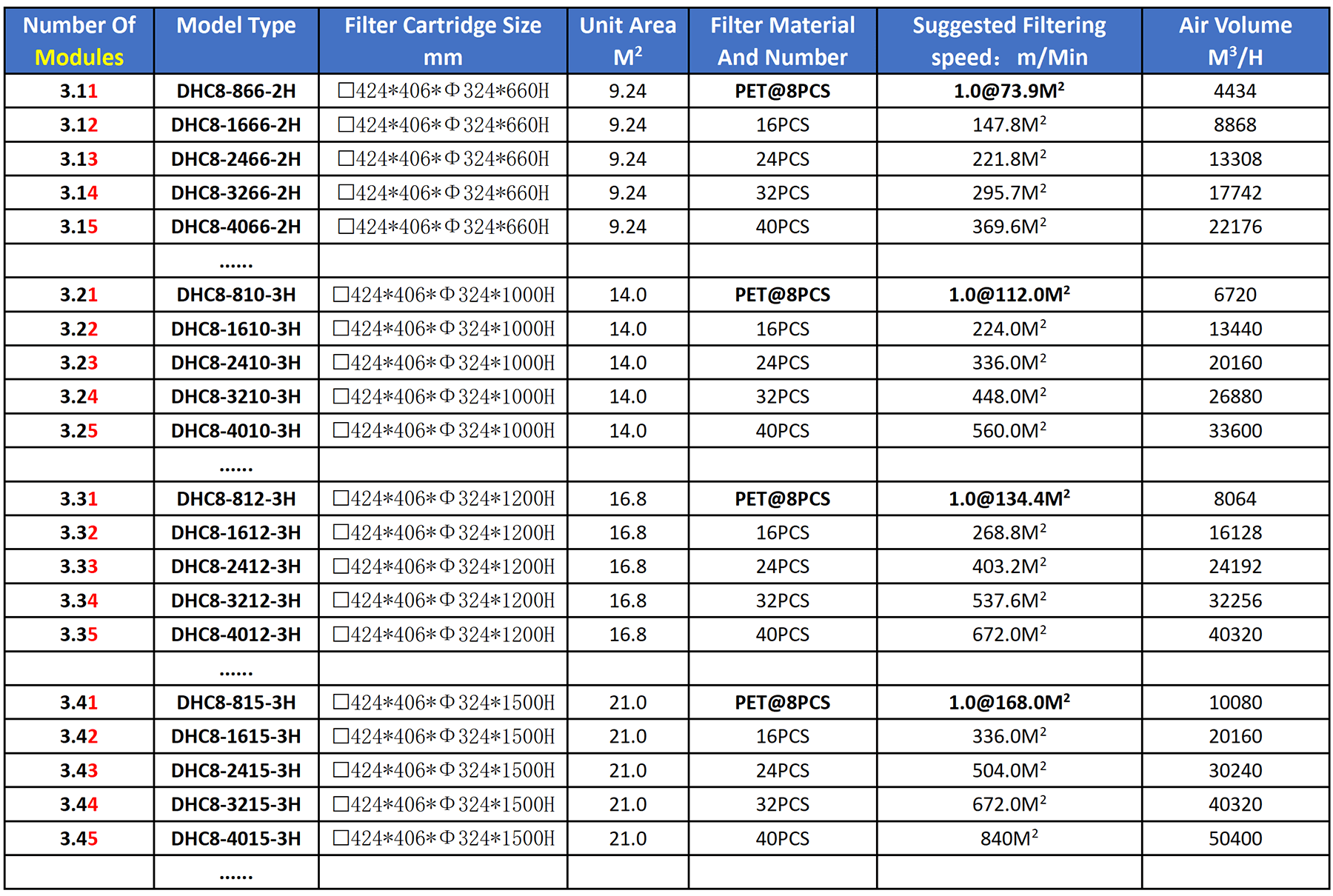

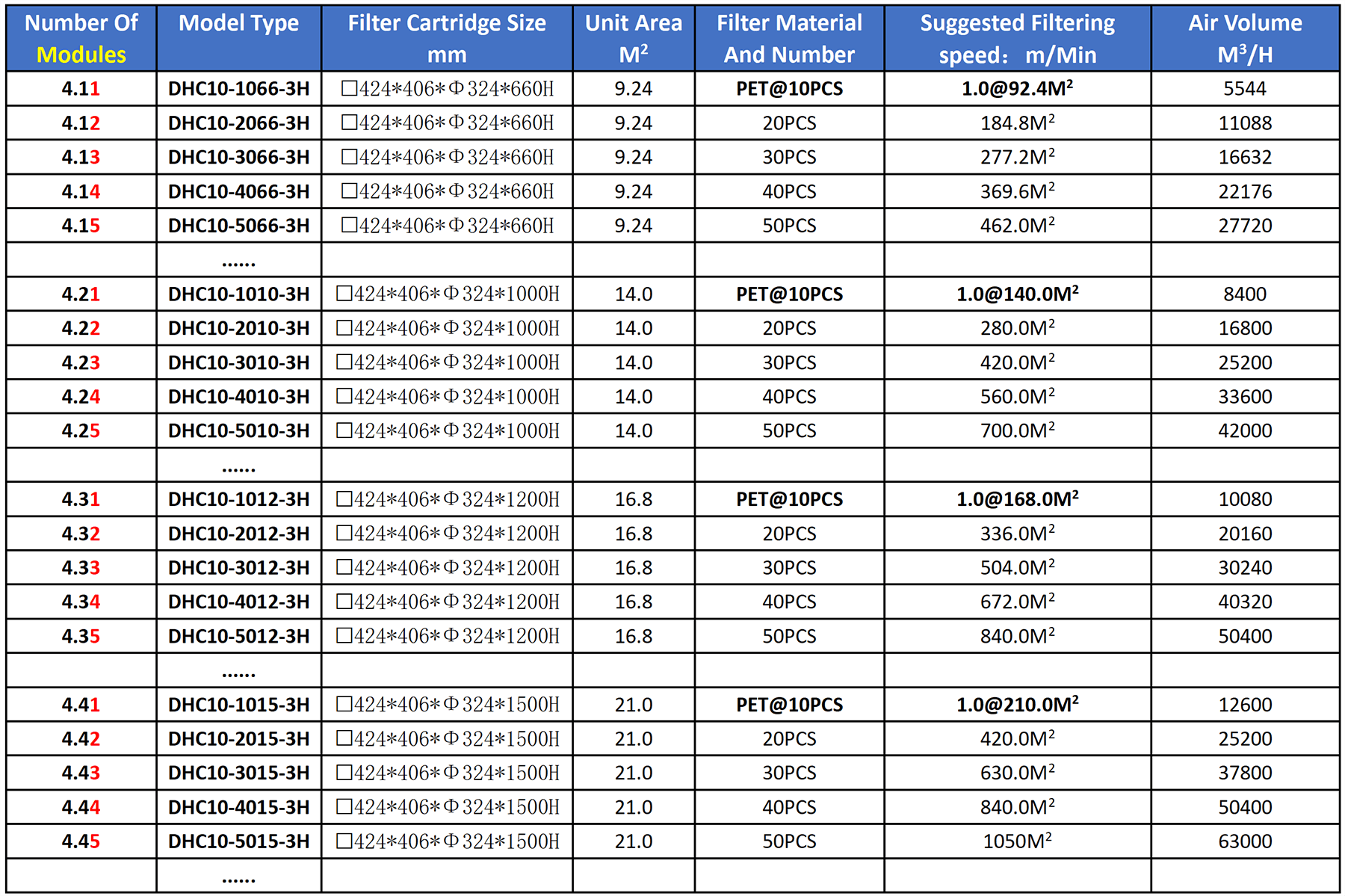

Model Selection Table

Model Selection Table

Model Selection Table

Model Selection Table

Explain: 1、DHC8-1610-3H mean: The selected module model is DHC8 Type.                                 2、DHC8-1610-3H mean: The number of filter cartridges is 16PCS.                      3、DHC8-1610-3H mean: The height of the filter cartridge is 1000mm.
                 4、DHC8-1610-3H  mean: The number of  HEPA filter is 3PCS.
