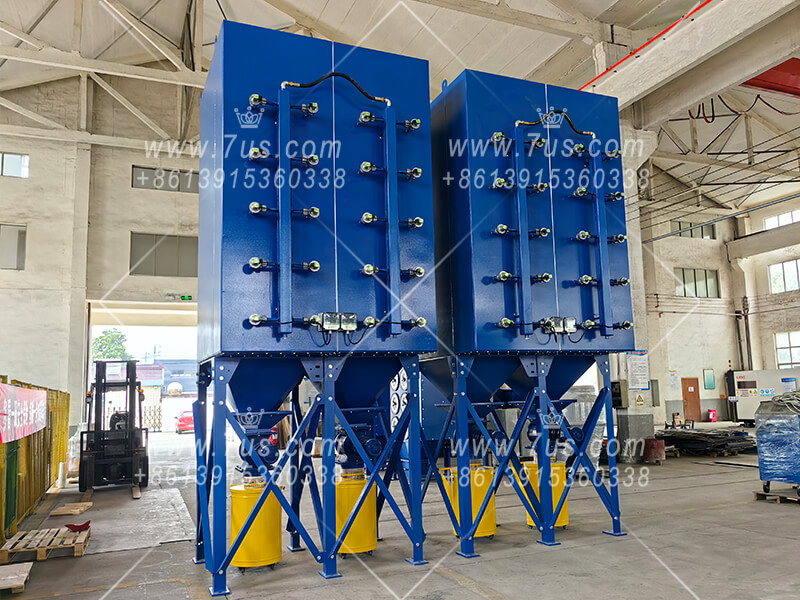

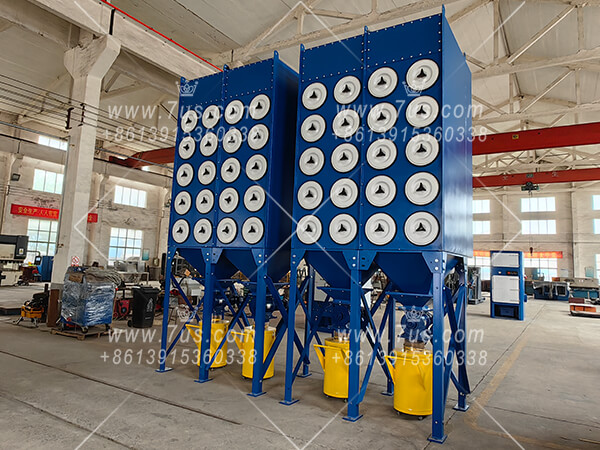

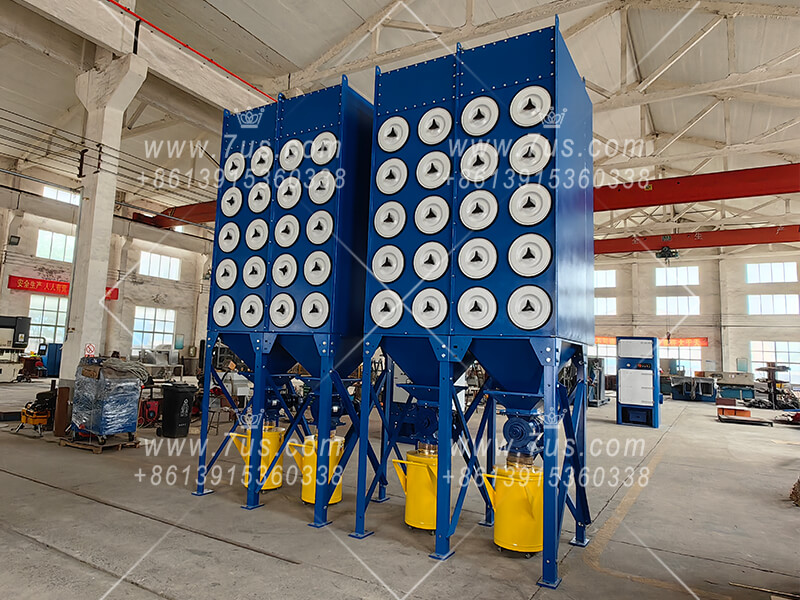

EHDFP Large Airflow Horizontal Cartridge Dust Collector with Modular Design

EHDFP Large Airflow Horizontal Cartridge Dust Collector with Modular Design

1. The EHDFP is a large-airflow modular cartridge dust collector designed with horizontally installed filter cartridges for industrial dry dust collection applications.

2. The horizontal side-insertion cartridge arrangement allows filter replacement and maintenance from the side without requiring additional service space above the collector.

3. Multiple independent filtration modules can be combined according to the required airflow and filtration area, allowing the system to be expanded for large industrial dust collection projects.

4. Filter cartridges are cleaned by pulse jet compressed air to remove accumulated dust from the filter surface and maintain stable operating resistance.

5. The EHDFP is suitable for collecting dry industrial dust without excessive oil or moisture and can be configured with different ash hoppers and dust discharge devices according to project requirements.

inquiry

prev next

EHDFP Large Airflow Horizontal Cartridge Dust Collector with Modular Design

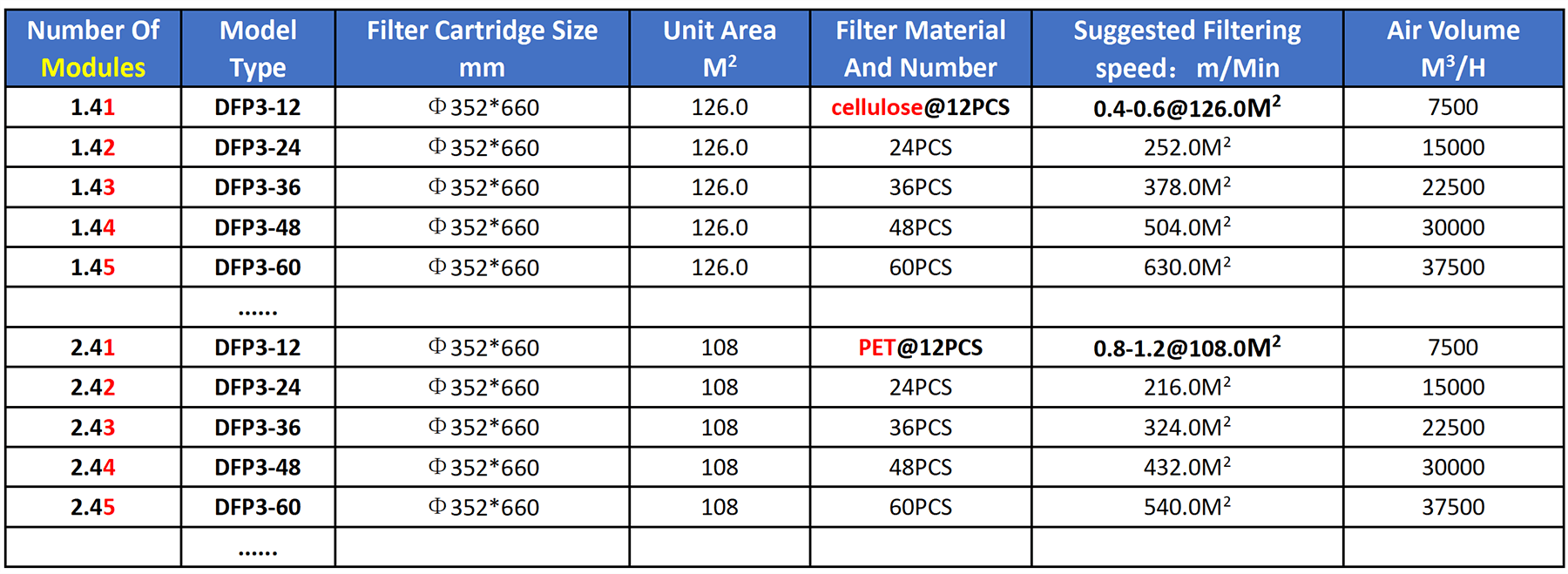

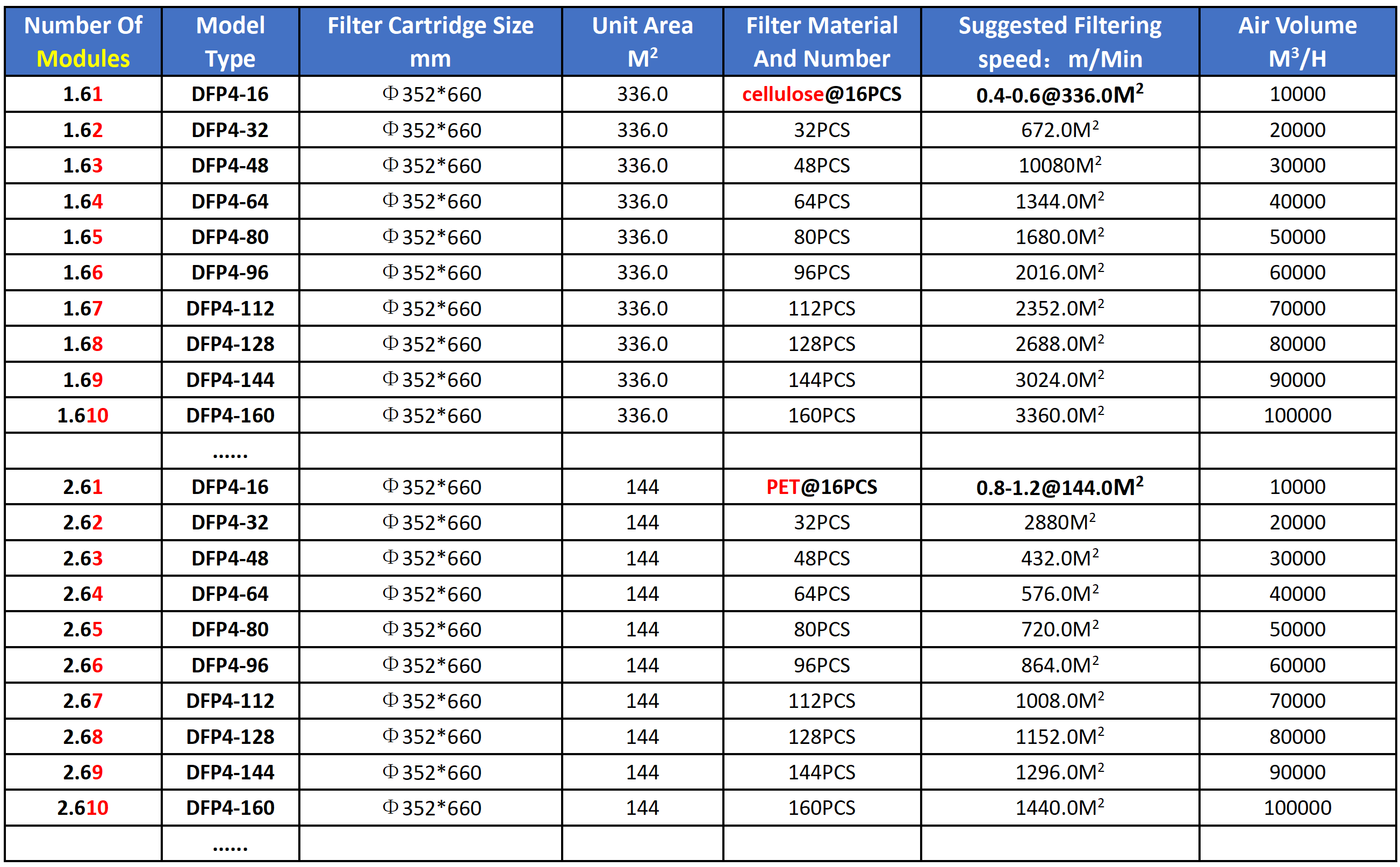

1.1 Product Name: EHDFP Large Airflow Horizontal Cartridge Dust Collector with Modular Design. Airflow capacity: 1,000-500,000 m³/h.

1.2 Cartridge Installation: Filter cartridges are installed horizontally and inserted from the side of the collector for convenient maintenance and replacement.

1.3 Side Access Design: Cartridge replacement does not require additional service space above the collector, making the horizontal arrangement suitable for indoor installations and projects with limited overhead space.

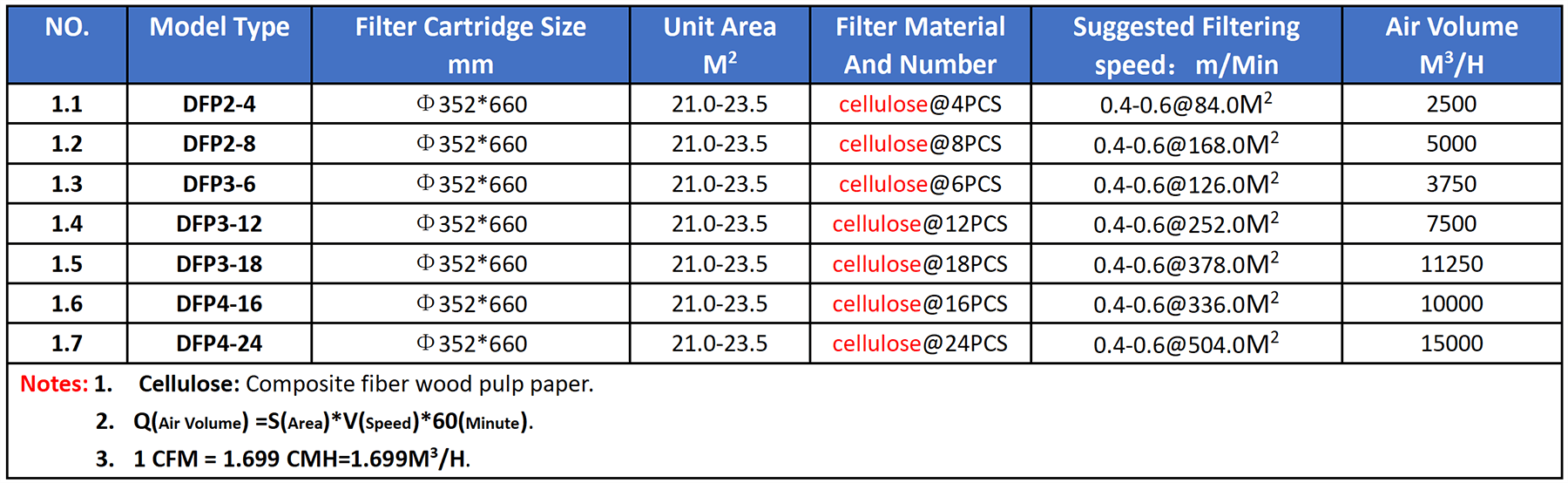

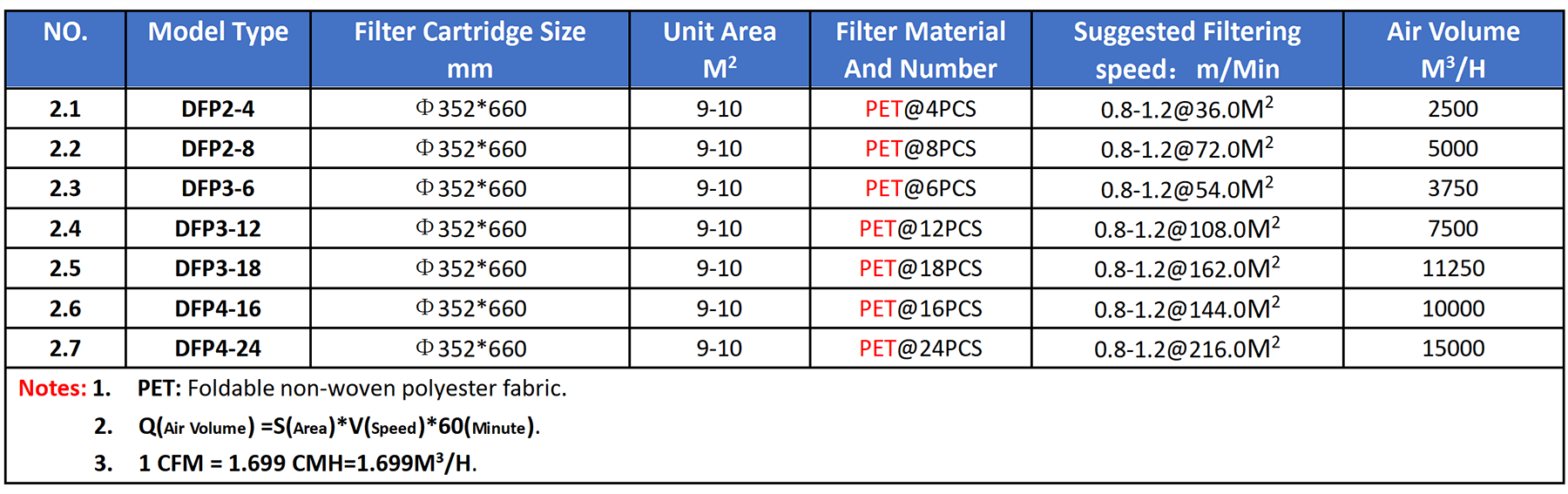

1.4 Filter Cartridge Size: The standard configuration uses 350 x 660 mm filter cartridges. Other configurations can be evaluated according to project requirements.

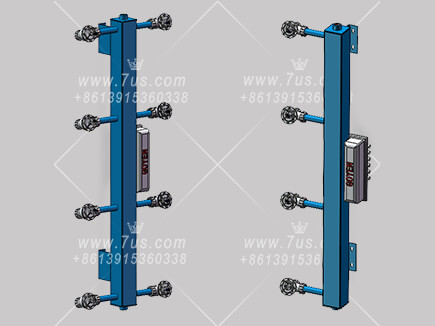

1.5 Pulse Jet Cleaning: Compressed air pulse cleaning removes accumulated dust from the cartridge surface to maintain stable filtration performance and operating resistance.

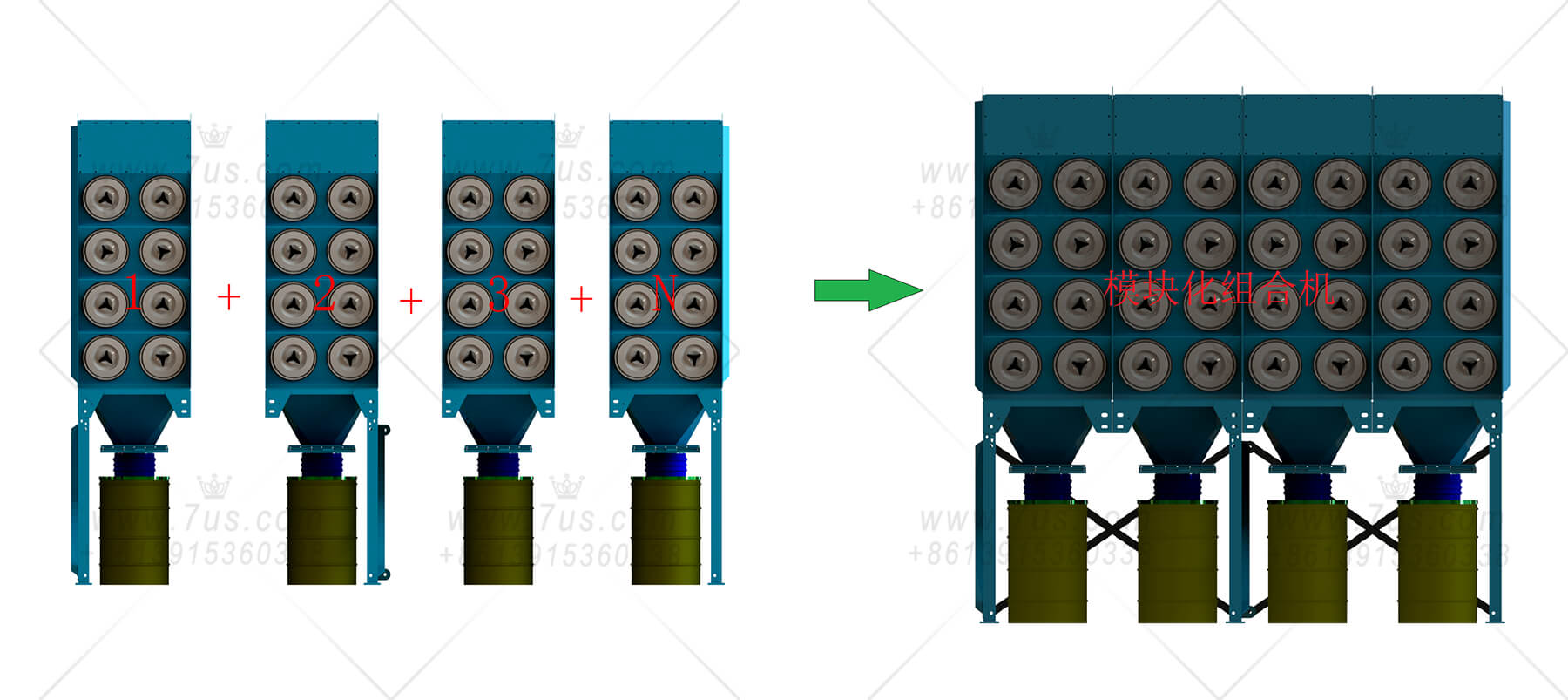

1.6 Modular Design: Independent filtration modules can be combined according to the required airflow and filtration area, allowing the dust collection system to be expanded for large industrial applications.

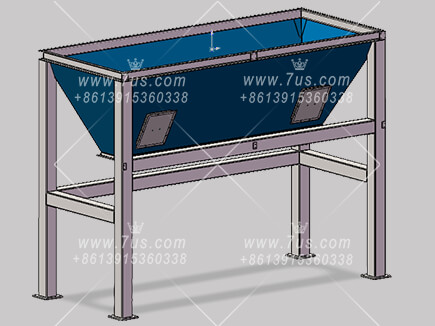

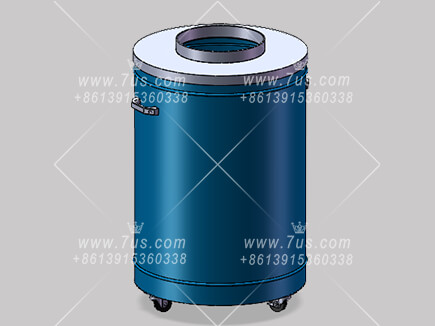

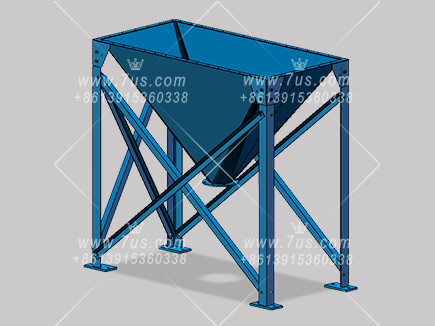

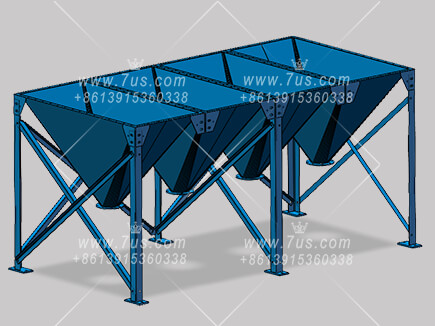

1.7 Flexible Configuration: Different ash hoppers, dust discharge devices, fans, pulse cleaning systems and maintenance accessories can be selected according to project requirements.

1.8 Application Consideration: For very high inlet dust concentrations, a cyclone or other suitable pre-separation device can be considered to reduce the dust load entering the cartridge filtration section.

1.9 Customization: Module quantity, equipment dimensions, inlet and outlet arrangement and accessory configuration can be customized according to airflow, dust characteristics and installation conditions.

1.10 International Transportation: The modular structure is designed for convenient manufacturing, container loading, overseas transportation and on-site assembly.
