1. Designed for woodworking dust collection applications including wood chips, sawdust and fine dry wood dust.
2. Simple structural design for convenient installation, operation and maintenance.

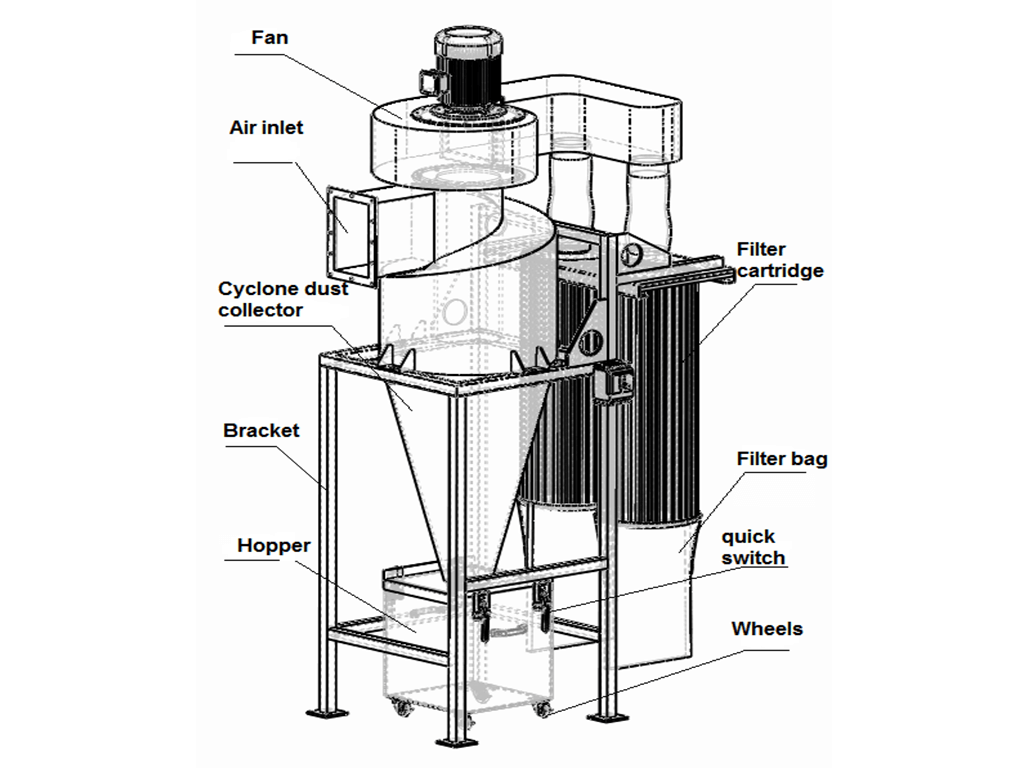

3. Multi-stage configurations can combine cyclone pre-separation for larger wood chips with cartridge filtration for finer wood dust and collection bags or bins for discharged material.
4. Centralized systems can be configured to collect dust from multiple woodworking machines according to the required airflow and operating conditions.
5. Carbon steel or stainless steel construction and different filtration configurations are available according to the application.
6. Factory-direct supply with equipment configurations selected according to airflow, wood dust characteristics and workshop requirements.
Q235 carbon steel or SUS 304 stainless steel can be selected according to application requirements.
Modular design provides flexible airflow capacity, stable operation and convenient maintenance.
Remote control can be provided according to the selected configuration.
Different fan power, voltage and frequency configurations are available according to the required airflow and local electrical supply.

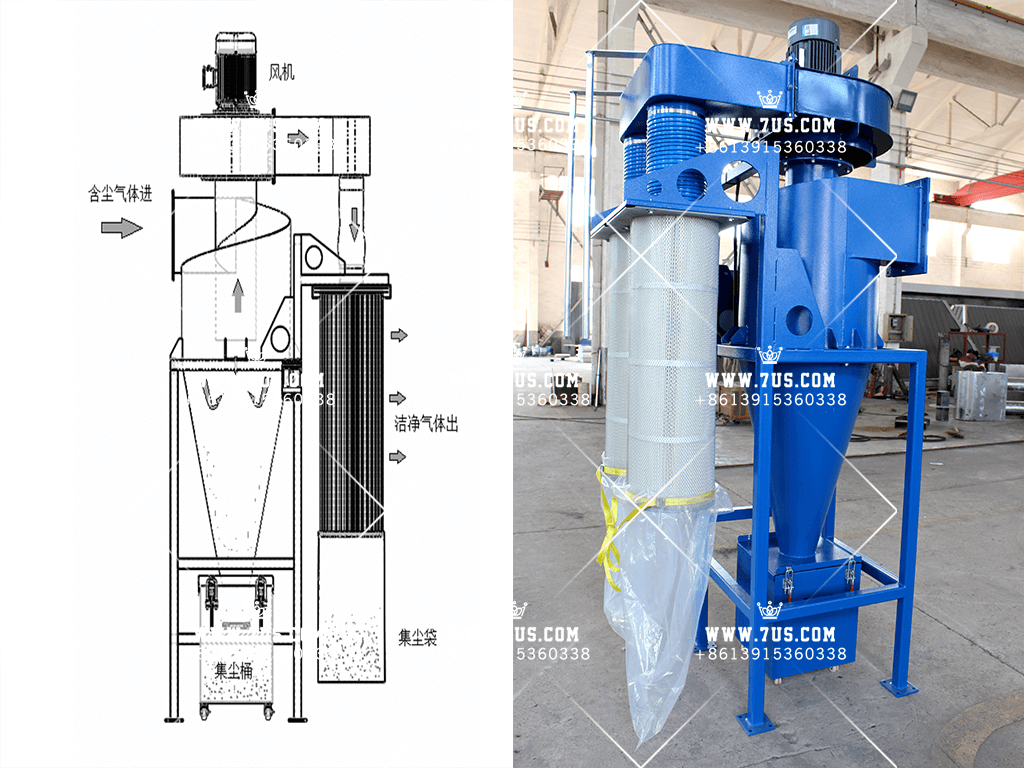

Cyclone pre-separation can be used to separate larger wood chips before the finer dust reaches the downstream filtration stage.
Cartridge filtration can be configured for finer dry woodworking dust according to the required filtration performance.
Control options including PLC, touch screen, variable frequency drive and differential pressure monitoring can be configured according to project requirements.
Woodworking Dust Collector
Woodworking Dust Collector
Woodworking Dust Collector
Woodworking Dust Collector
Woodworking Dust Collector

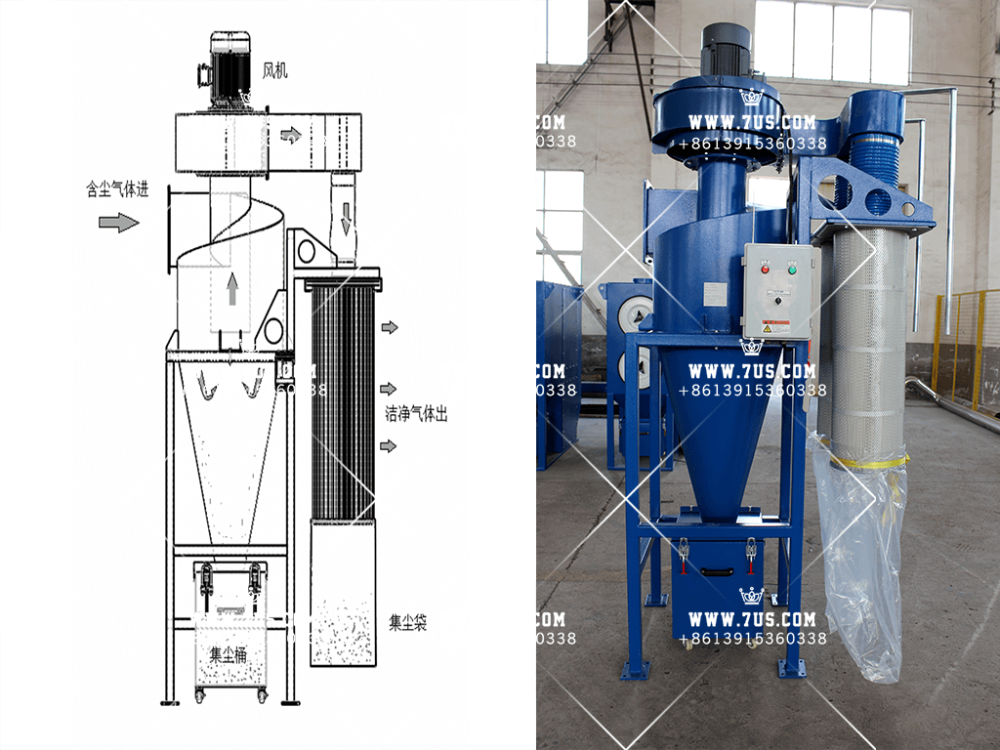

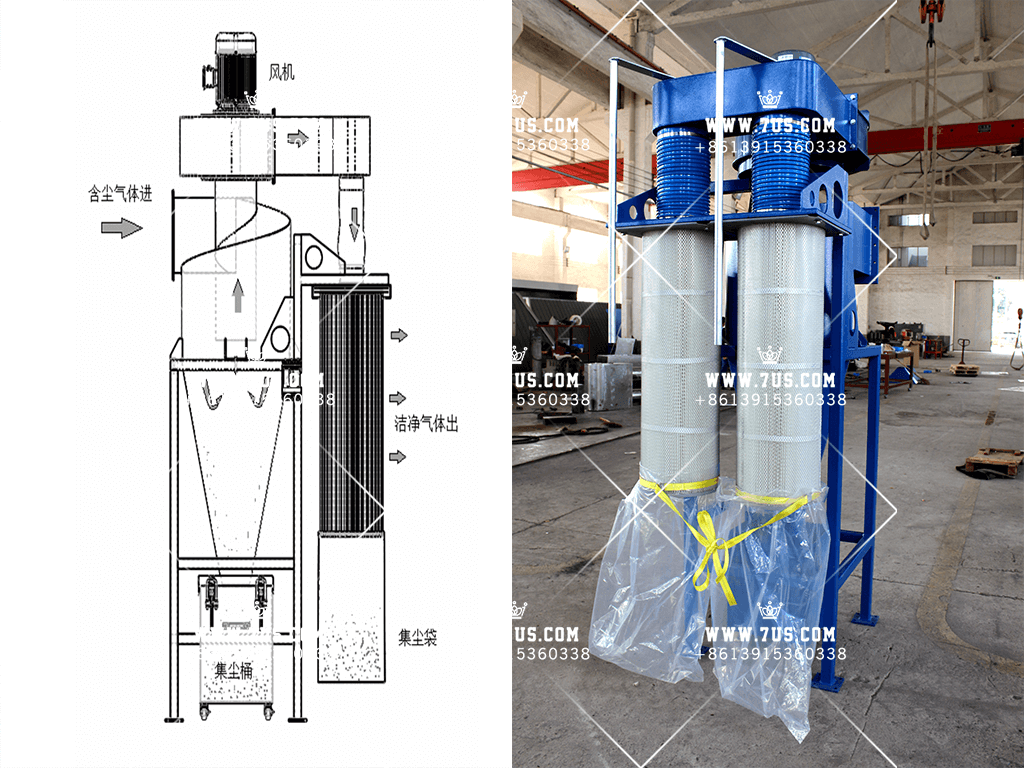

Woodworking Cyclone Dust Collector
Woodworking Dust Collector
Woodworking Dust Collector
Woodworking Dust Collector
| Item No. | Model | Air Volume | Size | Motor | Cartridge | Weight |
| m³/h | L × W × H (mm) | HP | Filtration | kg | ||
| 1 | MGXF2000 | 2000 | 1243 × 780 × 2744 | 3 | 2 @ 99% | 350 |
| 2 | MGXF4000 | 4000 | 1243 × 780 × 2744 | 7.5 / 10 | 2 @ 99% | 350 |
Cyclone pre-separation provides an efficient first-stage solution for separating larger wood chips and coarse particles.
Equipment dimensions are designed with container transportation in mind.
Modular construction provides convenient installation and assembly.
Carbon steel or stainless steel construction can be selected according to application requirements.
Different filtration configurations can be selected according to wood chip size, fine dust concentration and required filtration performance.
Suitable for dry woodworking dust collection applications without oil or water in the air stream.
Laser Cutting
CNC Bending
Assembly and Inspection
Powder Coating of Components
Modular Assembly 1
Modular Assembly 2
Modular Assembly
Product Delivery
Container Shipping
Equipment Installation
Installation Completed
Overseas Technical Support
The modular equipment design simplifies transportation and on-site assembly. Installation requirements should be confirmed according to the selected equipment configuration, duct arrangement and workshop conditions.
Installation guidance and remote technical support can be provided according to project requirements. Please contact our team if assistance is required during installation.
|
Q: What types of woodworking dust can this system collect?
A: The system can be configured for wood chips, sawdust and fine dry woodworking dust. The appropriate separation and filtration stages depend on the particle size, dust concentration and required airflow. |
Q: Can one system collect dust from multiple woodworking machines?
A: Yes. Centralized configurations can serve multiple machines when the airflow, ductwork and equipment capacity are selected according to the actual operating requirements. |
|
Q: What filtration configurations are available?
A: Cyclone pre-separation, cartridge filtration and other filtration configurations can be selected according to the characteristics of the woodworking dust. |
Q: Can the equipment be customized?
A: Yes. Airflow, filtration configuration, construction material, discharge arrangement and connection requirements can be reviewed according to the project. |
|
Q: Can stainless steel construction be supplied?
A: Yes. Q235 carbon steel or SUS 304 stainless steel can be selected according to application requirements. |
Q: Can you provide OEM supply?
A: Yes. OEM and private label options are available according to project requirements. |
Technical support is available for product installation and operation.
Standard warranty is one year from shipment unless otherwise agreed in the contract.
Remote technical support can be provided by video call when required.
Replacement parts and technical assistance remain available after the warranty period.
