wet dust collector EHLVN type

1. The EHLVN all-in-one type is a wet dust collector that uses water as the washing solution. It uses the pressure head of the induced draft fan to guide the airflow to excite vortices, wash with waves, and purify smoke and dust.

2. According to the principles of aerodynamics, when dusty gas enters the dust collector from the inlet, the airflow turns downward and impacts the larger dust particles on the water surface, which fall into the water. When the dusty gas passes through the"S" type special airflow mechanism at a speed of 18-35 meters/second, it accelerates and triggers a large number of continuous and violent waves, which impact or excite the washing dust, allowing the water vapor to fully contact the dust and be envelopedby water mist, causing volume expansion and sinking into the water, allowing the dusty gas to be fully purified.

3. EHLVN type wet dust collector is often used for various types of smoke and dust that are difficult to solve, such as high temperature, oil and water content, flammable and explosive, adhesive, and cannot be solved by traditional filter material dustcollectors.

inquiry

EHLVN All-in-one Type  Wet  Dust Collector

wet dust collector


1.1 Product Name: LVN Wet Dust Collector Integrated Machine.

1.2 Sludge treatment method: Flat bottom, manually collect sludge.

1.3 Appearance features: Integrated with dust collector, fan, and electrical control, it can be plugged in and operated on the ground.

1.4 Equipment material: SUS304 stainless steel or 316L stainless steel can be selected.

1.5 Core components: Wave maker, liquid level control water tank, at least SUS304 stainless steel material should be selected.

wet dust collector

1.6 Product principle: Utilizing the pressure head of the fan, it triggers a violent rolling water mist, creates waves, washes and purifies dust.

1.7 Expansion attachment: It can be equipped with a polishing table with a water tank, used for flammable and explosive dust.

1.8 Double sided impeller blades: The LVN model is a twin turbine wave generator.

1.9 Applicability: Dust removal and purification of flammable and explosive metal dust such as aluminum, magnesium, titanium, etc. during polishing and polishing.

1.10 Advantages: No need for water pumps, no need for sprinkler heads, no fear of blockage, small footprint, high dust removal efficiency.

Application Cases

  • wet dust collector

    Al,Mg,Ti metal polishing and dust removal

  • wet dust collector

    Al,Mg,Ti metal polishing and dust removal

  • wet dust collector

    Al,Mg,Ti metal polishing and dust removal

  • wet dust collector

    Al,Mg,Ti metal polishing and dust removal

Examples of types and ranges that can handle dust

Application examples

Application examples

Selection Method

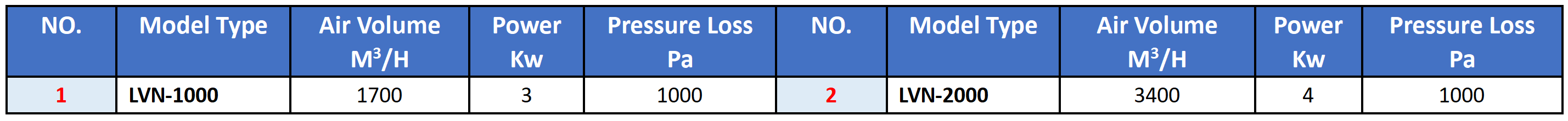

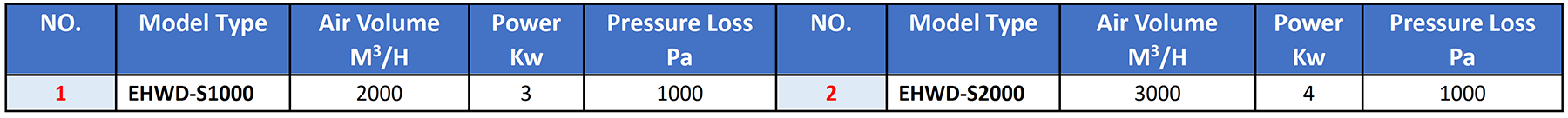

Model Selection Table

Drawing Examples
