Cyclone dust collector

1、mainly used for big particle first or primary filter,also it can be the separator machine for plastic particles

2、simple design structure, easy for installation and maintenance

3、the efficiency can be 80% to 85%

4、Single, double, three or four cyclone body can be chosen for same air volume

5、80% of our cyclone dust collector are exported to the word since 1982

6、stock in warehouse,fat deliver time and Lightning quotation


Product Brief introuction

Cyclone dust collector

Material: Carbon Steel Q235 or SUS 304 can be choose.

Module design, Big processing air capability, stable performance, easy operation.

80-85%@ 5μm.

2.2KW 380Volts 50Hz.

There is no transmission mechanism and moving parts, maintenance and repair.

It can be added to the smart electric cabinet (touch screen, PLC programming control, frequency converter, compressed air detector, pipe pressure instrument, Internet service, dust concentration detector) .

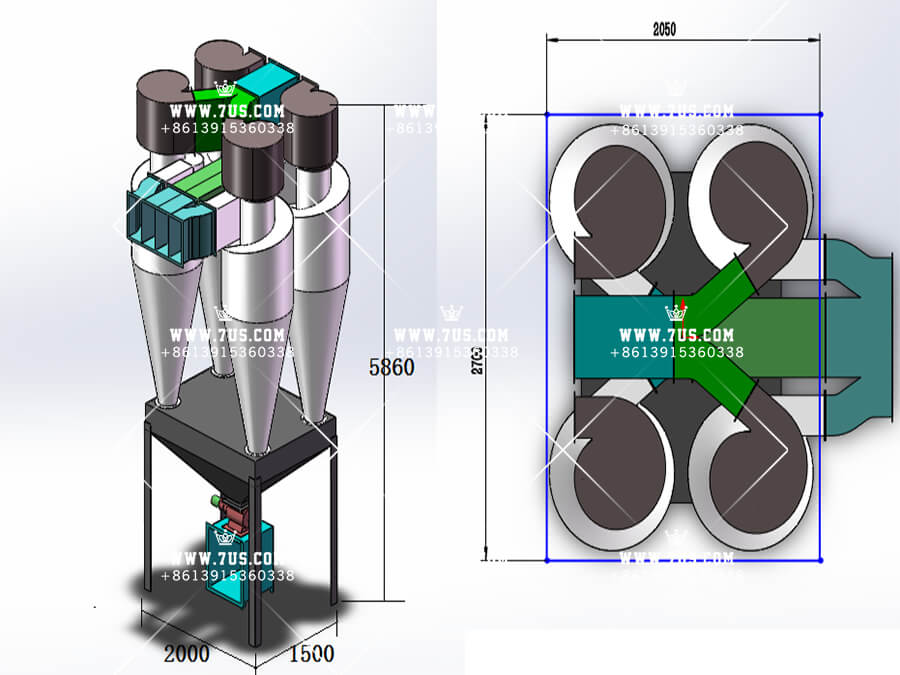

structure drawing

Cyclone dust collector

Product Options
  • Cyclone dust collector

    Cyclone dust collector

  • Cyclone dust collector

    Cyclone dust collector

  • Cyclone dust collector

    Cyclone dust collector

  • Cyclone dust collector

    Cyclone dust collector

  • Cyclone dust collector

    Cyclone dust collector

  • Cyclone dust collector

    Cyclone dust collector

Technica data and Models

Item No. Model Air volume size Model Air volume size
M3/H L*W*H(mm)
M3/H L*W*H(mm)
1 EH-XF2000 2000-3000 700*2600 EH-XF13000 12001-15000 1100*3300
2 EH-XF4000 3001-5000 800*2800 EH-XF17000 15001-20000 1200*3500
3 EH-XF7000 5001-8000 900*3000 EH-XF22000 20001-25000 1300*3700
4 EH-XF10000 8001-12000 1000*3200 EH-XF30000 25001-32000 1300*4000


The most cost-effective way for first filter or big particle dust collector.

The size is suitable for all kinds of container transportation.

Simple installation and quick assembly.

Material is selected for different dirty dust,insulation or anti-explosion can be chosen.

Almost meet all kinds of plants, normal temperature, no water, no oil dry dust smoke.

Application: tobacco, laser cutting, welding, grinding, polishing, grinding, sand blasting, shot blasting, coating powder spraying, grain, pharmaceutical, chemical, battery industry, food production and other dust collection.

FAQ & after sales service

Q:What is the price?

A:The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos

Q:What payment methods your company accept?

A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.

Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

Q:I haven't done business with your factory before,how can i trust your company?

A: We are the golden supplier on Alibaba for 2 years, and we can get a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate etc. We can also accept Trade Assurance payment, i hope this will be persuasive enough.

Q:What's the delivery time of your company?

A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time is within 6-8 weeks after deosit.

Q:Do you give any discount ?

A:We will surely try my best to help you get those by the best price and good service at the same time.

Q:I would like to ask you if it's possible to have my logo on the dust collector machine

A:We hope you know that our company Erhuan supports customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.

after sales service

Any questions during the using, please call us at+86-510-87692608

Warranty 1 year from the shipping date, and we can do all life after service for the cartridge dust collector.

Within warranty, our service team will reply you within 2 hours and help you solve the problem within 24 hours

We can do wechat/facebook/whatsapp video remote guidance if any urgent problems

Out of the warranty, we still provide after service, if you need to buy replacement, we only Quote you the raw material cost.
