1.1. Product type: Inclined modular cartridge dust collector for industrial dry dust collection applications.

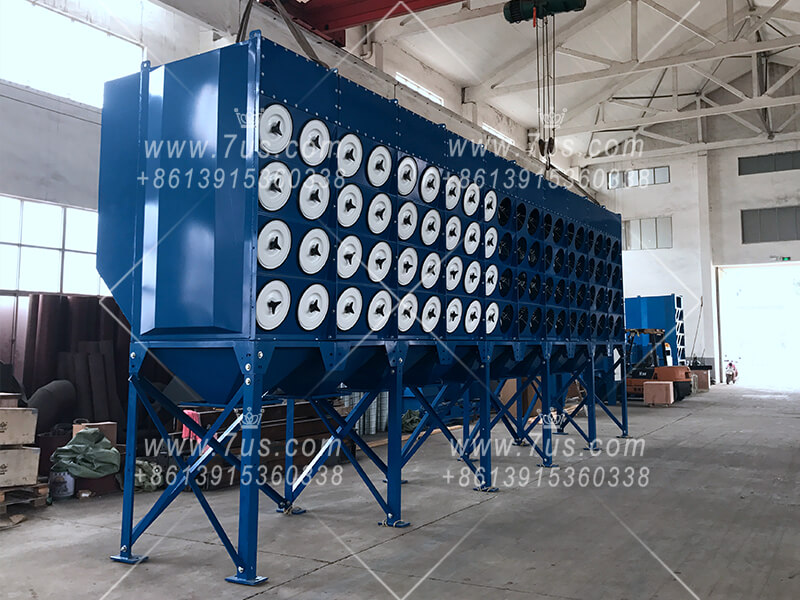

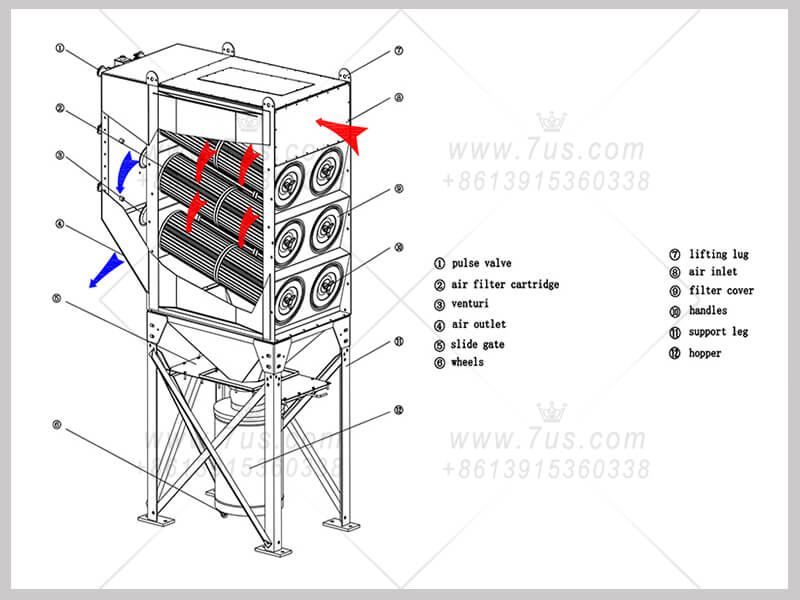

1.2. Filter cartridge installation: The filter cartridges are installed horizontally from the side at an inclined angle and secured by a clamp and pressure-rod structure for convenient replacement.

1.3. Space-saving design: Side-access cartridge replacement avoids the need for overhead maintenance space, making the unit suitable for many indoor installations.

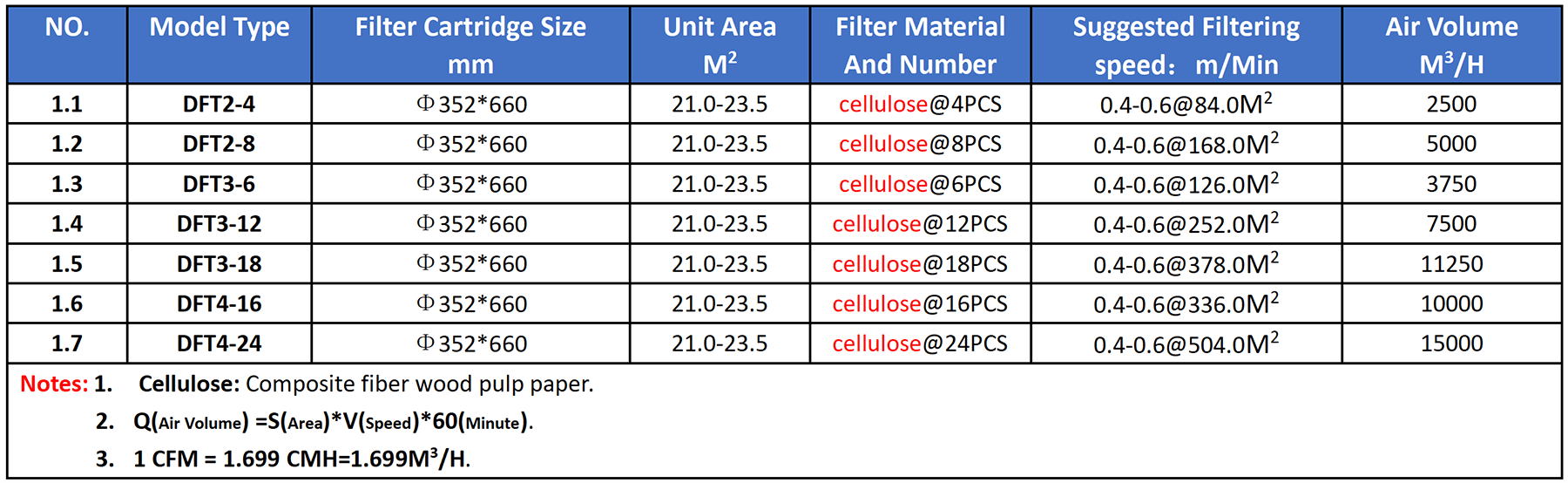

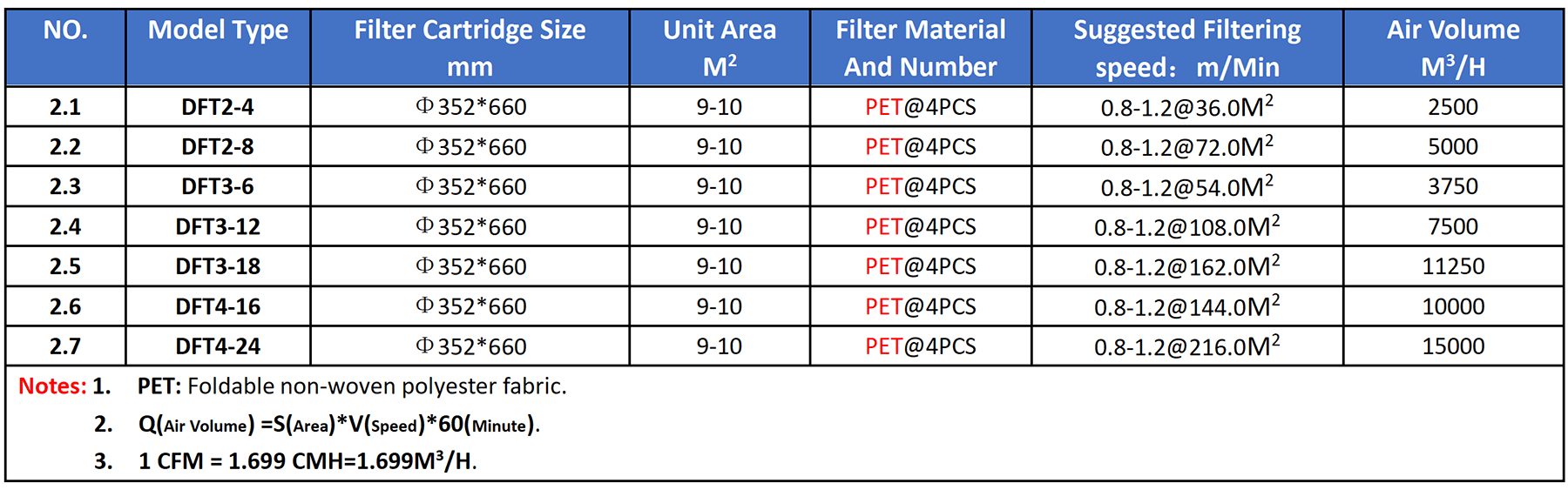

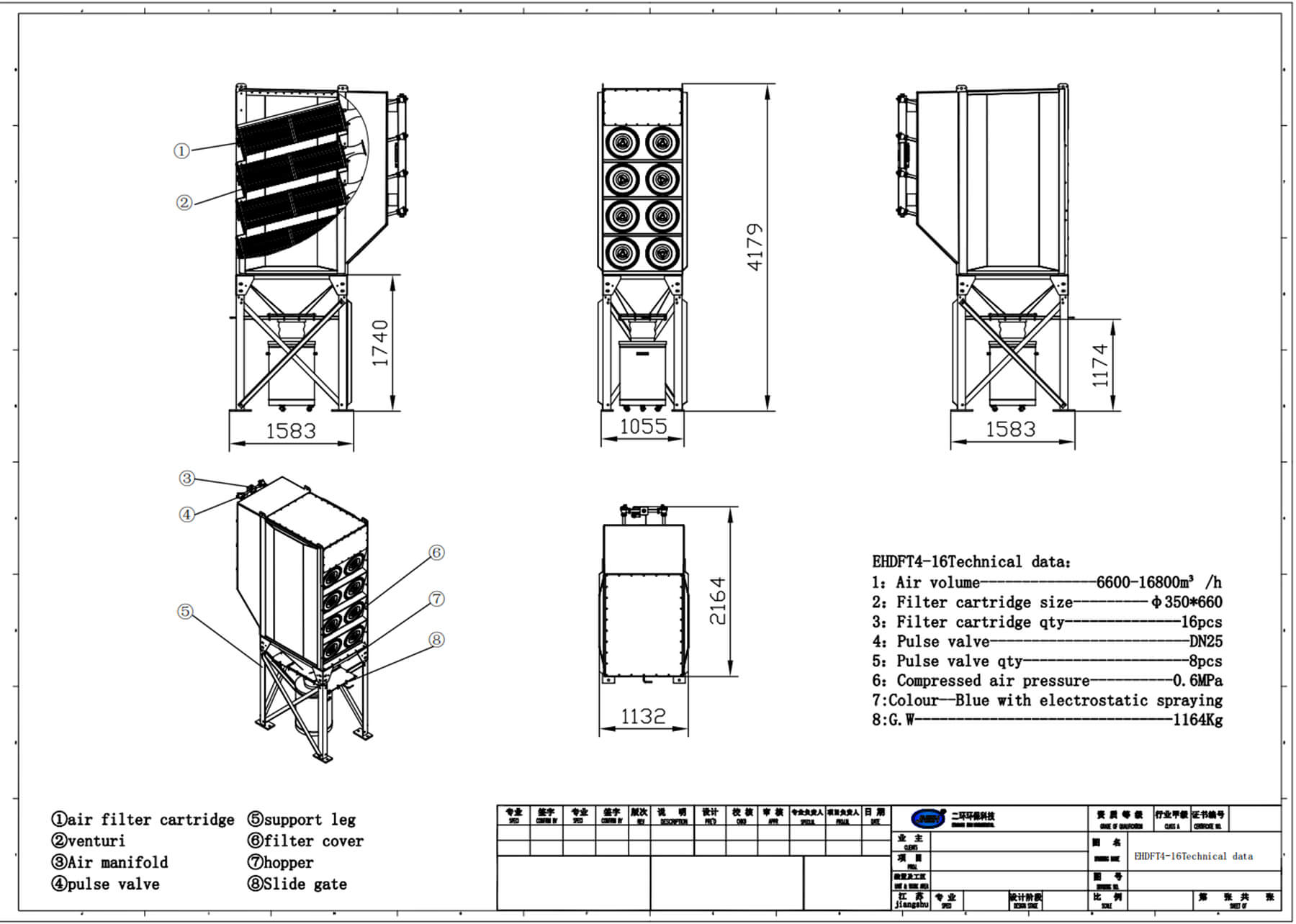

1.4. Filter cartridge size: Common cartridge size is approximately Ø350 × 660 mm. Cartridge specifications can be selected according to the required filtration area and operating conditions.

1.5. Filter cartridge construction: The end caps and inner support structure are designed to withstand repeated pulse-jet cleaning during normal operation.

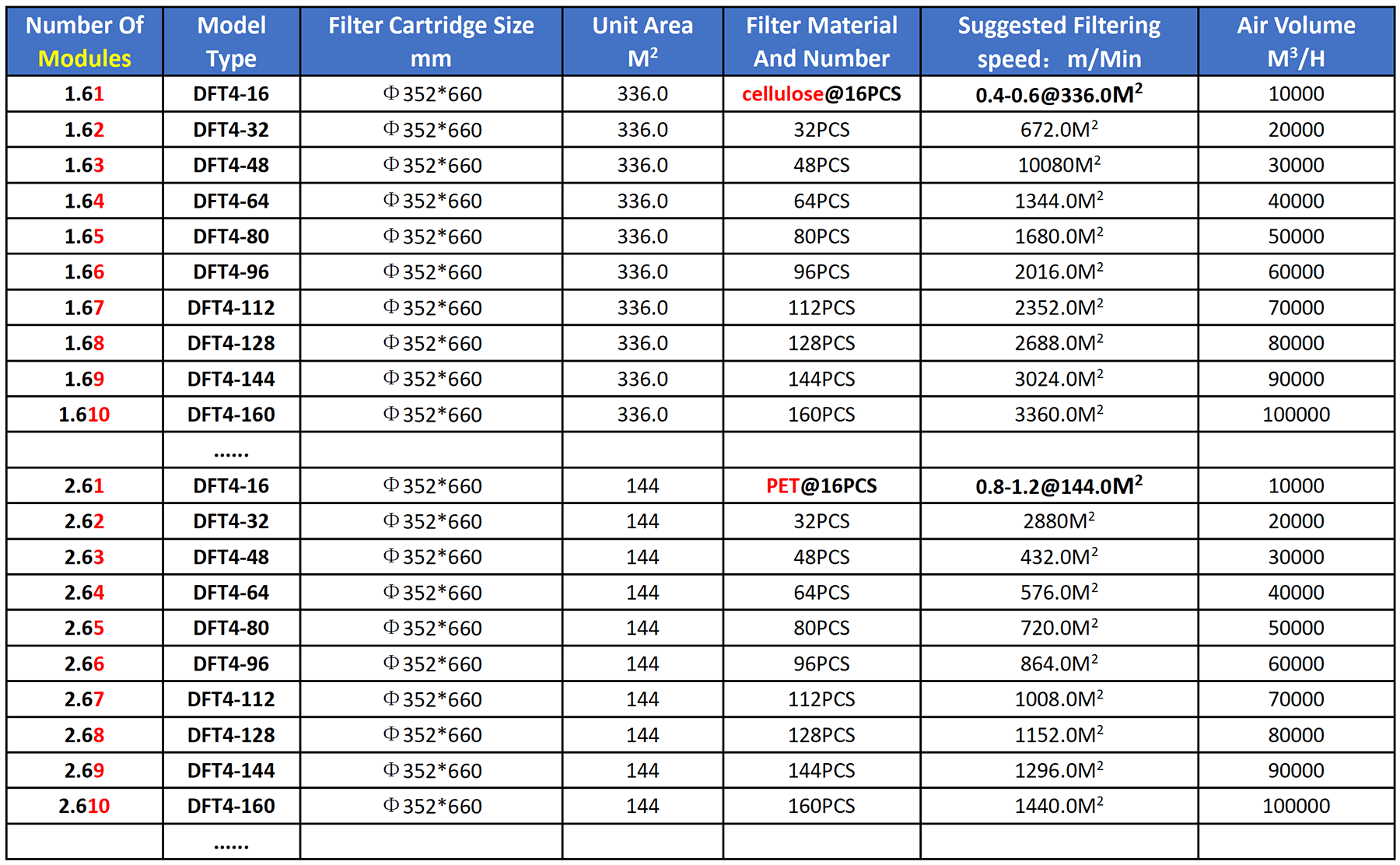

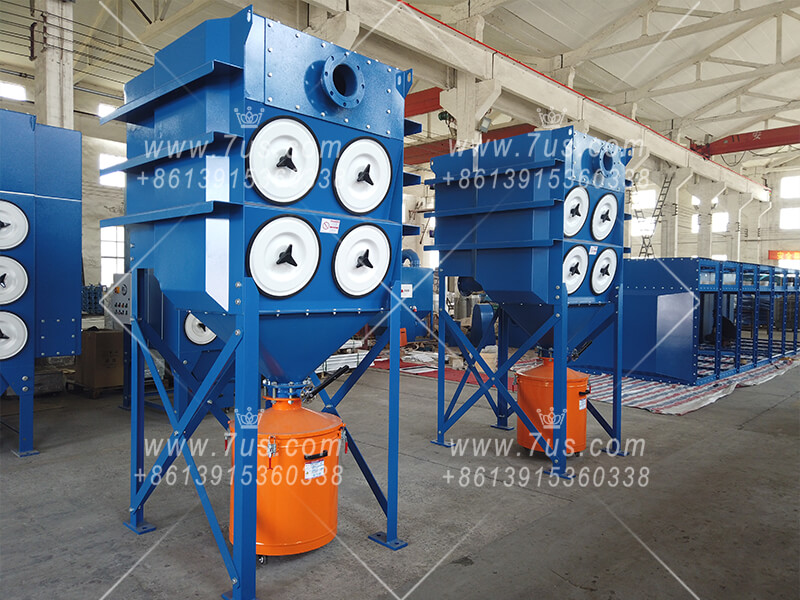

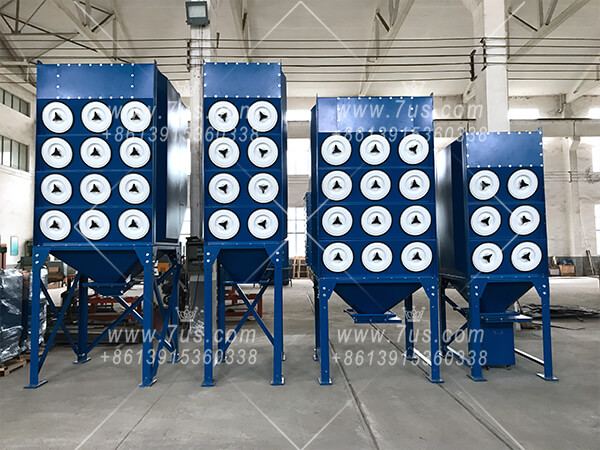

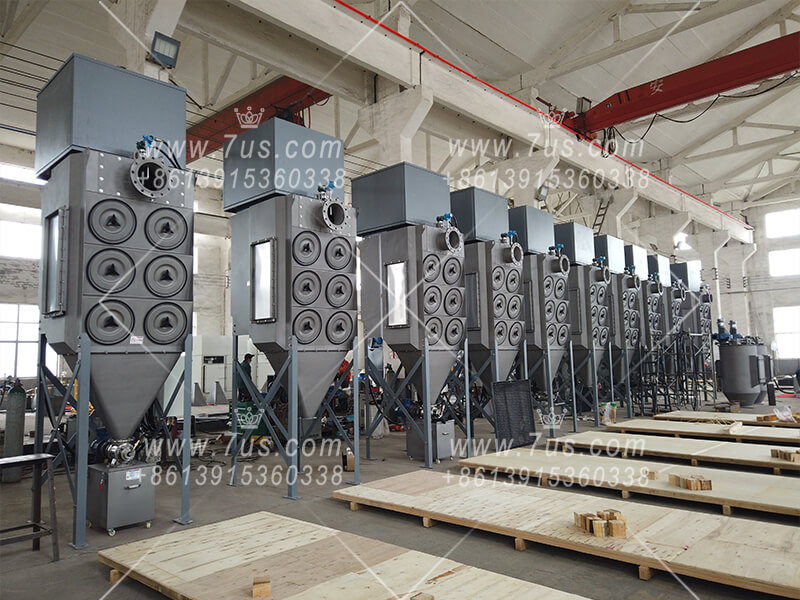

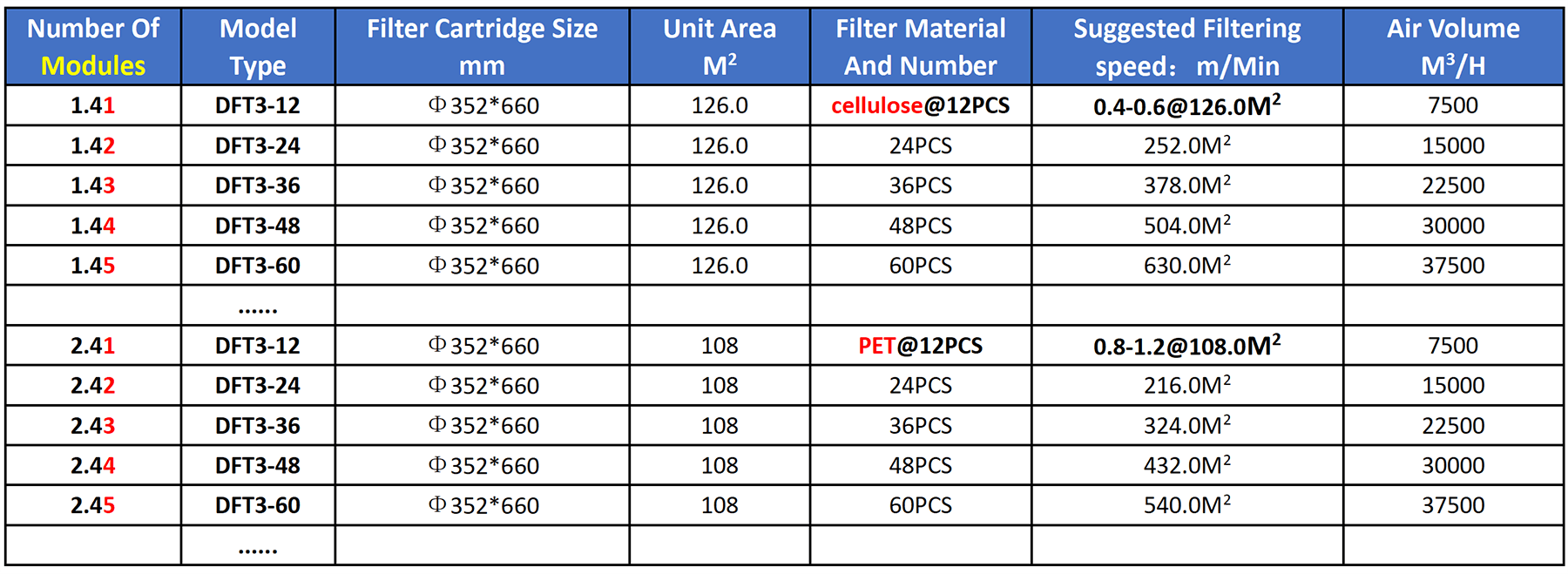

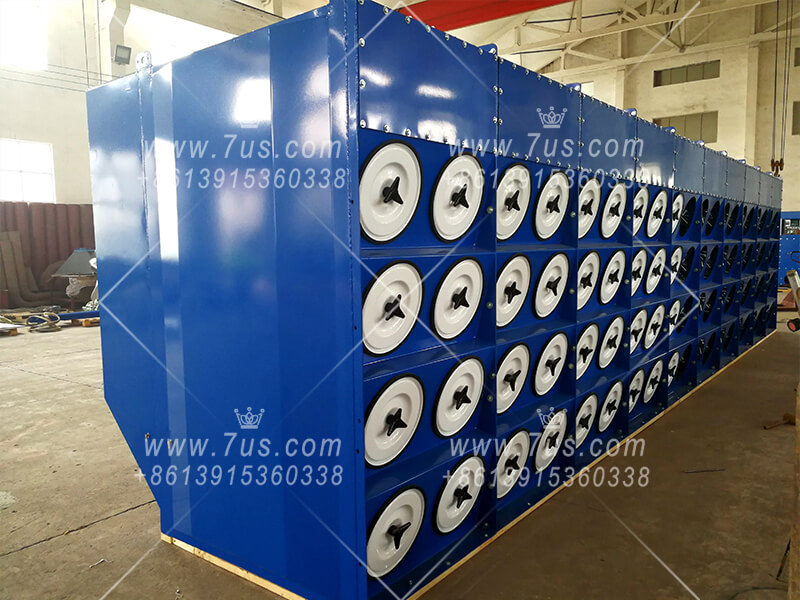

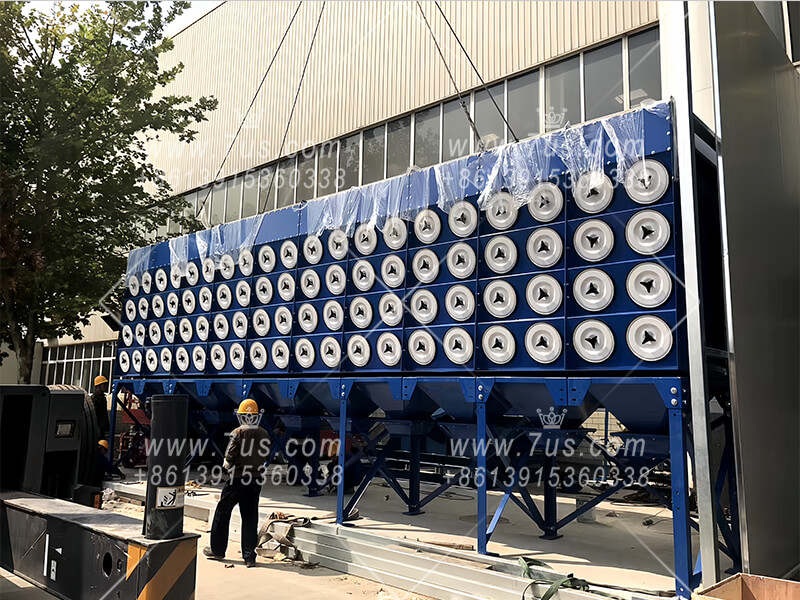

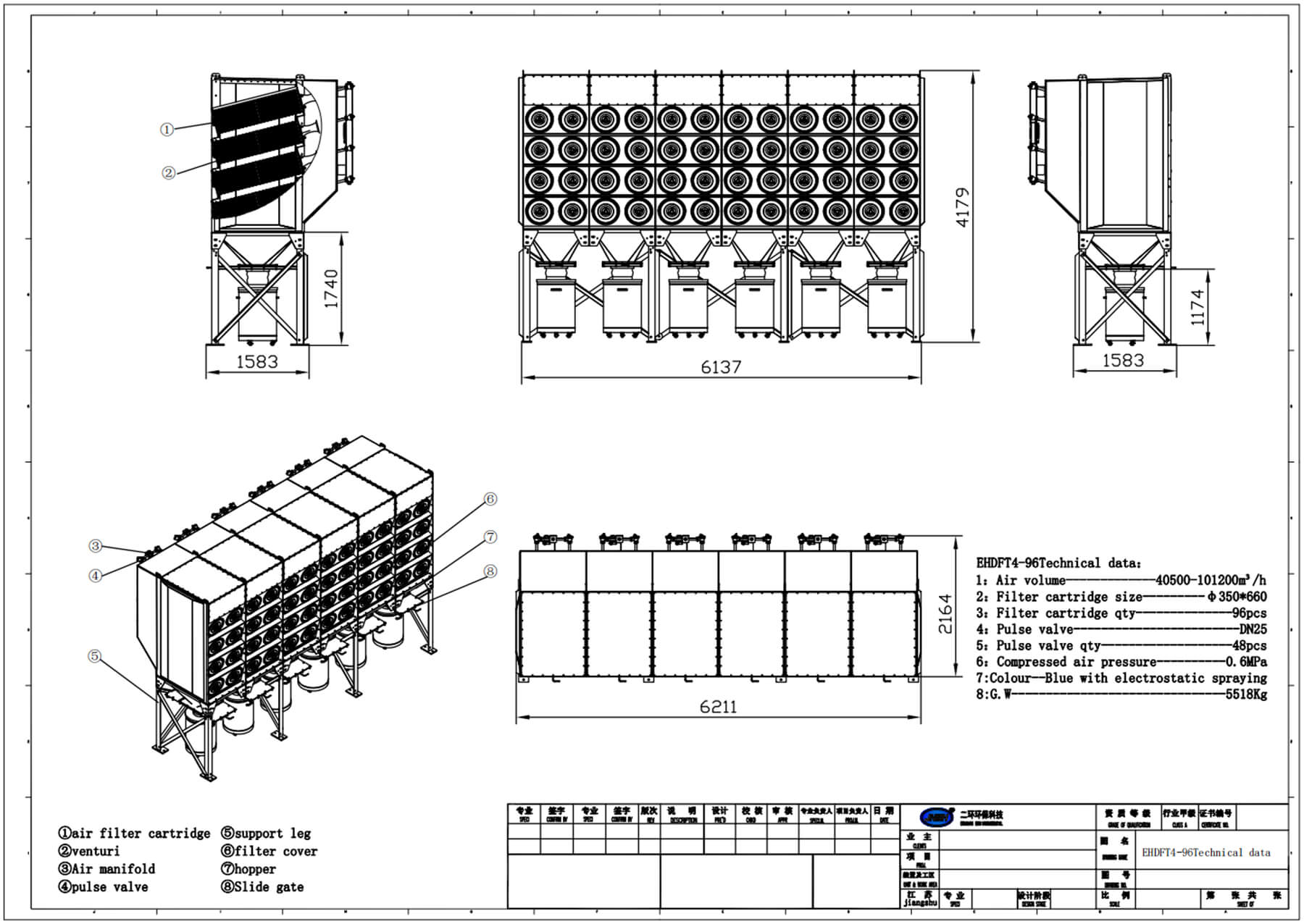

1.6. Modular construction: Multiple collector modules can be combined according to the required airflow and filtration area. The equipment housing is surface-treated for industrial use.

1.7. Product advantages: Modular construction simplifies manufacturing, transportation, installation and future capacity expansion.

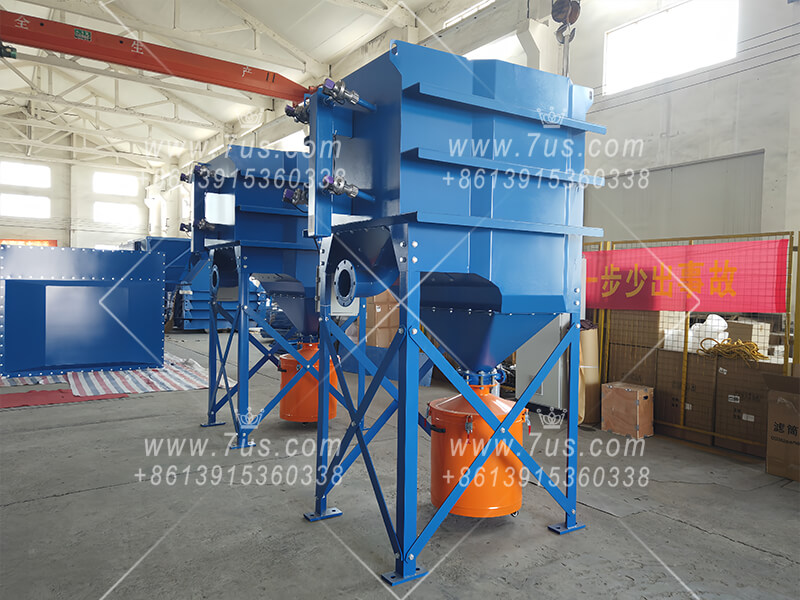

1.8. High dust concentration: For applications with very high inlet dust concentrations, a cyclone or other suitable pre-separation device may be used upstream to reduce the dust load on the filter cartridges.

1.9. Engineering support: Equipment dimensions and module combinations can be adjusted according to the available installation space and confirmed operating requirements. Installation guidance can also be provided.

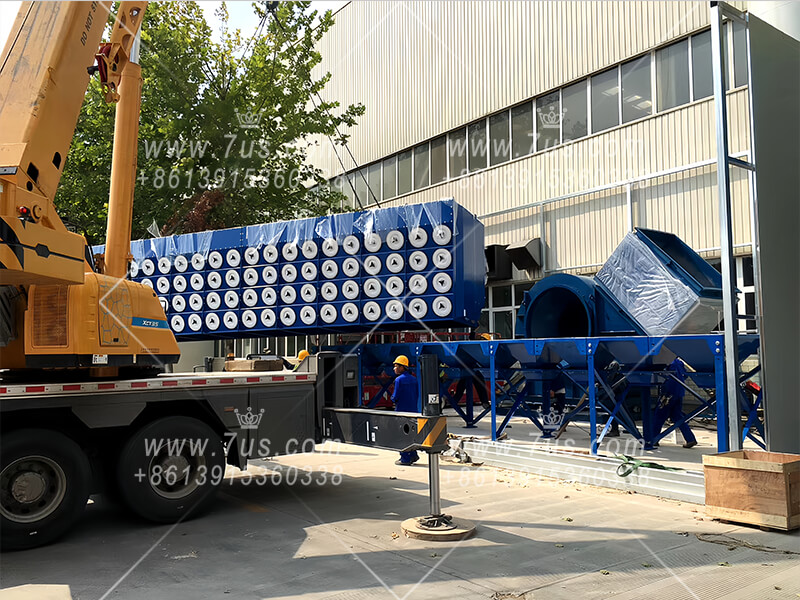

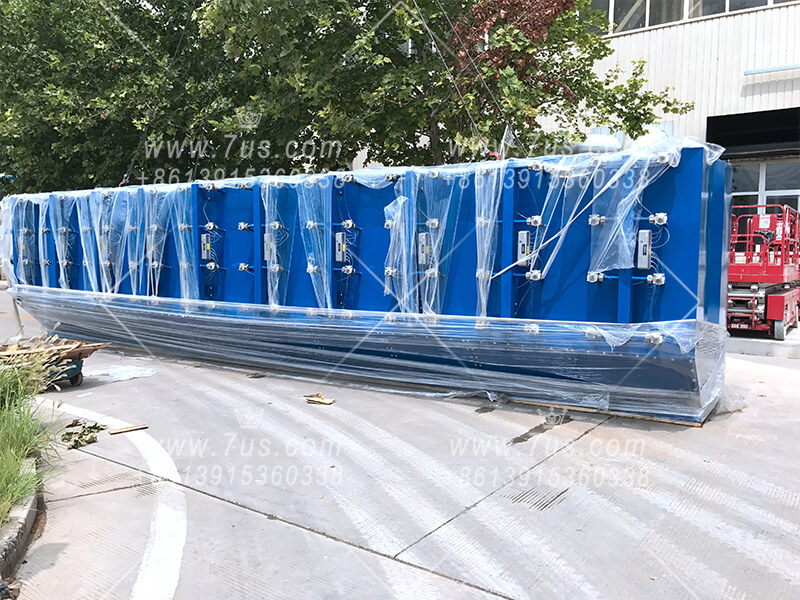

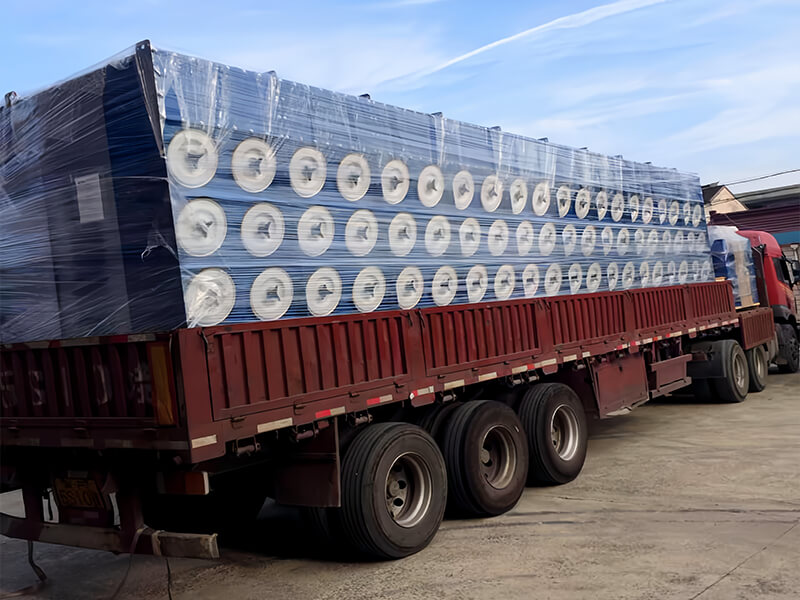

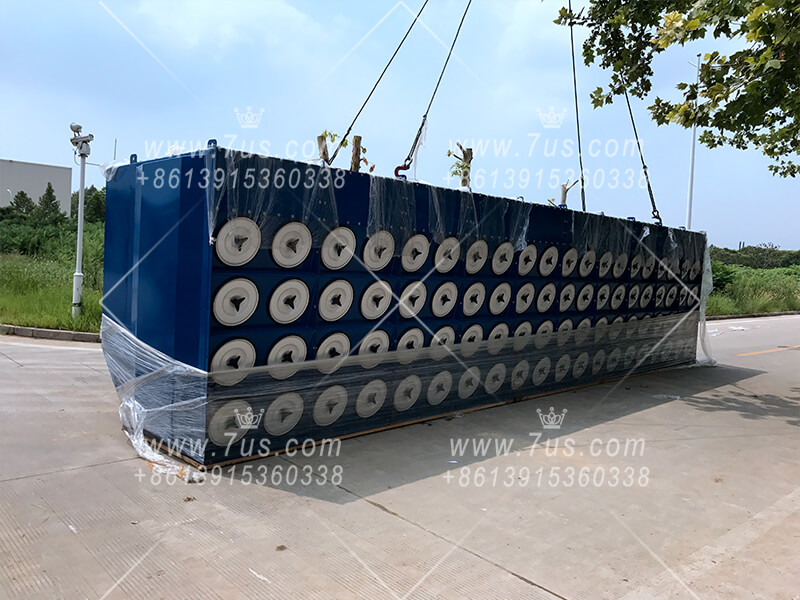

1.10. International transportation: The modular structure is suitable for containerized sea freight and can reduce transportation and on-site assembly difficulties for overseas projects.
