Improve baghouse dust collector performance by matching airflow, air-to-cloth ratio, filter bag media and pulse-jet cleaning to the actual dust conditions. Regular differential-pressure monitoring and preventive maintenance help maintain stable airflow, lower operating resistance and extend filter bag life.
Stable baghouse dust collector performance depends on matching the equipment configuration, filter bag media, air-to-cloth ratio and cleaning system to the actual dust conditions. Dust characteristics, operating temperature, moisture content, dust loading and required airflow should all be evaluated before selecting a baghouse dust collector.

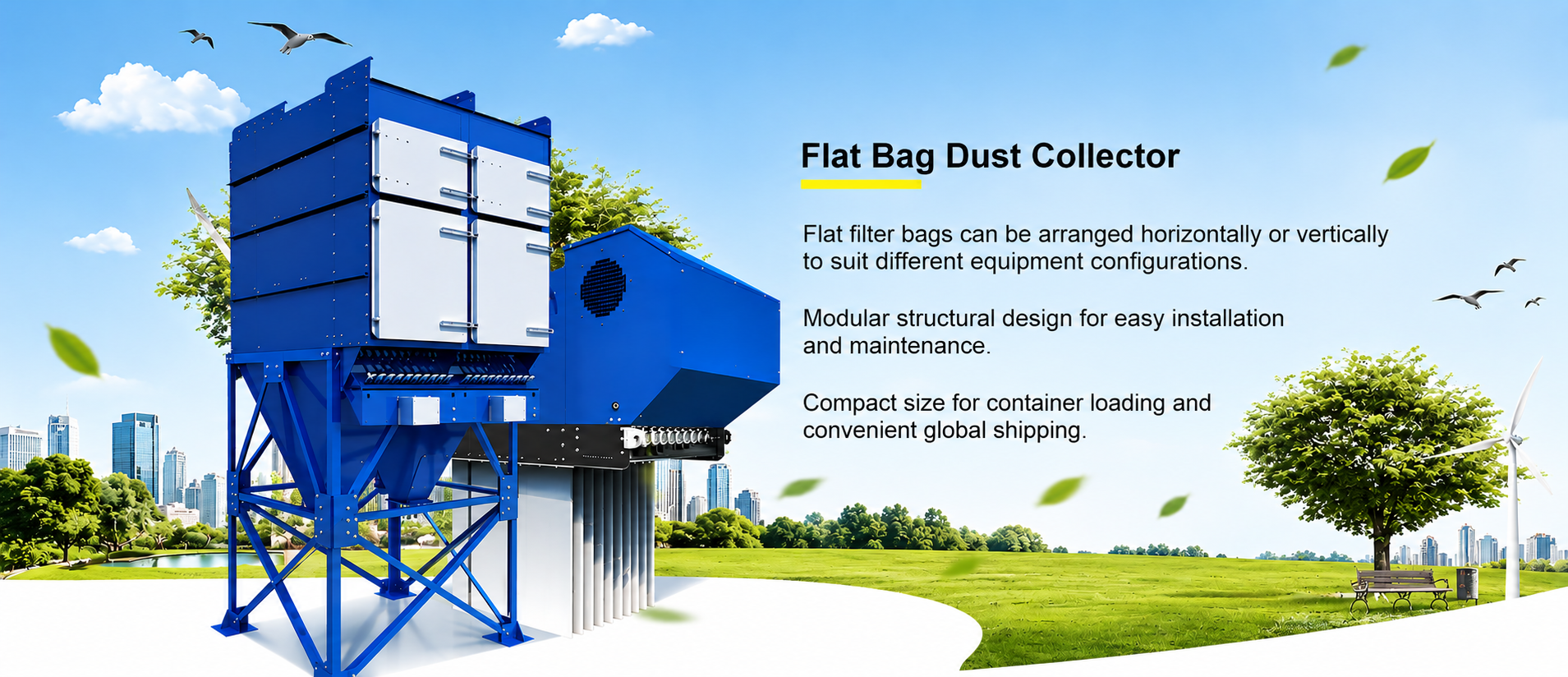

The collector type, filtration area, inlet design and hopper discharge arrangement should suit the application. A properly sized flat baghouse dust collector helps maintain stable airflow and prevents unnecessary pressure drop caused by undersized filtration area.
Filter bags are the core filtration component of a baghouse dust collector. The filter media should be selected according to operating temperature, humidity, particle size, dust concentration and chemical properties. Suitable filter bag material helps improve filtration efficiency, reduce maintenance frequency and extend filter bag service life.
Filtration velocity, also called the air-to-cloth ratio, has a direct effect on baghouse dust collector performance. Excessive filtration velocity can increase pressure drop, accelerate dust loading and shorten filter bag life. The required airflow and total filtration area should be matched to the dust properties and operating conditions.
For a pulse-jet baghouse dust collector, cleaning frequency and compressed-air pressure should be adjusted according to the differential pressure and dust loading. Proper pulse-jet cleaning removes accumulated dust from the filter bags while avoiding unnecessary stress on the filter media.
Regular inspection is essential for reliable operation. Maintenance should include checking filter bag condition, differential pressure, pulse valves, compressed-air supply, air leakage, hopper discharge and seals. Promptly correcting damaged filter bags, abnormal pressure drop or reduced airflow can help maintain stable dust collection performance.
A well-designed baghouse dust collector equipment combined with suitable filter bags, correct operating parameters and preventive maintenance can provide efficient dry dust collection and longer equipment service life.
1. Vertical modular cartridge dust collector designed for high dust loading, fine dry dust and large-airflow industrial filtration applications. 2. Standardized DHC filtration modules can be combined to increase total airflow, allowing flexible system expansion according to project requirements. 3. Vertical cartridge arrangement with side-door access and eccentric cam fixing allows convenient filter inspection and replacement. 4. Single-stage cartridge filtration, two-stage cartridge + HEPA filtration, and three-stage cartridge + HEPA + activated carbon filtration configurations are available. 5. HEPA final filtration can be added for applications requiring very low particulate emissions, while activated carbon can be used as an additional polishing stage for suitable odor or VOC applications. 6. Standard single-module airflow ranges from 4,000 to 10,000 m³/h, and multiple DHC8 modules can be combined for systems up to 80,000 m³/h as shown on this page. 7. Equipment dimensions, filter media, color and OEM configuration can be customized according to project requirements.
1. Vertical all-in-one cartridge dust collector designed for compact installation, convenient operation and efficient dry dust filtration. 2. Suitable for compatible dry dust and fume applications with dust-laden air temperatures below 120°C. 3. Vertical cartridge arrangement with side-door access allows convenient cartridge inspection and replacement. 4. Pleated cartridge filters provide a large filtration area within a compact equipment footprint, with automatic pulse-jet cleaning for routine filter cleaning. 5. Optional HEPA final filtration and activated carbon filtration can be added according to the required particulate and odor/VOC treatment needs. 6. DHC-YT series models are available with airflow capacities from 4,000 to 12,000 m³/h. 7. Equipment color, filter media, voltage, frequency and OEM configuration can be customized according to project requirements.
1. Downflow oblique modular cartridge dust collector designed for flexible capacity expansion through standardized modular units. 2. Compact modular construction helps reduce installation footprint and allows the equipment to be divided into transport-friendly sections for easier shipping and assembly. 3. Pleated cartridge filters provide a large filtration area within a compact equipment volume, with automatic pulse-jet cleaning for routine filter cleaning. 4. Standard EHDFT modules can be combined to increase total airflow according to project requirements, with configurations available up to 100,000 m³/h. 5. Optional two-stage filtration with cartridge filters and HEPA final filtration is available for applications requiring additional filtration performance. 6. Stainless steel construction, abrasion-resistant inlet arrangements, exhaust dampers and explosion protection components can be evaluated according to the application. 7. Suitable for compatible dry dust and fume applications without oil or water, subject to the confirmed dust characteristics and project safety requirements. 8. Equipment configuration, filter media, color a
