Downflow Oblique Cartridge Dust Collector 7US

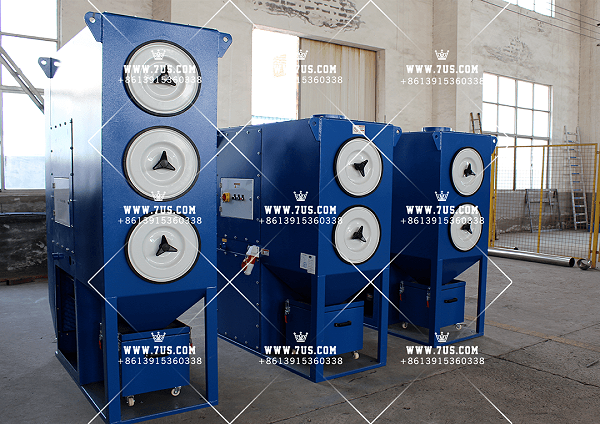

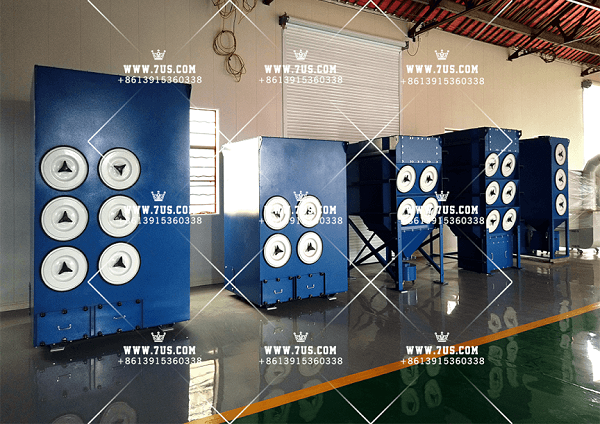

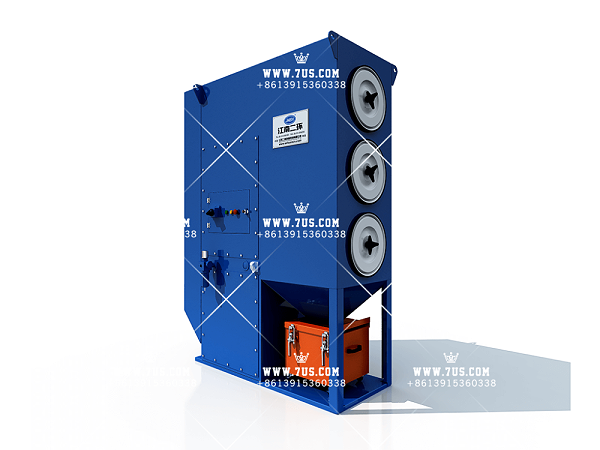

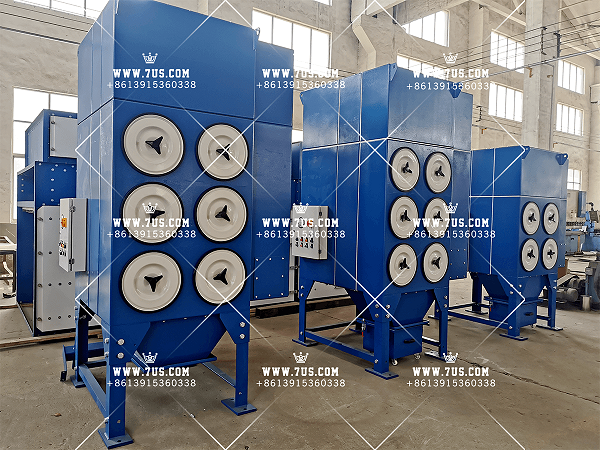

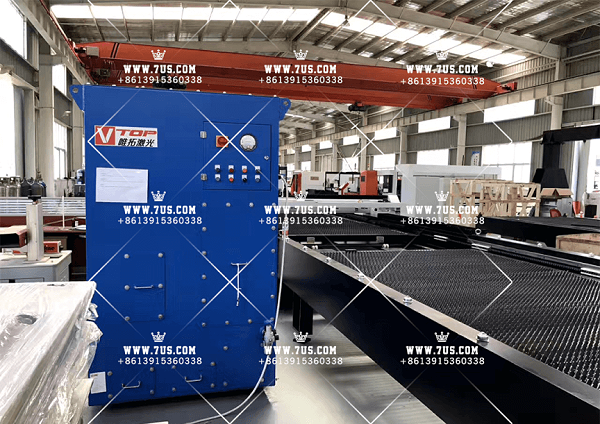

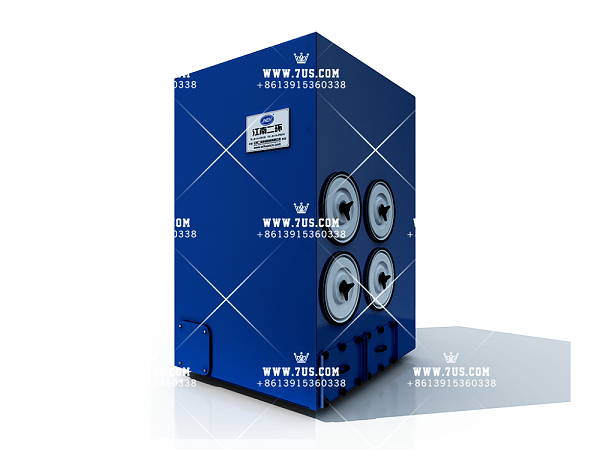

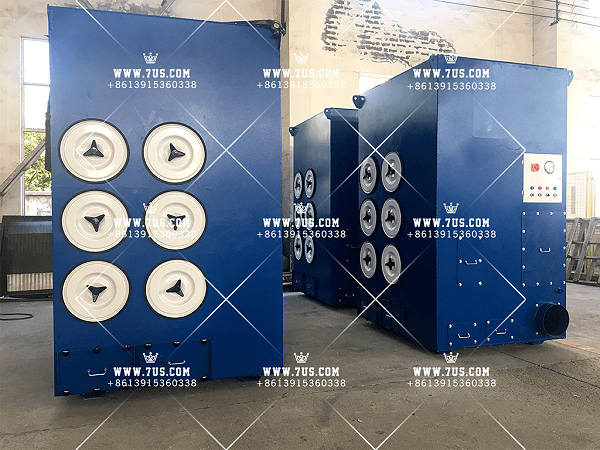

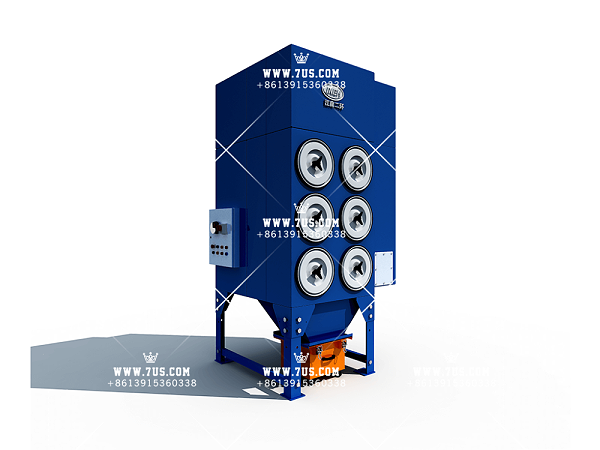

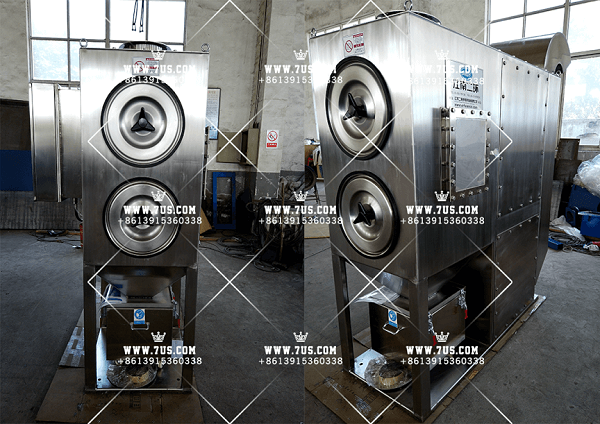

Downflow Oblique Cartridge Dust Collector

All-in-one cartridge dust collector with integrated fan, filtration and pulse-jet cleaning for compact industrial installations.

Oblique cartridge arrangement combined with downflow airflow helps dust move toward the collection section and supports effective filter cleaning.

Designed for compatible dry dust applications with dust-laden air temperatures below 120°C.

Automatic compressed-air pulse-jet cleaning removes accumulated dust from the cartridge filter surface during operation.

Compact integrated construction simplifies equipment installation, operation and routine maintenance.

Filtered air can be returned indoors when permitted by dust characteristics, filtration performance and applicable indoor air requirements.

EHI series models provide airflow capacities from 2,000 to 5,500 m³/h.

Oblique Cartridge Structure

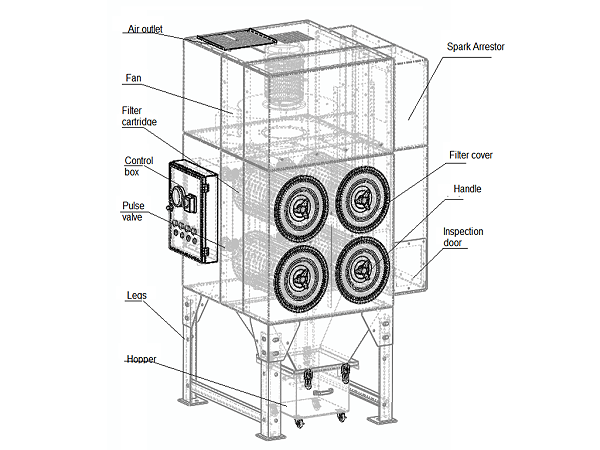

Oblique Cartridge Dust Collector Structure

Product Options

Carbon Steel Construction
Explosion Venting Option

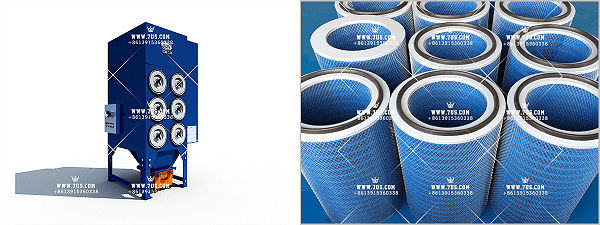

Cartridge Filter Options
Explosion Venting Panel
Flameless Venting Device
Explosion Isolation Valve

Oblique Cartridge Dust Collector Features

Oblique cartridge arrangement and downflow airflow are designed to help collected dust move away from the filter surface.

Automatic pulse-jet cleaning helps remove accumulated dust and maintain stable filtration performance.

PTFE-treated cartridge filter media can be selected according to dust characteristics and filtration requirements.

Low and stable pressure drop helps maintain consistent airflow during normal operation.

All-in-one construction integrates the fan, cartridge filters, pulse cleaning system and dust collection section into a compact unit.

Convenient filter access simplifies cartridge inspection and replacement during routine maintenance.

Suitable for compatible dry dust applications with dust-laden air temperatures below 120°C.

Equipment color, filter media, voltage, frequency and OEM configurations can be customized according to project requirements.

Technical Data and Models

EHI Series Cartridge Filtration System

EHI Series Oblique Cartridge Dust Collector

Item No.	Model	Air Volume	Size	Cartridge Filter Qty	Pulse Valve Qty	Power	N.W.
Item No.	Model	m³/h	L × W × H (mm)	pcs	pcs	kW	T
1	EHI-2	2000	641 × 1700 × 1853	2	2 × DN25	3	0.350
2	EHI-3	3000	641 × 1700 × 2328	3	3 × DN25	4	0.569
3	EHI-4	4000	1400 × 1200 × 2070	4	4 × DN25	5.5	0.900
4	EHI-4N	4000	1323 × 1242 × 2364	4	4 × DN25	5.5	0.731
5	EHI-6	5500	1509 × 1389 × 2558	6	6 × DN25	7.5	1.200
6	EHI-6N	5500	1571 × 1329 × 2897	6	6 × DN25	7.5	1.050
