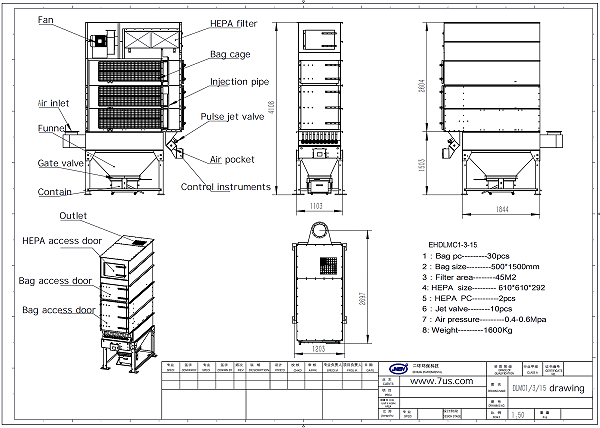

1.1 The EHDLMC-YT is an all-in-one flat bag dust collector with HEPA secondary filtration. Airflow capacity: 500-4000 CMH.

1.2 The system uses a flat filter bag as the primary filtration stage and an H13-H14 HEPA filter box as the secondary filtration stage.

1.3 PTFE membrane filter bags and HEPA filters can be selected according to application requirements for fine dust purification.

1.4 Pulse jet cleaning uses compressed air through electromagnetic pulse valves to remove dust accumulated on the filter bag surface.

1.5 The modular structure allows flexible configuration according to airflow requirements and installation conditions.

1.6 The modular design allows convenient installation for indoor industrial applications.

1.7 The flower board and bag cage are manufactured by precision forming processes. Carbon steel or stainless steel materials can be selected.

1.8 The side insertion flat bag design does not occupy top maintenance space and allows convenient filter replacement.

1.9 OEM customization support is available according to airflow requirements, dust characteristics and installation conditions.

1.10 The compact structure is suitable for international transportation and various industrial projects.
