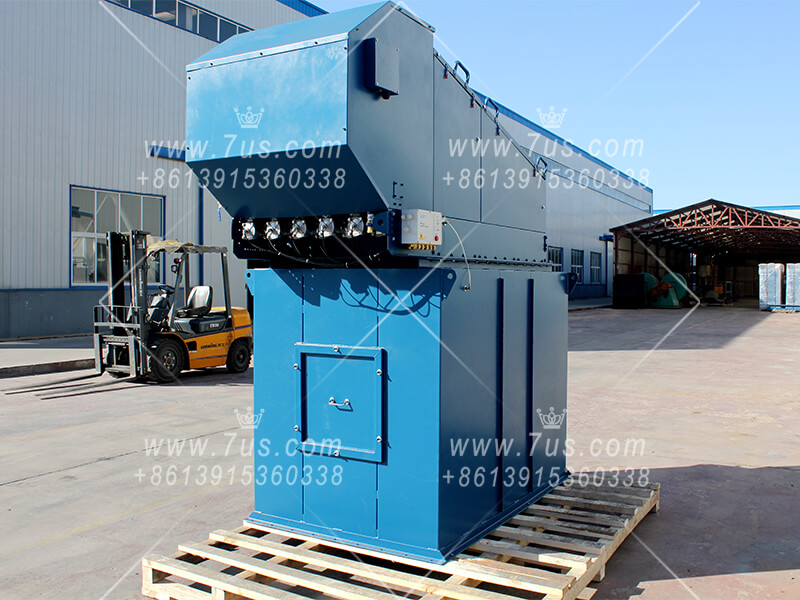

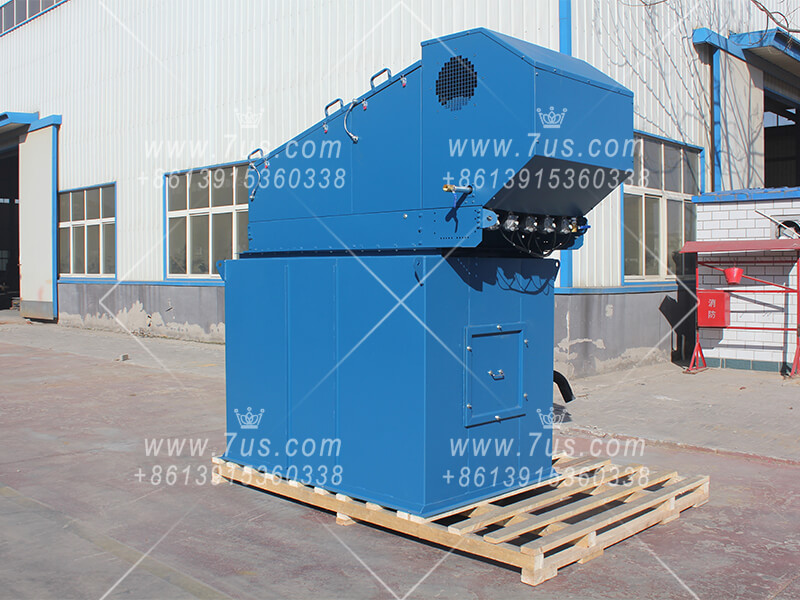

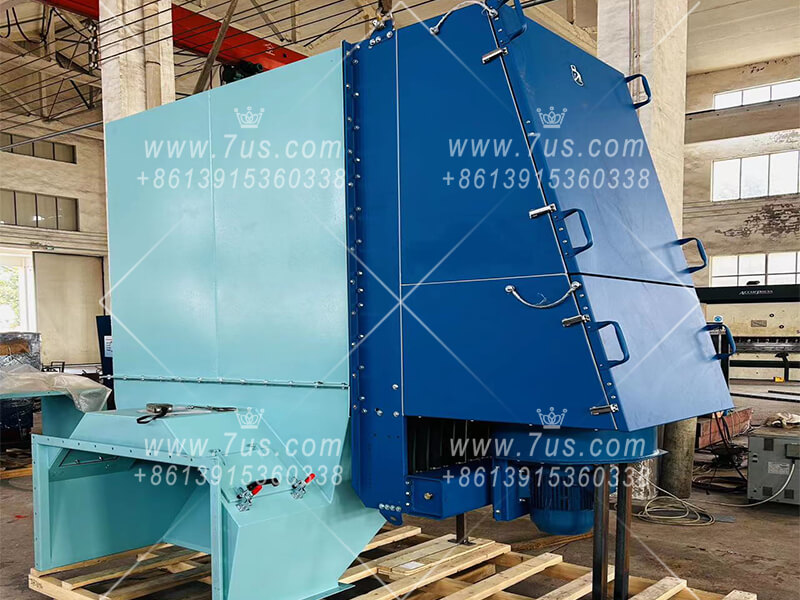

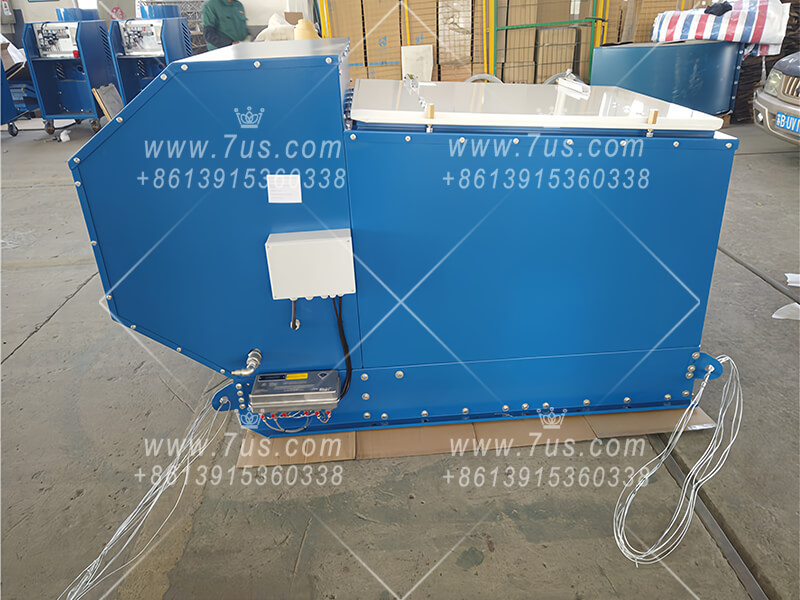

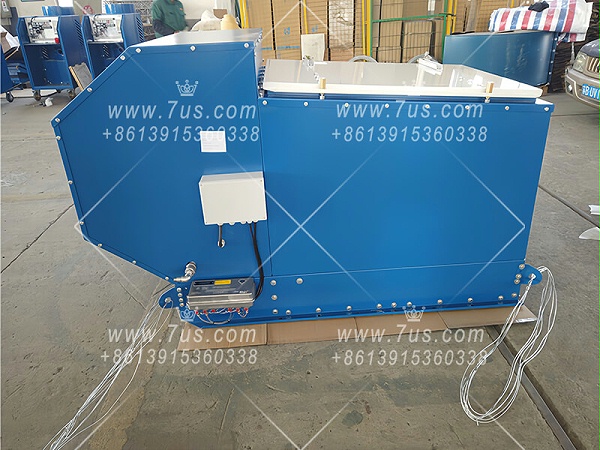

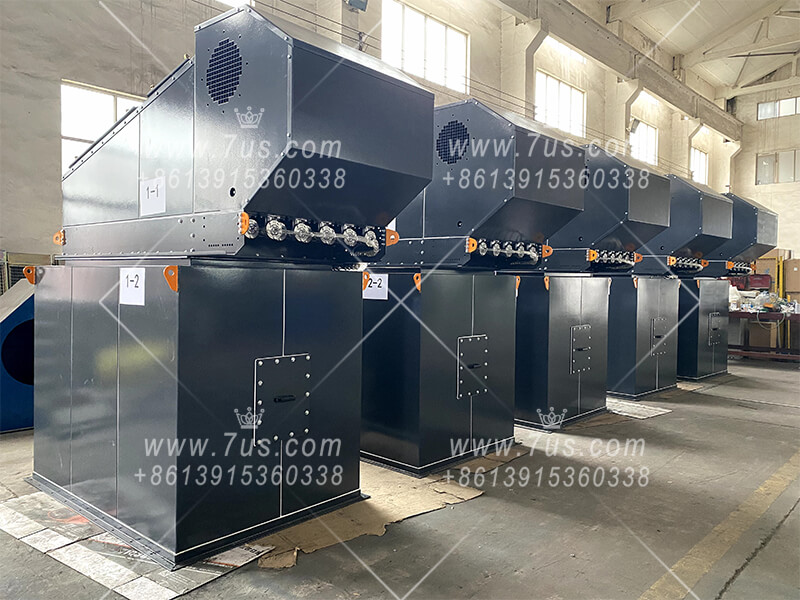

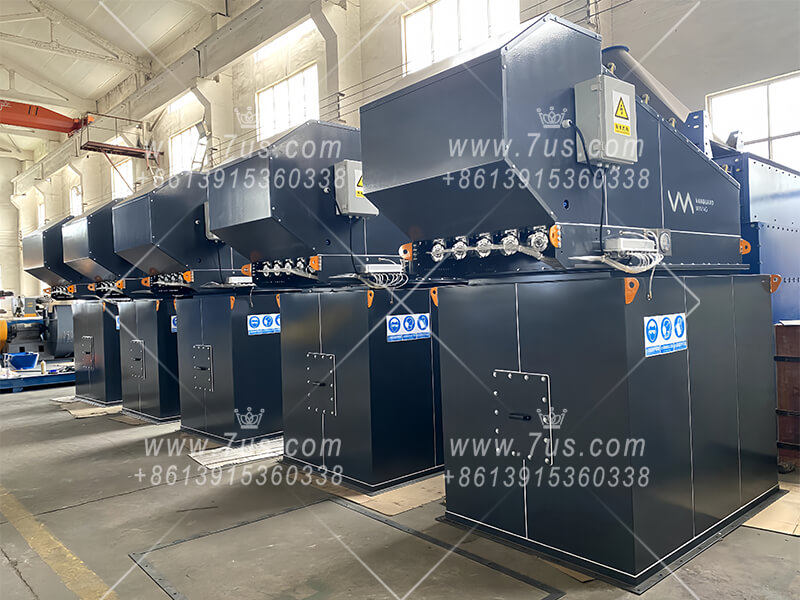

1.1 The EHDLMV top mounted flat bag dust collector is designed for silo, hopper and belt conveyor dust collection applications.

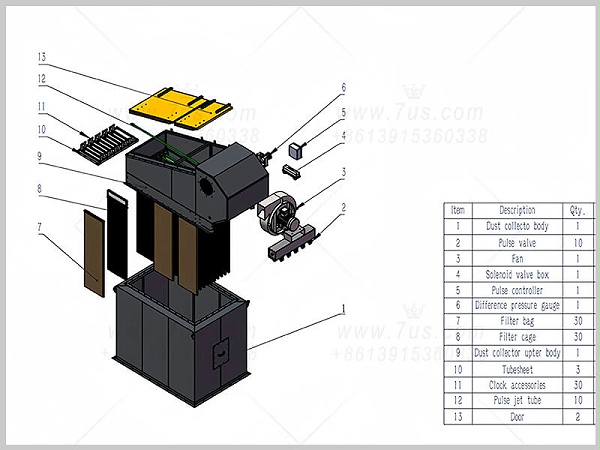

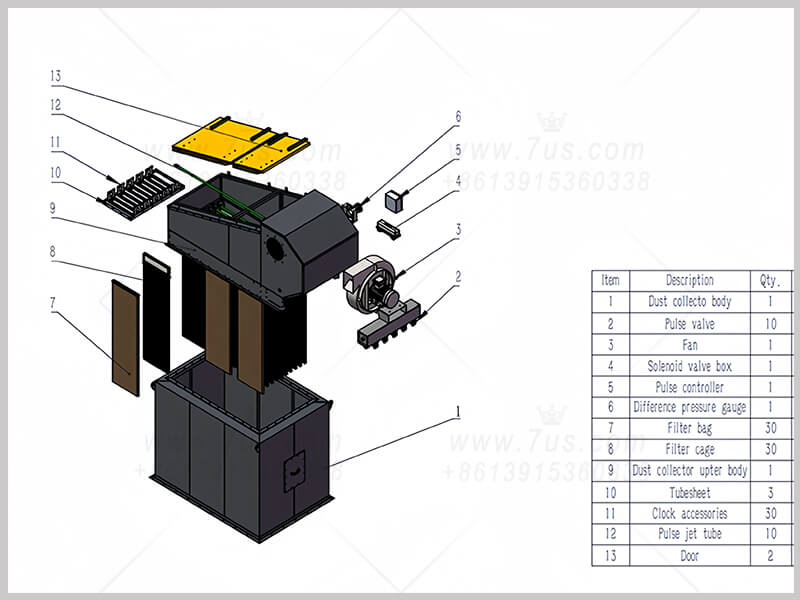

1.2 The integrated design combines flat bag filtration, fan system and electrical control components into one compact dust collection unit.

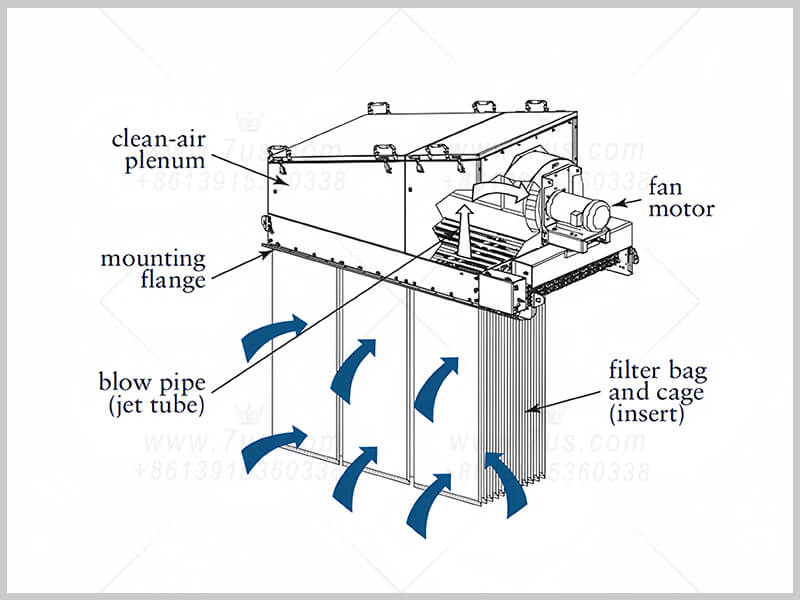

1.3 The plug-in flat bag structure provides convenient maintenance and saves installation space compared with conventional round bag dust collectors.

1.4 The EHDLMV is widely used for dust control in bulk material handling industries including coal, grain, mining, chemical and industrial conveying systems.

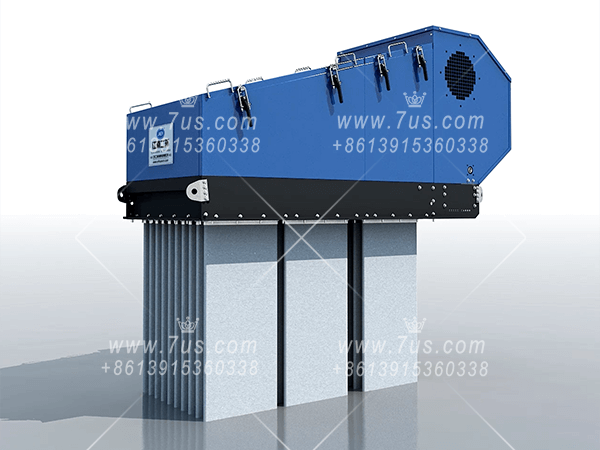

1.5 The envelope-style flat filter bag design provides reliable pulse cleaning performance and stable filtration operation.

1.6 The modular design provides a compact structure with smaller footprint compared with traditional round bag dust collectors.

1.7 The flat filter bag can be replaced from the clean air side, improving maintenance safety and convenience.

1.8 Carbon steel or stainless steel materials can be selected according to different application requirements.

1.9 Intelligent control options include PLC control, touch screen display, differential pressure monitoring and compressed air monitoring.

1.10 Explosion-proof configurations can be selected according to dust characteristics and project requirements.
