1.1 Product Name: EHDLMC Modular Flat Bag Dust Collector. Air volume: 1000-500000 cubic meters/hour.

1.2 The side insertion flat bag installation design uses blade array arrangement with 8-10 slots of flower boards inserted from the side.

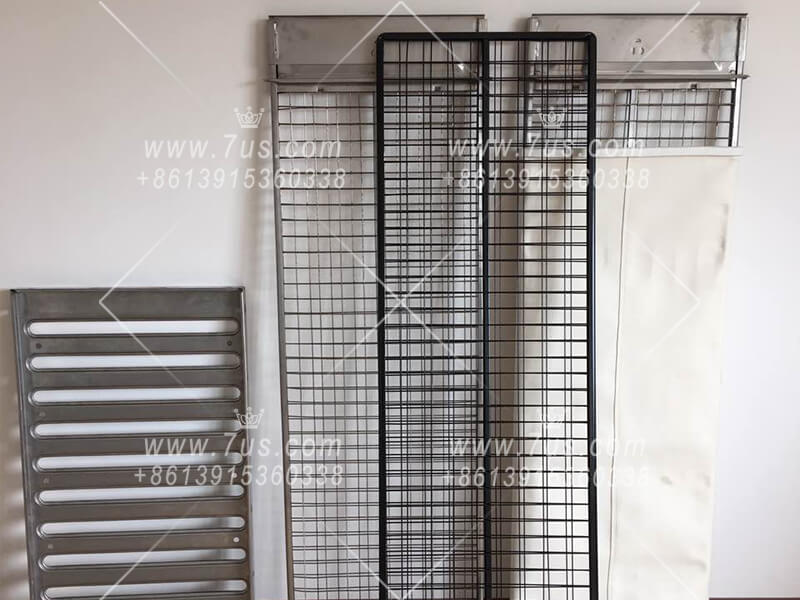

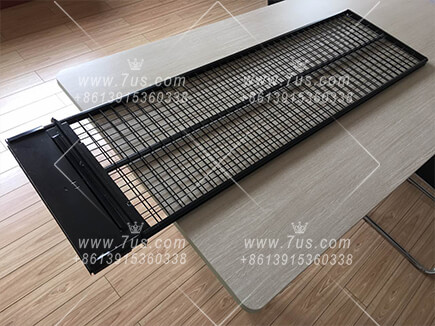

1.3 The flat filter bag is installed on the cage frame and fixed by snap fasteners to ensure stable sealing performance.

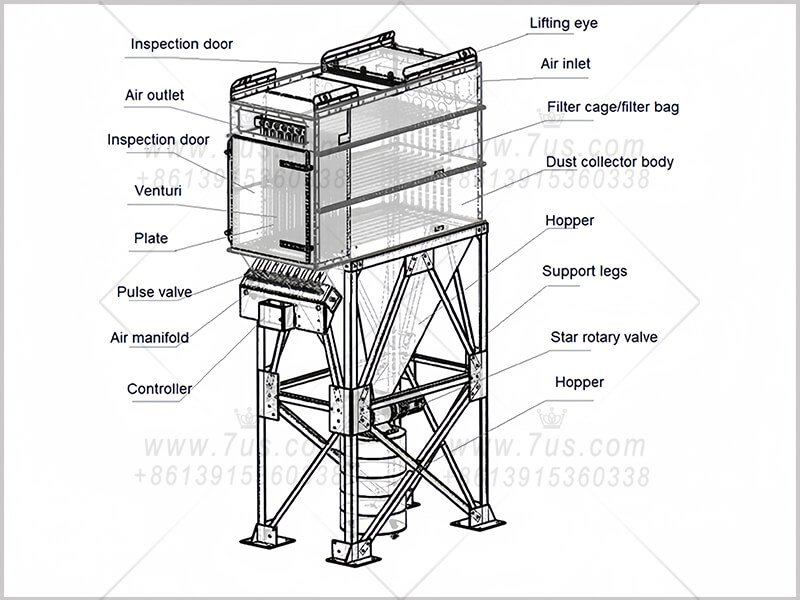

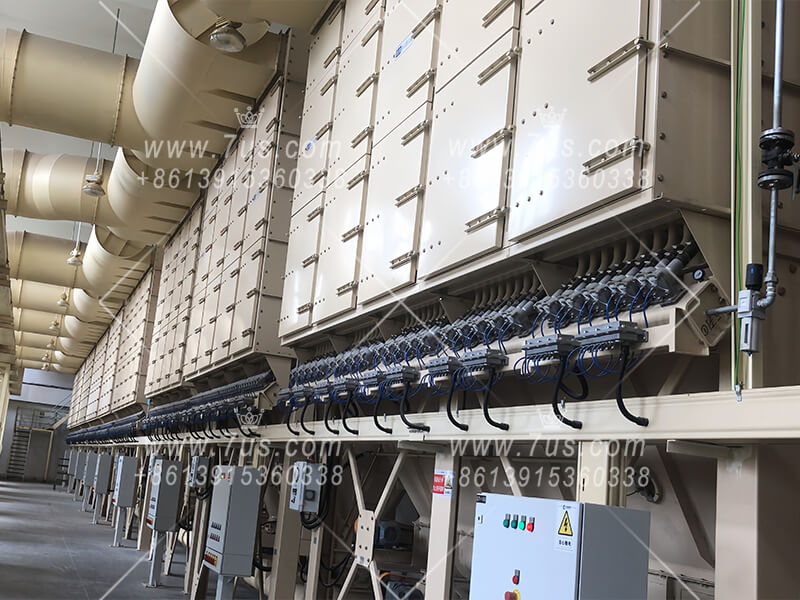

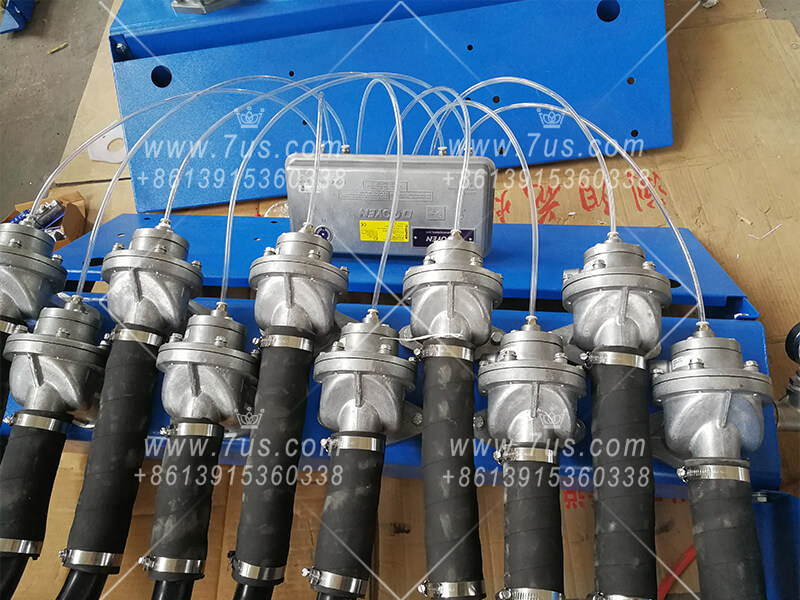

1.4 Pulse jet cleaning uses electromagnetic pulse valves and compressed air to remove dust accumulated on the filter bag surface.

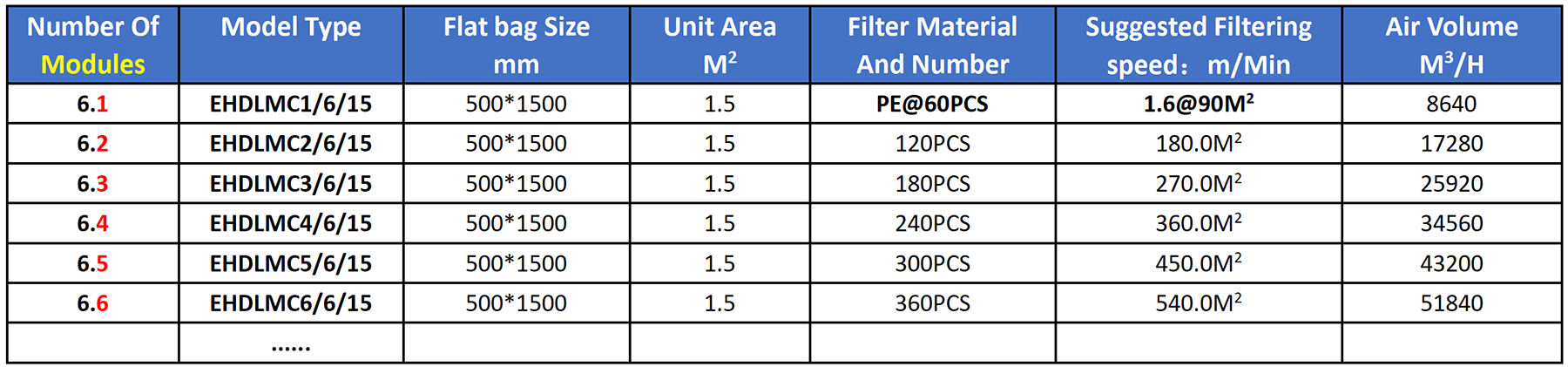

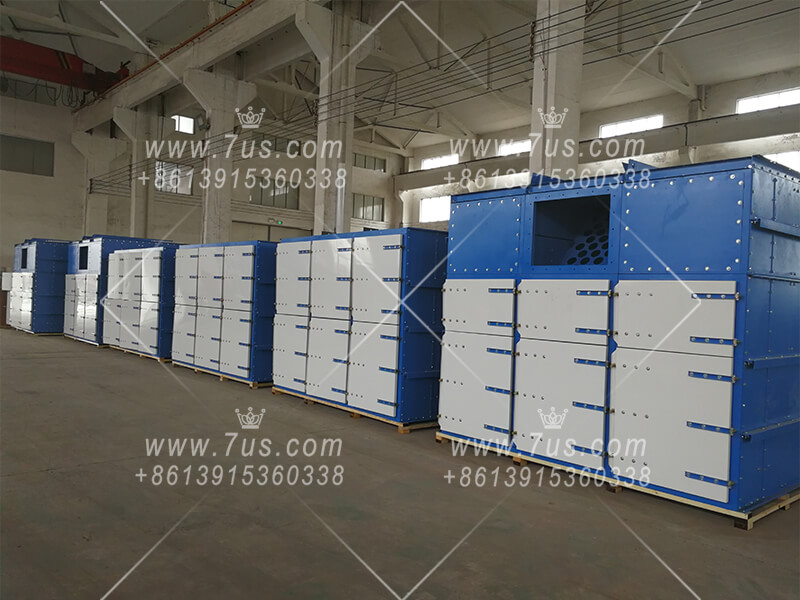

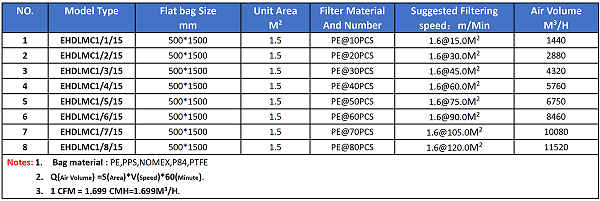

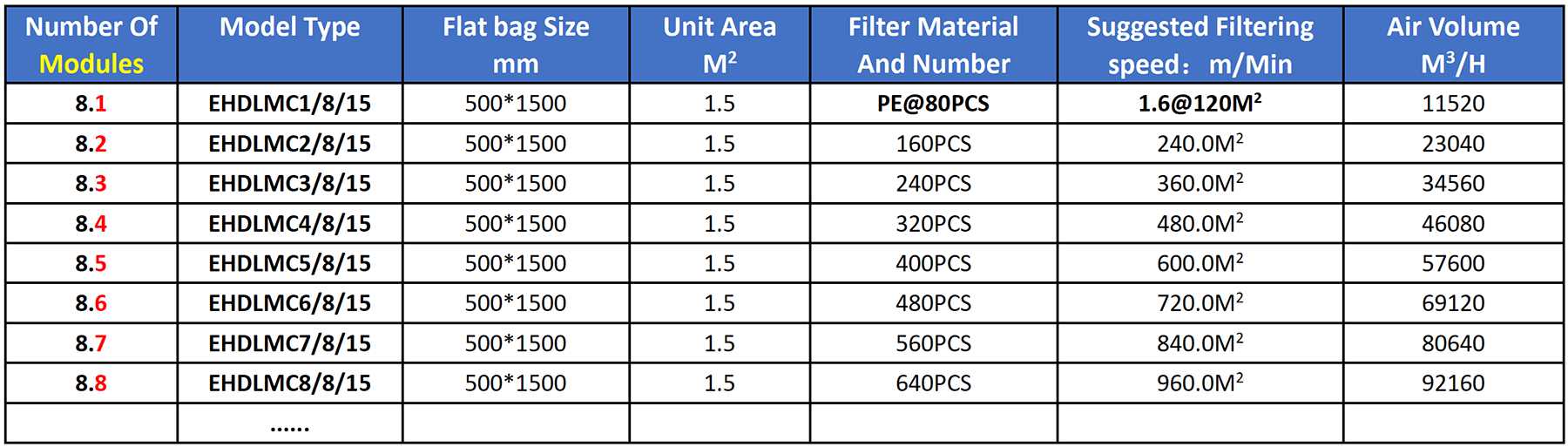

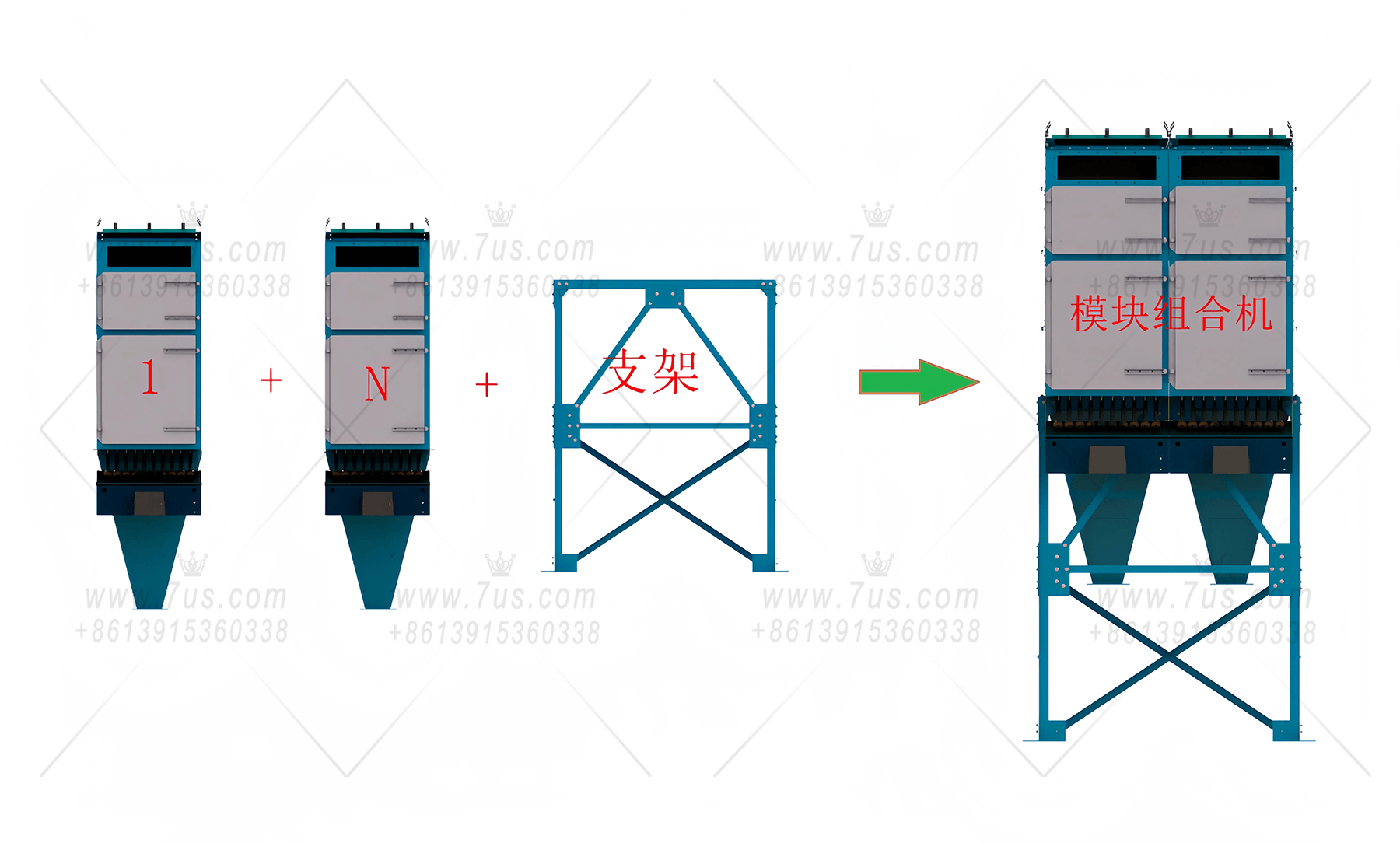

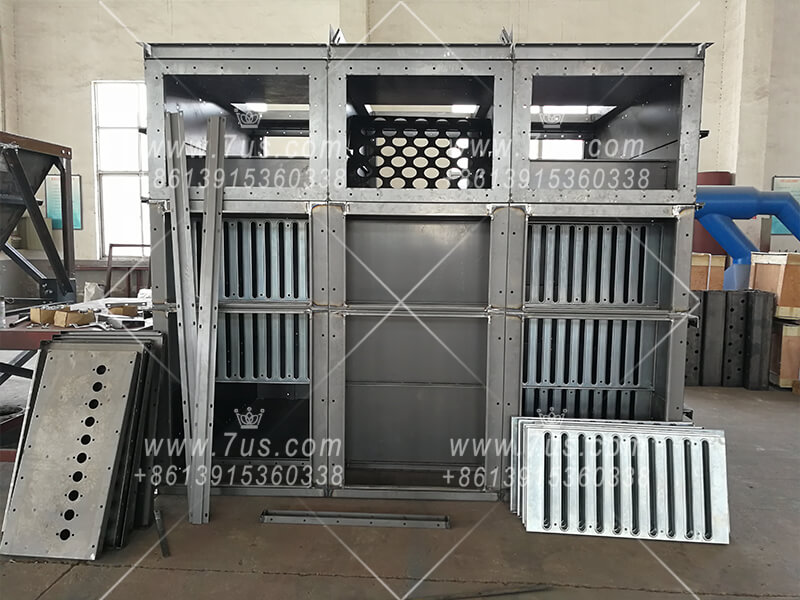

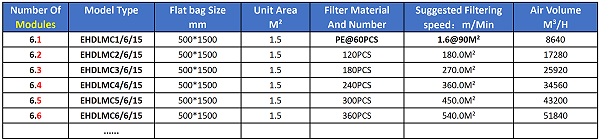

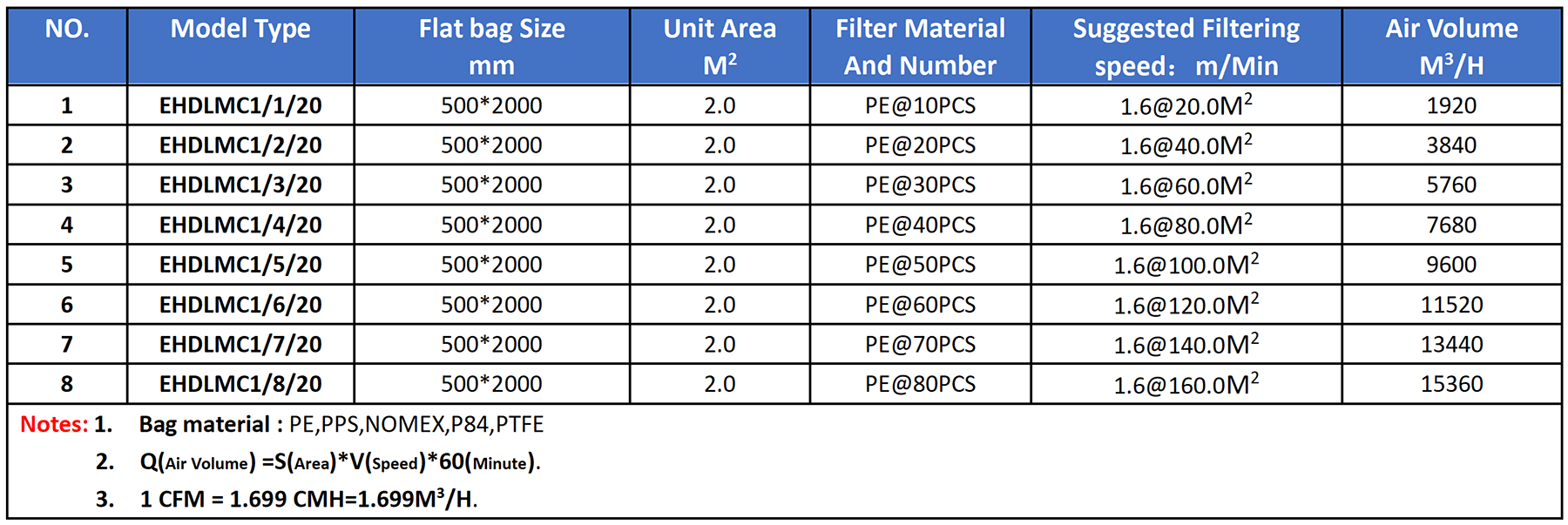

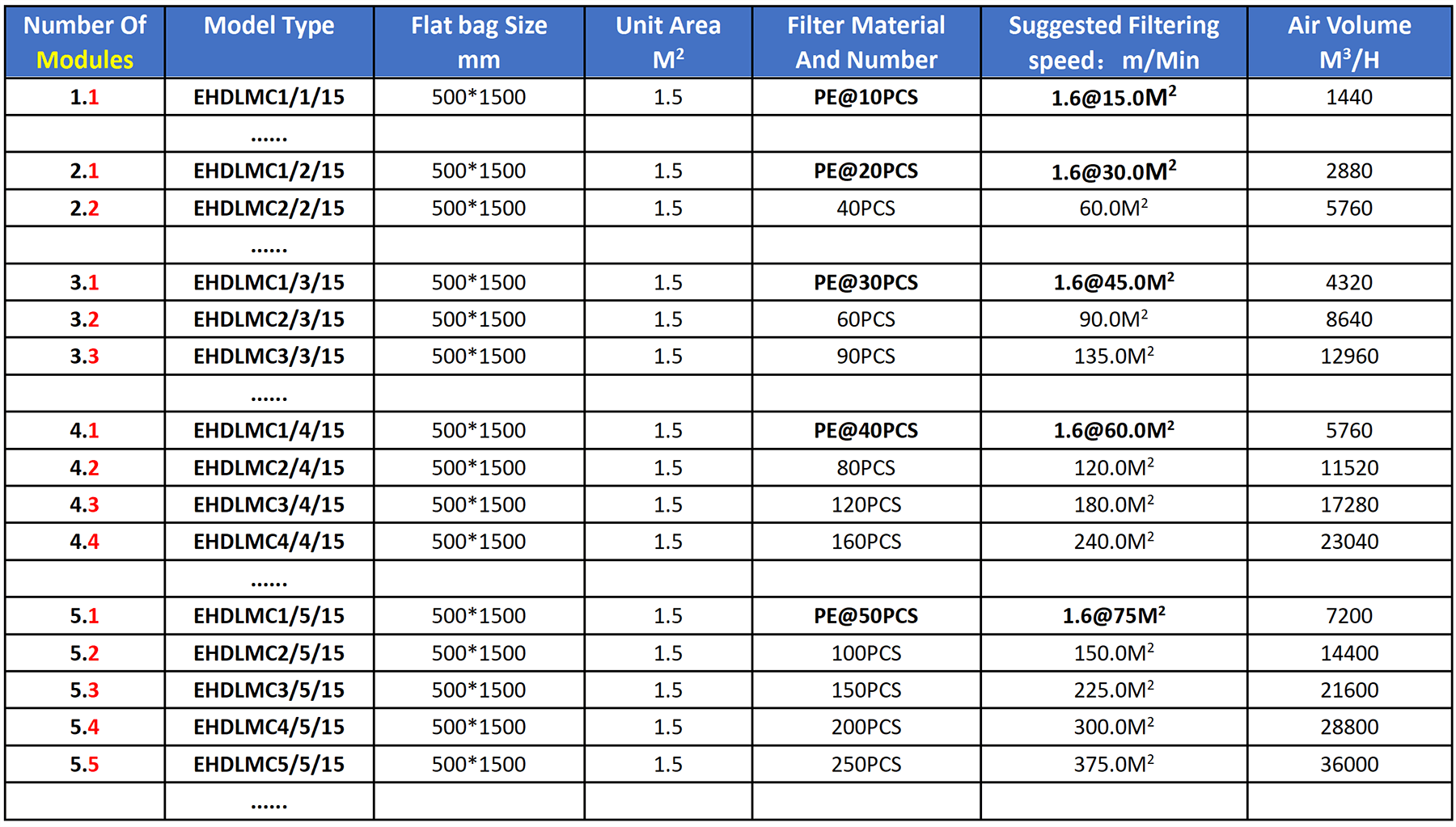

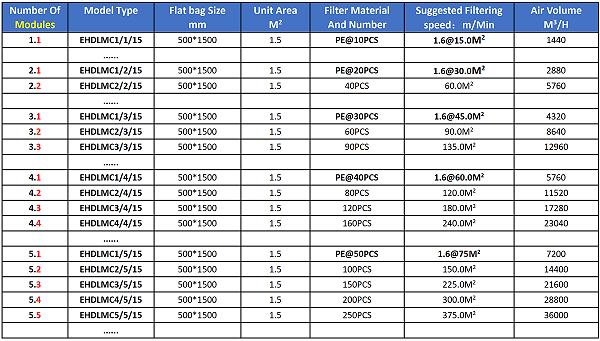

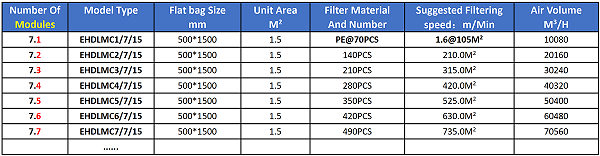

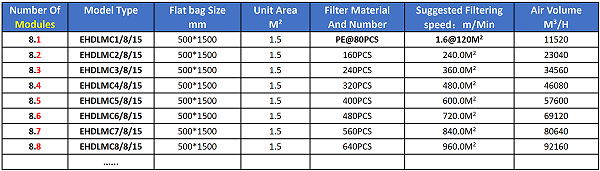

1.5 The modular structure consists of independent units with 1-8 layers and 1.5m or 2m flat bags, allowing multiple combinations according to airflow requirements.

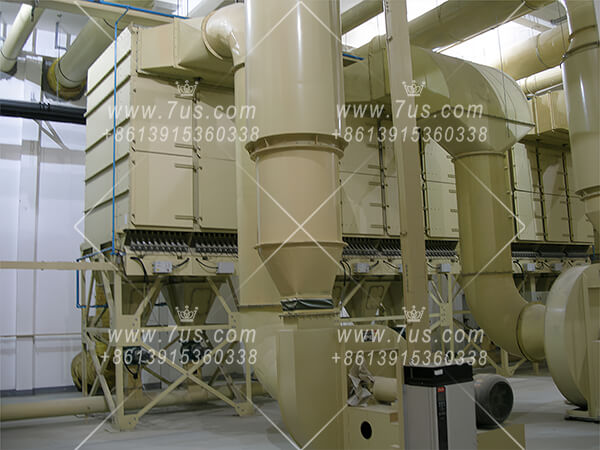

1.6 Modular design and modular installation provide flexible expansion for different industrial dust collection projects.

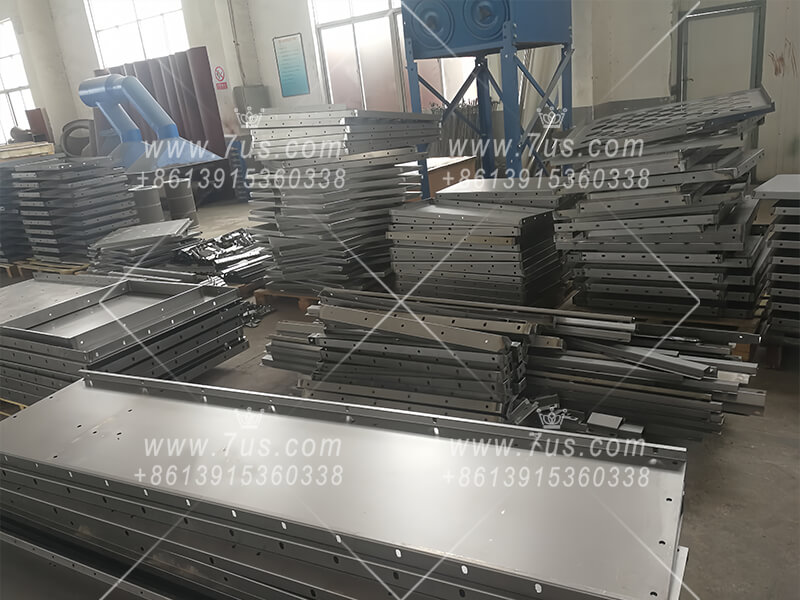

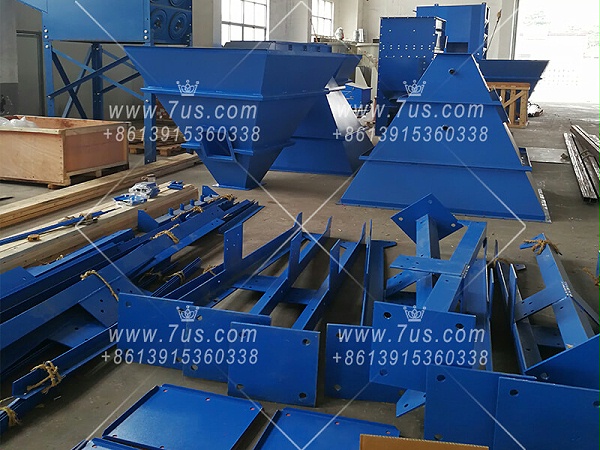

1.7 The flower board and bag cage are manufactured by precision forming processes. Carbon steel or stainless steel materials can be selected.

1.8 The side insertion structure does not occupy top maintenance space and is suitable for indoor installation.

1.9 OEM customization support is available according to airflow requirements, dust characteristics and installation conditions.

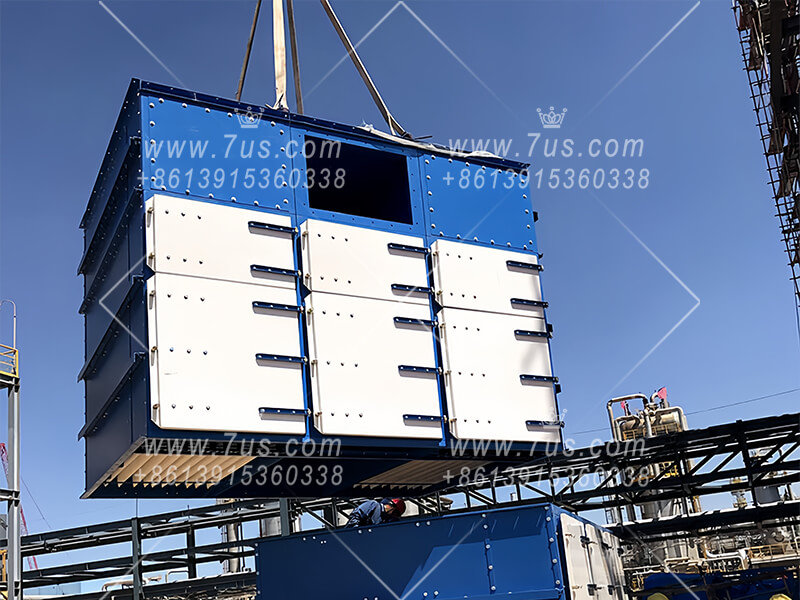

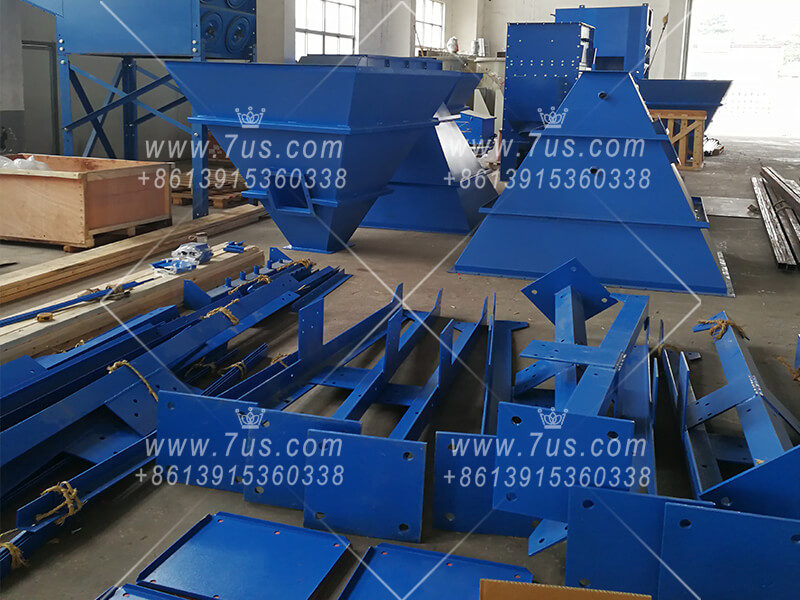

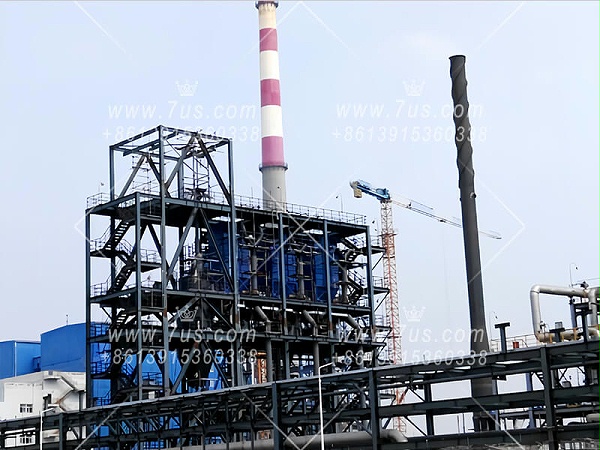

1.10 The modular structure meets international transportation requirements and allows convenient installation at overseas project sites.
