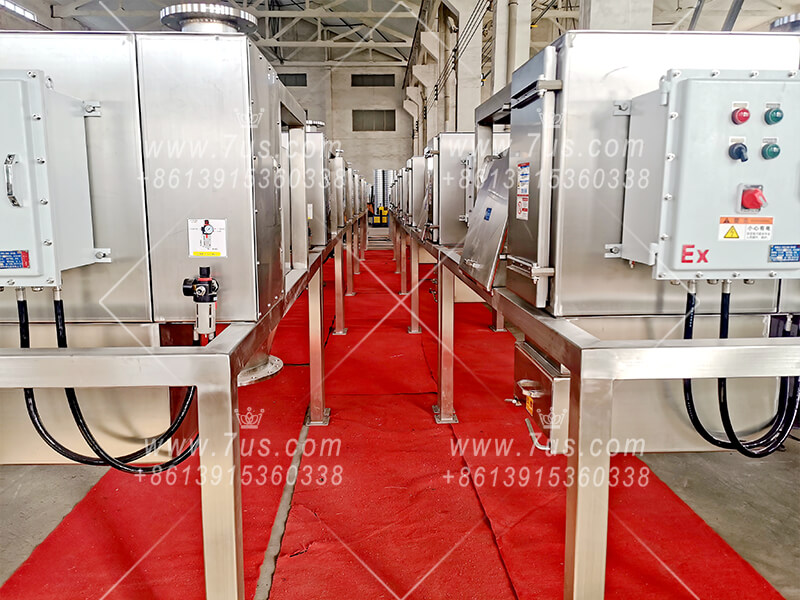

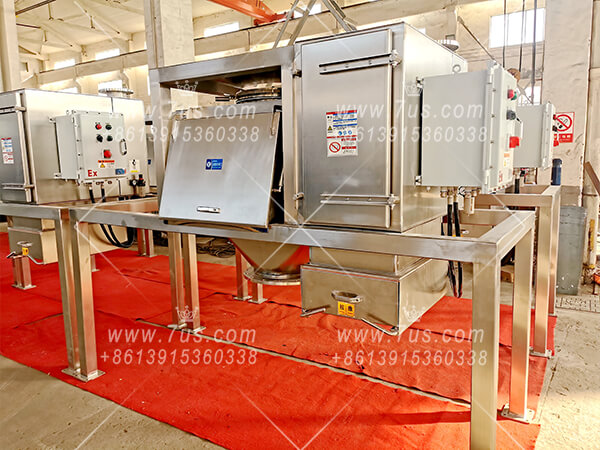

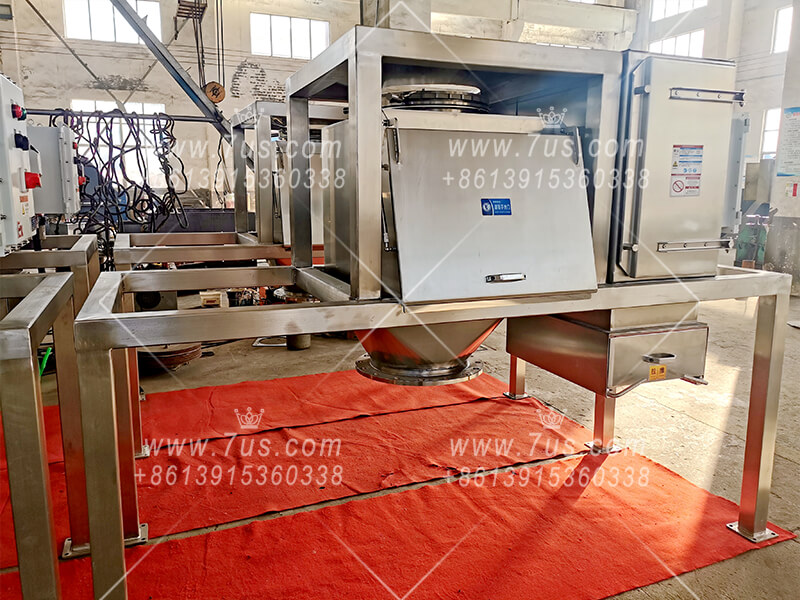

1.1. This combined powder feeding station integrates top bulk bag unloading, side manual bag feeding and cartridge dust collection into one material handling unit.

1.2. It is suitable for production processes where raw materials are supplied in different packaging formats, including bulk bags and smaller manually handled bags.

1.3. The upper feeding section allows bulk bags to be positioned above the receiving area using suitable lifting equipment and discharged into the downstream process.

1.4. The side feeding opening allows operators to manually open and discharge smaller bags without requiring a separate feeding station.

1.5. Dust generated during bag opening and powder discharge is captured close to the feeding area and directed into the integrated cartridge filtration section.

1.6. Combining two feeding methods in one station can provide greater flexibility for production lines that use different raw material packaging sizes.

1.7. Cartridge filtration provides a large filtration area within a compact structure and is suitable for capturing dry airborne particulate generated during powder feeding.

1.8. Equipment construction can be selected according to the handled material and process requirements, including stainless steel configurations where corrosion resistance or improved cleanability is required.

1.9. Some powders may present combustible dust hazards. Where applicable, suitable protection measures should be determined according to the material properties, dust hazard assessment and applicable project requirements.

1.10. Feeding interfaces, receiving hopper connections, filtration capacity and optional monitoring functions can be configured according to the upstream packaging method and downstream process equipment.
