DHC Vertical Modular Combination
DHC Vertical Modular Cartridge Dust Collector

DHC Vertical Modular Cartridge Dust Collector

1. Product series: DHC vertical modular cartridge dust collector for industrial dry dust collection.

2. Filter element: Vertical Ø324 mm filter cartridges with multiple cartridge lengths available.

3. Cleaning method: Automatic pulse-jet cleaning using compressed air.

4. Structural feature: Modular construction allows multiple collector modules to be combined according to the required airflow and filtration capacity.

5. Application: Suitable for collecting and filtering dry industrial dust without significant oil or moisture.

DHC Vertical Modular Cartridge Dust Collector

DHC vertical modular cartridge dust collector

1.1. Product design: The DHC is a vertical modular cartridge dust collector designed for industrial dry dust collection. Multiple collector modules can be combined according to the required airflow and filtration capacity.

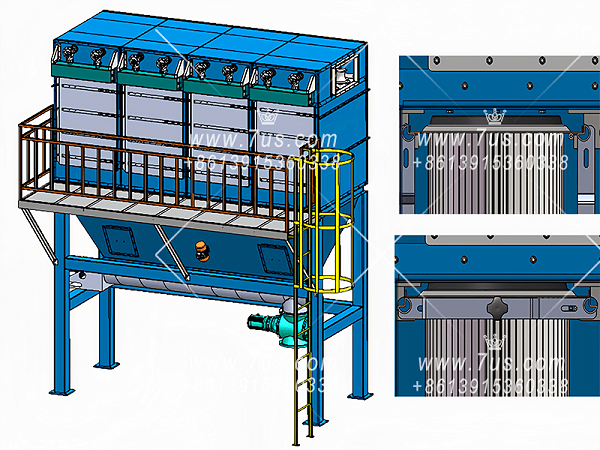

1.2. Cartridge installation: The filter cartridges are vertically installed with side access and secured by a clamp and pressure-rod structure, allowing convenient replacement without requiring top-access maintenance.

1.3. Space-saving structure: Side-access cartridge replacement reduces the required overhead maintenance space and makes the collector suitable for many indoor industrial installations.

1.4. Filter cartridge sizes: Standard cartridge diameter is approximately Ø324 mm, with common lengths of 1000 mm, 1200 mm and 1500 mm. Cartridge quantity and length can be selected according to airflow and filtration requirements.

1.5. Airflow range: Modular configurations can be used for a wide range of industrial airflow requirements, from individual collector modules to large multi-module systems.

Industrial vertical modular cartridge dust collector

1.6. Modular construction: Individual collector modules can be combined according to the required airflow, filtration area and available installation space.

1.7. Vertical cartridge arrangement: Vertical filter cartridges help dust released during pulse cleaning fall toward the hopper and reduce dust accumulation on the upper surfaces of the filter elements.

1.8. Pulse-jet cleaning: The filter cartridges are automatically cleaned by compressed-air pulses to remove accumulated dust from the filter surface during operation.

1.9. Engineering support: Equipment dimensions, cartridge quantity and module combinations can be selected according to confirmed operating requirements and available installation space. Installation guidance can also be provided.

1.10. International transportation: The modular structure is designed with overseas transportation and installation requirements in mind, helping simplify containerized shipping and on-site assembly.

Application Cases

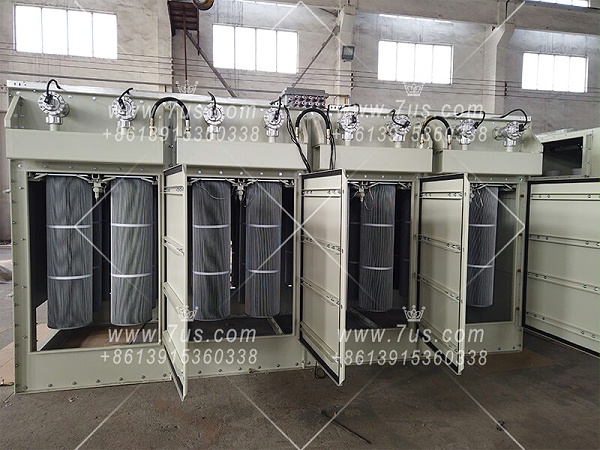

  • Upper module of DHC vertical cartridge dust collector Upper collector module

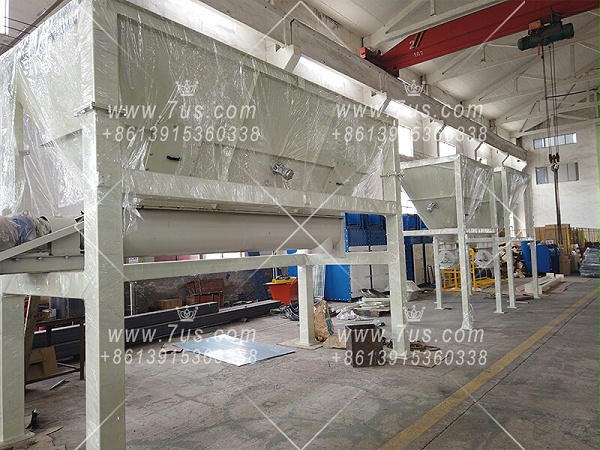

  • Lower module of DHC vertical cartridge dust collector Lower collector module

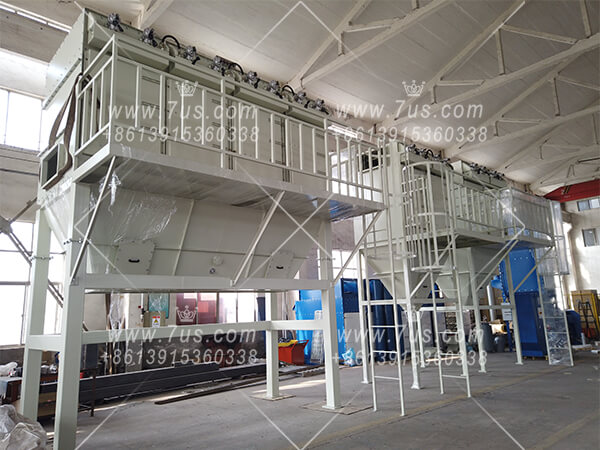

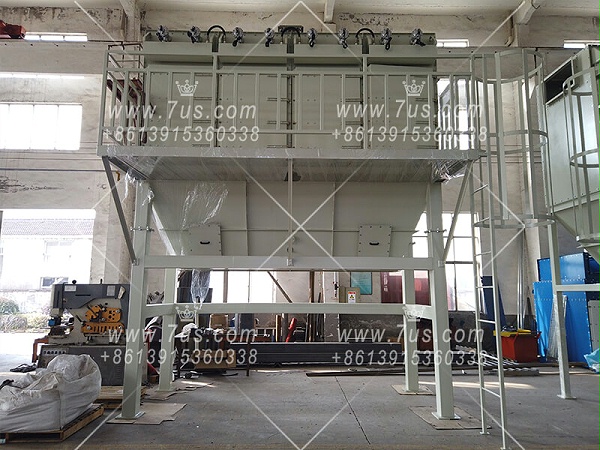

  • Assembled DHC vertical modular cartridge dust collector Complete modular dust collector

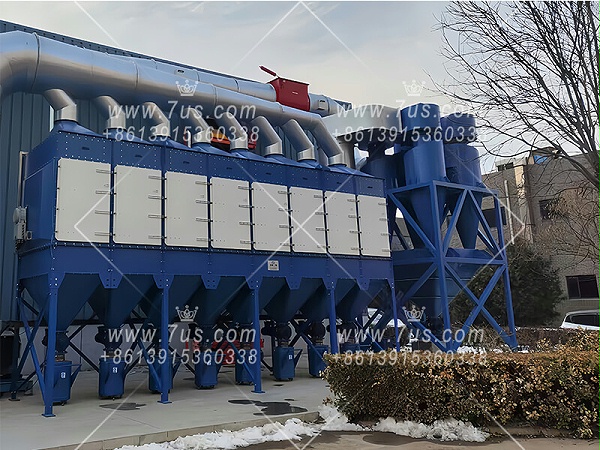

  • Cyclone pre-separator combined with cartridge dust collector Cyclone + cartridge dust collector combination

Optional Components and Configurations

  • Short-leg dust hopper for DHC cartridge dust collector

    1.1、Short-leg dust hopper
    Drawer-type dust bin

  • Standard dust hopper for DHC cartridge dust collector

    1.2、Standard dust hopper
    High-leg configuration

  • Modular dust hopper combination for DHC dust collector

    1.3、Dust hopper combination
    Multi-module configuration

  • Shared dust hopper for multiple DHC collector modules

    1.4、Shared dust hopper
    Multiple modules with one hopper

  • Round dust hopper for industrial dust collector

    1.5、Round dust hopper
    Capacity can be customized

  • Rotary airlock valve for dust discharge

    1.6、Rotary airlock valve
    Optional configuration

  • Screw conveyor for dust discharge

    1.7、Screw conveyor
    Optional configuration

  • Manual slide gate for dust hopper

    1.8、Slide gate
    Manual operation

  • Suction hood for industrial dust collection

    1.9、Suction hood
    Optional configuration

  • Ventilation duct for industrial dust collection

    1.10、Ventilation duct
    Available according to project requirements

  • Pulse valve for DHC cartridge filter cleaning

    1.11、Pulse valve
    Controls compressed-air cleaning pulses

  • Compressed air manifold for pulse-jet cleaning

    1.12、Compressed air manifold
    Supplies pulse-cleaning air

  • Vertical Ø324 mm filter cartridge for DHC dust collector

    1.13、Filter cartridge
    Length can be selected as required

  • Industrial fan for DHC dust collection system

    1.14、Fan
    Provides system airflow

  • Access ladder for DHC industrial dust collector

    1.15、Access ladder
    Optional according to equipment size

  • Maintenance platform for DHC industrial dust collector

    1.16、Maintenance platform
    Optional according to equipment size

Selection Method
Selection guide for DHC vertical modular cartridge dust collectors
Step 1、Select the required collector module：

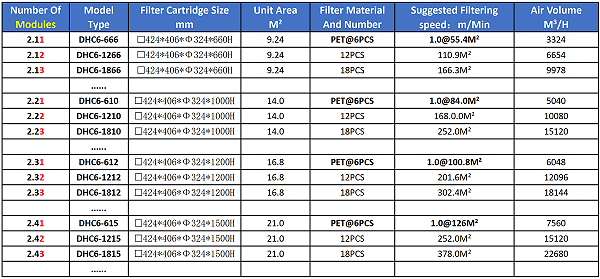

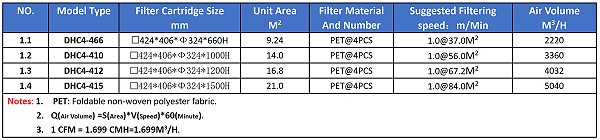

DHC vertical cartridge dust collector model selection table

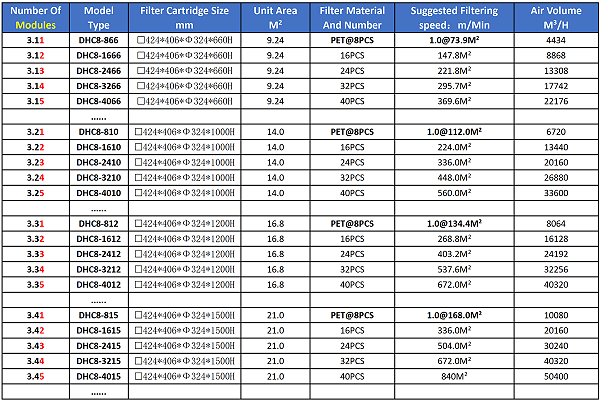

DHC cartridge dust collector module selection table

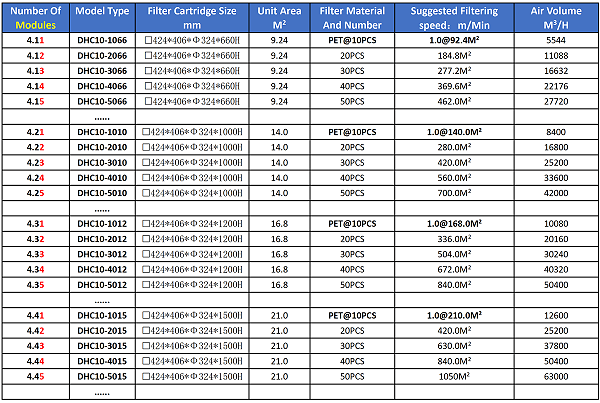

Vertical cartridge dust collector selection table

DHC modular dust collector selection table

Step 2、Combine individual modules into the required dust collector：

Multiple DHC cartridge dust collector modules combined into one system

Step 3、Confirm airflow and module quantity：

DHC cartridge dust collector airflow selection table

DHC modular cartridge dust collector selection guide

DHC cartridge dust collector cartridge quantity selection table

DHC modular cartridge dust collector airflow selection guide

Model example: DHC8-1610

1. DHC8 indicates the selected DHC module type.

2. 16 indicates that the module contains 16 filter cartridges.

3. 10 indicates a filter cartridge length of 1000 mm.
